NM-300 Mini Multifunctional Drill Saw System, Most Popular Model for Veterinary Surgery, Drill, Saw
- The NM-300 Mini Multifunctional Drill Saw System is a versatile tool designed for veterinary surgery, orthopedic procedures, and Kirschner wire and intramedullary nail applications.
- Made of stainless steel and aluminum, this system is reusable and comes with CE and ISO13485 certifications.
- With a torque of 20000g/cm and a non-load speed of 600 rpm, it offers reliable and precise performance.

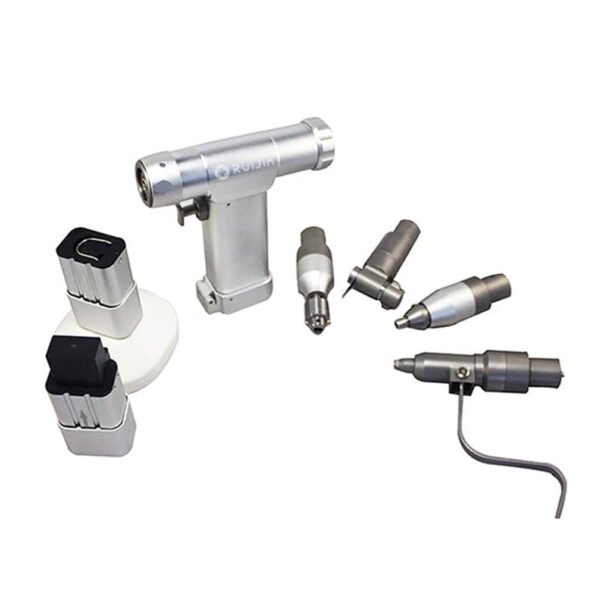

- The system includes one hand piece, two batteries, a charger, a drill chuck, a sterilizing channel, and an aluminum box for convenient storage and transport.
- SKU
- D948AF7D2A14
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
NM-300 Mini Multifunctional Drill Saw System
The NM-300 is a versatile, battery-powered orthopedic drill and saw system designed for veterinary surgery, Kirschner wire applications, and intramedullary nail procedures. Built from stainless steel and aluminum with CE and ISO13485 certifications, this reusable system delivers reliable performance with 20,000 g/cm torque and 600 rpm speed for precise bone work.
Clinical overview
The NM-300 Mini Multifunctional Drill Saw System is engineered for orthopedic and veterinary surgical applications requiring precision drilling and sawing. Its compact, lightweight design combined with cordless battery operation enables surgeons to work efficiently in confined surgical fields. The system delivers consistent torque (20,000 g/cm) and controlled rotational speed (600 rpm) essential for accurate bone work, whether placing Kirschner wires, intramedullary nails, or performing general orthopedic procedures.
With a 14.4V hand piece rated at ≥20W output power and axial run-out concentricity within 0.05 mm, the NM-300 ensures reliable, repeatable performance. The Ni-MH battery technology eliminates memory effect, supporting extended clinical use. All components are autoclavable and reusable, reducing per-case costs while maintaining the highest standards of sterility and safety.
Key features & surgeon benefits
Lightweight & Cordless Design
- Compact hand piece weighing only 1,700 g total system weight
- Battery-powered operation eliminates cable constraints in OR
- Aluminum carrying case for secure transport and storage
Efficient Surgical Performance
- 600 rpm rotational speed with 20,000 g/cm torque for controlled bone work
- Axial run-out concentricity ≤0.05 mm ensures precision drilling
- 4.0 mm hollow bore accommodates standard needles and wires
Cost-Effective Reusable System
- Fully reusable components reduce per-case consumable costs
- Autoclavable design supports high-volume surgical schedules
- Ni-MH batteries without memory effect extend service life
Multipurpose Interface
- Supports Kirschner wire, intramedullary nail, and general orthopedic applications
- Semiluser surface treatment technology for ergonomic operator comfort
- Compatible with standard brand products and accessories
Technical specifications
| Indications | Orthopedic surgery, Kirschner wire placement, intramedullary nail insertion, veterinary surgical procedures |
|---|---|
| Sizes / range | Single unit system; 4.0 mm hollow bore for standard needles |
| Material | Stainless steel and aluminum |
| Sterilisation | Autoclavable; reusable components |
| Packaging | Each set packed in aluminum box, then in carton; 1 PC per carton |
| Warranty | As applicable; CE and ISO13485 certified |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Hand Piece | 14.4V cordless drill/saw unit, ≥20W output power | 1 |
| Battery | 14.4V Ni-MH rechargeable battery, ~3 hour charge time | 2 |
| Charger | AC 220V/50Hz or 110V/60Hz input, 14.4V/900mA output | 1 |
| Drill Chuck | Standard drill chuck for bit and accessory attachment | 1 |
| Sterilizing Channel | Autoclavable sterilization tray | 1 |
| Aluminum Box | Protective carrying and storage case, 2,280 g | 1 |
