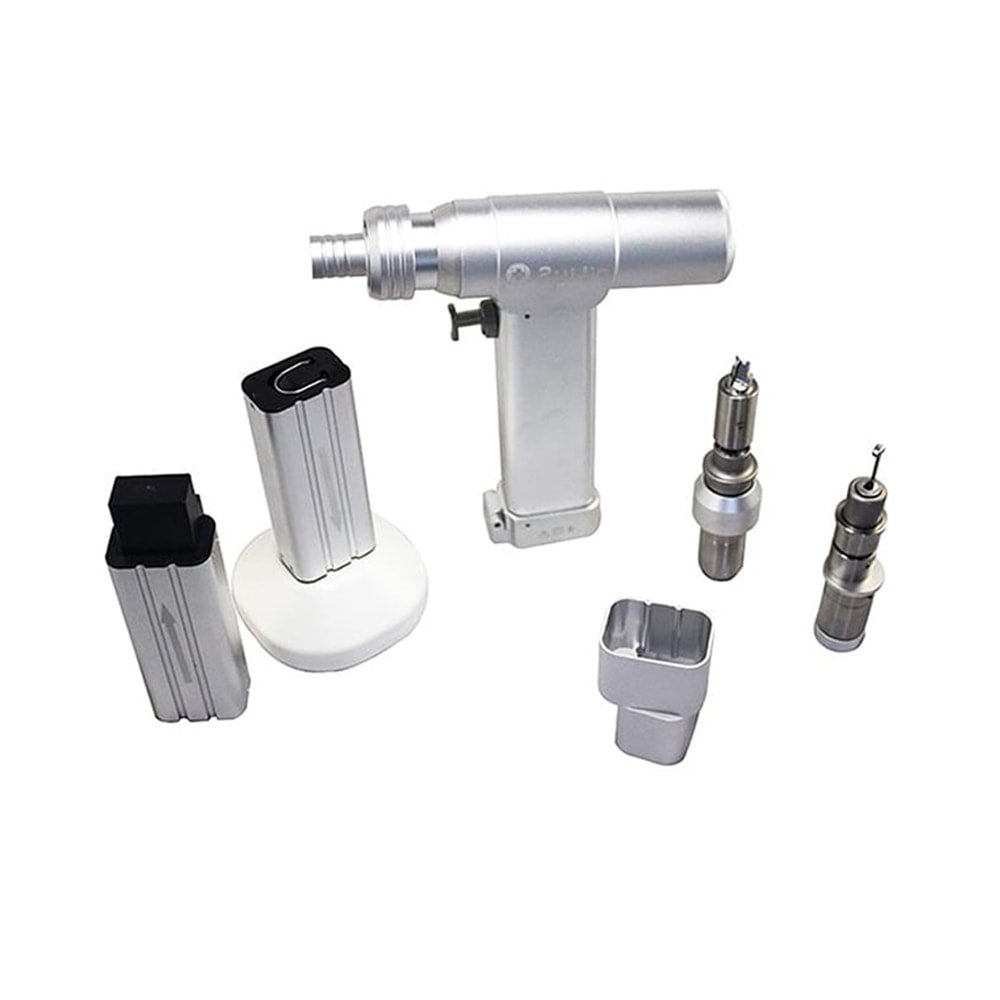

NM-200 Craniotomy Drill Mill System
$1,521.00
– The NM-200 Craniotomy Drill Mill System is a versatile and cost-effective medical device ideal for orthopedic applications
– It features a variety of attachments with different speed settings for precision and efficiency
– The mainframe is made of durable stainless steel and the device is rechargeable with Ni-MH batteries
– This drill mill system comes in a transport package with detailed packing specifications for convenience and safety
Description
NM-200 Craniotomy Drill Mill System
A versatile, cost-effective multifunctional drill system engineered for orthopedic and neurosurgical applications. The NM-200 features seven precision attachments with variable speed settings, durable stainless steel construction, and rechargeable Ni-MH batteries for extended clinical use.
Clinical overview
The NM-200 is a multifunctional handpiece system designed to streamline surgical workflows across orthopedic, neurosurgical, and trauma procedures. Its modular architecture allows surgeons to rapidly interchange seven precision attachments—each optimized for specific tasks—without breaking sterility or workflow continuity. The system’s ergonomic design, 360° rotating head, and variable speed control (0–40,000 r/min) enable safe, efficient bone work in craniotomy, sternotomy, acetabular reaming, and pin fixation.
Built on a stainless steel mainframe with imported quick-chuck technology, the NM-200 delivers consistent torque and speed stability across all applications. The cranial drill features auto-pause perforation safety, while the 40,000 r/min cranial mill ensures rapid, controlled bone removal. Rechargeable Ni-MH batteries (memory-free) provide extended runtime, and full autoclavability at 135°C supports demanding sterilization protocols.
Key features & surgeon benefits
Seven Precision Attachments
- Quick chuck (0–1,300 r/min) for universal drilling
- Cranial mill (40,000 r/min) for rapid, safe bone removal
- Cranial drill with auto-pause perforation safety
- Sternum saw (0–15,000 r/min) with 360° rotating head
- Oscillating saw (0–16,000 r/min) for soft-tissue protection
- Reamer (0–300 r/min, hi-torque) for acetabular work
- Wire & pin chuck (0–600 r/min) for intramedullary fixation
Ergonomic, Rapid Changeover
- Wrenchless quick-connect system for tool-free attachment swaps
- 360° rotating handpiece head adapts to any surgical site
- Single handpiece drives all seven attachments seamlessly
- Auto-pause cranial drill prevents breakthrough perforation
- Blade guard on sternum saw protects adjacent soft tissue
- Imported chuck ensures consistent performance and reliability
Cost-Effective, Durable System
- Reusable, high-strength stainless steel construction
- Ni-MH rechargeable batteries (memory-free, environmentally friendly)
- Comprehensive attachment library reduces need for multiple devices
- Extended battery runtime minimizes downtime between procedures
- Autoclavable at 135°C for standard sterilization cycles
- Modular design simplifies maintenance and repair
Flexible Configuration
- Select attachments based on surgical specialty and case mix
- Available in black or silver finish
- Custom attachment combinations on request
- OEM partnerships and bulk procurement options
- Aluminum transport box with custom labeling available
- Training and technical support included
Technical specifications
| Indications | Orthopedic surgery, craniotomy, sternotomy, acetabular reaming, neurosurgery, trauma fixation |
|---|---|
| Sizes / range | Seven interchangeable attachments; variable speed 0–40,000 r/min depending on application |
| Material | High-strength stainless steel mainframe; imported quick-chuck; wrenchless blade collect |
| Sterilisation | Autoclavable at 135°C |
| Packaging | One set packed in aluminum alloy box (38 cm × 28 cm × 13 cm), then in carton (41 cm × 32 cm × 15 cm) |
| Warranty | As applicable; regulatory record Wsyjxzz2012-2100053 |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Main multifunctional drill unit with 360° rotating head | 1 |
| Quick Chuck | Universal chuck attachment (0–1,300 r/min) | 1 |
| Sternum Saw | Sternum-specific saw with blade guard (0–15,000 r/min) | 1 |
| Swing Saw | Oscillating saw with 360° rotating head (0–16,000 r/min) | 1 |
| Bone Drill | Standard bone drill attachment | 1 |
| Canulated Drill | Cannulated drill for intramedullary work | 1 |
| Craniotomy Drill | Cranial drill with auto-pause perforation safety (900 r/min) | 1 |
| Cranial Mill | High-speed cranial mill (40,000 r/min) for rapid bone removal | 1 |
| Acetabulum Burnishing Drill | Specialized reamer for acetabular procedures (0–300 r/min, hi-torque) | 1 |
| Wire & Pin Chuck | Chuck for intramedullary pins and Kirschner wires (0–600 r/min, 4.0 mm canula) | 1 |
| Charger | Ni-MH battery charger | 1 |
| Batteries | Rechargeable Ni-MH batteries (memory-free) | 2 |
| Transport Box | Aluminum alloy protective case with foam insert | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NM-200 system, custom configurations, and volume pricing. We provide comprehensive technical support and clinical training to ensure optimal outcomes in your OR.
Email: info@tedsmedical.com
Related Products
– Powerful cranial drill for cranial surgery applications
– Ergonomic design with autoclavable components for easy sterilization
– Imported motor for low noise operation and long service life
– Warranty: 2 years for the machine, 3 months for fast consumption items
– The BJ3600 Microtype surgical power tool is a versatile and reliable device for surgical procedures.
– Designed for precision and efficiency, it helps surgeons perform with accuracy.
– Lightweight and ergonomic, it allows for comfortable handling during long procedures.
– The tool comes with multiple attachments for various surgical needs.
– Versatile and cost-effective multifunctional drill saw system
– Professional surgical power tools manufacturer
– Reusable stainless steel material for long-lasting use
– Includes seven attachments for different surgical procedures
– Model Number: RJ-MP-EM-100
– Type: Surgical Instrument
– Material: Stainless Steel
– Feature: Reusable
– Medical Device Regulatory Type: Type 2
– Weight: 997g
– Speed of Bone Drill Attachment: 1025rpm
– Saw frequency of 15000 cpm for precise cutting
– Working voltage of 4.8V for consistent power
– Output power of ≥20W for efficient operation
– Important notes on sterilization, drill bit capacity, and battery care for prolonged use
– The Autopsy Saw System is widely used in craniotomy, spinal cord opening, and osteotomy
– It provides a swing cut with fast speed, causing no damage to soft tissue
– Features reliable and strong power without blood splatter and bone powder
– Ergonomic design to relieve operators’ operation fatigue
– Equipped with DC AC dual power supply for both indoor and outdoor use
– Comes with a standard configuration including a control cabinet, power connector, power cord, charger, handpiece, socket head wrench, and two saw blades
– Pack of 5 replacement blades for plaster saw
– High-quality blades designed for precise cutting
– Compatible with most standard plaster saw models
– Durable and long-lasting for multiple uses
– Lightweight and portable smart driver for easy use
– Powerful and precise operation for effective results
– Ergonomic design for comfortable handling
– Dual image guides for accurate drilling
– Ideal for medical professionals and surgical procedures
– Comes with LED light for enhanced visibility during use

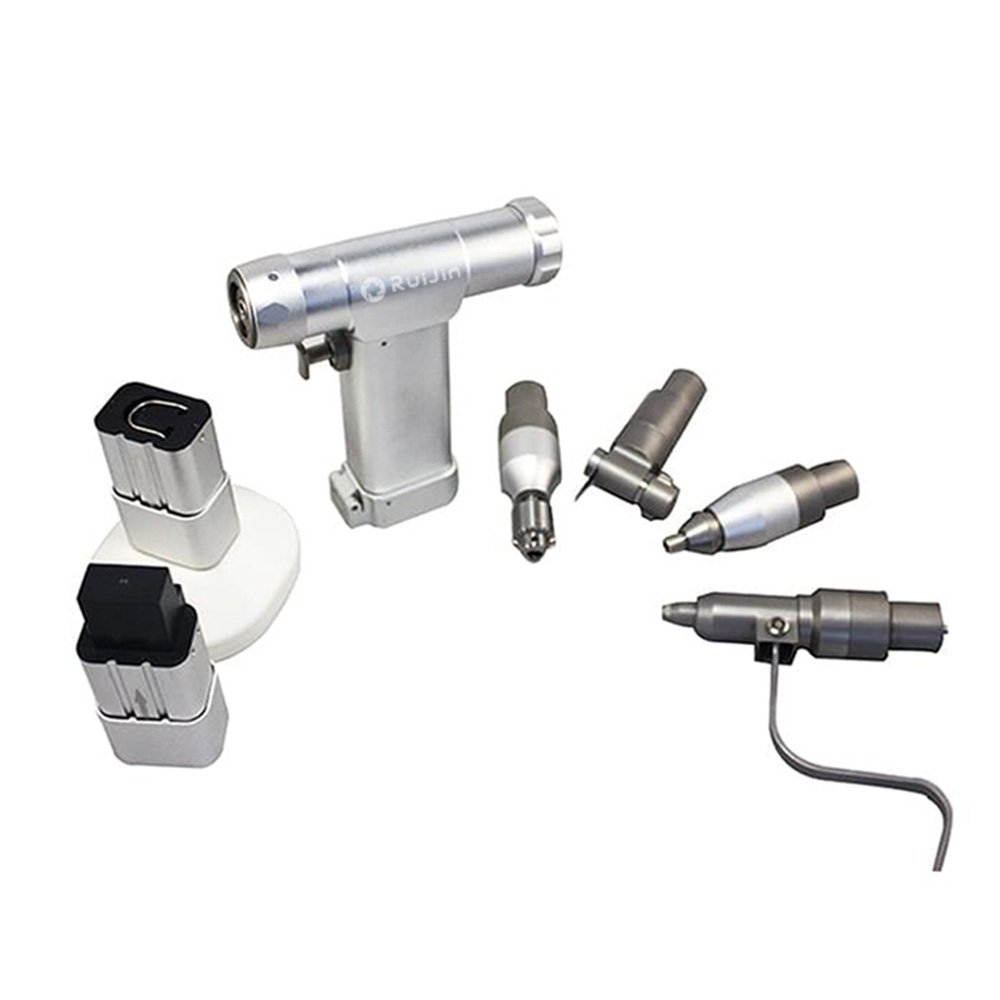

– The NM-300 Mini Multifunctional Drill Saw System is a versatile tool designed for veterinary surgery, orthopedic procedures, and Kirschner wire and intramedullary nail applications.
