Defi 5C Medical equipment D-Sense Defibrillator analyzer for AED defibrillator and monitor energy test

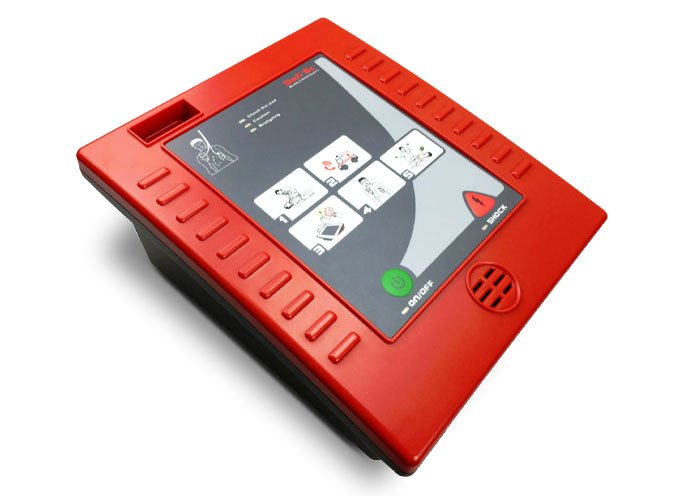

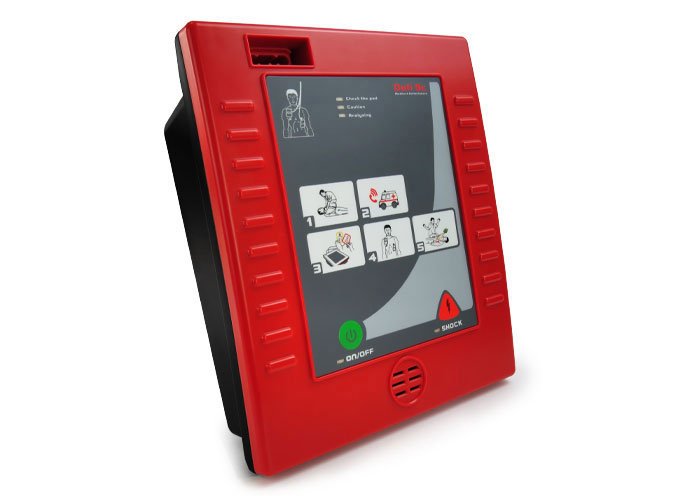

- The Defi 5C Medical equipment D-Sense Defibrillator analyzer is an automatic external defibrillator with a three-step defibrillation process.
- It features a two-button operation and extensive voice and visual prompts for the operator.
- The defibrillator has lock-out protection to prevent inadvertent defibrillation and a long-life disposable LiMnO2 type battery with a lifespan of at least 5 years.
- It also includes an internal memory for ECG signals and events, with the option to transfer data to a computer.
- SKU
- 70B32AC962B1
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Defi 5C D-Sense Defibrillator Analyzer
Advanced automatic external defibrillator with three-step biphasic defibrillation process, extensive voice and visual guidance, and integrated ECG memory. Designed for rapid, reliable emergency response with minimal operator training required.
Clinical overview
The Defi 5C D-Sense is a fully automatic external defibrillator engineered for rapid, effective treatment of sudden cardiac arrest in both public access and clinical settings. The device employs a proven three-step biphasic defibrillation sequence (150J, 150J, 200J maximum) with charge times under 6 seconds to 150J and under 8 seconds to 200J, enabling swift intervention during critical moments.
Extensive voice prompts and LED visual indicators guide operators through each step of the resuscitation process, minimizing training requirements and reducing operator hesitation. The integrated 60-hour internal memory captures up to 1500 ECG events and voice prompts, enabling post-event analysis and quality assurance. Data transfer via infrared connectivity allows seamless integration with hospital information systems and quality monitoring protocols.
Key features & surgeon benefits
Proven Biphasic Waveform
- Biphasic truncated exponential energy delivery
- Three-step sequence optimized for defibrillation success
- Maximum 200-Joule output for adult patients
Intuitive Two-Button Operation
- Simple ON/OFF and Shock button controls
- Extensive voice and visual guidance for all operators
- Lock-out protection prevents inadvertent defibrillation
Long-Life Power Management
- Non-rechargeable Li-MnO2 battery with 5+ year lifespan
- Optional rechargeable battery for cost-conscious deployments
- Automatic daily, weekly, and monthly self-test capability
Integrated Event Documentation
- 60-hour internal memory for ECG signals and events
- Infrared data transmission to computer systems
- Optional AED storage software for supervisory oversight
Technical specifications
| Type | Automatic External Defibrillator (AED) |
|---|---|
| Indications | Cardiac arrest, ventricular fibrillation, pulseless ventricular tachycardia |
| Mode | Adult |
| Waveform | Biphasic truncated exponential |
| Energy Output | Maximum 200 Joules |
| Energy Sequence | 150J, 150J, 200J |
| Charge Time (new, 25°C) | Less than 6 seconds to 150J; less than 8 seconds to 200J |
| Voice Prompts | Extensive voice guidance |
| Visual Indicators | LED prompts |
| Control Interface | Two buttons: ON/OFF, Shock |
| ECG Storage | 1500 events; 60-hour memory |
| Data Transmission | Infrared (IrDA) |
| Battery Type | Non-rechargeable Li-MnO2 cell, 12V 3000mAh |
| Battery Life | Minimum 5 years |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 30% to 95% relative humidity (non-condensing) |
| Storage Temperature (without battery) | -20°C to 55°C |
| Storage Humidity (without battery) | Up to 93% relative humidity (non-condensing) |
| Dimensions | Depth 256mm, Width 220mm, Height 65–80mm |
| Weight (with battery) | 1.9 kg (4.2 lbs) |
| Self-Test | Daily, weekly, monthly automatic checks |
| Sterilisation | Non-sterile; ready for immediate deployment |
| Packaging | Carrying case included |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| AED Pad | Disposable electrode pads for patient application | 1 |
| Battery | Li-MnO2 non-rechargeable, 12V 3000mAh | 1 |
| Carrying Case | Protective case for transport and storage | 1 |
| Cleaning Cloth | Device maintenance cloth | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and optional accessories including AED cabinets, IrDA USB adapters, and ECG data transfer software for your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
