Emergency First Aid Defibrillator monitor with Biphasic and Monophasic Technology Defi 9
- Emergency First Aid Defibrillator monitor with Biphasic and Monophasic Technology Defi 9
- Large TFT screen 7 inch for easy viewing during emergencies
- Built-in multi-parameter patient monitor for ECG, SpO2, NIBP, RESP, PR, and TEMP monitoring
- Offers both Monophasic and optional Biphasic technology for accurate energy delivery
- Energy selection from 0.3 to 360 joules for versatile usage
- Comes with two batteries for extended operational capacity
- SKU
- D7F7AB5A603E
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Defi 9 Emergency First Aid Defibrillator Monitor
Advanced biphasic and monophasic defibrillation with integrated multi-parameter patient monitoring. Large 7-inch TFT display provides clear ECG, SpO₂, NIBP, respiration, pulse rate, and temperature visualization during critical emergency interventions.
Clinical overview
The Defi 9 is a comprehensive emergency defibrillation and patient monitoring system designed for rapid, effective cardiac intervention in acute care environments. Combining manual and synchronized defibrillation modes with integrated multi-parameter monitoring, the device enables clinicians to assess cardiac rhythm, vital signs, and oxygenation status simultaneously, reducing decision time and improving patient outcomes.
The large 7-inch TFT display ensures clear visualization of 12-lead ECG, SpO₂, non-invasive blood pressure, respiration rate, pulse rate, and core temperature. Flexible energy selection from 0.3 to 360 joules accommodates both adult and pediatric patients, while optional biphasic waveform technology provides enhanced defibrillation efficacy. Dual battery system ensures extended operational capacity for prolonged resuscitation efforts.
Key features & surgeon benefits
Comprehensive Multi-Parameter Display
- 12-lead ECG with I, II, III, aVR, aVL, aVF, V1–V6 visualization
- Real-time SpO₂, NIBP, respiration, pulse rate, and temperature tracking
- 7-inch TFT screen for clear visibility in high-stress environments
Flexible Energy Delivery & Waveform Options
- Energy selection 0.3–360 joules in 12 increments
- Monophasic standard with optional biphasic technology
- Rapid charging to 360 joules in ≤8 seconds
Integrated Adult & Pediatric Capability
- Reusable external adult paddles with integrated pediatric configuration
- Manual and synchronized defibrillation modes
- Dual battery system for extended operational duration
Modular Accessory Ecosystem

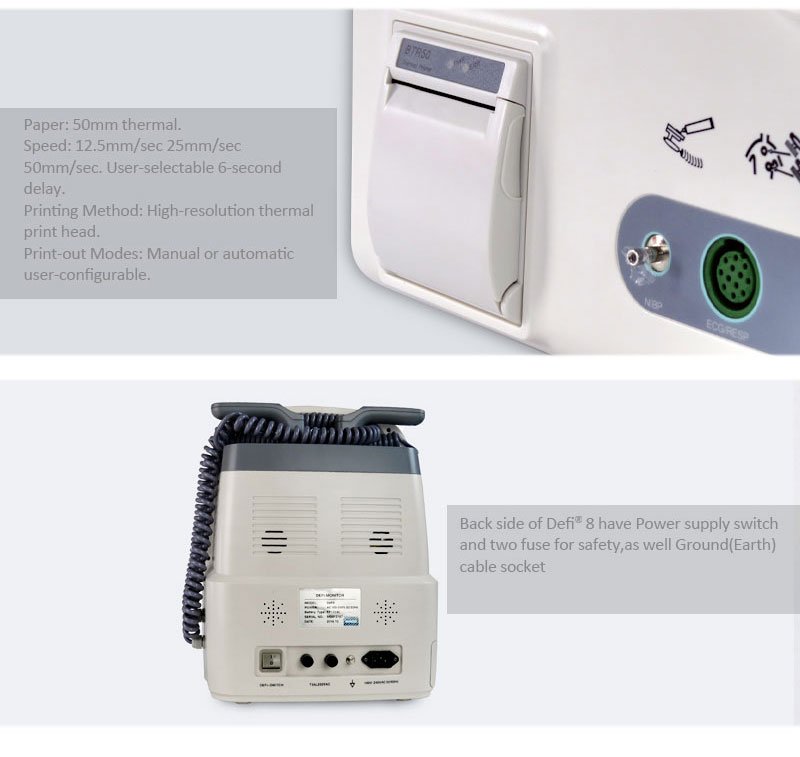

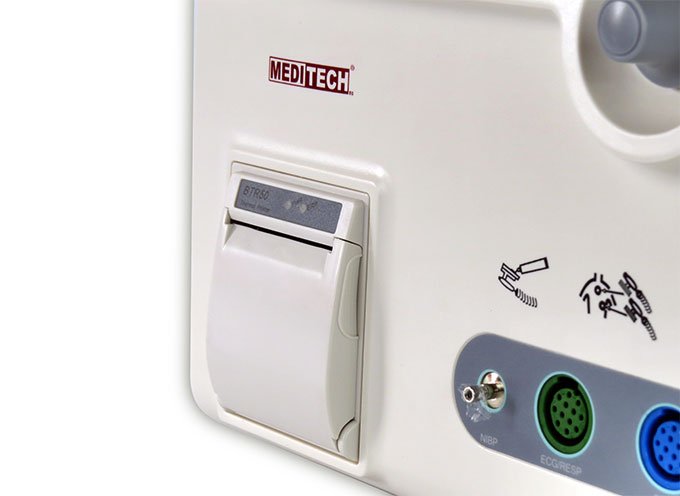

- Optional thermal printer/recorder for documentation
- Multiple SpO₂ sensor options (adult, pediatric, neonatal)
- Wall mounts, trolleys, and carry bags available

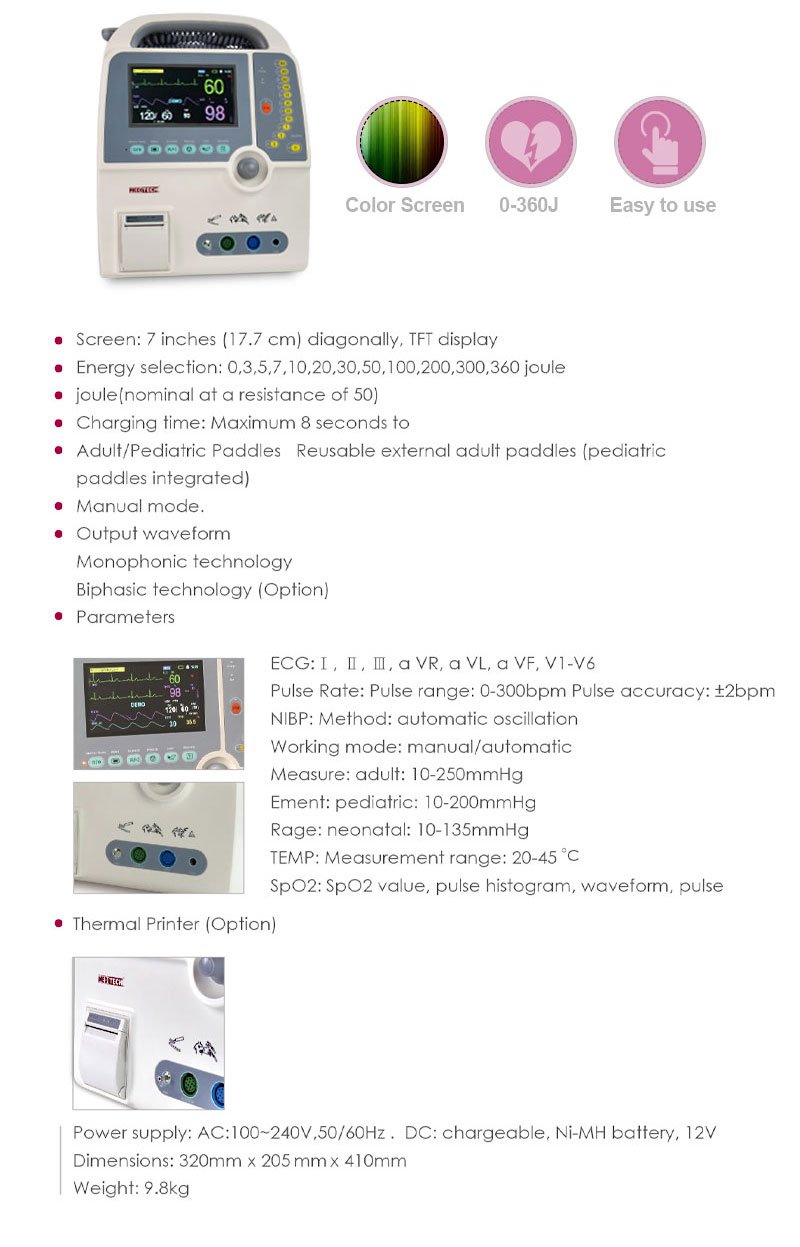

Technical specifications
| Indications | Acute cardiac arrhythmia management, emergency resuscitation, critical care monitoring |
|---|---|
| Defibrillator type | Manual, Synchronized, Asynchronized |
| Output waveform | Monophasic standard; Biphasic optional |
| Energy accuracy | ±1% |
| Energy selection | 0.3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at 50 Ω) |
| Charging time | Maximum 8 seconds to 360 joules |
| Paddles | Reusable external adult paddles with integrated pediatric configuration |
| Display | 7-inch TFT screen |
| ECG leads | I, II, III, aVR, aVL, aVF, V1–V6 |
| Pulse rate range | 0–300 bpm; accuracy ±2 bpm |
| NIBP method | Automatic oscillation; manual/automatic modes |
| NIBP range (adult) | 10–250 mmHg |
| NIBP range (pediatric) | 10–200 mmHg |
| NIBP range (neonatal) | 10–135 mmHg |
| Temperature range | 20–45 °C |
| SpO₂ range | 0–99% (adult, pediatric, neonatal) |
| SpO₂ probe | Standard adult finger clip; optional variants available |
| Batteries | 2 units included for extended capacity |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Cable | 5-lead configuration | 1 |
| SpO₂ Sensor | Standard adult finger clip | 1 |
| SpO₂ External Cable | Connection cable | 1 |
| Temperature Probe | TEMP measurement | 1 |
| NIBP Cuff | Standard adult size | 1 |
| NIBP Tube | Connection tubing | 1 |
| Ground Wire | Safety grounding | 1 |
| Battery | Rechargeable unit | 2 |
| Power Cable | AC mains connection | 1 |
| Fuse | Replacement units | 2 |
| Cleaning Cloth | Maintenance | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the Defi 9 system, pricing, delivery timelines, and customization options for your emergency care facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
