Defibrillator Professional Heart Shock Device with ECG Monitor Defi®8
- Professional defibrillator with ECG monitor
- Large TFT screen for easy viewing
- Energy selection range from 0.3 to 360 joules
- Standard adult/pediatric paddles included
- Two batteries for extended capacity
- SKU
- A7021E944035
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Defi®8 Professional Defibrillator with ECG Monitor
Advanced cardiac monitoring and defibrillation system featuring a large 7-inch TFT display, comprehensive ECG analysis, and flexible energy selection from 0.3 to 360 joules. Designed for hospital, clinic, and emergency response environments with dual battery backup for extended operational capacity.
Clinical overview
The Defi®8 is a professional-grade defibrillator system combining real-time ECG monitoring with synchronized and asynchronized defibrillation capabilities. The large 7-inch high-resolution TFT display provides clear visualization of 10-lead ECG waveforms (I, II, III, aVR, aVL, aVF, V1, V6, GND), enabling rapid arrhythmia identification and clinical decision-making. Monophasic waveform technology is standard, with biphasic technology available as an option for enhanced efficacy.
Engineered for rapid response and extended operational reliability, the Defi®8 features dual rechargeable battery backup (lead-acid or lithium options), AC mains power supply compatibility (110V 60Hz / 220V 50Hz), and vehicle DC 12V operation. The system delivers 120 minutes of continuous monitoring and 30 full-energy discharges (360 joules) on a single battery charge, making it suitable for mobile emergency units, hospital wards, and critical care environments.
Key features & surgeon benefits
High-Resolution ECG Visualization
- 7-inch TFT display with 480×234 resolution
- 10-lead ECG with ST-segment analysis (±2.0 mV range)
- Automated arrhythmia detection and analysis
Flexible Energy Delivery
- Selectable energy: 0.3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules
- Manual, synchronized, and asynchronized modes
- Maximum 8-second charge time to 360 joules
Dual Battery Backup & Multi-Power
- Two rechargeable batteries for extended capacity
- AC mains (110V/220V) and DC 12V vehicle operation
- 4-hour minimum full charge time; 120 min monitoring + 30 discharges per charge
Comprehensive System Integration

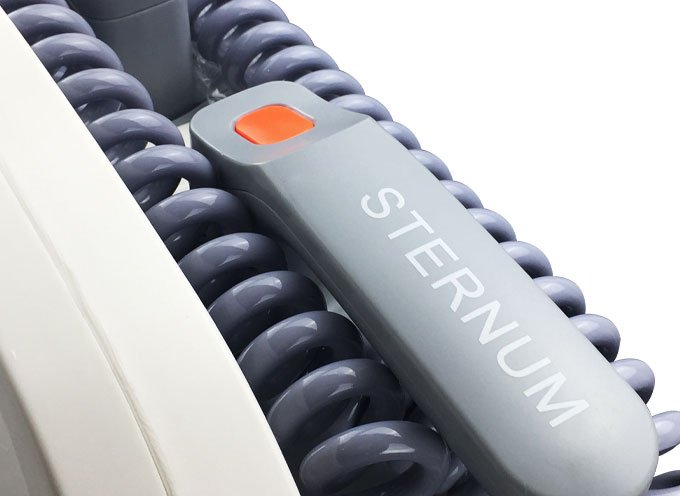

- Standard adult/pediatric reusable paddles included

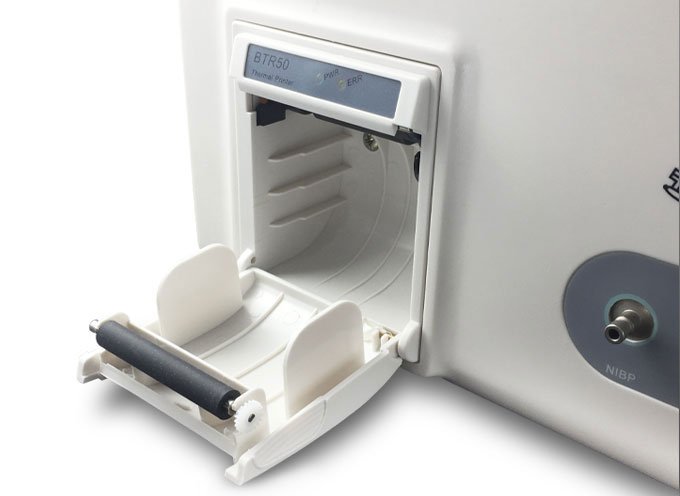

- Optional recorder, SpO2, NIBP, and wall-mount systems
- Multiple trolley and carrying bag configurations available
Technical specifications
| Indications | Acute cardiac arrhythmia, ventricular fibrillation, pulseless ventricular tachycardia, cardiac monitoring in critical care |
|---|---|
| Sizes / range | Energy: 0.3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at 50Ω); Display: 7-inch diagonal (155mm × 88mm) |
| Material | Medical-grade electronics, reusable external paddles (adult with integrated pediatric) |
| Sterilisation | As applicable |

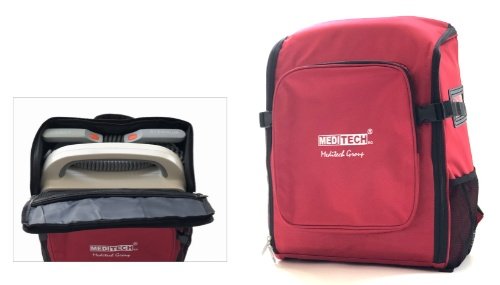

| Packaging | Standard carrying bag; optional trolley and wall-mount systems |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Cable | 5-lead ECG cable with connectors | 1 |
| Ground Wire | Isolated ground wire for safety | 1 |
| Battery | Rechargeable lead-acid or lithium (optional) | 2 |
| Power Cable | AC mains power supply cable | 1 |
| Fuse | Replacement fuses for device protection | 2 |
| Cleaning Cloth | Microfiber cleaning cloth for display and paddles | 1 |
| Adult/Pediatric Paddles | Reusable external paddles with integrated pediatric mode | 1 pair |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, pricing, delivery timelines, and customisation options including recorder, SpO2, NIBP, and accessory packages.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
