Portable Color Screen AED Defibrillator with ECG, Multi Language, SD Socket For Data Transfer from AED Device Defi 6
- Portable color screen AED defibrillator with ECG monitoring
- Features multi-language voice prompts and visual guidance
- SD card for data transfer and storage capacity
- Includes adult and pediatric defibrillation capabilities
- Option for CPR coaching and ECG measurement with 3 lead cable
- SKU
- 211BD4583D3B
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping

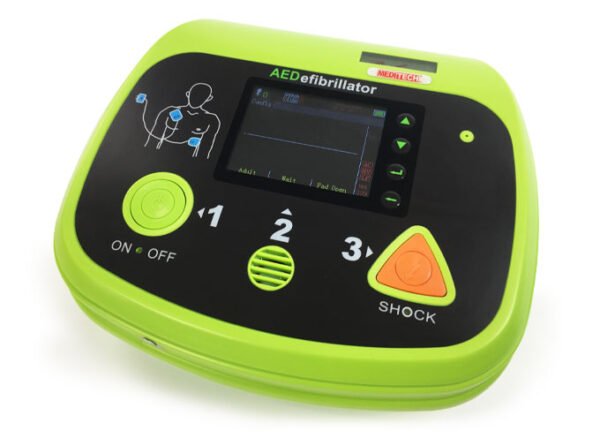

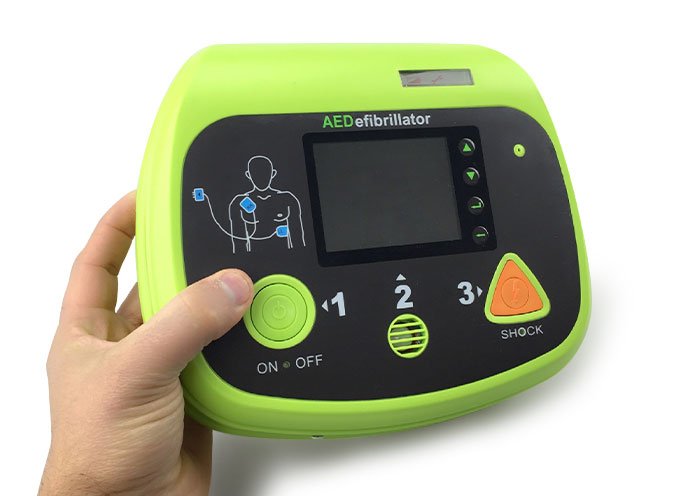

Portable Color Screen AED Defibrillator with ECG — Defi 6
Advanced portable automatic external defibrillator with integrated color LCD display, real-time ECG monitoring, and multi-language voice guidance. Designed for rapid deployment in emergency response, public access, and clinical settings with biphasic energy delivery and comprehensive event recording.
Clinical overview
The Defi 6 is a fully automatic external defibrillator engineered for rapid cardiac rhythm analysis and biphasic energy delivery in out-of-hospital and in-hospital emergency settings. Its color LCD screen displays real-time ECG waveforms, operator prompts, and device status, enabling clinicians and first responders to make informed decisions during resuscitation. The device features a three-step defibrillation process with two-button operation, extensive voice and visual guidance in multiple languages, and automatic self-test protocols to ensure readiness.
With support for both adult and pediatric defibrillation modes, integrated SD card data logging, and optional ECG measurement via 3-lead cable, the Defi 6 provides comprehensive event documentation and post-event analysis. The non-rechargeable 15V battery delivers 100 discharges at 200 Joules or 120 discharges at 150 Joules, with a 10-year shelf life and 5-year standby capacity after installation.
Key features & surgeon benefits
Dual-Mode Defibrillation
- Adult and pediatric energy sequences
- Biphasic truncated exponential output
- Output accuracy ±15% across 25–175 Ω impedance
Intuitive Operation
- Two-button control (On/Off, Shock)
- 20 audible prompts in multiple languages
- 9-second rhythm analysis time
Complete Event Recording
- SD card for data transfer and storage
- Continuous event logging for each use
- Optional IrDA USB adapter for ECG data transfer
Modular Configuration
- Optional CPR coaching module
- 3-lead ECG cable for advanced monitoring
- AED storage software for event documentation
Technical specifications
| Indications | Cardiac arrhythmia, ventricular fibrillation, pulseless ventricular tachycardia |
|---|---|
| Energy output | Biphasic truncated exponential; 150J, 200J (adult); 50J, 100J (pediatric) |
| Charge time | 8 sec to 150J; 4 sec to 50J/100J; 10 sec to 200J (new battery) |
| Analysis time | 9 seconds |
| Material | Medical-grade polymer housing |
| Display | Color LCD screen with ECG waveform and settings display |
| Sterilisation | Non-sterile; ready to use |
| Packaging | Carrying case, cleaning cloth, battery, AED pads |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| AED Pad | Defibrillation electrode pads (adult/pediatric compatible) | 1 |
| Battery | Non-rechargeable 15V DC 2.8Ah lithium battery | 1 |
| AED Case | Protective carrying case with foam insert | 1 |
| Cleaning Cloth | Microfiber cleaning cloth for device maintenance | 1 |
Optional accessories & modules
| Component | Description |
|---|---|
| ECG Cable (3-lead) | Three-lead cable for advanced ECG measurement and monitoring |
| CPR Coaching Module | Optional real-time CPR guidance and compression feedback |
| IrDA USB Adapter | Infrared adapter for ECG data transfer to computer |
| AED Storage Software | Event documentation, real-time ECG display, voice prompt waveform analysis, and selective waveform printing |
| AED Cabinet | Wall-mounted storage cabinet with alarm and access control |
Device specifications
Defi 6 Portable Defibrillator
- Output: Biphasic truncated exponential
- Energy sequence: 150J, 200J (adult); 50J, 100J (pediatric)
- Charge time: 8 sec to 150J; 4 sec to 50J/100J; 10 sec to 200J (new battery)
- Analysis time: 9 seconds
- Audible prompts: 20 multi-language voice prompts
- Visual prompts: LED automatic self-test indicator
- Controls: Two buttons (On/Off, Shock)
- Output energy accuracy: ±15% into any impedance from 25 to 175 Ω
- Output disabled when patient impedance is outside 20 Ω to 200 Ω
- Lock-out protection to prevent inadvertent defibrillation
- Weekly self-test to ensure readiness
- Color LCD screen for ECG waveform and settings display
- Multi-language voice and monitor display
- SD card for recording capacity and data transfer
- Infrared (IrDA) for optional data transfer
- LCD battery capacity indicator
Defi 6 Battery
- Type: Non-rechargeable 15V DC 2.8Ah
- Capacity: 100 discharges at 200 Joules or 120 discharges at 150 Joules
- Shelf life (25°C ±15°C): 10 years (5 years storage + 5 years standby)
- Standby life after installation: 5 years
Physical Specifications
- Dimensions: 220 × 170 × 70 mm
- Weight: 1.5 kg
- Operating humidity: 30–95% relative humidity (non-condensing)
- Storage temperature (with battery): −20°C to 55°C
- Storage humidity (without battery): up to 93% (non-condensing)
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the Defi 6 AED defibrillator. We offer comprehensive support for device selection, training, and post-sale service.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
