DHS & DCS Plate Instrument Set
- Comprehensive instrument set for DHS & DCS plate procedures
- Includes various drills, taps, sleeves, and screwdrivers for different tasks
- Features depth gauge and lag screw depth measuring device for accuracy
- Comes in a convenient aluminium box for storage and organization
- SKU
- 4200-05
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
DHS & DCS Plate Instrument Set
Comprehensive instrument set for dynamic hip screw and dynamic condylar screw procedures. Includes precision drills, taps, sleeves, depth gauges, and specialized screwdrivers—all organized in a durable aluminium storage box for optimal OR efficiency.
Clinical overview
The DHS & DCS Plate Instrument Set is a complete, integrated solution for proximal and distal femur fracture fixation. This comprehensive kit combines all essential instruments—from initial drilling and tapping through final impaction and screw placement—into a single, organized system. The inclusion of dual-angle guides (95° for DCS, 135° for DHS) ensures anatomically correct implant positioning, while precision depth gauges and lag screw measuring devices minimize intraoperative adjustments and reduce operative time.
Designed for trauma surgeons who demand reliability and efficiency, this set eliminates the need for multiple instrument trays and reduces setup complexity. The durable aluminium storage box maintains instrument integrity and facilitates rapid inventory management in busy trauma centers.
Key features & surgeon benefits
Complete DHS & DCS Workflow
- Dual-angle guides (95° DCS, 135° DHS) for both proximal and distal femur applications
- Matched drill bits, taps, and sleeves for cortical and cancellous bone
- Specialized reamers for DHS and DCS plate preparation
Optimized OR Efficiency
- T-handle quick coupling system for rapid instrument changes
- Integrated depth gauge (0–100mm) and lag screw measuring device eliminate separate measurements
- Color-coded wrenches (purple and golden sleeves) for intuitive screw selection
Cost-Effective Solution
- Single integrated kit reduces need for multiple instrument sets
- Durable stainless steel construction withstands repeated sterilization cycles
- Organized aluminium box minimizes instrument loss and replacement costs
Flexible Configuration
- Available as complete 22-piece set or as individual components
- OEM packaging and custom instrument combinations available
- Compatible with standard DHS and DCS plate systems from major manufacturers
Technical specifications
| Indications | Proximal femur fractures (DHS); distal femur fractures (DCS) |
|---|---|
| Sizes / range | Drill bits: Φ2.5, Φ3.2, Φ4.5, Φ6.5mm; depth gauge 0–100mm; angle guides 95° and 135° |
| Material | Stainless steel instruments; aluminium storage box |
| Sterilisation | Steam sterilizable; supplied non-sterile |

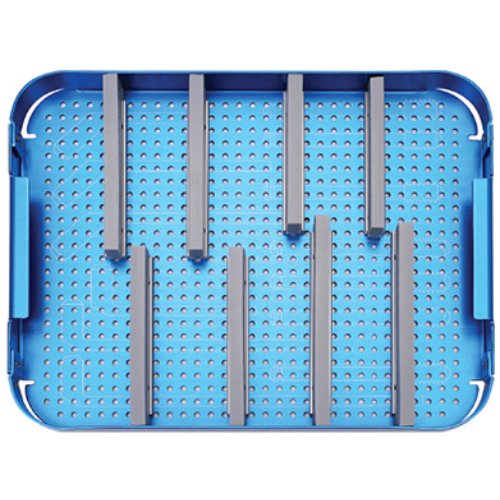

| Packaging | Durable aluminium storage box with foam insert |
| Warranty | As applicable |

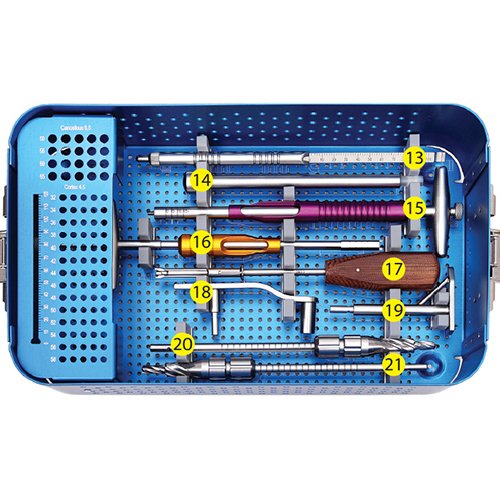

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | T-handle Quick Coupling | 1 |
| 2 | Tap Cortical 4.5mm | 1 |
| 3 | Double Drill Sleeve (Φ4.5/Φ6.5) | 1 |
| 4 | Double Drill Sleeve (Φ4.5/Φ3.2) | 1 |
| 5 | Neutral and Load Drill Guide Φ2.5 | 1 |
| 6 | Tap Cancellous 6.5mm | 1 |
| 7 | Drill Bit Φ4.5×150mm | 2 |
| 8 | Drill Bit Φ3.2×150mm | 2 |
| 9 | Lag Screw Depth Measuring Device | 1 |
| 10 | Tap Cancellous 12mm | 1 |
| 11 | Threaded K-wire Φ2.5×225mm | 3 |
| 12 | DHS/DCS Impactor Large | 1 |
| 13 | Depth Gauge (0–100mm) | 1 |
| 14 | DHS/DCS Impactor Small | 1 |
| 15 | DHS/DCS Wrench, Purple Sleeve | 1 |
| 16 | DHS/DCS Wrench, Golden Sleeve | 1 |
| 17 | Screwdriver Hexagonal 3.5mm | 1 |
| 18 | DCS Angle Guide 95 Degree | 1 |
| 19 | DHS Angle Guide 135 Degree | 1 |
| 20 | DHS Reamer | 1 |
| 21 | DCS Reamer | 1 |
| 22 | Aluminium Storage Box | 1 |
