Mini Fragment Instruments Set
- Complete set of mini fragment instruments for orthopedic surgeries
- Includes taps, guiders, drill bits, forceps, retractors, dissectors, hooks, and more
- Made of high-quality materials for durability and precision
- Comes in a convenient aluminum box for easy storage and transportation
- SKU
- 4200-04
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Mini Fragment Instruments Set
Complete set of mini fragment instruments for orthopedic surgeries. Includes taps, guiders, drill bits, forceps, retractors, dissectors, hooks, and more. Made of high-quality materials for durability and precision, comes in a convenient aluminum box for easy storage and transportation.
Clinical overview
The Mini Fragment Instruments Set is a comprehensive surgical toolkit designed for orthopedic trauma procedures requiring precise fixation of small bone fragments. This complete set combines essential drilling, tapping, reduction, and manipulation instruments in a single, organized package. Each instrument is manufactured to exacting standards, ensuring reliability and accuracy during critical surgical procedures.
The set includes graduated taps (HA1.5, HA2.0, HA2.7), matching guiders, precision drill bits, and a full range of reduction forceps, retractors, and dissectors. All instruments are housed in a durable aluminum box, facilitating efficient instrument management and transport between operating rooms and sterilization facilities.
Key features & surgeon benefits
Complete Mini Fragment Range
- Three tap sizes (1.5, 2.0, 2.7 mm) with matching guiders
- Precision drill bits for accurate pilot hole creation
- Specialized reduction and manipulation forceps for all fragment sizes
Streamlined Surgical Efficiency
- All instruments organized in single aluminum box for rapid setup
- Quick-coupling handles reduce changeover time
- Depth gauge and countersink for precise screw placement
Cost-Effective Solution
- Single comprehensive set eliminates need for multiple purchases
- Durable stainless steel construction ensures long instrument lifespan
- Reduced inventory management and storage requirements
Adaptable Configuration
- OEM customization available for specific surgical protocols
- Individual instruments available for replacement or expansion
- Custom packaging and labeling options supported
Technical specifications
| Indications | Mini fragment fixation, orthopedic trauma, small bone surgery, reduction and fixation procedures |
|---|---|
| Sizes / range | Taps: HA1.5, HA2.0, HA2.7; Drill bits: 1.1 × 80 mm, 1.5 × 80 mm, 2.0 × 80 mm; Guiders: 1.1/1.5, 1.5/2.0, 2.0/2.7 |
| Material | Stainless steel (instruments), aluminum (storage box) |
| Sterilisation | Steam sterilizable; instruments compatible with standard autoclave protocols |
| Packaging | Durable aluminum box with organized compartments for all 24 instruments |
| Warranty | As applicable; OEM support available |

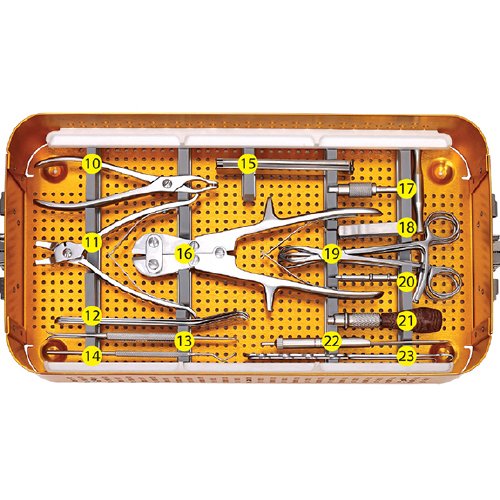

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Tap HA1.5 | 3 |
| 2 | Guider 1.1/1.5 | 1 |
| 3 | Drill Bit 1.1 × 80 mm | 1 |
| 4 | Tap HA2.0 | 3 |
| 5 | Guider 1.5/2.0 | 1 |
| 6 | Drill Bit 1.5 × 80 mm | 1 |
| 7 | Tap HA2.7 | 3 |
| 8 | Guider 2.0/2.7 | 1 |
| 9 | Drill Bit 2.0 × 80 mm | 1 |
| 10 | Plate-hold Forceps | 1 |
| 11 | Plate-bended Forcep | 1 |
| 12 | Retractors 1 × 3 | 1 |
| 13 | Dissector 5 mm | 1 |
| 14 | Dissector 3 mm | 1 |
| 15 | Sharp Hook | 1 |
| 16 | Bending Iron | 1 |
| 17 | Wire Cutter | 1 |
| 18 | T-handle Quick Coupling | 1 |
| 19 | Screw Forcep | 1 |
| 20 | Pointed-tip Reduction Forcep | 1 |
| 21 | Bent-tip Reduction Forcep | 1 |
| 22 | Shape-made Forcep | 1 |
| 23 | Quick Coupling Screwdriver Hex (SW2.0) | 1 |
| 24 | Countersink | 1 |
| 25 | Straight Handle Quick Coupling | 1 |
| 26 | Depth Gauge 0–40 mm | 1 |
| 27 | Skin Retractor | 1 |
| 28 | Aluminum Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customization options for your surgical facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
