Small Fragment Instrument Set
- Complete small fragment instrument set for orthopedic surgeries
- Includes various drill bits, guider tools, elevators, taps, reamers, and forceps
- Comes with a depth gauge for accurate measurements
- Packaged in a durable aluminum box for easy storage and transportation
- SKU
- 4200-01
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Small Fragment Instrument Set
Complete small fragment instrument set for orthopedic trauma and fracture fixation procedures. Includes drill bits, guider tools, elevators, taps, reamers, and reduction forceps. Packaged in a durable aluminum box for secure storage and transport.
Clinical overview
The Small Fragment Instrument Set is a comprehensive surgical solution designed for orthopedic trauma procedures involving small fragment fixation. This complete set includes all essential instruments required for drilling, tapping, reaming, and reduction of small bone fragments, enabling surgeons to perform efficient and precise fracture fixation with minimal instrument changes.
Each instrument is manufactured to exacting standards and organized in a durable aluminum carrying case for convenient transport and sterilization. The set supports a wide range of surgical techniques and is compatible with standard orthopedic fixation protocols.
Key features & surgeon benefits
Complete surgical workflow
- Drill guides for Φ2.5, Φ3.5, and Φ4.0 mm applications
- Multiple drill bits and taps for cortical and cancellous bone
- Specialized reduction forceps for secure fragment positioning
Streamlined instrumentation
- Pre-assembled set reduces OR setup time
- Depth gauge (0–60 mm) ensures accurate screw placement
- Periosteal elevators and extraction screws minimize soft tissue trauma
Cost-effective solution
- Single complete set eliminates need for multiple instrument purchases
- Durable aluminum box supports repeated sterilization cycles
- Reduced instrument inventory management
Flexible configuration
- Available as standard 20-piece set or custom composition
- OEM solutions for hospital-specific requirements
- Individual instruments available for replacement or expansion
Technical specifications
| Indications | Small fragment fracture fixation, orthopedic trauma surgery |
|---|---|
| Sizes / range | Φ2.5–Φ6.0 mm instruments; depth gauge 0–60 mm |
| Material | Stainless steel instruments, aluminum carrying case |
| Sterilisation | As applicable |
| Packaging | Durable aluminum box with foam insert |
| Warranty | As per manufacturer terms |

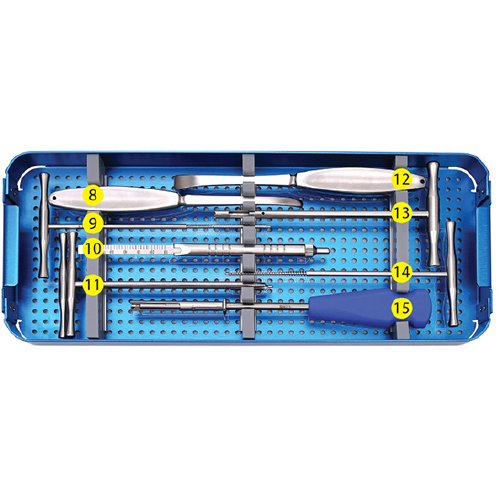

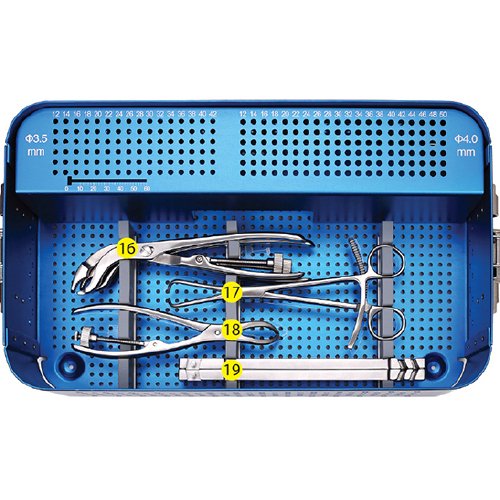

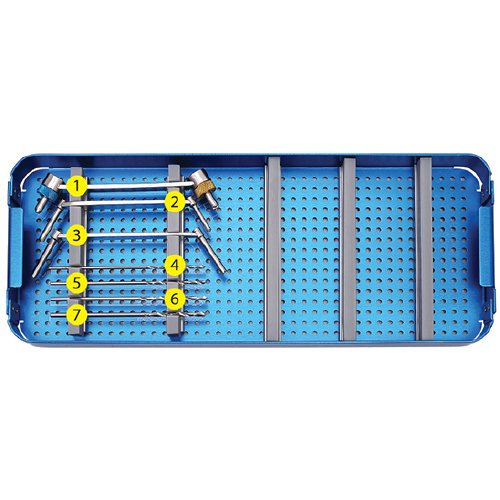

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Neutral and Load Drill Guide Φ2.5 | 1 |
| 2 | Drill & Tap Guider (Φ2.5/Φ3.5) | 1 |
| 3 | Drill & Tap Guider (Φ3.5/Φ4.0) | 1 |
| 4 | Drill Bit (Φ2.5×115 mm) | 1 |
| 5 | Drill Bit (Φ2.5×115 mm) | 1 |
| 6 | Drill Bit (Φ3.2×115 mm) | 1 |
| 7 | Drill Bit (Φ3.2×115 mm) | 1 |
| 8 | Periosteal Elevator 6 mm | 1 |
| 9 | Tap Cancellous 4.0 mm | 1 |
| 10 | Hollow Reamer Φ6.0 | 1 |
| 11 | Countersink | 1 |
| 12 | Extraction Screw Hexagonal 2.5 mm Conical | 1 |
| 13 | Periosteal Elevator 12 mm | 1 |
| 14 | Depth Gauge (0–60 mm) | 1 |
| 15 | Tap Cortex 3.5 mm | 1 |
| 16 | Extraction Screw Hexagonal 2.5 mm Conical | 1 |
| 17 | Self-centering Bone Holding Forcep (190 mm) | 2 |
| 18 | Sharp Reduction Forcep (190 mm) | 1 |
| 19 | Oblique Reduction Forcep (170 mm) | 1 |
| 20 | Bending Iron | 1 |
| 21 | Aluminum Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss custom configurations, or arrange a product demonstration. We are committed to supporting your surgical program with reliable, high-quality instrumentation.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
