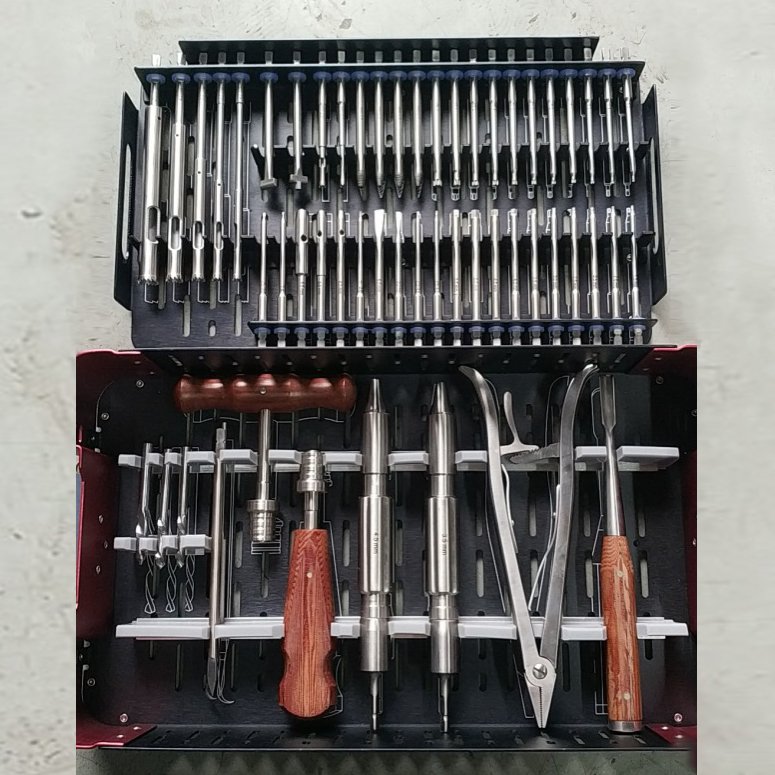

Surgical Screw Removal Instrument Set, Universal Orthopedic Screw Extraction
4.7(3 reviews)- Premium quality broken screw removal instrument set for surgery
- Compatible with all brands, able to remove every kind of screws from bones and plates
- Includes a variety of hollow reamers, extraction bolts, and screwdrivers for orthopedic screw extraction
- Comes in a convenient aluminum box for easy storage and organization
- SKU
- 4200-10
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Orthopedic Instrument Set
Surgical Screw Removal Instrument Set
Premium-quality universal orthopedic screw extraction system compatible with all major implant brands. Comprehensive 50-piece instrument set featuring hollow reamers, extraction bolts, multi-drive screwdrivers, and specialized removal tools. Proven clinical performance with worldwide surgeon adoption since 2019.
Ordering Ref.
4200-10
ConfigurationComplete instrument set with storage box
MaterialStainless steel, high-speed steel, aluminum
ApplicationOrthopedic trauma, spine, general bone fixation
OEM customization and individual component sourcing available upon request.
Clinical overview
The Surgical Screw Removal Instrument Set is a comprehensive, brand-agnostic solution for the extraction of broken, stripped, or compromised screws encountered during orthopedic and trauma surgery. This 50-piece system combines hollow reamers, extraction bolts, conical extraction screws, and multi-drive screwdrivers to address virtually every screw removal scenario in bone and plate fixation. The set has achieved widespread clinical adoption since 2019, with positive feedback from surgeons worldwide.
Designed for both primary and revision procedures, the instrument set enables controlled, atraumatic screw removal while minimizing bone loss and soft-tissue damage. The inclusion of high-speed drill bits, specialized extraction tools, and quick-coupling handles provides surgeons with multiple removal pathways, enhancing procedural flexibility and reducing operative time.
Key features & surgeon benefits
Coverage
Universal Screw Compatibility
- Removes screws from all major implant brands and systems
- Hollow reamers spanning Φ2.7–10mm accommodate diverse screw diameters
- Conical extraction screws (2.5–4.0mm) engage stripped or damaged screw heads
Workflow
Efficient Multi-Stage Extraction
- Hollow reamers allow controlled centering and drilling around screw shaft
- Multiple screwdriver types (slotted, Phillips, square, star, hexagonal) enable direct engagement
- Quick-coupling handles (T-shaped and straight) streamline tool transitions
Economics
Cost-Effective, Reusable System
- Single comprehensive set eliminates need for multiple brand-specific kits
- Autoclavable instruments and durable aluminum storage box support repeated use
- Reduces inventory complexity and procurement overhead
Customisation
Modular & Expandable
- Individual components available for replacement or supplementation
- OEM customization options for facility-specific requirements
- Scalable from single instruments to complete institutional sets
Technical specifications
| Indications | Removal of broken, stripped, or compromised screws from bone and plate fixation systems; orthopedic trauma, spine, and general bone fixation procedures |
|---|---|
| Sizes / range | Hollow reamers Φ2.7–10mm; extraction bolts Φ3.5–6.5mm; extraction screws 2.5–4.0mm; high-speed drill bits Φ4, 6, 8mm; screwdrivers: slotted (small, large), Phillips, square (SW1.1–1.5), star (T2.2–5.5), hexagonal (SW1.5–5.5) |
| Material | Stainless steel (instruments), high-speed steel (drill bits and reamers), aluminum (storage box and handles) |
| Sterilisation | Autoclavable at standard surgical sterilization parameters |
| Packaging | Reusable aluminum storage box with compartmentalized organization |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Hollow Reamer Φ4 | 1 |
| 2 | Hollow Reamer Φ5 | 1 |
| 3 | Hollow Reamer Φ6.5 | 1 |
| 4 | Hollow Reamer Φ8 | 1 |
| 5 | Hollow Reamer Φ10 | 1 |
| 6 | Spinal Monoaxial Pedicle Screwdriver | 1 |
| 7 | Hollow Reamer Φ3.0 | 1 |
| 8 | Hollow Reamer Φ2.7 | 1 |
| 9 | Extraction Bolt Φ6.5 | 1 |
| 10 | Extraction Bolt Φ6.0 | 1 |
| 11 | Extraction Bolt Φ4.5 | 1 |
| 12 | Extraction Bolt Φ3.5 | 1 |
| 13 | Extraction Screw Hexagonal 4.0mm Conical | 1 |
| 14 | Extraction Screw Hexagonal 3.5mm Conical | 1 |
| 15 | Extraction Screw Hexagonal 2.5mm Conical | 1 |
| 16 | Extraction Screw Hexagonal 2.5×0.5mm Conical | 1 |
| 17 | Slotted Screwdriver Small | 1 |
| 18 | Slotted Screwdriver Large | 1 |
| 19 | Phillips Screwdriver | 1 |
| 20 | Square Screwdriver SW1.5 | 1 |
| 21 | Square Screwdriver SW1.2 | 1 |
| 22 | Square Screwdriver SW1.1 | 1 |
| 23 | Star Screwdriver T5.5 | 1 |
| 24 | Star Screwdriver T5.0 | 1 |
| 25 | Star Screwdriver T4.4 | 1 |
| 26 | Star Screwdriver T3.8 | 1 |
| 27 | Star Screwdriver T3.3 | 1 |
| 28 | Star Screwdriver T2.7 | 1 |
| 29 | Star Screwdriver T2.2 | 1 |
| 30 | Hexagonal Screwdriver SW5.5 | 1 |
| 31 | Hexagonal Screwdriver SW5.0 | 1 |
| 32 | Hexagonal Screwdriver SW4.5 | 1 |
| 33 | Hexagonal Screwdriver SW4.0 | 1 |
| 34 | Hexagonal Screwdriver SW3.5 | 1 |
| 35 | Hexagonal Screwdriver SW3.0 | 1 |
| 36 | Hexagonal Screwdriver SW2.5 | 1 |
| 37 | Hexagonal Screwdriver SW2.0 | 1 |
| 38 | Hexagonal Screwdriver SW1.5 | 1 |

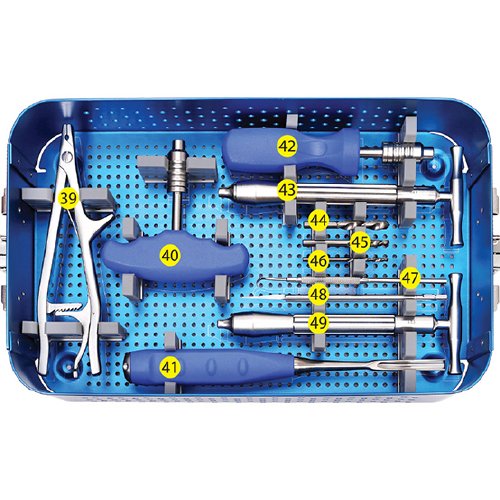

| 39 | Pliers for Screw Removal | 1 |
| 40 | T-shaped Handle Quick Coupling | 1 |
| 41 | Round Gouge 8mm | 1 |
| 42 | Straight Handle Quick Coupling | 1 |
| 43 | Screw Extractor Φ4.5 | 1 |
| 44 | High Speed Drill Bit Φ8×36×75mm | 1 |
| 45 | High Speed Drill Bit Φ6×36×75mm | 1 |
| 46 | High Speed Drill Bit Φ4×36×75mm | 1 |
| 47 | Sharp Hook | 1 |
| 48 | Tip Screwdriver | 1 |
| 49 | Screw Extractor Φ3.5 | 1 |
| 50 | Aluminium Box | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customization options for the Surgical Screw Removal Instrument Set. We support institutional purchasing, OEM partnerships, and individual surgeon orders.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.7· 3 reviewsRemoves what nothing else can
Excellent for cold-welded and cross-threaded hardware. Saved significant OR time.
Dr. Yuki Tanaka, MDApr 30, 2026
Comprehensive kit
Covers most implant systems we encounter and the tray is well labelled. The odd extractor could be more aggressive on cold-welded screws.
Dr. Simon Hargreaves, MDJan 9, 2025
Frequently bought together
Related products
See all →
Teds Medical

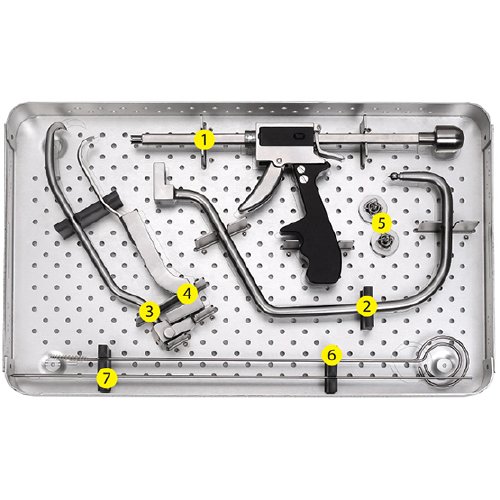

Collinear Reduction Clamp Instrument Set
4.7(3)
- Complete set of instruments for collinear reduction clamp procedure - Includes handpiece, percutaneous arm, pelvic arm, and Hohmann-style arm - Comes with protective sleeve, clean pins, and brushes for maintenance - Includes threaded K-wire and regular K-wire for various applications
$1,400.00
Teds Medical

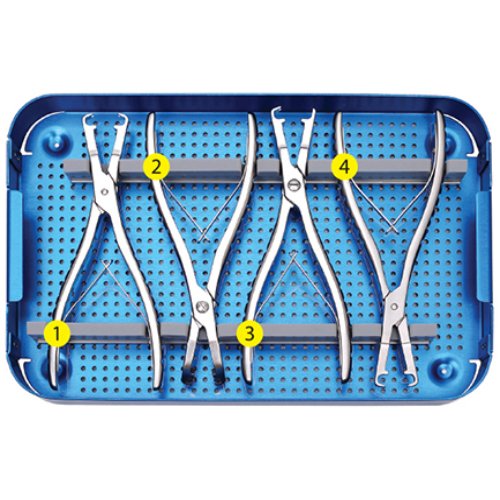

Rib Plate Instrument Set
- Complete set of instruments for rib plate fixation surgery - Includes reduction forceps in various sizes for precise handling - Features periosteal elevators for tissue dissection - Rib plate cutter for accurate plate sizing and shaping - Plate insert forceps for easy implant placement - Comes with a durable aluminum box for convenient storage and organization
$1,157.00
Teds Medical

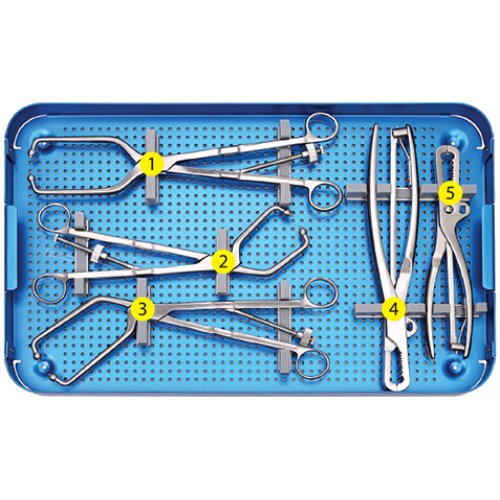

Pelvic Reconstruction Plate Instrument Set
- Comprehensive set for pelvic reconstruction surgery - Includes various sizes of pelvic reduction forceps for different needs - Equipped with angled and straight ball spike instruments - Features a plate bender and a drill guider for precise procedures
$1,547.00
Teds Medical

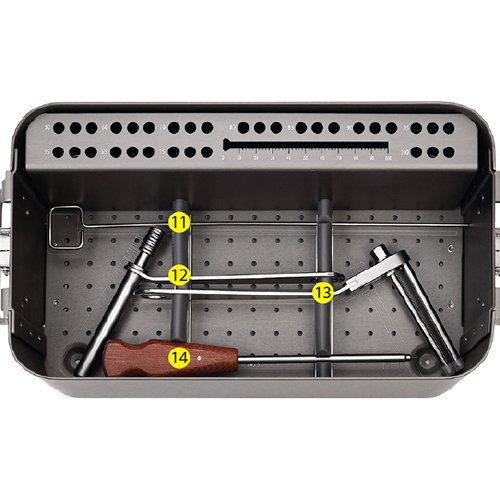

6.5mm Cannulated Screw Instrument Set
- Complete set of instruments for 6.5mm cannulated screw surgery - Includes depth gauge, threaded guider wires, drill bits, countersinks, and screwdrivers - Comes with essential tools like hex keys, wrenches, taps, and cleaning stylet - All neatly packaged in an aluminum box for easy storage and transportation
$754.00
Teds Medical

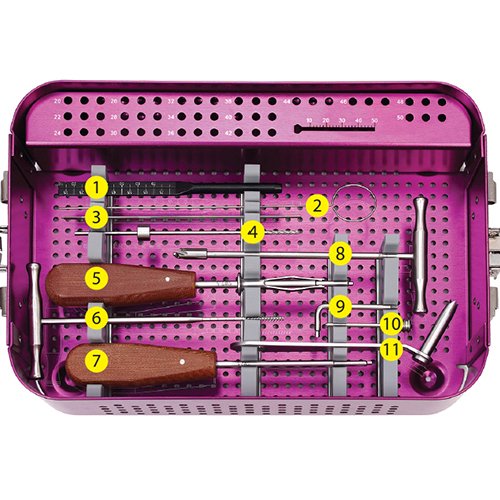

4.0mm Cannulated Screw Instrument Set
- Complete instrument set for 4.0mm cannulated screw insertion - Includes depth gauge, cleaning stylet, threaded guider wire, drill bit, screwdriver, tap, countersink, hex key, drill sleeve, and more - High-quality instruments for precise and efficient surgery - Arrives in a sturdy aluminum box for convenient storage and organization
$637.00
Teds Medical

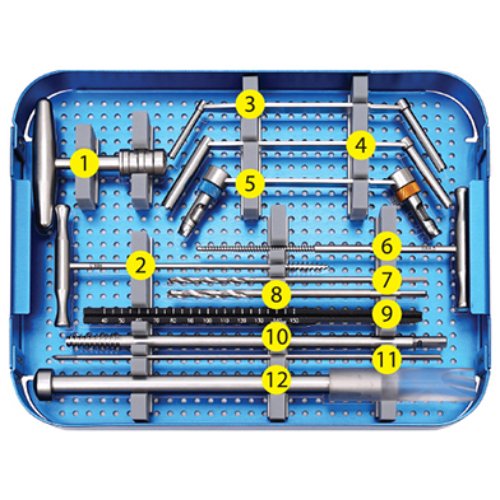

DHS & DCS Plate Instrument Set
- Comprehensive instrument set for DHS & DCS plate procedures - Includes various drills, taps, sleeves, and screwdrivers for different tasks - Features depth gauge and lag screw depth measuring device for accuracy - Comes in a convenient aluminium box for storage and organization
$1,170.00
Teds Medical

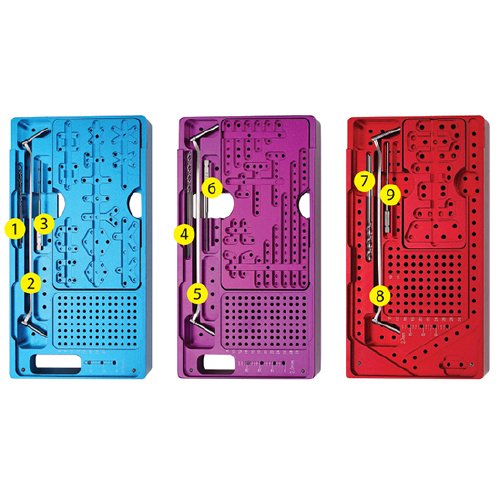

Mini Fragment Instruments Set
