Large Fragment Instrument Set
- Complete large fragment instrument set for orthopedic procedures
- Includes drill guides, drill bits, depth gauge, elevators, forceps, screwdriver, retractor, countersink, reamers, taps, bending iron, and more
- Comes in a convenient aluminum box for storage and organization
- Ideal for precise and efficient bone fracture reduction and fixation
- SKU
- 4200-02
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Large Fragment Instrument Set
Complete large fragment instrument set for orthopedic procedures. Includes drill guides, drill bits, depth gauge, elevators, forceps, screwdriver, retractor, countersink, reamers, taps, bending iron, and more. Ideal for precise and efficient bone fracture reduction and fixation.
Clinical overview
The Large Fragment Instrument Set is a comprehensive surgical toolkit designed for orthopedic trauma procedures involving large bone fragments. This set combines precision drilling, reduction, and fixation instruments in a single, organized package. Each instrument is manufactured to exacting standards for reliability and durability in the operating room.
The set includes essential tools for drilling, tapping, reduction, elevation, and fixation of large fragment fractures. All instruments are supplied in a convenient aluminum storage box that protects the instruments and facilitates organization and transport between surgical facilities.
Key features & surgeon benefits
Complete Surgical Workflow
- Drill guides for neutral and load positioning
- Multiple drill bit sizes (Φ3.2 and Φ4.5 mm)
- Depth gauge for accurate screw placement
- Taps for cortex and cancellous bone
Efficient Reduction & Fixation
- Periosteal elevators for soft tissue management
- Reduction forceps (oblique and sharp) for fragment alignment
- Self-centering bone holding forceps for stability
- Retractor for improved surgical field visualization
Cost-Effective Solution
- Complete set eliminates need for multiple purchases
- Durable stainless steel construction for long service life
- Organized aluminum box reduces instrument loss and replacement costs
- Competitive pricing for comprehensive trauma instrumentation
Flexible Configuration
- Available as complete set or individual components
- Custom instrument combinations for specific surgical protocols
- OEM packaging and branding options available
- Scalable for hospital and surgical center requirements
Technical specifications
| Indications | Large fragment fracture fixation, bone reduction, fracture stabilization |
|---|---|
| Sizes / range | Φ3.2 mm to Φ8.0 mm; depth gauge 0–90 mm; forceps 200–270 mm |
| Material | Stainless steel instruments; aluminum storage box |
| Sterilisation | Steam sterilizable; supplied non-sterile |
| Packaging | Aluminum box with foam insert for organization and protection |
| Warranty | As applicable; contact sales for details |

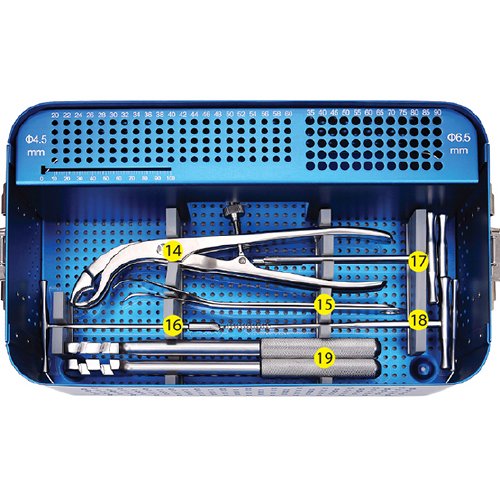

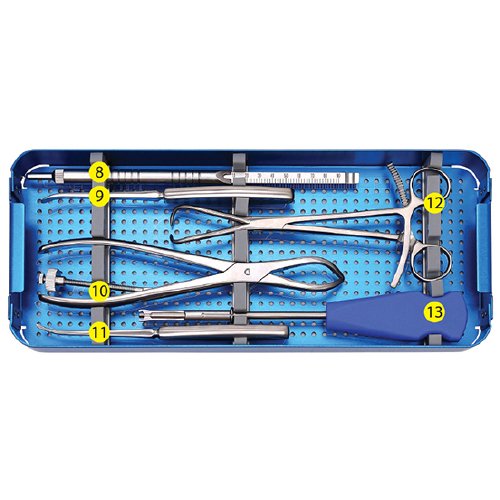

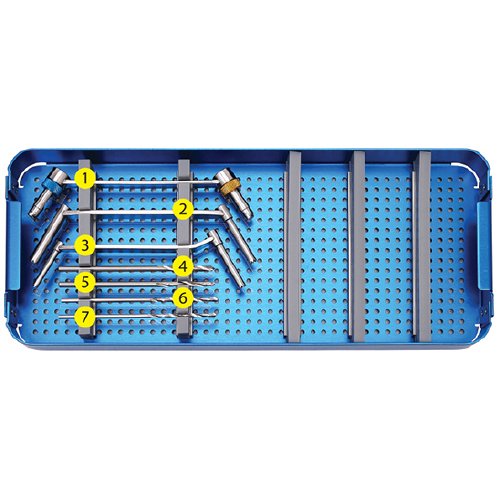

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Neutral and Load Drill Guide Φ3.2 | 1 |
| 2 | Drill & Tap Guider (Φ4.5/Φ6.5) | 1 |
| 3 | Drill & Tap Guider (Φ3.2/Φ4.5) | 1 |
| 4 | Drill Bit (Φ4.5×115 mm) | 1 |
| 5 | Drill Bit (Φ4.5×115 mm) | 1 |
| 6 | Drill Bit (Φ3.2×115 mm) | 1 |
| 7 | Drill Bit (Φ3.2×115 mm) | 1 |
| 8 | Depth Gauge (0–90 mm) | 1 |
| 9 | Periosteal Elevator 15 mm | 1 |
| 10 | Oblique Reduction Forcep (230 mm) | 1 |
| 11 | Periosteal Elevator 8 mm | 1 |
| 12 | Sharp Reduction Forcep (200 mm) | 1 |
| 13 | Silicon Handle Screwdriver Hexagonal 3.5 mm | 1 |
| 14 | Self-centering Bone Holding Forcep (270 mm) | 2 |
| 15 | Retractor Width 40 mm / 18 mm | 1 |
| 16 | Countersink Φ8.0 | 1 |
| 17 | Hollow Reamer Φ8.0 | 1 |
| 17 | Extraction Screw Hexagonal 3.5 mm Conical | 1 |
| 18 | Tap Cortex 4.5 mm | 1 |
| 18 | Tap Cancellous 6.5 mm | 1 |
| 19 | Bending Iron | 1 |
| 20 | Aluminum Box | 1 |
