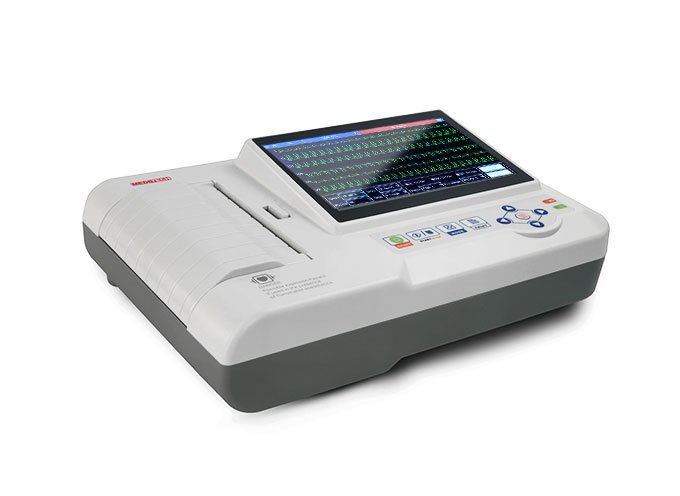

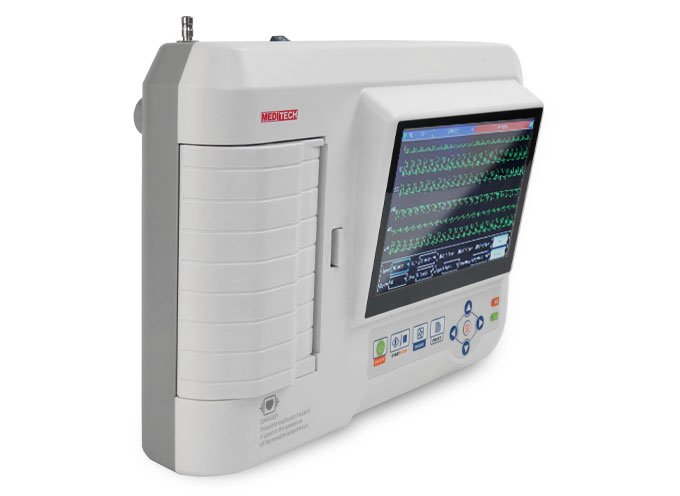

7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
Original price was: $1,235.00.$1,027.00Current price is: $1,027.00.
– 3+1 /6 channel ECG machine with 12-lead simultaneous standard resting ECG
– Features a 7-inch TFT touch screen with LED backlight for easy operation
– Comes with digital isolation technology, signal processing solution, and digital filters
– Includes patient management with touch keyboard and built-in memory or mini SD card storage for over 1000 archive pieces
Description
7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
Advanced 12-lead simultaneous standard resting ECG system featuring a 7-inch TFT touch screen with LED backlight for intuitive operation. Equipped with digital isolation technology, comprehensive signal processing solutions, and digital filters for superior diagnostic accuracy. Integrated patient management system with extensive storage capacity for over 1000 archive pieces via built-in memory or mini SD card.
Clinical overview
The ECG6012 represents a comprehensive solution for standard resting electrocardiography in clinical, hospital, and outpatient settings. This system delivers 12-lead simultaneous acquisition with advanced digital isolation technology and sophisticated signal processing algorithms, ensuring high-fidelity cardiac waveform capture and analysis. The intuitive 7-inch TFT touch screen interface streamlines workflow from patient registration through report generation, while the integrated thermal printing system provides immediate hard-copy documentation.
Designed for versatility and reliability, the ECG6012 features auto-measurement, auto-analysis, and auto-interpretation capabilities that support clinical decision-making while maintaining operator control. The built-in rechargeable lithium battery enables portable operation, while USB and LAN connectivity facilitate seamless integration into existing hospital information systems. Multi-language support and comprehensive patient management functions make this system suitable for diverse clinical environments and international deployment.
Key features & surgeon benefits
Advanced Signal Processing
- Digital isolation technology with superior noise rejection (≤15μVp-p)
- High input impedance (≥5MΩ) and CMRR (>60dB) for artifact-free recordings
- Comprehensive frequency response (1Hz–75Hz) capturing full cardiac spectrum
- Defibrillation-proof applied part (Class I Type CF) for patient safety
Intuitive Operation

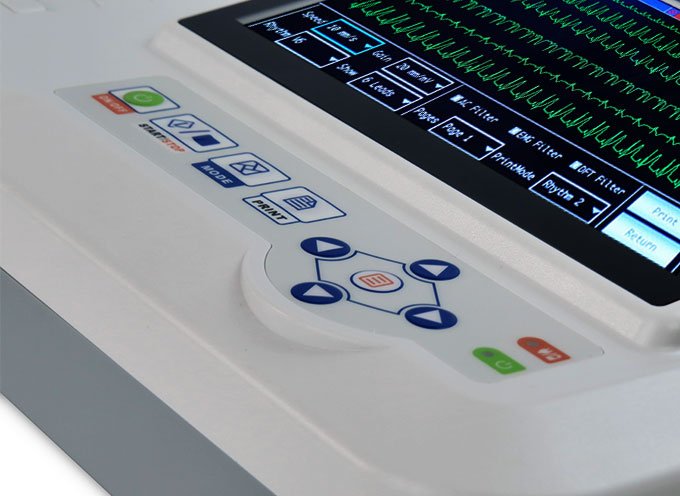

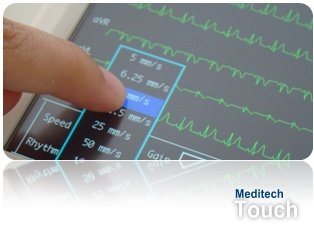

- 7-inch TFT touch screen with LED backlight for easy navigation
- Auto-record mode with automatic lead switching and analysis
- Variable paper speeds (5–100mm/s) and sensitivity options (2.5–40mm/mV)
- Touch keyboard for rapid patient data entry and management
Comprehensive Storage & Connectivity
- Built-in memory or mini SD card storage for >1000 patient records

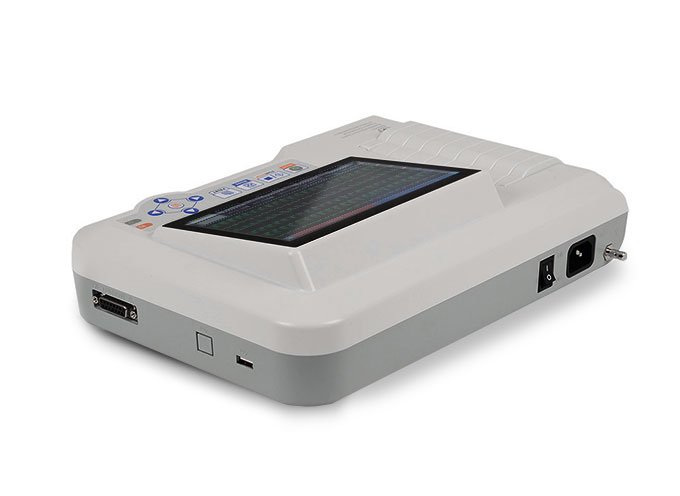

- USB and LAN connectivity for network integration and data transfer
- Included PC software (CardioSoft Pro) for advanced analysis and archiving
- Wide thermal printing system (80mm) for immediate documentation
Flexible Deployment Options
- Built-in rechargeable lithium battery (7.4V 3700mAh) for portable use
- Multi-language interface (English, German, French, Italian, Turkish, Spanish)
- Wide operating voltage range (AC 100–240V 50/60Hz) for international use
- Optional trolley and carrying case for mobile clinical applications
Technical specifications
| Indications | Standard 12-lead resting electrocardiography for cardiac assessment |
|---|---|
| Lead configuration | Standard 12 leads, 3+1 or 6 channel simultaneous acquisition |
| Display | 7-inch TFT touch screen with LED backlight |
| Input impedance | ≥5MΩ |
| Frequency response | 1Hz–75Hz |
| CMRR | >60dB |
| Noise level | ≤15μVp-p |
| Patient leak current | <10μA |
| Time constant | >3.2s |
| EMG interference filter | 25/35Hz (-3dB) |
| Paper speed | Auto/Rhythm: 25, 50mm/s; Manual: 5, 6.25, 10, 12.5, 25, 50mm/s (±5% accuracy) |
| Sensitivity | 2.5, 5, 10, 20, 40mm/mV (5 options, ±5% accuracy; standard 10mm/mV ±0.2mm/mV) |

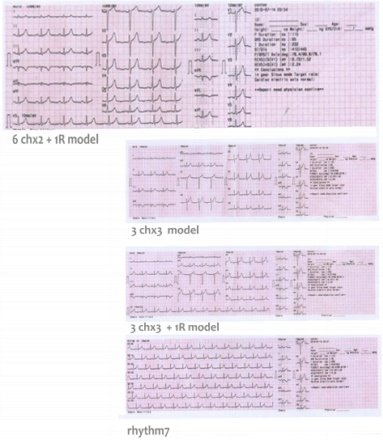

| Recording system | Thermal array printing, 80mm(W) × 20m(L) high-speed thermal paper |
| Measurement parameters | HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) |
| Storage capacity | Built-in memory or mini SD card, >1000 patient records |
| Connectivity | USB, LAN (network) |
| Power supply | AC: 100–240V 50/60Hz; DC: 7.4V 3700mAh rechargeable lithium battery |
| Operating environment | Temperature: +5°C to +35°C; Humidity: ≤80%; Pressure: 86–106kPa |
| Storage/transport | Temperature: -10°C to +55°C; Humidity: ≤95%; Pressure: 50–106kPa |
| Safety classification | Class I, Type CF, defibrillation-proof applied part |
| Polarization voltage tolerance | ±300mV |
| Languages | English, German, French, Italian, Turkish, Spanish |
| Fuse specification | 2 pcs φ5×20mm AC time lag; T1.6A/250V (for 220V power supply) |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrodes | Precordial lead electrodes | 6 |
| Clamp Electrodes | Limb lead electrodes | 4 |
| EKG Cable | Patient cable assembly | 1 |
| USB Cable | Data transfer cable | 1 |
| CD “CardioSoft Pro” | PC software for data analysis and management | 1 |
| Ground Wire | Electrical grounding cable | 1 |
| Paper Roll | 80mm thermal recording paper | 1 |
| Power Cable | AC power cord | 1 |
| Cleaning Cloth | Device maintenance cloth | 1 |
Get in touch for pricing & availability
Contact our sales team for detailed pricing, volume discounts, and delivery timelines. We provide comprehensive technical support and can arrange product demonstrations at your facility.
