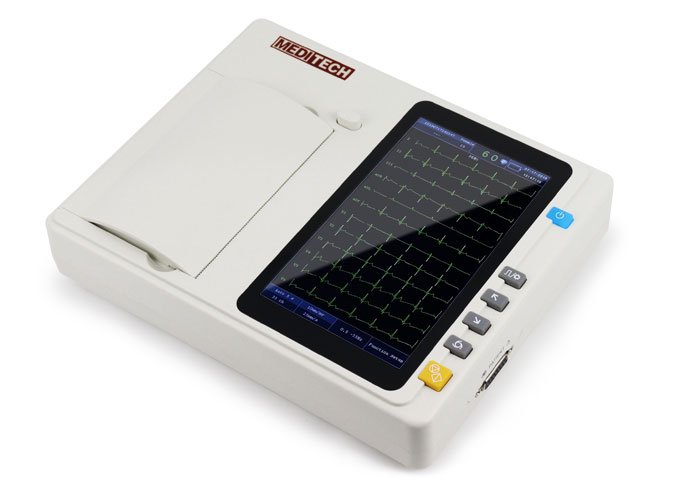

ECG Device 3 Channel ECG machine, Slim, Advanced and Light Weight EKG-6A
Original price was: $1,105.00.$871.00Current price is: $871.00.
– Slim and lightweight 3 channel ECG machine
– Large color touch screen display for easy operation
– Precise ECG auto-interpretation program for accurate results
– Built-in rechargeable battery for 2 hours of continuous use
– Lead-off detection for signal quality assurance
– Multiple operation modes including automatic, manual, and arrhythmia analysis
– External USB card for storing up to 1000 reports
Description
EKG-6A: 3-Channel ECG Machine – Slim, Advanced & Lightweight
Portable 3-channel ECG device with large 7-inch color touchscreen, precise auto-interpretation, and 12-lead simultaneous acquisition. Built-in rechargeable battery, thermal printing, and USB data storage for up to 1000 reports. Ideal for clinical, ambulatory, and point-of-care settings.
Clinical overview
The EKG-6A is a compact, lightweight 3-channel ECG machine designed for rapid, accurate cardiac assessment in diverse clinical environments. Its large 7-inch color touchscreen provides intuitive patient management (name, age, ID, sex) and real-time ECG waveform visualization. The device performs simultaneous 12-lead acquisition with precise auto-interpretation, enabling clinicians to detect arrhythmias and cardiac abnormalities with confidence.
Equipped with advanced digital filtering (EMG, AC, baseline drift elimination), lead-off detection for signal quality assurance, and multiple operation modes (automatic, manual, arrhythmia analysis), the EKG-6A delivers diagnostic-grade performance in a portable form factor. Built-in rechargeable lithium-ion battery supports 2 hours of continuous operation, while thermal 80 mm paper printing and USB data storage (up to 1000 reports) ensure seamless workflow integration and comprehensive patient record management.
Key features & surgeon benefits
12-Lead Simultaneous Capture
- Simultaneous 12-lead acquisition and asynchronous modes
- 3-lead simultaneous thermal printing on 80 mm paper

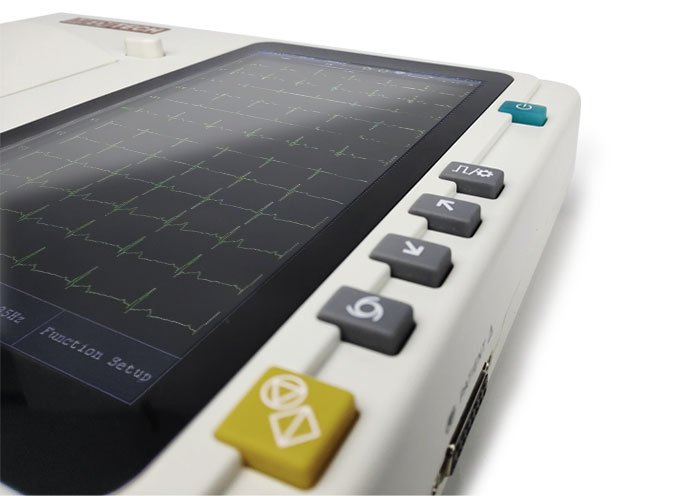

- Large 7-inch color touchscreen for clear waveform visualization
- Adjustable paper speed (6.25–50 mm/s)
Intuitive Patient Management
- Touchscreen keyboard for rapid patient data entry
- Precise ECG auto-interpretation program for diagnostic accuracy
- Multiple operation modes: automatic, manual, arrhythmia analysis
- Real-time ECG waveform display and lead-off detection
Slim, Lightweight, Battery-Powered
- Built-in rechargeable Li-ion battery (2200 mAh, 14.8V)
- 2 hours continuous operation on battery
- AC/DC dual power supply (100–240V, 50/60 Hz)
- Compact, lightweight design for point-of-care deployment
Digital Storage & Integration
- External USB card storage for up to 1000 ECG reports
- Network interface, USB Master/Slave, and SD card connectivity
- Software upgrade capability via USB
- Comprehensive digital filtering (EMG, AC, baseline drift)
Technical specifications
| Indications | Cardiac arrhythmia detection, ECG screening, diagnostic electrocardiography, cardiac monitoring |
|---|---|
| Lead Configuration | Standard 12 leads; simultaneous 12-lead acquisition and asynchronous acquisition modes |
| Measurement Range | ±5 mV peak-to-peak |
| Sensitivity | 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (selectable) |
| Input Impedance | ≥50 MΩ |
| Frequency Response | 0.05 Hz–150 Hz (−3 dB) |
| Time Constant | ≥3.2 s |
| Noise Level | <15 µV peak-to-peak |
| Input Circuit Current | <0.05 µA |
| Patient Leakage Current | <10 µA (220–240V) |
| CMRR | 100 dB |
| Sample Rate | 1000 samples per second per channel |
| Recording Modes | Automatic (3CH×4+1R, 3CH×4, 6CH×2), Manual (4CH, 3CH, 2CH, 1CH), Rhythm (any lead selectable) |
| Printing System | Thermal matrix printing on 80 mm roll paper (30 m) |
| Paper Speed | 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s |
| Digital Filters | EMG (25/30/40 Hz), Low Pass (75/100/150 Hz), DFT (0.05–0.67 Hz, ADS), AC (50/60 Hz) |
| Display | 7-inch color touchscreen with patient management keyboard |
| Connectivity | Network interface, USB Master/Slave, SD card, RS232 |
| Data Storage | External USB card: up to 1000 ECG reports |
| Power Supply | AC: 100–240V, 50/60 Hz, 30–100 VA; DC: 14.8V/2200 mAh built-in lithium battery |
| Battery Runtime | 2 hours continuous operation |
| Safety Standard | IEC I/CF (defibrillator-protected input circuit) |
| Sterilisation | Not applicable (non-invasive diagnostic device) |
| Warranty | As applicable |

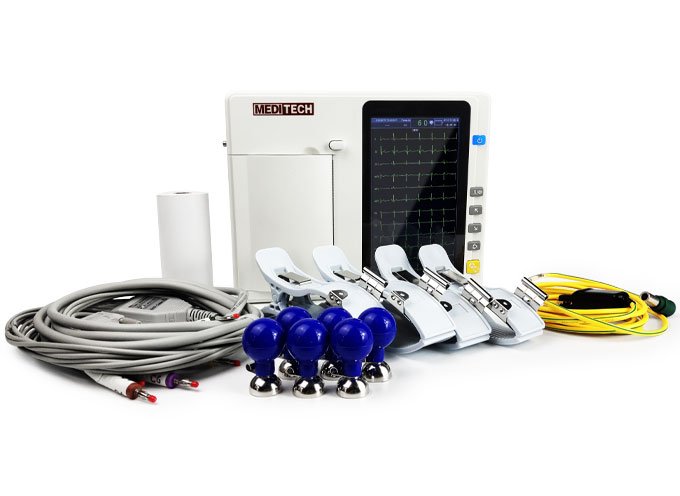

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard chest electrode set | 6 |
| Clamp Electrode | Limb clamp electrodes | 4 |
| ECG Cable | Patient lead cable assembly | 1 |
| Ground Wire | Ground reference wire | 1 |
| Thermal Paper Roll | 80 mm × 30 m thermal recording paper | 1 |
| Power Cable | AC power supply cable | 1 |
| Cleaning Cloth | Device maintenance cloth | 1 |
Optional accessories
| Accessory | Description |
|---|---|
| Carrying Case | Protective transport case for device and accessories |
| Thermal Paper | Additional 80 mm thermal recording paper rolls |
| Mobile Trolley | Wheeled stand for clinical mobility |
| PC Accessories | Computer interface and software integration components |
| Printer Accessories | Thermal printer maintenance and consumable items |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customisation options, or arrange a technical demonstration of the EKG-6A. We support hospitals, clinics, and diagnostic centres worldwide.
