- High resolution thermal-array output system (8 dots/mm) 150Hz
- Large screen displays 12/6/3/1 leads in real-time
- Record and review up to 450 ECG cases with patient information

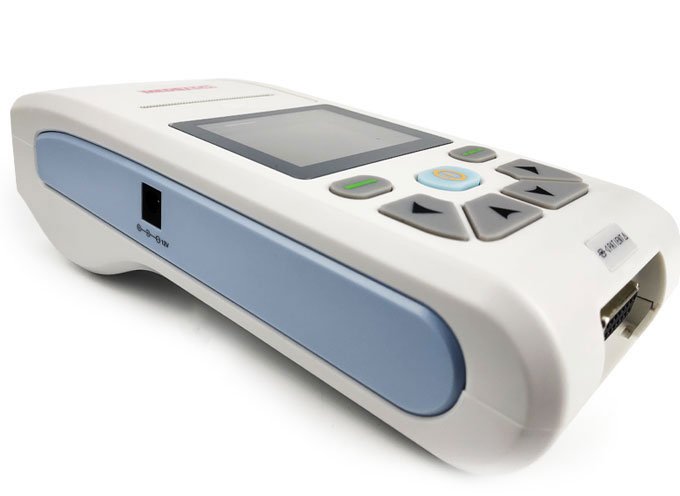

- Small and lightweight design (207mm x 96mm x 62mm, 0.6kg)
- Comes with PC software for data transfer
- Includes standard accessories such as chest electrodes, EKG cable, USB cable, and more
Portable, high-resolution single-channel ECG system with real-time 12/6/3/1 lead display and thermal-array printing. Compact design (207mm × 96mm × 62mm, 0.6kg) with onboard storage for up to 450 cases, rechargeable battery, and integrated PC software for seamless data management.

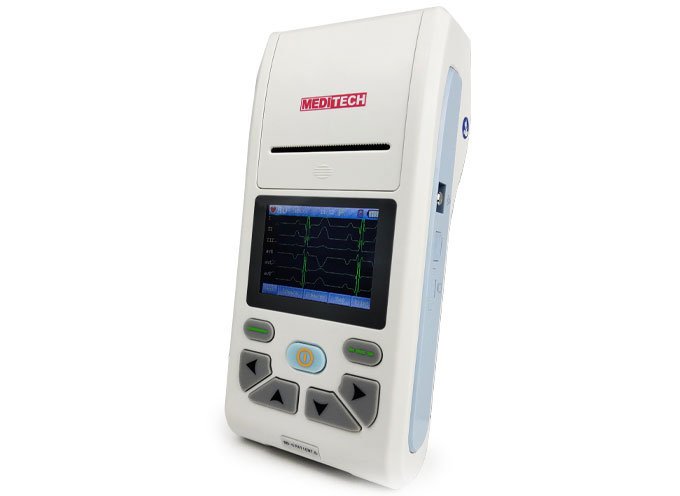

The ECG101T is a compact, lightweight handheld ECG system designed for rapid cardiac assessment in clinical, ambulatory, and point-of-care settings. With high-resolution thermal-array output (8 dots/mm at 150Hz), the device delivers crisp, diagnostic-quality ECG traces suitable for immediate clinical review and long-term archival. The large touchscreen TFT display presents 12, 6, 3, or 1 lead(s) in real-time with continuous status monitoring, including lead identification, sensitivity, paper speed, and filter state.
The ECG101T combines portability with clinical capability: onboard storage accommodates up to 450 ECG cases with full patient demographics, auto-measurement of 13 standard parameters (HR, P-R, P duration, QRS, T duration, Q-T, Q-Tc, and axis angles), and automatic interpretation. Dual power supply (AC 100–110V/240V or rechargeable 7.4V lithium-polymer battery) ensures continuous operation for up to 4 hours on battery alone. USB 2.0 connectivity and included CardioSoft Pro software enable seamless data transfer, review, and statistical analysis on any PC platform.
| Indications | Cardiac rhythm monitoring, diagnostic ECG recording, and arrhythmia detection |
|---|---|
| Sizes / range | Single-channel, standard 12-lead configuration |
| Material | Plastic housing, thermal array printing system, touchscreen TFT display |
| Sterilisation | Not applicable (non-sterile diagnostic device) |
| Packaging | Standard carrying case with accessories; optional protective case available |
| Warranty | As applicable per regional regulations and OEM agreement |
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard disposable chest electrodes for lead placement | 6 |
| Clamp Electrode | Reusable clamp-style limb electrodes | 4 |

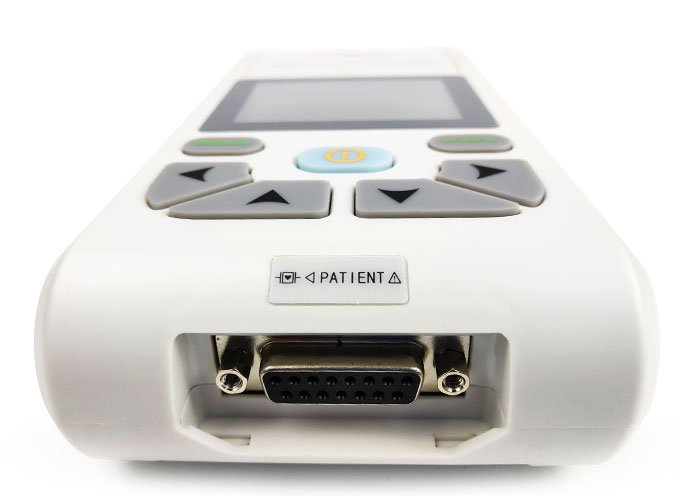

| EKG Cable | Patient lead cable assembly with standard connectors | 1 |

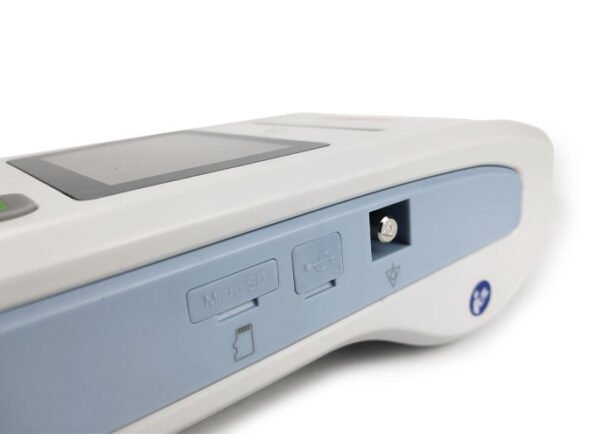

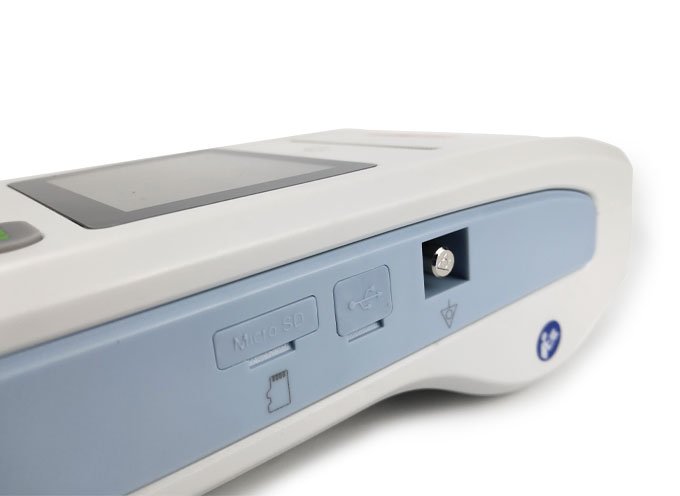

| USB Cable | USB 2.0 cable for PC data transfer and synchronisation | 1 |

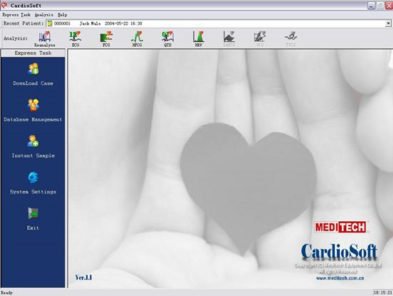

| CD "CardioSoft Pro" | PC software for ECG review, analysis, and data management | 1 |
| Ground Wire | Ground reference electrode lead | 1 |
| Paper Roll | Thermal recording paper (50mm × 20m) | 1 |
| Power Cable | AC mains power cable (100–110V/240V, 50/60Hz) | 1 |
| Cleaning Cloth | Microfibre cloth for device and screen maintenance | 1 |
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customisation options for your clinical or institutional needs.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
