- 12 Channel Electrocardiograph with 8" TFT Color Screen
- Touch screen and soft keyboard control for convenient operation
- Auto-analysis and auto-interpretation capabilities
- Provides more than 10 printing modes
- Internal memory storage for up to 10,000 cases
- 12 leads simultaneous display
- Comes with standard accessories like electrodes, cables, and power supply
Advanced 12-channel electrocardiograph with 8" TFT color touchscreen display. Delivers simultaneous 12-lead acquisition, auto-analysis, and interpretation with flexible printing modes and high-capacity internal memory for comprehensive cardiac diagnostics.

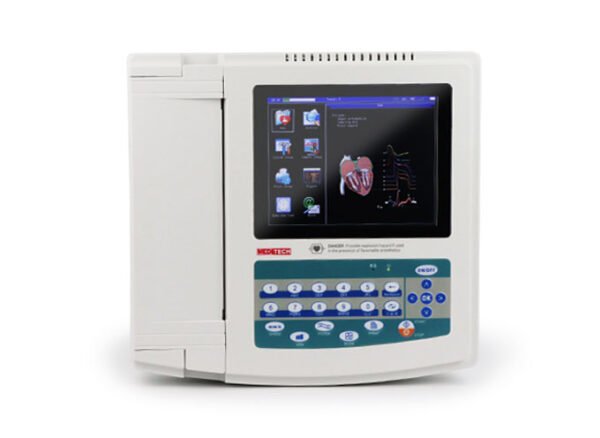

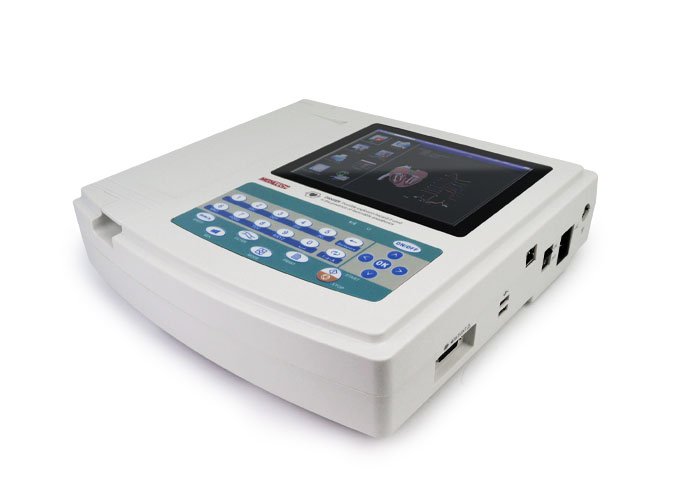

The ECG1212T is a professional-grade 12-channel electrocardiograph designed for rapid, accurate cardiac assessment in clinical and hospital environments. The 8" TFT color touchscreen provides intuitive operation with both touch and soft keyboard control, enabling efficient workflow without compromising diagnostic quality. Simultaneous 12-lead display and acquisition ensure comprehensive cardiac evaluation with minimal patient contact time.
Advanced signal processing includes AC filter, baseline filter, and EMG interference rejection (25/35 Hz at -3dB) to deliver clean, artifact-free tracings. Auto-analysis and auto-interpretation capabilities accelerate clinical decision-making, while flexible paper speeds (5–50 mm/s) and over 10 printing modes accommodate diverse clinical protocols. Internal memory stores up to 10,000 cases, enabling longitudinal tracking and trend analysis without external storage dependency.
| Indications | Cardiac rhythm assessment, arrhythmia detection, ischemia evaluation, routine electrocardiographic screening |
|---|---|
| Leads | Standard 12 leads (simultaneous acquisition) |

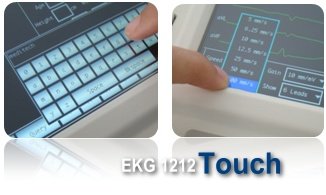

| Display | 8" TFT color touchscreen with soft keyboard control |
| Input Impedance | ≥5 MΩ |
| Patient Leak Current | <10 μA |
| Frequency Response | 1 Hz – 75 Hz |
| Time Constant | >3.2 s |
| CMRR | >60 dB |
| EMG Filter | 25/35 Hz (-3 dB) |
| Noise Level | ≤15 μVp-p |

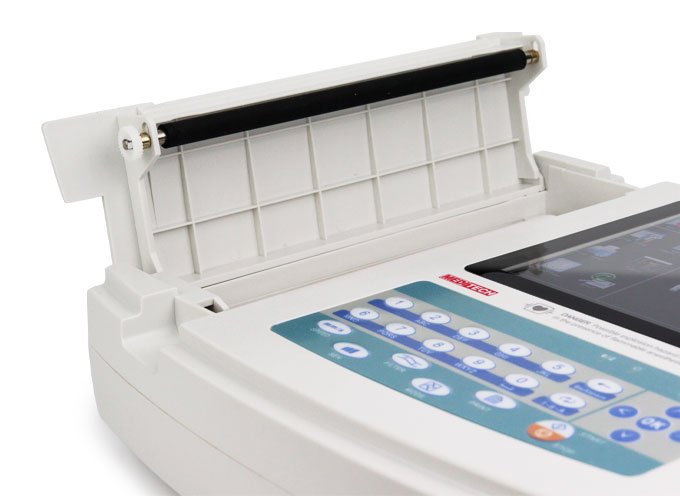

| Recording Method | Thermal array printing system |
| Paper Specification | 80 mm (W) × 20 m (L) high-speed thermal paper |
| Paper Speed | Auto/Rhythm: 25, 50 mm/s (±5%); Manual: 5, 6.25, 10, 12.5, 25, 50 mm/s (±5%) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV (±5%); standard 10 mm/mV ±0.2 mm/mV |
| Measurement Parameters | HR, P-R interval, P duration, QRS duration, T duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Internal Memory | Up to 10,000 cases |
| Printing Capacity | 90 minutes continuous or 150 ECGs |
| Printing Modes | More than 10 modes |
| Safety Classification | Class I Type CF defibrillation-proof applied part |
| Enduring Polarization Voltage | ±300 mV |

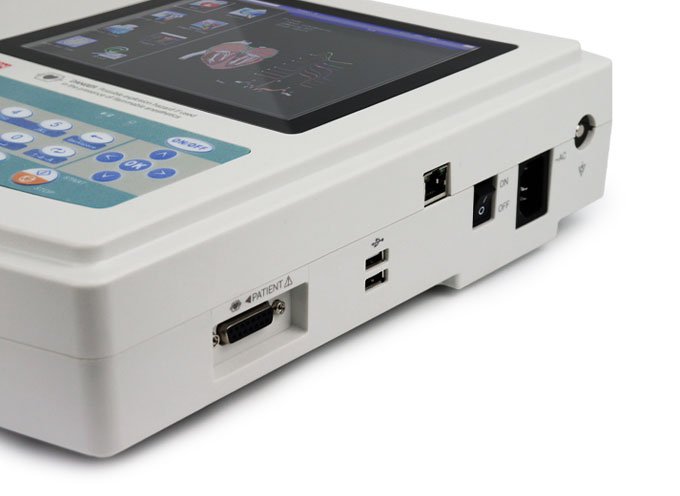

| Power Supply | AC: 100–110V/240V, 50/60 Hz; DC: 7.4V, 3700 mAh rechargeable lithium battery |
| Operating Temperature | +5°C to +35°C |
| Operating Humidity | ≤80% |
| Storage Temperature | -10°C to +55°C |
| Storage Humidity | ≤95% |
| Atmospheric Pressure | Operating: 86–106 kPa; Storage: 50–106 kPa |
| Fuse Specification | 2 × φ5×20 mm AC time lag; T1.6A/250V (110V/220V power supply) |
| Warranty | As applicable |
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard ECG chest electrode | 6 |
| Clamp Electrode | Limb lead clamp electrode | 4 |
| ECG Cable | Patient lead cable assembly | 1 |
| USB Cable | Data transfer and connectivity | 1 |
| CD "CardioSoft pro" | Software for data management and analysis | 1 |
| Ground Wire | Patient ground reference | 1 |
| Paper Roll | Thermal recording paper | 1 |
| Power Cable | AC power supply cable | 1 |
| Cleaning Cloth | Screen and device maintenance | 1 |
Contact our sales team to request a quote, discuss clinical requirements, or explore customization options including trolley, case, thermal paper supplies, and PC integration accessories.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
