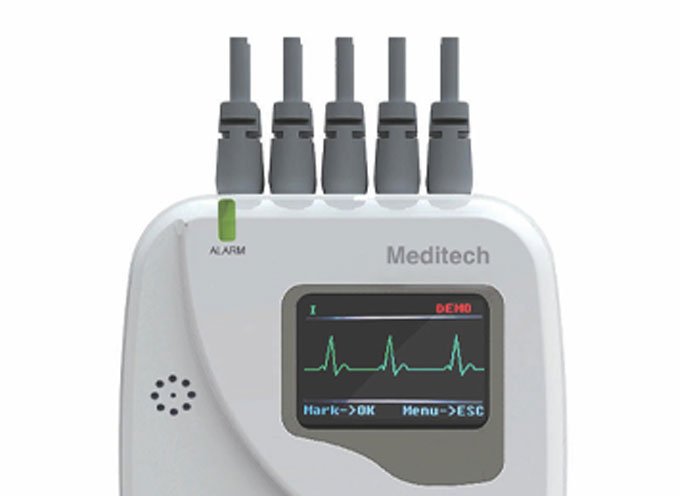

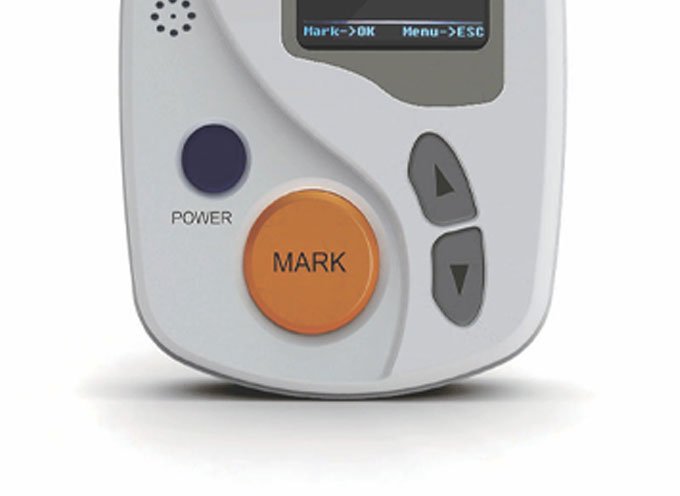

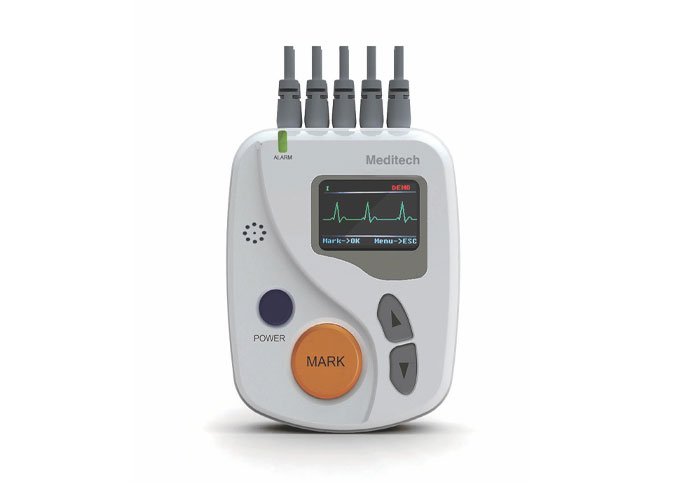

Holter ECG Monitor Heart Rec ECO
- Compact design and small size with OLED display
- Offers 12 leads synchro analysis for accurate QRS search
- Features more than 10 templates for various arrhythmia modules
- Provides powerful pacemaker analysis for different types of pacemakers
- SKU
- 2EEBDC4FBDE2
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Holter ECG Monitor Heart Rec ECO
Compact 12-lead Holter ECG recorder with OLED display and advanced arrhythmia analysis. Delivers synchronized QRS detection, pacemaker analysis, and heart rate variability assessment in a portable, battery-powered device designed for extended cardiac monitoring.
Clinical overview

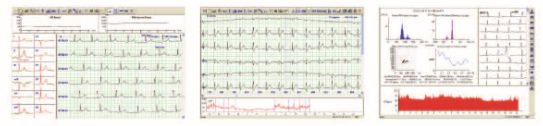

The Holter ECG Monitor Heart Rec ECO is a portable 12-lead cardiac recording system engineered for continuous ambulatory ECG monitoring and comprehensive arrhythmia analysis. With synchronized multi-lead acquisition, the device enables precise QRS detection and rhythm classification across diverse patient populations. The intuitive analysis software supports playback, waveform classification, and automated detection of pathological patterns including atrial fibrillation, premature beats, and pacemaker function.
Advanced analytical modules include heart rate variability (HRV) assessment over short (5-minute) and long (1-hour) intervals, T-wave alternation analysis for arrhythmia risk prediction, and heart rate turbulence evaluation for post-MI stratification. The system accommodates all major pacemaker types (AAI, VVI, DDD) with dedicated analysis algorithms, making it suitable for both primary screening and follow-up monitoring in complex cardiac patients.
Key features & surgeon benefits
Comprehensive Multi-Lead Acquisition
- 12-lead synchronous ECG sampling with isochronous data collection
- Flexible 3-channel configuration (5-wire or 7-wire cable options)
- Removable electrodes for easy replacement and patient comfort
Intuitive Analysis & Reporting
- Clear operating interface with OLED display for real-time monitoring
- Over 10 pre-configured arrhythmia templates plus user-defined pattern recognition
- Flexible atrial fibrillation analysis combining automatic and manual segmentation
Portable & Cost-Effective

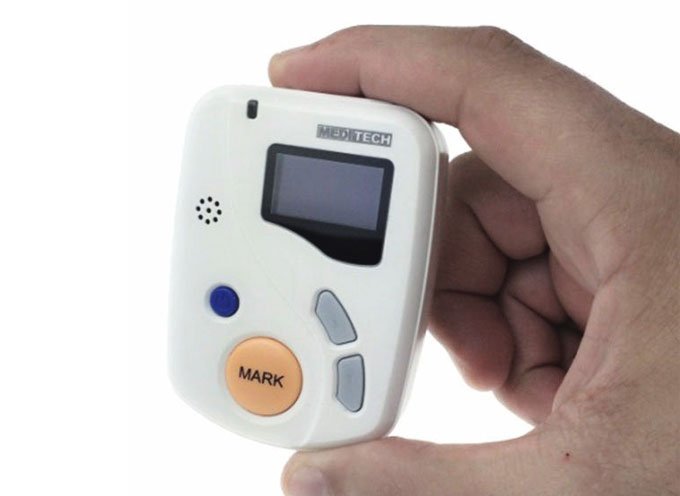

- Compact design (80.5 × 59.5 × 22 mm) with minimal weight (61.5 g)
- 60-hour battery life on standard AAA cells; rechargeable option available
- Removable TF card storage (up to 2 GB) for flexible data management
Pacemaker & Risk Stratification
- Dedicated analysis for AAI, VVI, DDD and other pacemaker types
- Heart rate turbulence and T-wave alternation modules for MI risk assessment
- VCG, VLP, TVCG, and QTD analysis for enhanced diagnostic value
Technical specifications
| Indications | Arrhythmia detection, HRV analysis, pacemaker assessment, myocardial infarction risk stratification |
|---|---|
| Sizes / range | 12-lead (10-wire cable) or 3-channel (5-wire or 7-wire selectable) |
| Material | Polymer housing with integrated electronics; removable electrode connectors |
| Sterilisation | Device is non-sterile; electrodes and cables are replaceable |
| Packaging | Leather carrying case, EKG cable, 2× AAA batteries, SD card, cleaning cloth |
| Warranty | As applicable |
Technical performance parameters
| Parameter | Specification |
|---|---|
| Scale voltage | 1 mV ±5% |
| Standard sensitivity | 10 mm/mV ±5% |
| Noise level | ≤30 μV p-p |
| CMRR | ≥60 dB |
| Frequency response | 0.5 Hz–55 Hz (−3 dB); 10 Hz benchmark |
| Time constant | ≥3.2 s |
| Scan speed | 25 mm/s ±5% |
| Polarization voltage tolerance | ±300 mV DC; sensitivity shift ≤±10% |
| Minimum measurable signal | 50 μV p-p |
| Inter-channel interference | ≤0.5 mm scan track deflection |
| Product safety type | Type B (Internally powered) |
| Dimensions | 80.5 mm (L) × 59.5 mm (W) × 22 mm (H) |
| Net weight | 61.5 g (without battery) |
| Power supply | DC 1.5 V (AAA cells); 60-hour operating life |
| Operating temperature | 10 °C–45 °C |
| Operating humidity | ≤85% (non-condensing) |
| Storage temperature | −40 °C to +55 °C |
| Storage humidity | ≤85% |
| Atmospheric pressure | 860–1060 hPa (operation and storage) |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| EKG Cable | 12-lead or 3-channel configuration | 1 |
| Leather Case | Protective carrying case | 1 |
| Battery | AAA size cells | 2 |
| SD Card | Data storage (up to 2 GB) | 1 |
| Cleaning Cloth | Device maintenance | 1 |
Optional accessories
| Accessory | Description |
|---|---|
| Rechargeable Battery | Extended-use power option |
| Charger (Panasonic) | Compatible charging unit for rechargeable batteries |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customization options for the Holter ECG Monitor Heart Rec ECO. We support both direct purchases and OEM partnerships.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

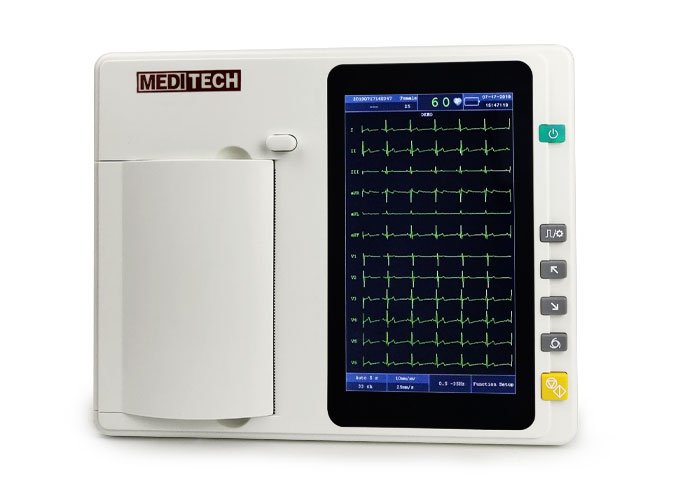

ECG Device 3 Channel ECG machine, Slim, Advanced and Light Weight EKG-6A
- Slim and lightweight 3 channel ECG machine - Large color touch screen display for easy operation - Precise ECG auto-interpretation program for accurate results - Built-in rechargeable battery for 2 hours of continuous use - Lead-off detection for signal quality assurance - Multiple operation modes including automatic, manual, and arrhythmia analysis - External USB card for storing up to 1000 reports

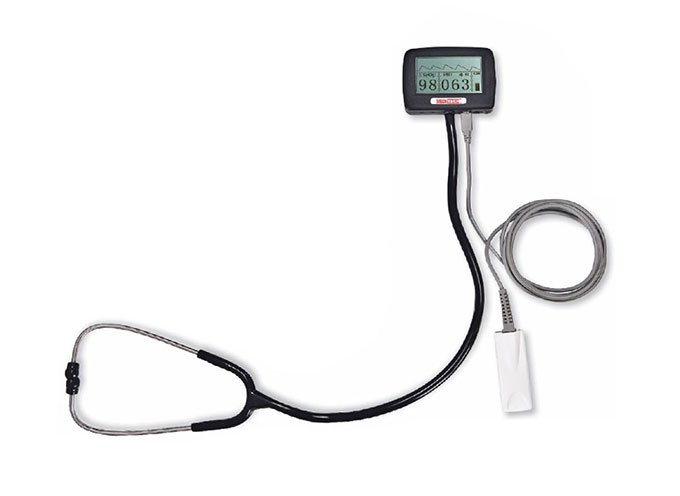

Multi-functional Visual Stethoscope VS2
- Multi-functional visual stethoscope with auscultation sound output - ECG waveform display for accurate heart monitoring - SpO2 monitor for oxygen saturation levels - Pulse waveform and rate display for comprehensive patient assessment
HeartRec® Lite Holter ECG Ambulatory ECG Analysis System
- The HeartRec® Lite Holter ECG is a compact and lightweight ambulatory ECG analysis system - Offers automatic duplex operation with 12-channel or 3-channel options - Programmable recording up to 7 days for 3-channel configuration - Features lightning-fast data transfer and pacemaker detection - Comes with standard accessories including EKG cable, SD card, and battery

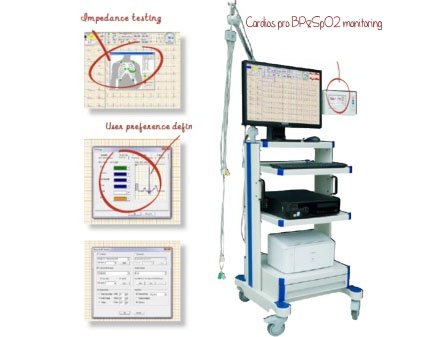

Cardios Pro Stress Test System
- Cardios Pro Stress Test System for evaluation of exercise stress test including ECG, symptoms, and blood pressure - Features high-resolution A/D conversion and patented Meditech technology for accurate measurements - Offers different selectable filters, arrhythmia detection, and live review for comprehensive analysis - Compatible with various treadmills and ergometers, with preset protocols and user-defined options - Includes exercise testing hardware, software for real-time analysis, and data management capabilities

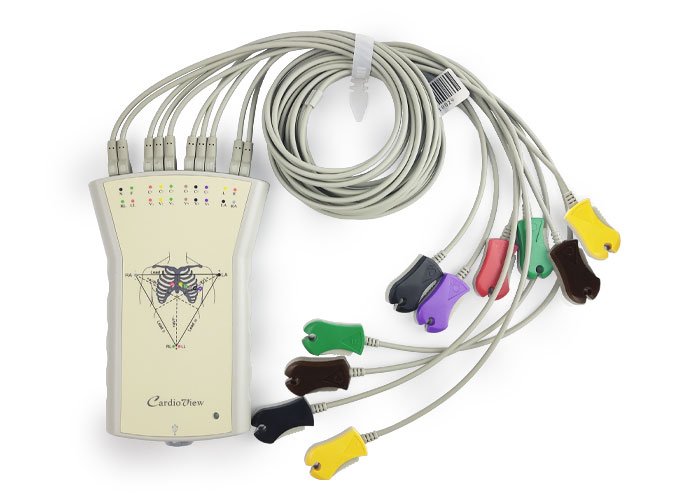

Cardios PC based ECG Machine
- 12-Lead Simultaneous ECG - Automatic Measurement and Interpretation - Pacemaker Analysis - Multi-Form Printing - One Key Operation - VCG and VLP - Isolated USB

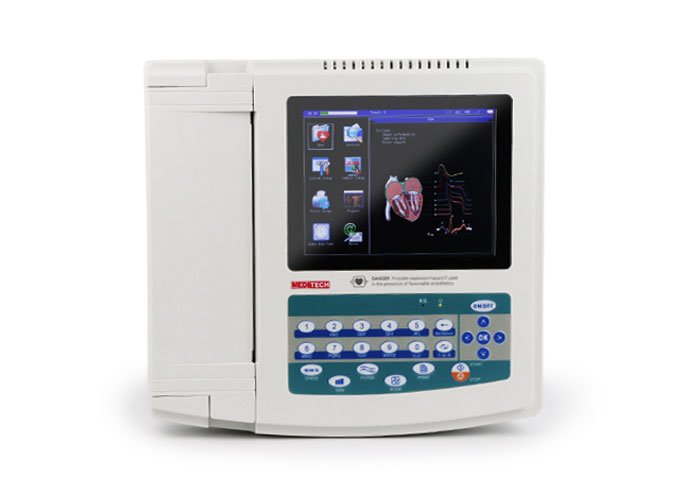

ECG Machine with 8 inch Touch and Color Screen ECG1212T
- 12 Channel Electrocardiograph with 8" TFT Color Screen - Touch screen and soft keyboard control for convenient operation - Auto-analysis and auto-interpretation capabilities - Provides more than 10 printing modes - Internal memory storage for up to 10,000 cases - 12 leads simultaneous display - Comes with standard accessories like electrodes, cables, and power supply

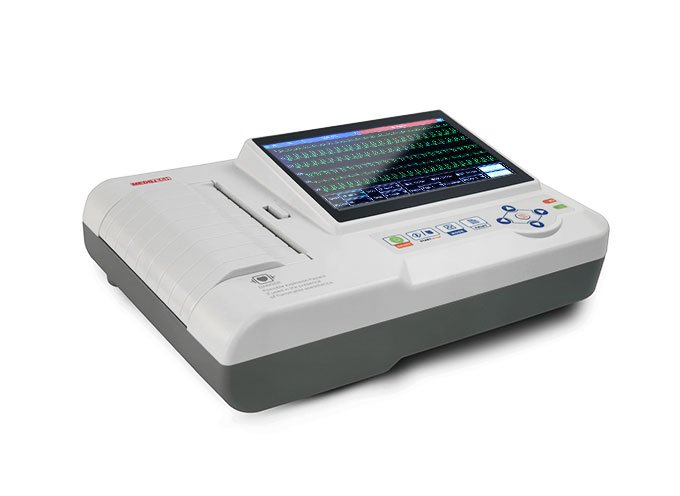

7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
