Multi-functional Visual Stethoscope VS2
Original price was: $370.50.$247.00Current price is: $247.00.
– Multi-functional visual stethoscope with auscultation sound output
– ECG waveform display for accurate heart monitoring
– SpO2 monitor for oxygen saturation levels
– Pulse waveform and rate display for comprehensive patient assessment
Description

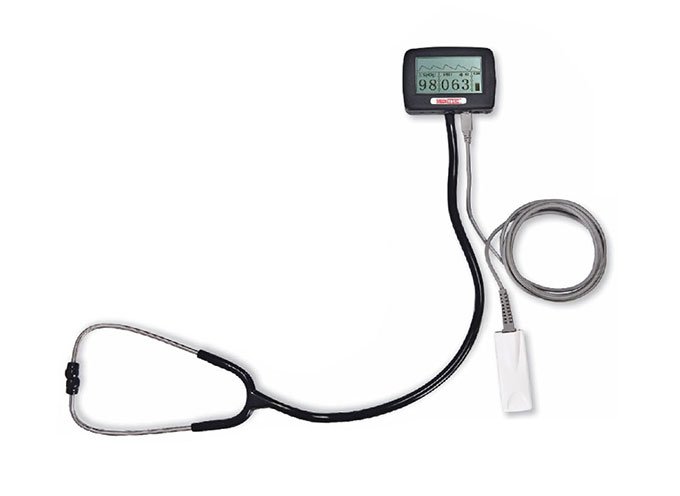

Multi-functional Visual Stethoscope VS2
Advanced portable diagnostic device combining auscultation sound output with real-time ECG waveform display, SpO2 monitoring, and comprehensive pulse assessment. Ideal for clinical environments requiring integrated cardiac and respiratory monitoring in a compact, battery-powered platform.
Clinical overview

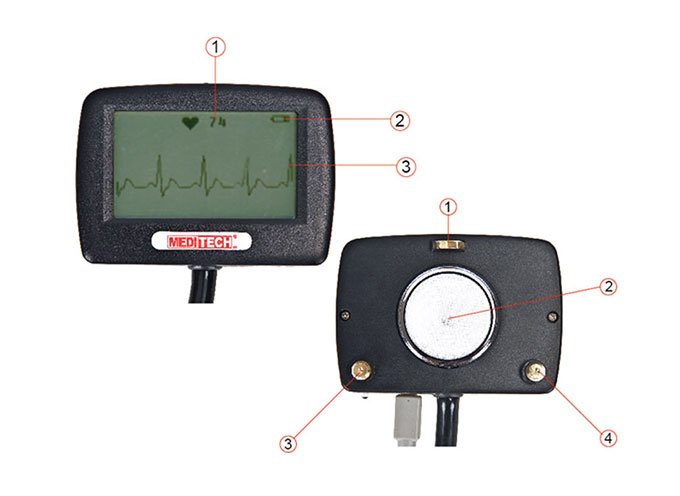

The Multi-functional Visual Stethoscope VS2 integrates traditional auscultation with modern digital diagnostics, delivering real-time cardiac and respiratory assessment in a single, lightweight device. The integrated 160×96 LCD display presents ECG waveforms, heart rate, SpO2 saturation, and pulse waveform data simultaneously, enabling clinicians to correlate acoustic findings with objective physiological parameters at the bedside.
Designed for continuous operation in clinical settings, the VS2 features a rechargeable lithium battery with 20+ hours of runtime, IPX1 splash resistance, and compliance with IEC60601-1:2005 medical device safety standards. The device supports external oximeter probe connectivity, offering flexibility across neonatal, pediatric, and adult patient populations through a comprehensive range of SpO2 sensor options.
Key features & surgeon benefits
Integrated Cardiac & Respiratory Assessment
- Real-time ECG waveform display with heart rate trending
- SpO2 saturation monitoring via external probe connectivity
- Pulse waveform, rate, and bar graph visualization
- Pulse rate audio indication for hands-free monitoring
Portable & User-Friendly Design
- Compact form factor (87×63×19 mm) for point-of-care use
- Adjustable LCD backlight and contrast settings
- Intuitive interface with battery power display and alarm function
- Continuous operation capability for extended monitoring sessions
Clinically Validated Measurement Performance
- Heart rate accuracy: ±2 bpm (30–300 bpm range)
- SpO2 accuracy: ±2% (70–100% range); ±4% in weak perfusion states
- Pulse rate accuracy: ±2 bpm or ±2% (30–250 bpm range)
- Ambient light resistance: <±1% deviation in varying light conditions
Comprehensive Probe & Customisation Options
- 13+ SpO2 probe variants: neonatal, pediatric, adult, and specialty sensors
- Finger clip, soft tip, ear clip, forehead, and multi-site Y-type configurations
- Veterinary tongue clip option for non-human applications
- OEM customisation available for integrated clinical workflows
Technical specifications
| Indications | Cardiac auscultation, heart rate monitoring, oxygen saturation assessment, pulse waveform analysis |
|---|---|
| Heart rate range | 30–300 bpm; resolution ±1 bpm; accuracy ±2 bpm |
| SpO2 range | 0–100%; resolution 1%; accuracy ±2% (70–100% range); ±4% in weak perfusion states |
| Pulse rate range | 30–250 bpm; resolution 1 bpm; accuracy ±2 bpm or ±2% (select larger) |
| Display | LCD 160×96 resolution, 60×35 mm display area |
| Physical dimensions | 87 mm × 63 mm × 19 mm |
| Weight | 180 g (including battery) |
| Battery | Rechargeable lithium; 3.6–4.2 V DC; >20 hours continuous operation |
| Power consumption | <0.3 VA |
| Operating environment | Temperature 5–40°C; relative humidity 20–80%; atmospheric pressure 70–106 kPa |
| Storage environment | Temperature −10 to +50°C; relative humidity 10–95%; atmospheric pressure 50–106 kPa |
| Safety classification | IEC60601-1:2005 compliant; EMC Group I Class B; Type B applied part; IPX1 splash resistance |
| Sterilisation | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| SpO2 Cable (Adult) | Standard adult finger clip oximeter probe | 1 |
| USB Cable | Data and charging connectivity | 1 |
| USB Charger | Power adapter for lithium battery charging | 1 |
| Cleaning Cloth | Device maintenance and display care | 1 |
Optional SpO2 probe configurations
| Probe Type | Application |
|---|---|
| SpO2 Cable (Newborn) | Neonatal assessment |
| SpO2 Cable (Adult finger clip) | Standard adult monitoring |
| SpO2 Cable (Child finger clip) | Pediatric finger-based measurement |
| SpO2 Cable (Adult soft tip) | Comfort-enhanced adult monitoring |
| SpO2 Cable (Child soft tip) | Pediatric soft-tip sensor |
| SpO2 Cable (Infant soft tip) | Neonatal soft-tip application |
| SpO2 Cable (Neonate silicone wrap) | Neonatal wraparound sensor |
| SpO2 Cable (Multi-site Y type) | Simultaneous dual-site measurement |
| SpO2 Cable (With separate wrap) | Flexible multi-site application |
| SpO2 Cable (Adult ear clip) | Ear-based adult monitoring |
| SpO2 Cable (Veterinary tongue clip) | Non-human animal assessment |
| SpO2 Cable (Multi-site clip) | Multiple attachment point options |
| SpO2 Cable (Adult forehead) | Forehead-based adult monitoring |
| SpO2 Cable (Multi-site Y type with foam wrap) | Dual-site with enhanced comfort |
Get in touch for pricing & availability
Contact our sales team to discuss the Multi-functional Visual Stethoscope VS2, probe options, and integration into your clinical workflow. We provide technical support, customisation guidance, and competitive pricing for volume orders.
