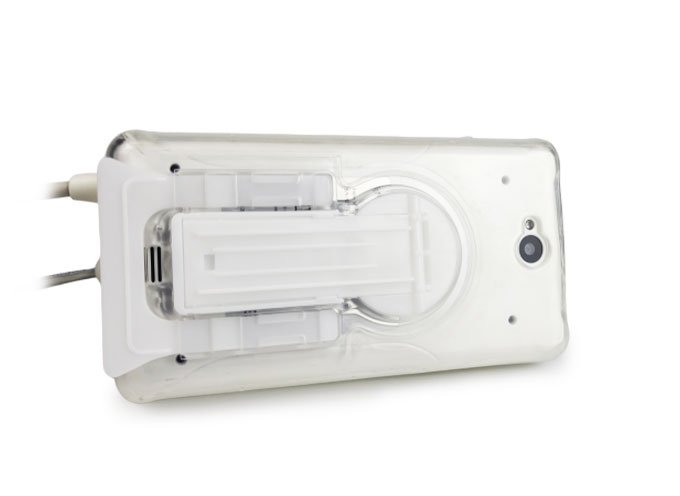

CScan® Android Ultrasound Scanner
4.5(4 reviews)- Handheld ultrasound scanner with high-resolution 6 inch LCD touchscreen
- Versatile clinical applications including anesthesia, line placement, and OB/GYN
- Detects various medical conditions like pericardial effusion, fetal heart beats, and kidney stones
- Comes with standard accessories and optional probes for different imaging needs
- SKU
- 534B58DB7220
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Portable Ultrasound Imaging

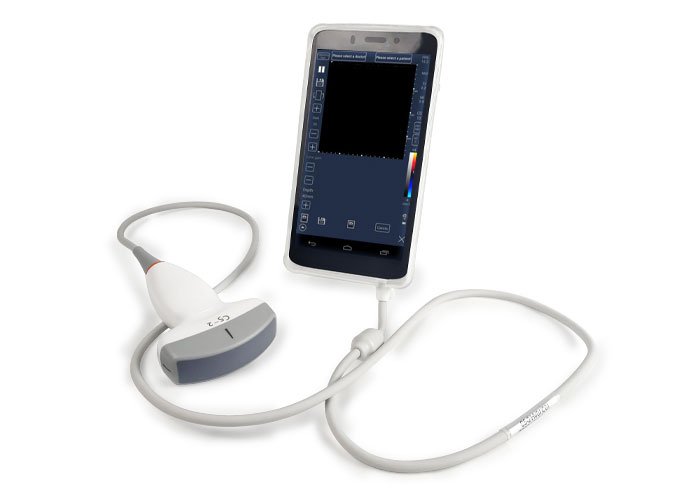

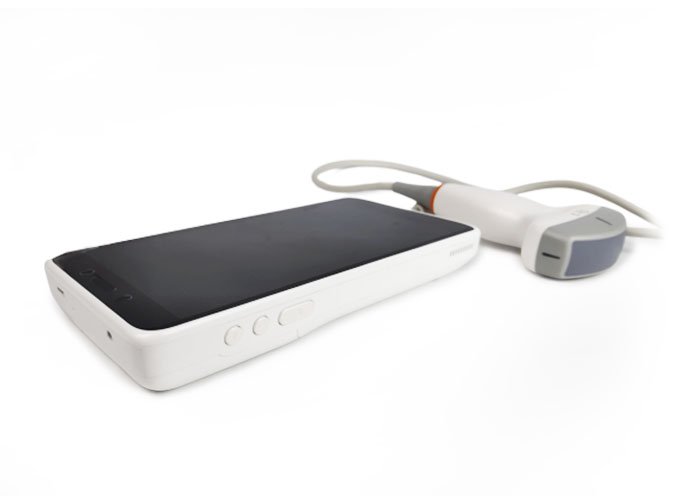

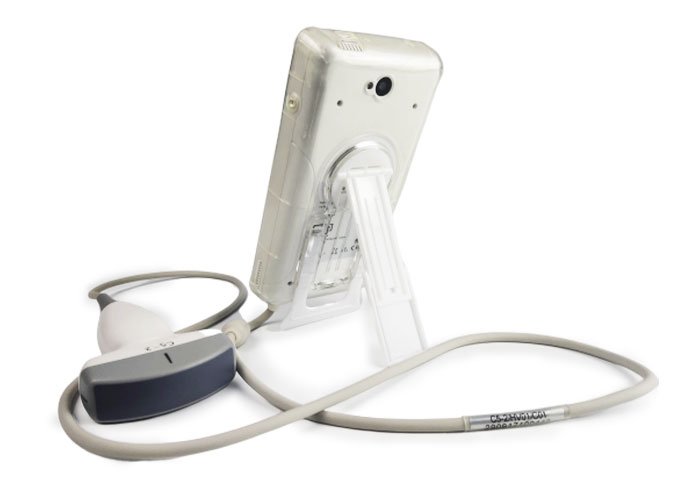

CScan® Android Ultrasound Scanner
A versatile handheld ultrasound system with high-resolution 6-inch LCD touchscreen, designed for point-of-care imaging across anesthesia, vascular access, emergency medicine, and OB/GYN applications. Delivers real-time B-mode, M-mode, and compound imaging with dual-probe capability and cloud-based image management.
Ordering Ref.
534b58db7220
ConfigurationConvex + Linear probe
MaterialMedical-grade polymer
ApplicationMulti-specialty POC
Optional probes available: 7.5 MHz linear, 6.5 MHz trans-vaginal, 3.5 MHz micro-convex. Custom configurations on request.
Clinical overview
The CScan® Android Ultrasound Scanner is a portable, Android-based point-of-care ultrasound system engineered for rapid bedside assessment across emergency medicine, anesthesia, critical care, and specialty imaging. With dual-probe capability (convex 2–5 MHz and linear 5–10 MHz), it delivers real-time B-mode, M-mode, and compound imaging with 256-level grayscale and frame rates up to 24 fps. The 6-inch high-resolution touchscreen (1280×720) provides intuitive image navigation and measurement tools, while integrated cloud storage and DICOM export enable seamless data sharing and telemedicine workflows.
Built-in 5400 mAh battery supports 2 hours of continuous scanning, and wireless connectivity (WiFi, Bluetooth, 3G/4G) allows remote consultation and software updates. The system is ideal for detecting pericardial effusion, guiding vascular access, monitoring fetal development, identifying renal calculi, and confirming bone fractures without radiation exposure.
Key features & surgeon benefits
Clinical Coverage
Multi-specialty imaging capability
- Anesthesia and regional blocks
- Vascular access (CVC, PICC, arterial lines)
- Emergency and ICU assessment
- OB/GYN and fetal monitoring
- Abdominal and urological screening
- Pediatric and primary care applications
Workflow
Intuitive operation and portability

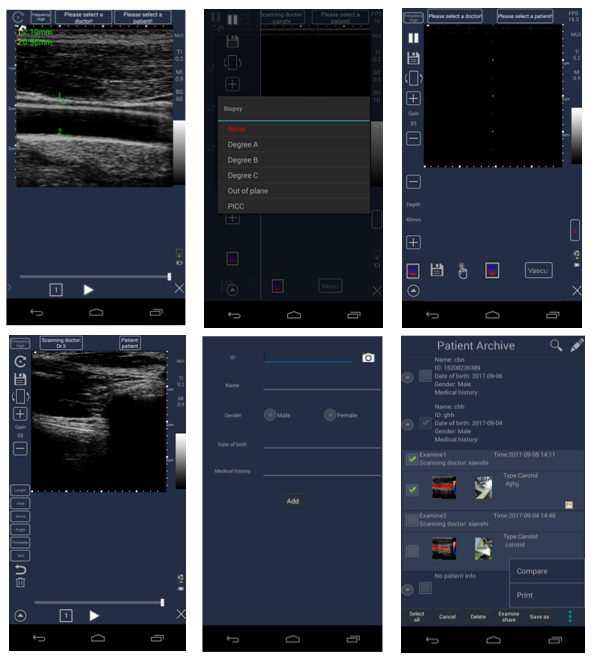

- 6-inch full touchscreen with gesture controls
- Lightweight design (550–570 g per probe)
- 2-hour battery for continuous scanning
- Rapid image capture and cine-loop (1024 frames)
- One-touch measurement tools (length, area, angle, perimeter)
- Integrated 5 MP camera for documentation
Economics
Cost-effective point-of-care solution
- Eliminates transport delays for bedside imaging
- Reduces radiation exposure vs. X-ray confirmation
- Supports high-volume screening and monitoring
- Cloud storage reduces physical media costs
- Remote software updates extend device lifespan
- Compact form factor reduces storage footprint
Customisation
Expandable probe and software options

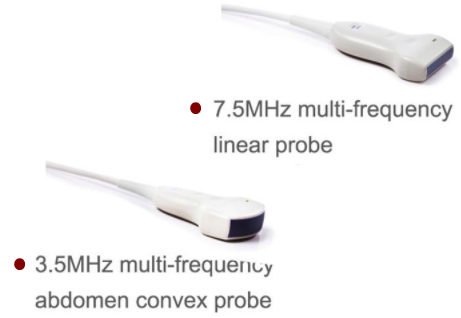

- Optional 7.5 MHz high-frequency linear probe
- 6.5 MHz trans-vaginal (intra-cavity) probe
- 3.5 MHz micro-convex probe for specialized access
- WiFi printer integration for on-site reporting
- Custom API & SDK for enterprise integration
- Online and offline training materials included

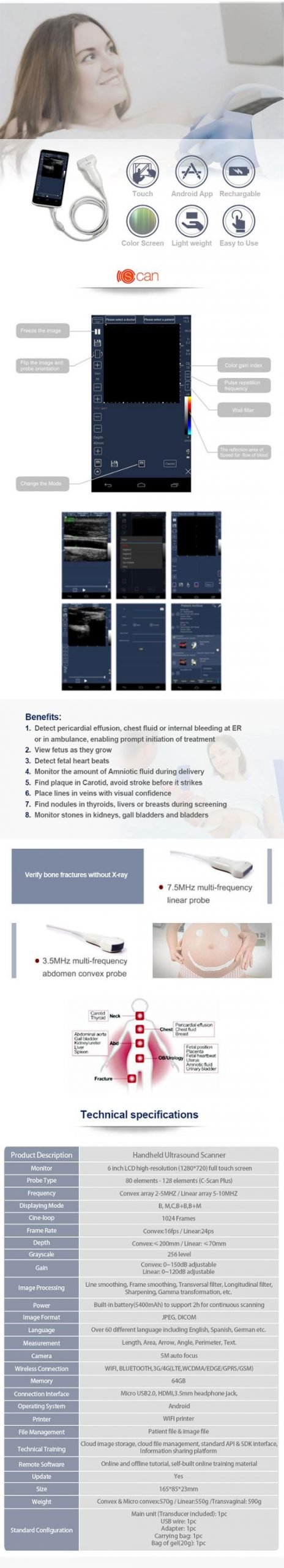

Technical specifications
| Indications | Anesthesia, line placement, pain management, point-of-care, vascular access, primary care, emergency & ICU, general practice, urological, OB/GYN, abdominal, pediatric scanning |
|---|---|
| Probe type | 128-element convex array (2–5 MHz) and linear array (5–10 MHz) |
| Display | 6-inch LCD high-resolution touchscreen (1280×720) |
| Imaging modes | B-mode, M-mode, C-mode, B+B, B+M |
| Frame rate | Convex 16 fps / Linear 24 fps |
| Depth range | Convex ≤200 mm / Linear ≤70 mm |
| Grayscale | 256 levels |
| Gain adjustment | Convex 0–150 dB / Linear 0–120 dB |
| Cine-loop | 1024 frames |
| Image processing | Line smoothing, frame smoothing, transversal & longitudinal filters, sharpening, gamma transformation |
| Measurement tools | Length, area, arrow, angle, perimeter, text annotation |
| Image format | JPEG, DICOM |
| Power | Built-in 5400 mAh battery (2 hours continuous scanning) |
| Wireless | WiFi, Bluetooth, 3G/4G (LTE, WCDMA, EDGE, GPRS, GSM) |
| Memory | 64 GB internal storage |
| Connectivity | Micro USB 2.0, HDMI, 3.5 mm headphone jack |
| Operating system | Android |
| Camera | 5 MP auto-focus |
| Cloud features | Image storage, file management, standard API & SDK, information sharing platform |
| Printer support | WiFi printer compatible |
| Training | Online and offline tutorials, self-built online training materials |
| Software updates | Remote update capability |
| Dimensions | 165 × 85 × 23 mm |
| Weight | Convex probe 570 g / Linear probe 550 g |
| Sterilisation | As applicable |
| Warranty | As applicable |

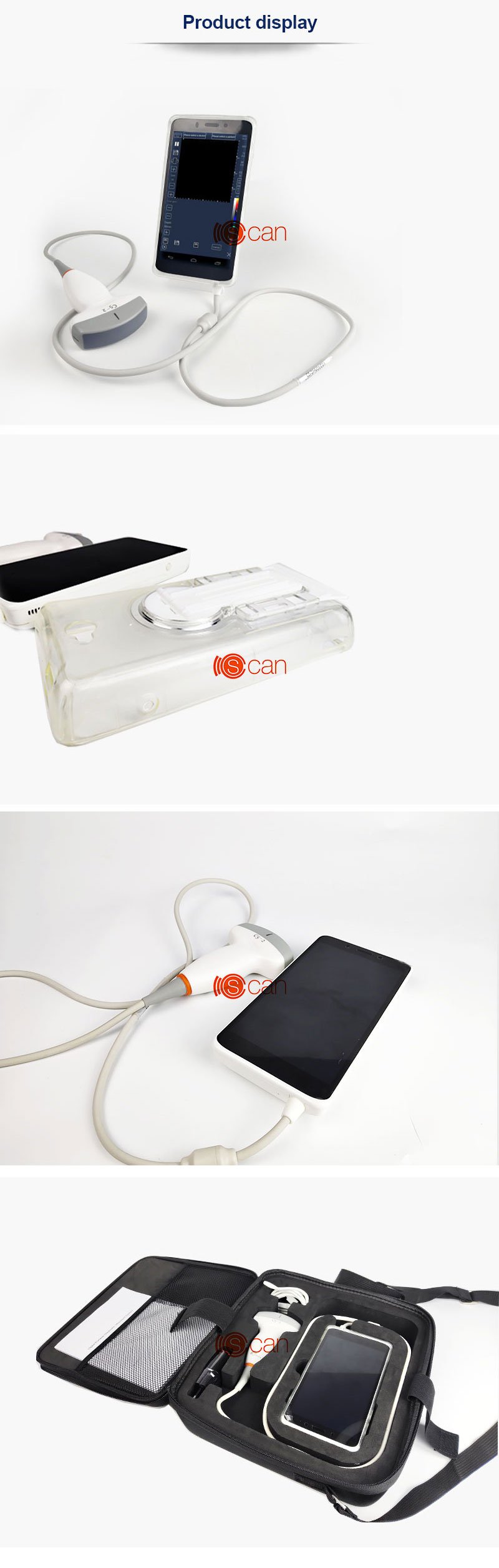

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Device & Ultrasound probe | CScan® Android scanner with convex or linear probe | 1 |
| USB wire | Micro USB 2.0 connection cable | 1 |
| Adapter | Power adapter for charging | 1 |

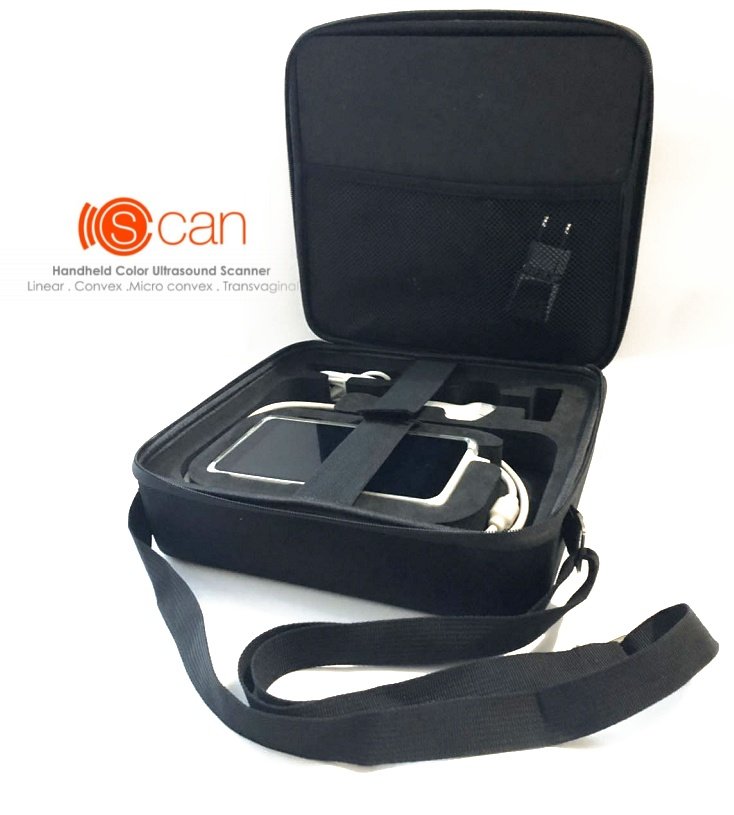

| Carrying bag | Protective transport case | 1 |
| Cleaning cloth | Microfiber cleaning cloth | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, optional probes, training requirements, and volume pricing. We offer flexible delivery and integration support for hospital and clinic deployments.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.5· 4 reviewsImpressive portability
For bedside vascular access and FAST exams this Android scanner punches above its weight. Boot time is quick and the linear-probe resolution is more than adequate for line placement.
Dr. Laura Mendes, MD, RVTVerified buyerMay 28, 2025
Good point-of-care tool
As a sonographer I use it for point-of-care musculoskeletal and soft-tissue work. It's not a replacement for a cart-based system, but for portability the image quality is genuinely useful and the battery lasts a full clinic session.
Rajiv Malhotra, RDMSVerified buyerJan 16, 2025
Great for outreach clinics
We deployed two in our outreach programme. The interface is intuitive and exporting clips over the network is straightforward. Depth penetration on the convex probe is the main limitation.
Dr. Sophie Lindqvist, MDOct 11, 2024
Related products
See all →
Teds Medical
Dolphi® Pro Portable B/W Ultrasound Scanner
4.8(4)
- Portable 2D B/W Ultrasound scanner with advanced transducer technology - Clear and detailed imaging on a 10 inch CRT Screen - Multiple imaging modes including B, B/B, 4B, B+M, and M - Features digital beam forming for precise imaging capabilities
$3,315.00
$2,587.00
Teds Medical

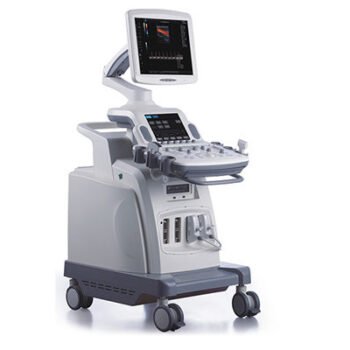

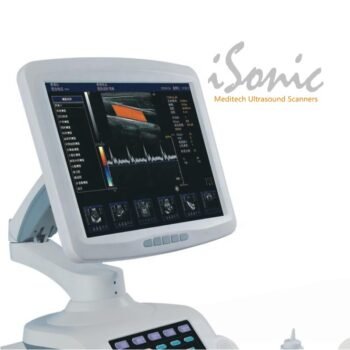

iSonic High Quality Images Color Ultrasound Scanner
- iSonic High Quality Images Color Ultrasound Scanner - 17" LCD with high brightness and resolution - Various imaging modes including B-mode, M-mode, color, and Doppler - Measurements for obstetrics, gynecology, urology, and more
$24,700.00
$22,737.00
Teds Medical

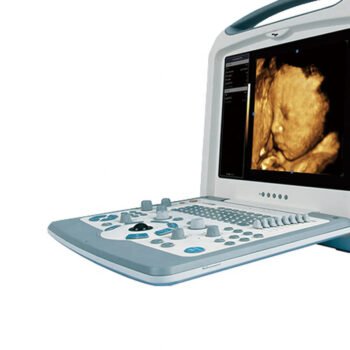

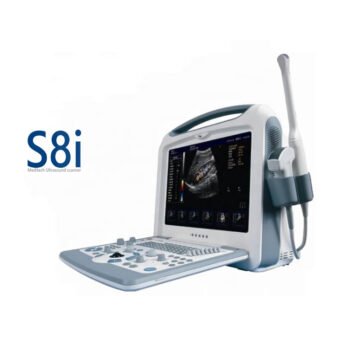

Medical Device S8i Color Portable Ultrasound Scanner
- Portable color ultrasound scanner with multiple displaying modes - Full-digital beam forming and dynamic filter for optimal signal processing - Versatile image conversion options for enhanced viewing - Comprehensive general measurements and OB packages included - Comes with multi-frequency convex and linear probes - Optional modules and probes available for advanced imaging options
$11,050.00
$9,087.00
Teds Medical
Sonoview® Full Digital Imaging Ultrasound Scanner
- Full digital imaging ultrasound scanner with 15" color LCD screen - PC based with abundant functions and built-in workstation software - Broadband multi-frequency probes with 5 segment frequencies - Cine loop preset options of 64, 128, 256, 512, 1024 frames - Large storage capacity and USB storage for image and cine loop - Optional 3D image function and compatible with laser/inkjet printers
$11,050.00
$10,393.50
Teds Medical

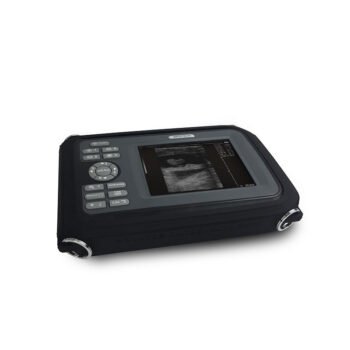

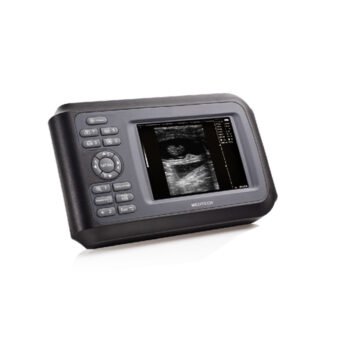

Medical Device Diagnostic Portable Digital Ultrasound Scanner SONO R
