Medical Device Diagnostic Portable Digital Ultrasound Scanner SONO R
- Portable digital ultrasound scanner with a 5.5-inch TFT color LCD monitor
- 4 display modes: B,B+B,4B,B+M,M and 256 gray scale levels
- 256 frames for cine-memory, 64 image permanent storage
- Various body measurement options for OB/GY, heart, and general imaging
- Probe options available for different applications along with essential accessories included
- SKU
- 08DFAFBCF744
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping

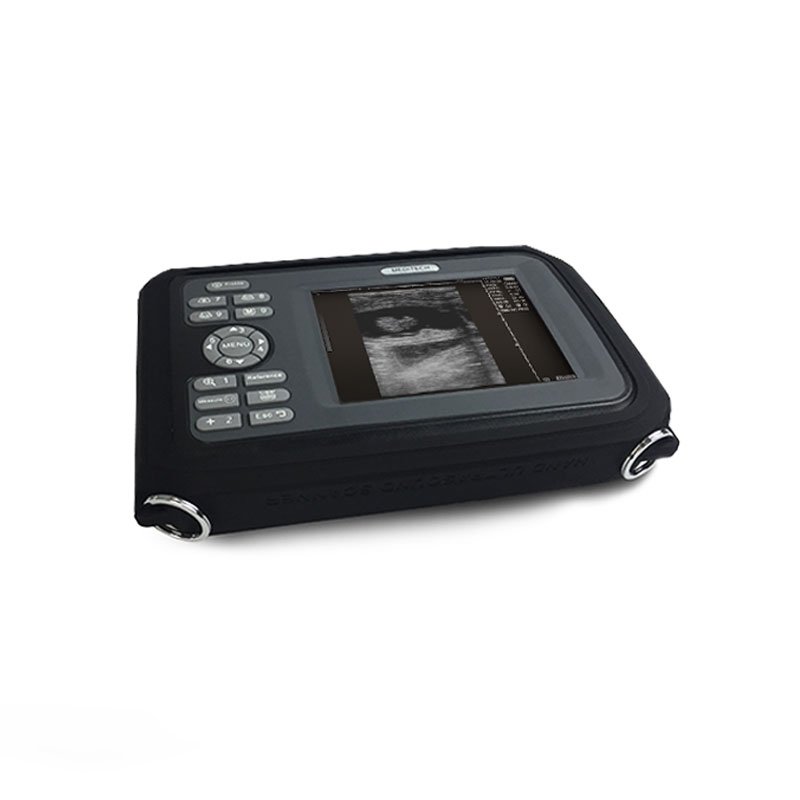

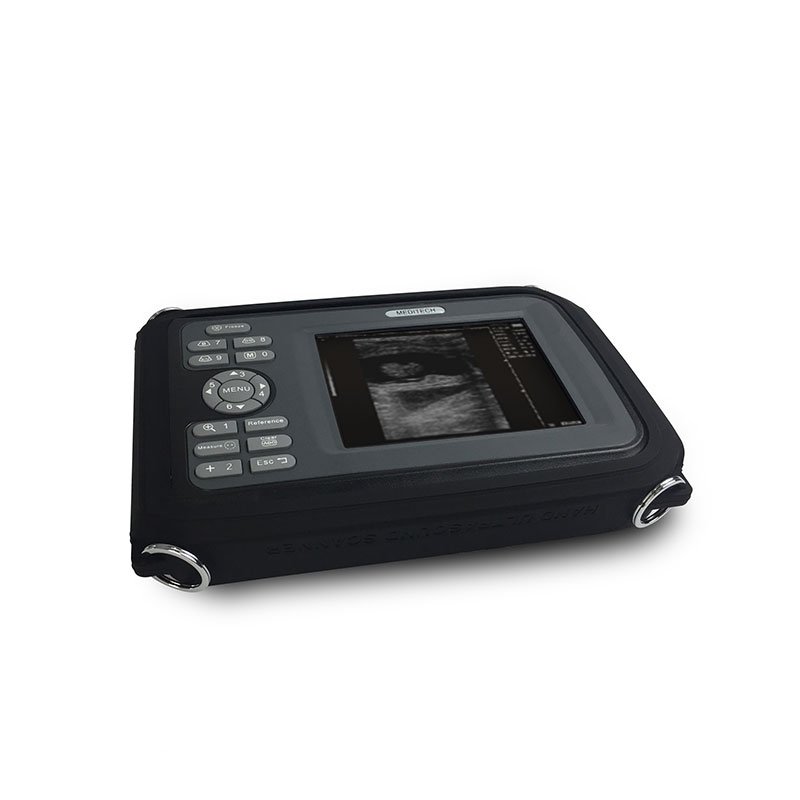

SONO R Portable Digital Ultrasound Scanner
Compact, full-featured portable ultrasound system with 5.5-inch TFT color LCD display and advanced digital beam forming technology. Delivers high-resolution imaging across OB/GY, cardiac, and general applications with extended battery operation and comprehensive measurement capabilities.
Clinical overview
The SONO R is a fully portable digital ultrasound scanner engineered for point-of-care diagnostics across obstetrics, gynecology, cardiology, and general imaging. Featuring full digital beam forming technology with 256 gray scale levels, the system delivers exceptional image quality in a lightweight, battery-powered form factor suitable for clinic, bedside, and field deployment.

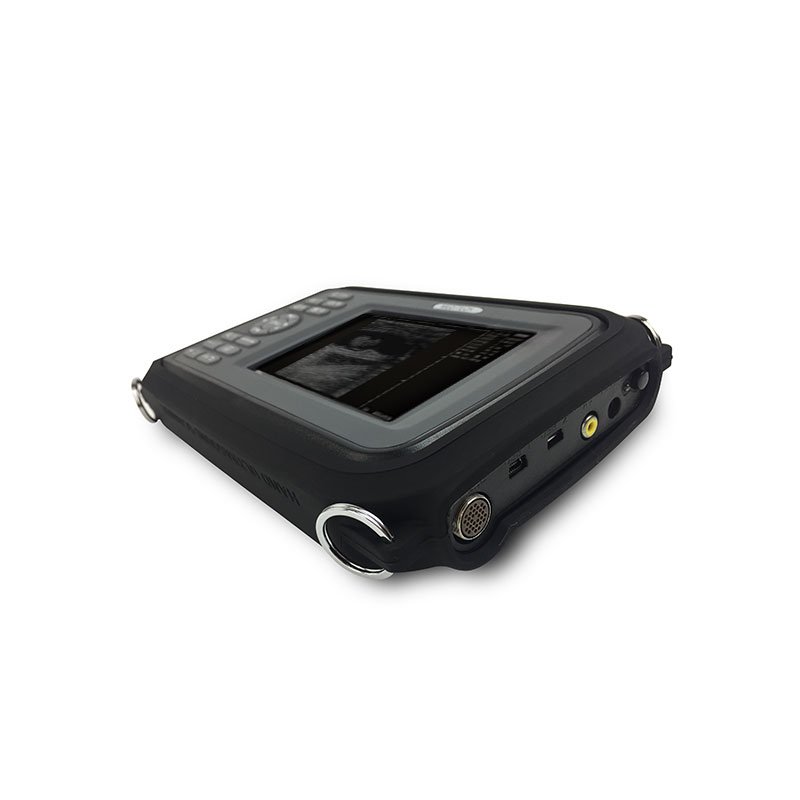

With multiple probe options, comprehensive measurement tools (distance, circumference, area, volume, heart rate, GA, EDD), and real-time cine-loop capability (256 frames), the SONO R supports rapid diagnostic workflows while maintaining clinical accuracy. USB connectivity and video output enable seamless integration with existing hospital information systems and image archival.
Key features & surgeon benefits

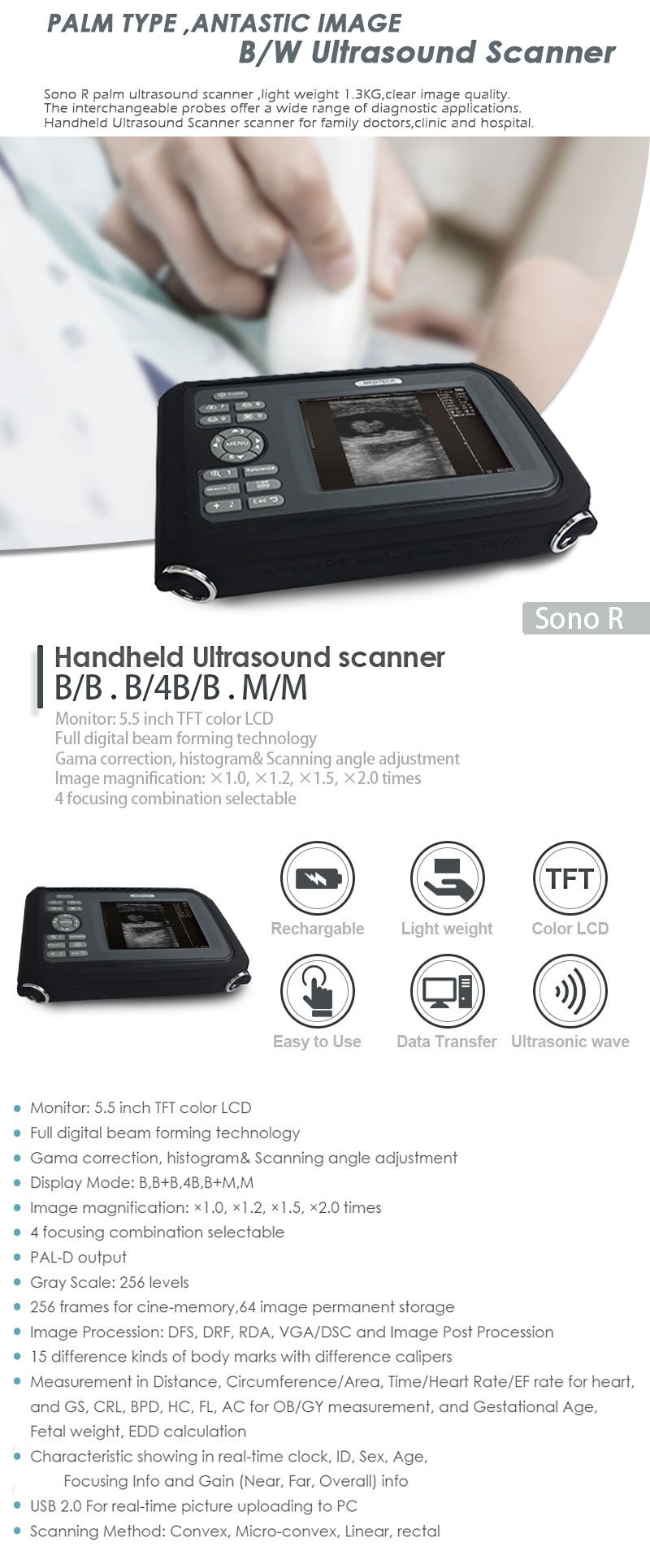

High-Resolution Visualization
- 5.5-inch TFT color LCD monitor with 256 gray scale levels
- Multiple display modes: B, B+B, 4B, B+M, M for flexible diagnostic review
- Image magnification (×1.0, ×1.2, ×1.5, ×2.0) and adjustable focus positioning
Efficient Clinical Operation
- 256-frame cine-loop memory for dynamic assessment and retrospective analysis
- 64 permanent image storage with full-screen annotation (date, time, patient ID, hospital name)
- Real-time measurement tools: distance, circumference, area, volume, heart rate, GA, EDD
Extended Battery Operation
- Rechargeable lithium battery with ≥180 minutes continuous operation
- Compact dimensions (265 × 46 × 53 mm) and lightweight (700 g) design
- AC/DC power supply (100–110V/240V, 50/60 Hz) with optional car charger
Multi-Probe Flexibility
- Interchangeable probe options: linear, convex, micro-convex, rectal, and specialty frequencies
- Adjustable probe frequency (3-point tuning per probe) for optimized penetration and resolution
- Supports OB/GY, cardiac, and general imaging protocols with 16 posture marks

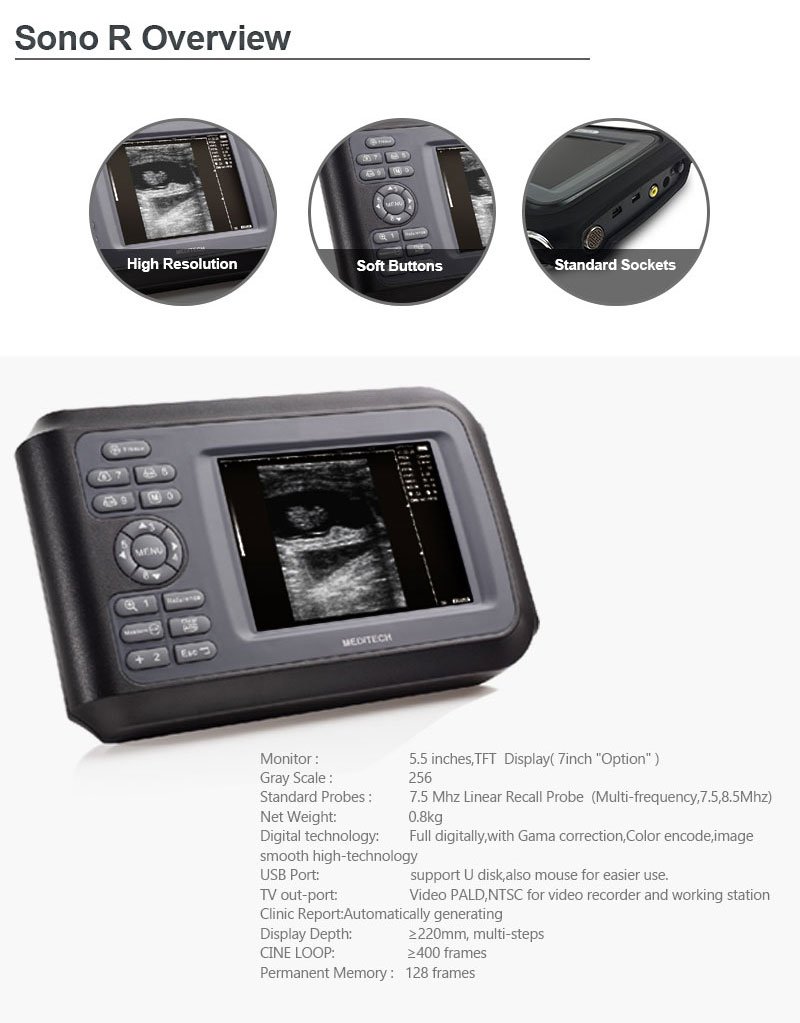

Technical specifications
| Indications | Obstetrics/Gynecology, cardiac imaging, general abdominal and soft tissue sonography |
|---|---|
| Sizes / range | Scan depth 70–140 mm; multiple probe options available |
| Material | Digital electronics with full digital beam forming technology |
| Sterilisation | As applicable per probe and accessory specifications |
| Packaging | Hard case, silicon case, cleaning cloth, power adapter, rechargeable battery |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Multi-frequency convex probe | Standard imaging probe for general and OB/GY applications | 1 |
| Hard case | Protective carrying case for system transport | 1 |
| Silicon case | Protective sleeve for probe and accessories | 1 |
| Power adapter | AC mains power supply (100–110V/240V, 50/60 Hz) | 1 |
| Rechargeable battery | Lithium battery (180 minute continuous operation) | 1 |
| Cleaning cloth | Microfiber cloth for display and probe maintenance | 1 |

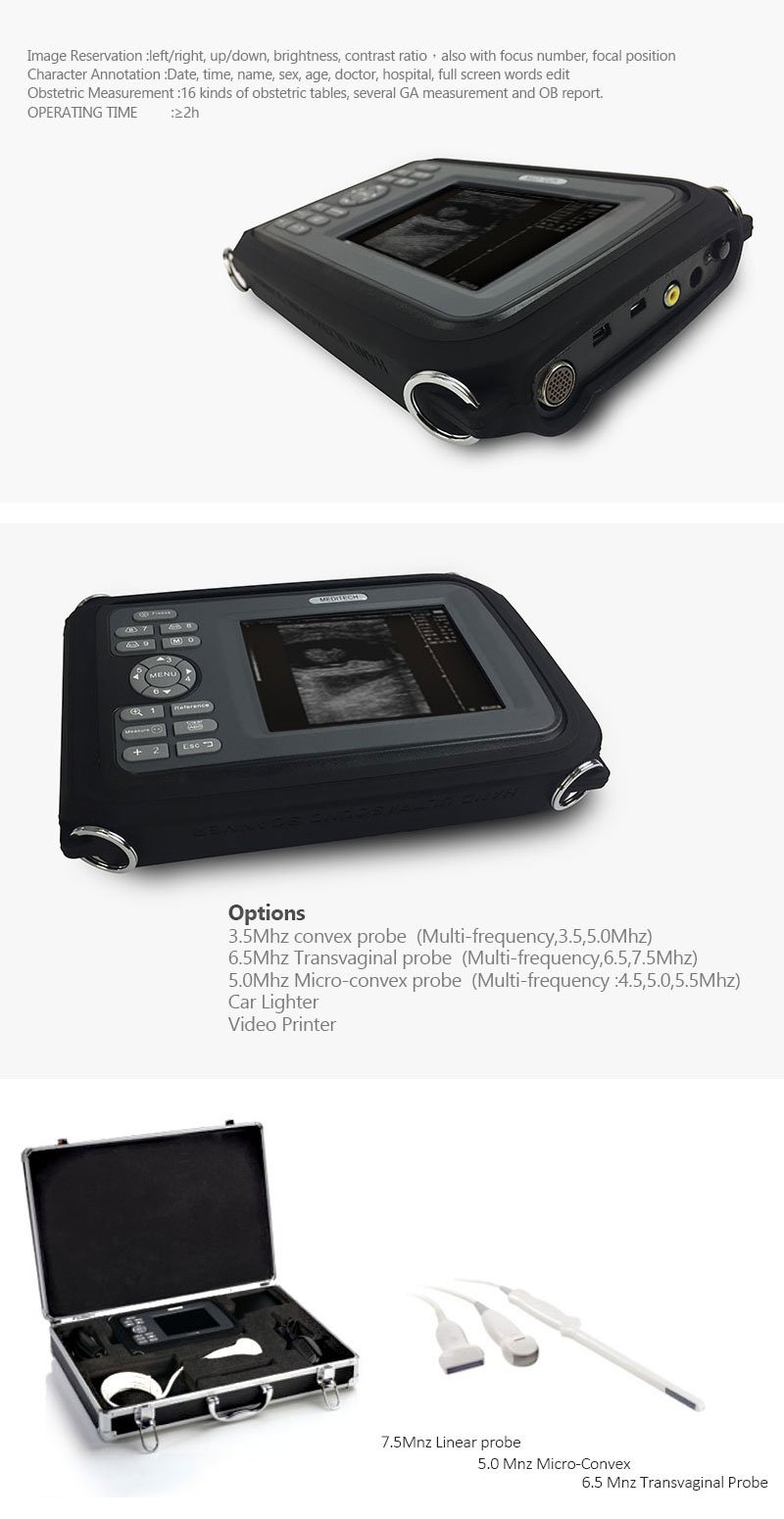

Optional probes & accessories
| Item | Specification |
|---|---|
| 7.5 MHz high-frequency linear array probe | Superficial and vascular imaging |
| 6.5 MHz intra-cavity (trans-vaginal) probe | Gynecological and reproductive imaging |
| 7.5 MHz rectal probe | Rectal and pelvic imaging |
| 3.5 MHz micro-convex probe | Cardiac and deep abdominal imaging |
| DC car charger | Mobile power supply for field operations |
| USB cable | Data transfer and image upload to PC |
