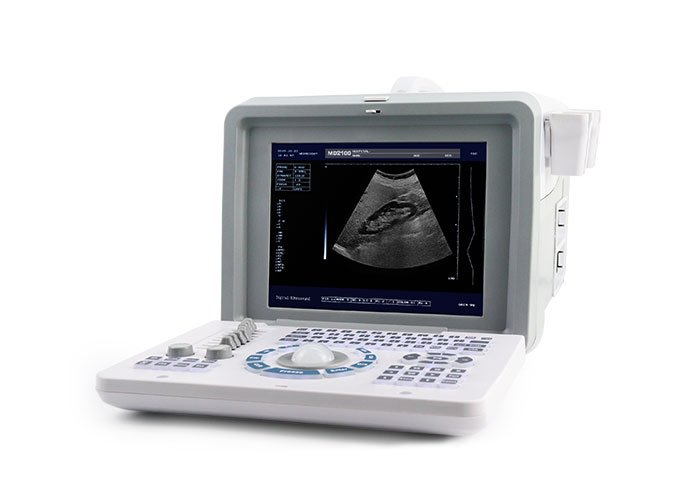

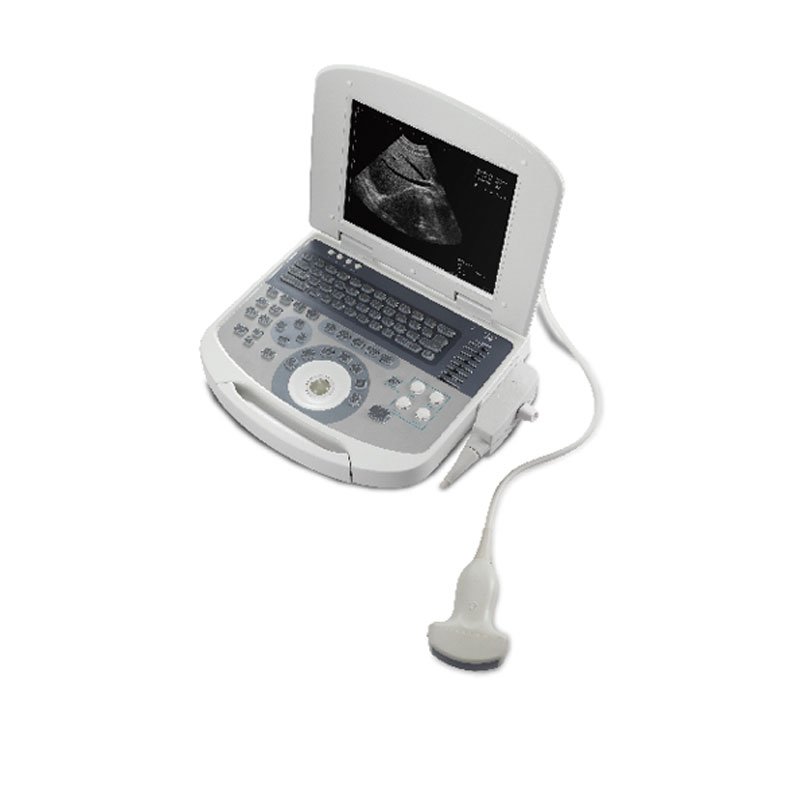

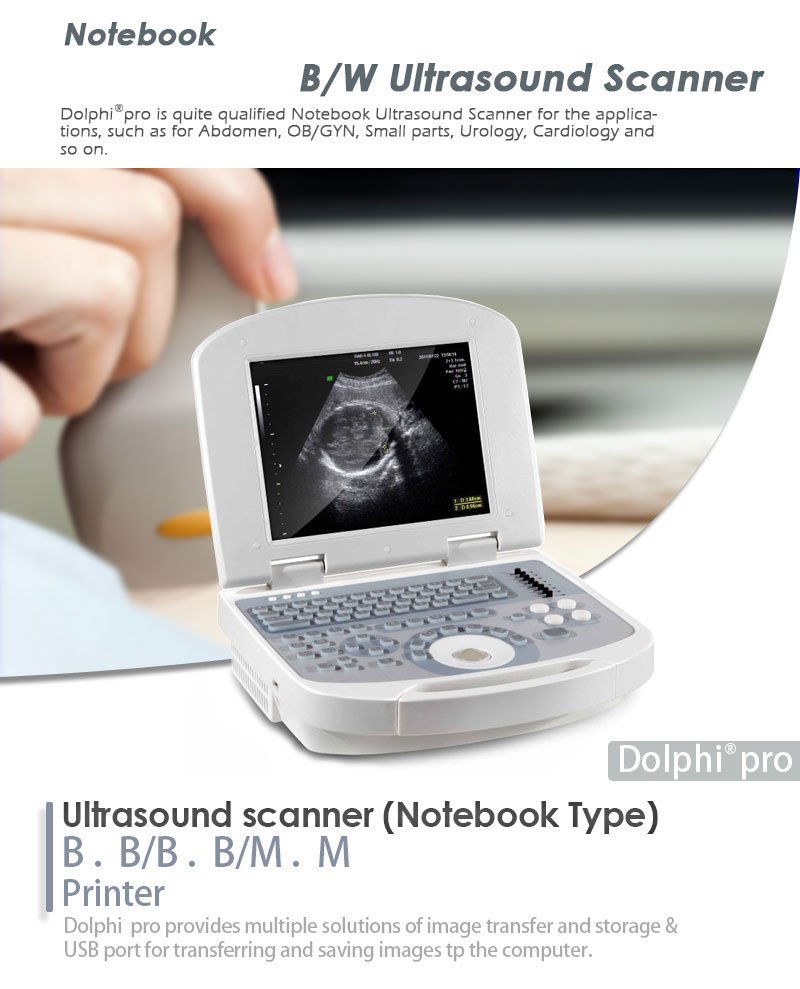

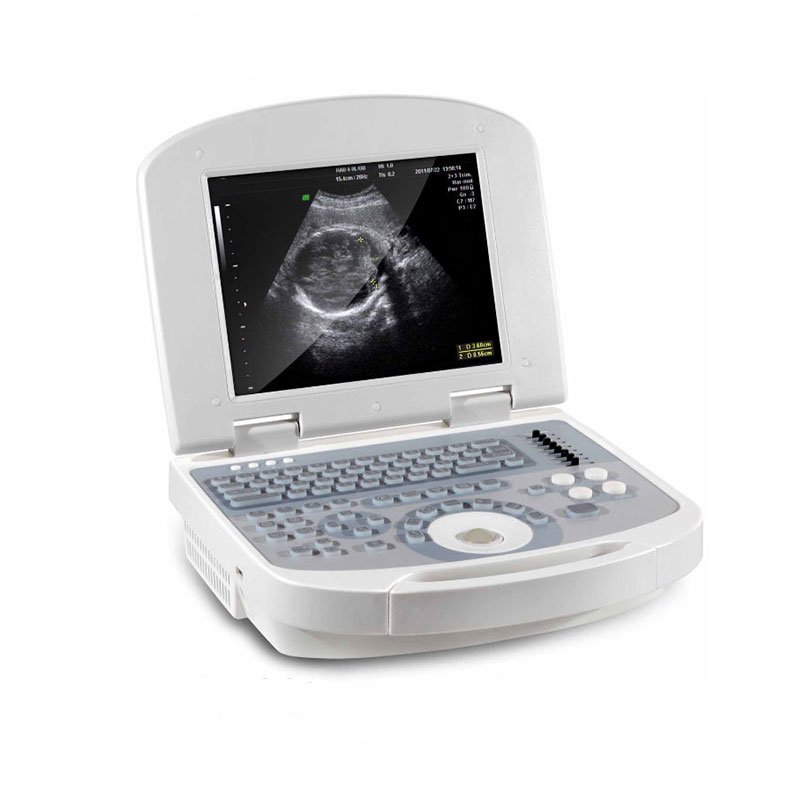

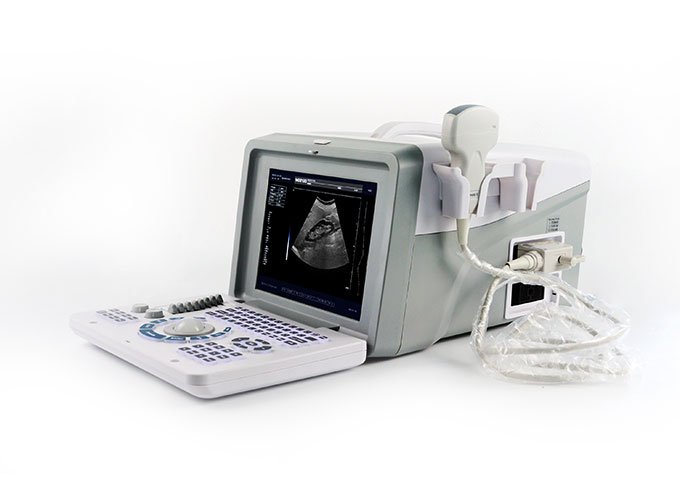

Dolphi® Pro Portable B/W Ultrasound Scanner
- Portable 2D B/W Ultrasound scanner with advanced transducer technology
- Clear and detailed imaging on a 10 inch CRT Screen
- Multiple imaging modes including B, B/B, 4B, B+M, and M
- Features digital beam forming for precise imaging capabilities
- SKU
- A0C36B8669BC
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Dolphi® Pro Portable B/W Ultrasound Scanner
Advanced portable 2D black-and-white ultrasound imaging system with digital beam forming and multi-mode display capabilities. Delivers clear, detailed real-time imaging on a 10-inch CRT screen with innovative transducer technology for clinical and surgical applications.
Clinical overview

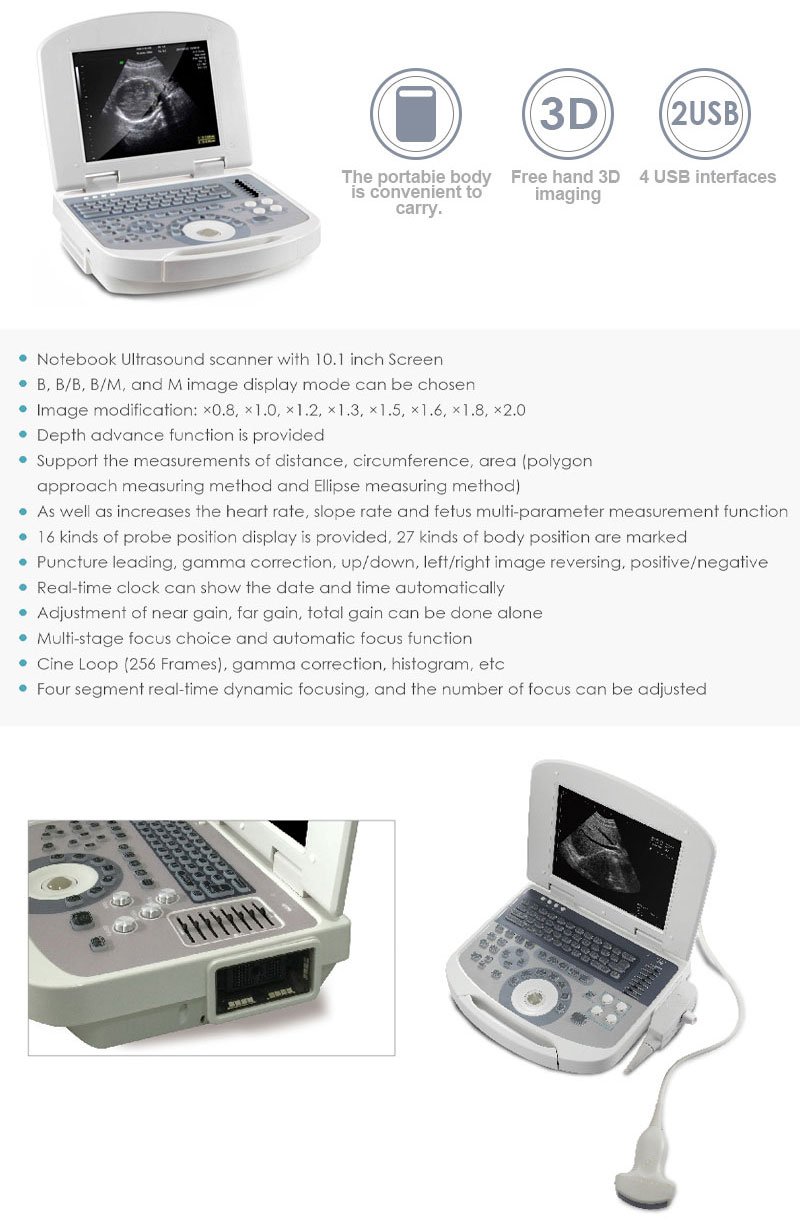

The Dolphi® Pro is a portable 2D black-and-white ultrasound scanner engineered for clinicians requiring high-quality diagnostic imaging in diverse clinical settings. Featuring advanced digital beam forming technology and a 10-inch SVGA high-resolution display, the system delivers exceptional image clarity with 256 grey-scale levels and real-time dynamic aperture control. The patented innovative design combines portability with professional-grade imaging capabilities, making it ideal for general ultrasound, vascular assessment, soft tissue evaluation, and guided interventional procedures.
The system supports multiple imaging modes—B, B/B, 4B, B+M, and M—enabling comprehensive diagnostic flexibility. With selectable probe frequencies ranging from 2.5 MHz to 7.0 MHz and scanning depths exceeding 180 mm, the Dolphi® Pro accommodates a wide range of clinical applications. Integrated measurement and calculation functions, including distance, area, perimeter, heart rate, and obstetric parameters (BPD, GS, CRL, FL, AC), enhance diagnostic workflow efficiency. The dual USB ports and SVGA/PAL video outputs facilitate seamless integration with external monitors, printers, and recording systems.
Key features & surgeon benefits
Superior Diagnostic Clarity
- 256-level grey-scale display for precise tissue differentiation
- Dynamic electronic focusing with four selectable sections
- Adjustable dynamic range (64–96 dB) for optimal contrast
- Real-time dynamic aperture and edge enhancement
Efficient Clinical Operation
- Multiple display modes (B, B/B, 4B, B+M, M) for flexible imaging
- Integrated measurement tools: distance, area, perimeter, heart rate
- Obstetric calculations (BPD, GS, CRL, FL, AC) with delivery date prediction
- 256-frame cine loop memory for real-time review and documentation
Compact & Deployable
- Lightweight design: 7 kg net weight, 10 kg gross
- Extended battery operation: ≥8 hours continuous use
- Portable console with integrated 10-inch display
- Optional trolley for enhanced mobility and stability
Flexible Integration
- Dual SVGA video outputs for external colour monitors
- Dual PAL video outputs for standard monitors and recording devices
- USB connectivity for expanded functionality and data transfer
- Compatible with B/W laser printers and ultrasonic workstations
Technical specifications
| Indications | General ultrasound imaging, vascular assessment, soft tissue evaluation, guided procedures, obstetric imaging |
|---|---|
| Probe frequency | 2.5 MHz, 3.0 MHz, 3.5 MHz, 4.0 MHz, 6.5 MHz, 7.0 MHz (with matching probes) |
| Scanning depth | ≥180 mm |
| Lateral resolution | ≤2 mm (depth ≤80 mm); ≤3 mm (80 < depth ≤130 mm) |
| Axial resolution | ≤1 mm (depth ≤80 mm); ≤2 mm (80 < depth ≤130 mm) |
| Dead zone | ≤3 mm |
| Geometry position precision | Lateral ≤5%; Axial ≤5% |
| Display | 10-inch SVGA high-resolution monitor (PAL option available) |
| Grey scale | 256 levels |
| Display modes | B, B/B, 4B, B+M, M |
| Magnification | ×0.8, ×1.0, ×1.2 (depth hoist); ×1.5, ×1.8, ×2.0 (depth hoist) |
| Dynamic range | 64–96 dB adjustable |
| Cine loop memory | 256 frames |
| Image storage | 128 pictures permanent storage |
| Power supply | AC 110V/220V ±22V, 50/60Hz; Input ≤300 VA |
| Operating hours | ≥8 hours continuous |
| Net weight | 7 kg |
| Gross weight | 10 kg |
| Packing dimensions | 480 × 380 × 410 mm |
| Sterilisation | As applicable |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Multi-frequency convex probe | 80-element array, R60 curvature, 3.5 MHz standard | 1 |
| Power cable | AC mains connection | 1 |
| Cleaning cloth | Probe and display maintenance | 1 |

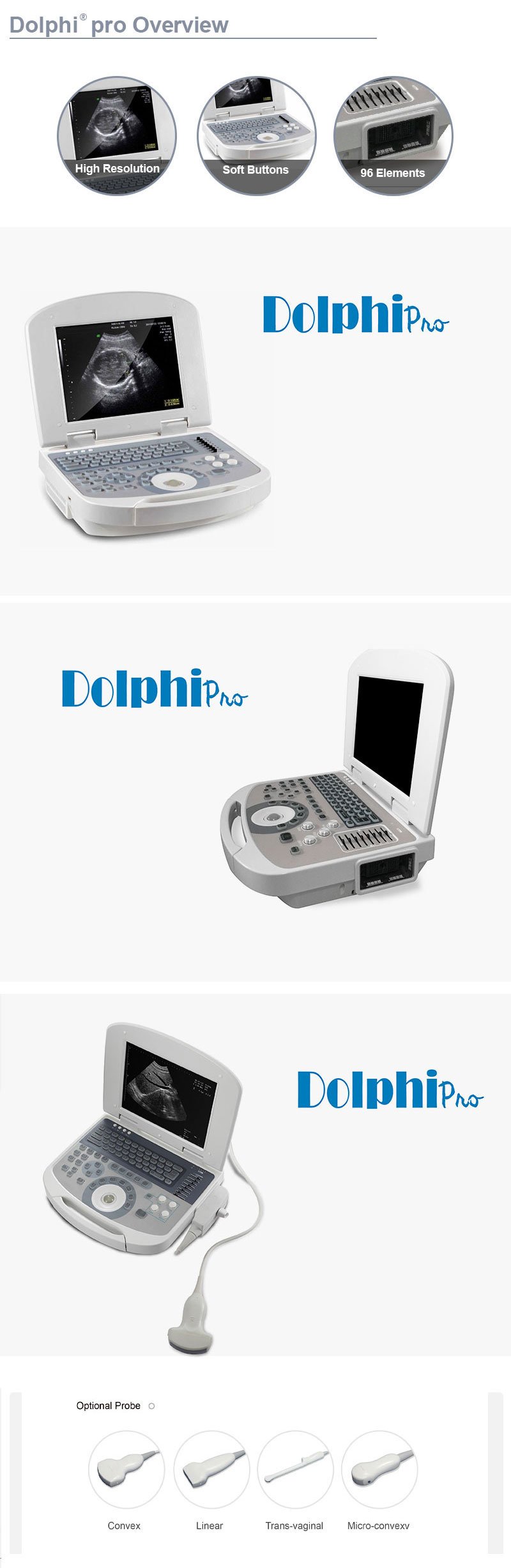

Optional accessories & probes
| Accessory | Description |
|---|---|
| 7.5 MHz high-frequency linear array probe | Enhanced superficial tissue imaging |
| 6.5 MHz intra-cavity (trans-vaginal) probe | Obstetric and gynaecological applications |
| 7.5 MHz rectal probe | Rectal and pelvic imaging |
| 3.5 MHz micro-convex probe | Intercostal and confined space access |
| B/W laser printer | Image documentation and archival |
| Footswitch | Hands-free image capture control |
| Battery pack | Extended portable operation |
| Trolley | Mobile deployment and stability |
| Ultrasonic workstation | Advanced image processing and analysis |
