Medical Device S8i Color Portable Ultrasound Scanner
- Portable color ultrasound scanner with multiple displaying modes
- Full-digital beam forming and dynamic filter for optimal signal processing
- Versatile image conversion options for enhanced viewing
- Comprehensive general measurements and OB packages included
- Comes with multi-frequency convex and linear probes
- Optional modules and probes available for advanced imaging options
- SKU
- 73C1C9F2F630
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping

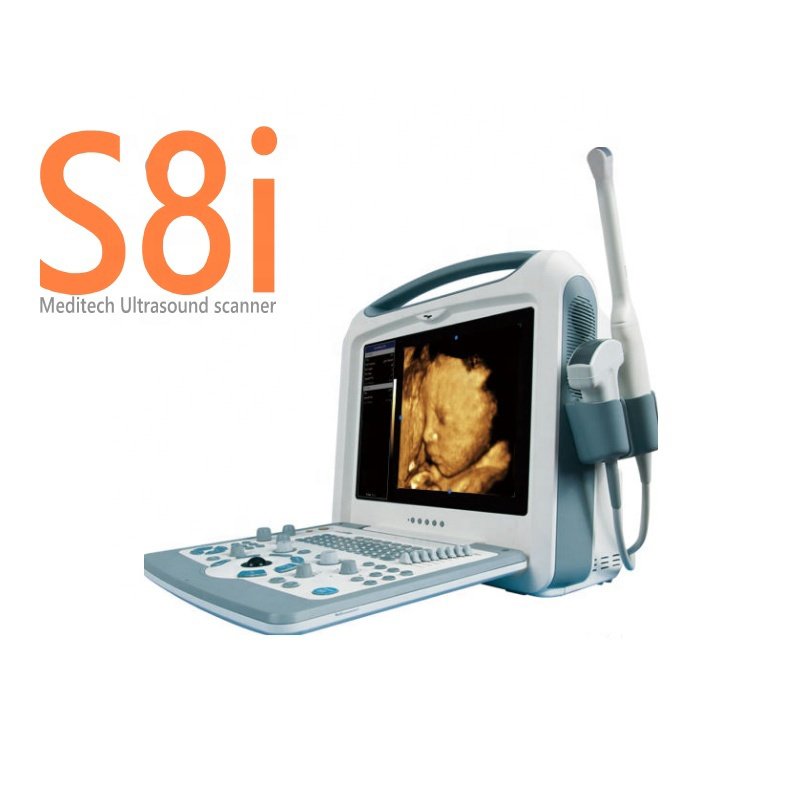

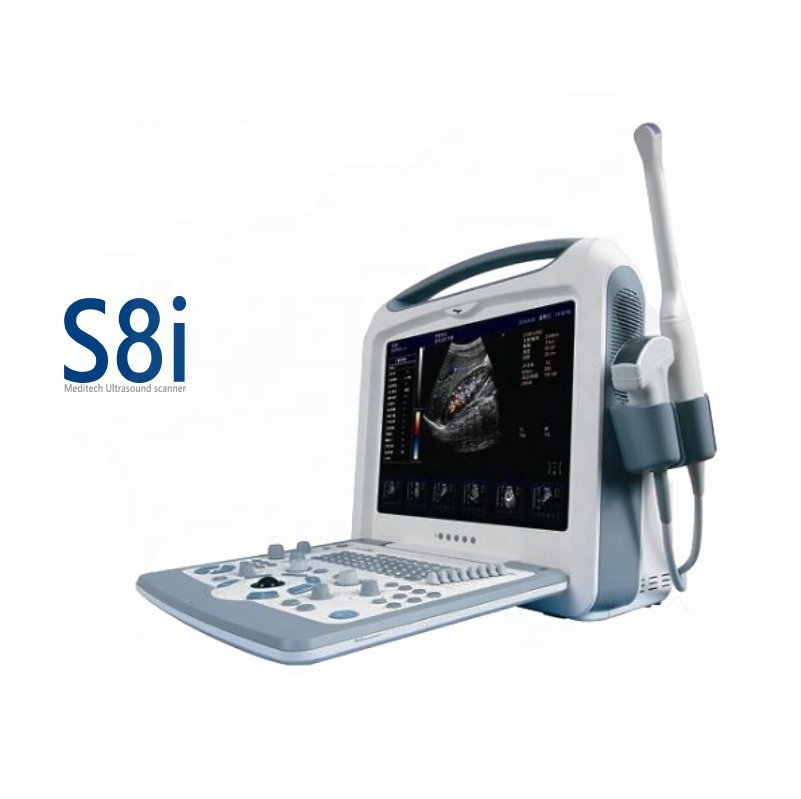

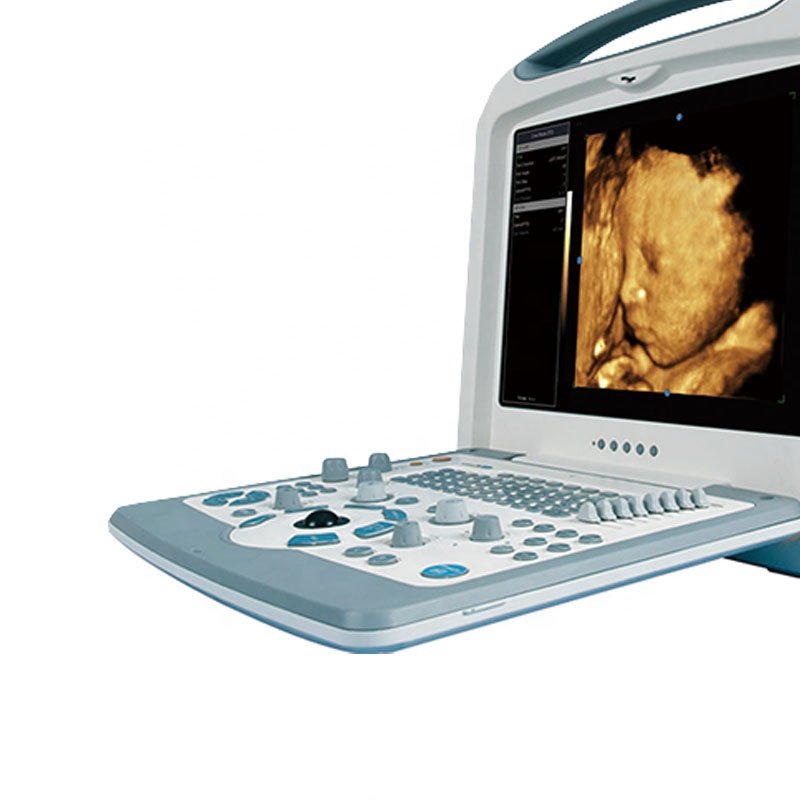

S8i Color Portable Ultrasound Scanner
Advanced portable color ultrasound system with full-digital beam forming and comprehensive imaging capabilities. Delivers multi-mode visualization, real-time dynamic focusing, and extensive measurement packages for general and obstetric applications.
Clinical overview
The S8i Color Portable Ultrasound Scanner is a comprehensive diagnostic platform engineered for versatility across general, obstetric, cardiac, and vascular imaging. Its full-digital beam forming architecture and dynamic real-time focusing deliver superior image quality with minimal artifacts, enabling confident clinical decision-making in diverse clinical settings.
The system combines advanced signal processing—including space-time filtering, spectral processing, and dynamic aperture control—with intuitive user workflows. Comprehensive measurement packages for B-mode, M-mode, and Doppler analysis, coupled with dedicated obstetric tables and fetal growth curves, support rapid assessment and reporting across multiple specialties.
Key features & surgeon benefits
Advanced Beam Forming & Filtering
- Full-digital beam forming with dynamic real-time focusing
- Space-time and dynamic filters for optimal signal clarity
- Receiving signals dynamic range ≥150 dB for superior contrast resolution
- Spectral processing and CFM processing for Doppler accuracy
- 256 gray-scale levels for fine anatomical detail
Comprehensive Display Options

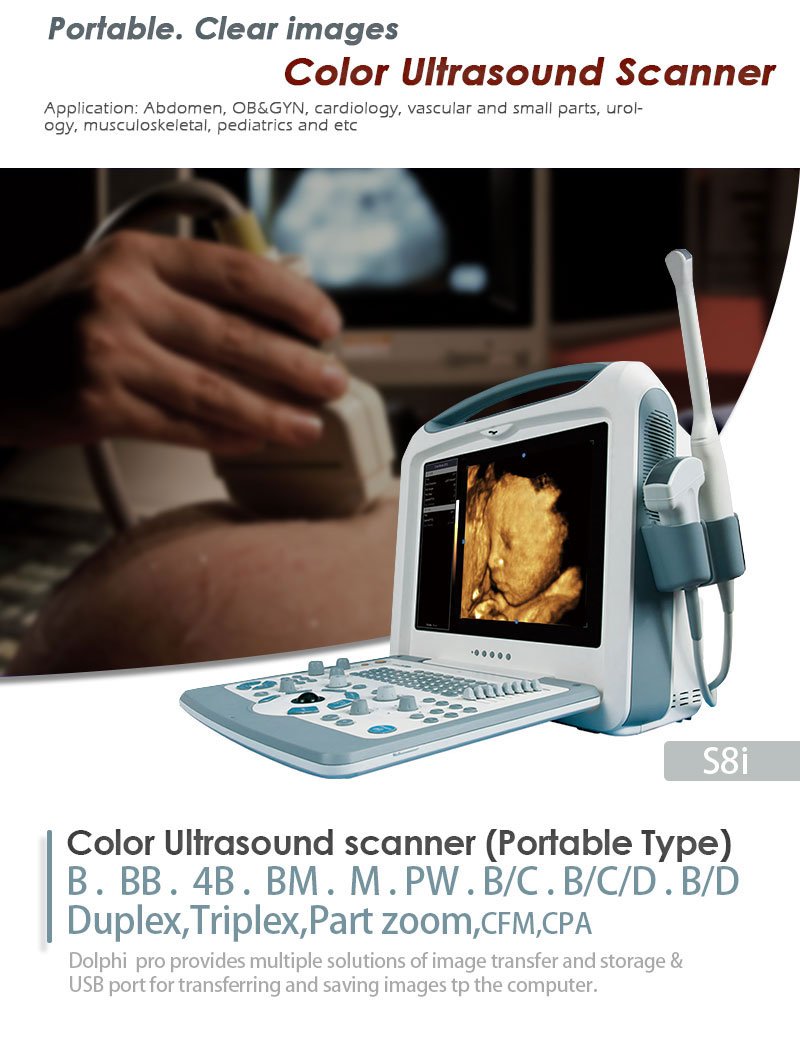

- 13 display modes: B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D, duplex, triplex, CFM, CPA
- Part zoom and full-screen zoom for detailed region analysis
- Up/down and left/right image conversion for flexible orientation
- Real-time dynamic aperture in all fields
- Adjustable wall filter, baseline, and PRF for Doppler optimization
Integrated Measurement Packages
- B-mode: distance, circumference, area, volume, ratio, angle, stenosis %, histogram
- M-mode: distance, time, velocity, heart rate
- OB package: EDD table with GA, BPD, CRL, FL, HL, TAD, LV, OFD, NT, AC, HC, AFI calculations
- Fetal physiological scoring and growth curve reference
- Uterine measurements: cervical length, endometrial thickness, volume
Modular Architecture & Probe Options
- Optional CW Doppler and Free Xros™ Imaging module for cardiac applications
- Smart3D module for 3D reconstruction from 2D convex probe
- iScape View and DICOM 3.0 modules for advanced workflow integration
- Seven probe options: micro-convex, linear, transvaginal, phased array, intrarectal
- Biopsy guides available for all probe types
Technical specifications
| Indications | General imaging, obstetric assessment, cardiac evaluation, vascular studies, interventional guidance |
|---|---|
| Display Modes | B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D, duplex, triplex, part zoom, CFM, CPA |
| Signal Processing | Full-digital beam forming, dynamic filter, space-time filter, dynamic real-time focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range ≥150 dB |
| Image Conversion | Up/down conversion, left/right conversion |
| Doppler Adjustments | Sound output volume, wall filter, baseline, sampling frame, area, angle, spectrum sampling volume, PRF |
| Gain Control | TGC, PW Gain, CFM gain |
| Standard Probes | Multi-frequency convex probe, multi-frequency linear probe |
| Sterilisation | As applicable |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Multi-frequency Convex Probe | Standard imaging probe for general and obstetric applications | 1 |
| Power Cable | System power supply cable | 1 |
| Cleaning Cloth | Probe and screen maintenance cloth | 1 |
Optional modules & accessories
| Category | Item |
|---|---|
| Modules | CW Doppler and Free Xros™ Imaging (cardiac applications) |
| Modules | Smart3D module (3D reconstruction with 2D convex probe) |
| Modules | iScape View module |
| Modules | DICOM 3.0 module |
| Probes | Micro-convex array transvaginal probe |
| Probes | Micro-convex probe |
| Probes | Linear probe |
| Probes | Volume probe |
| Probes | Intrarectal linear probe |
| Probes | Phased array probe 2P2 (cardiac applications) |
| Accessories | Mobile trolley |
| Accessories | Footswitch (USB port) |
| Accessories | Biopsy guide for convex probe |
| Accessories | Biopsy guide for micro-convex probe |
| Accessories | Biopsy guide for linear probe |
| Accessories | Biopsy guide for micro-convex TV probe |
| Accessories | Biopsy guide for intrarectal linear probe |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, probe options, and pricing for the S8i Color Portable Ultrasound Scanner. We support custom OEM solutions and comprehensive training programs.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
