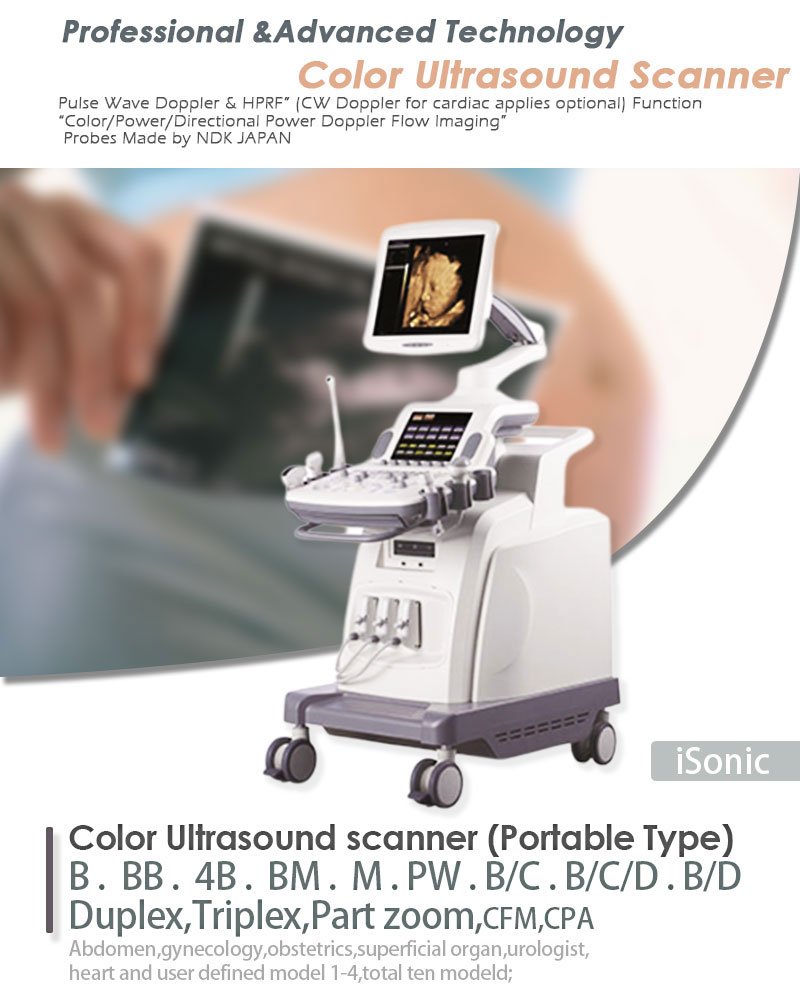

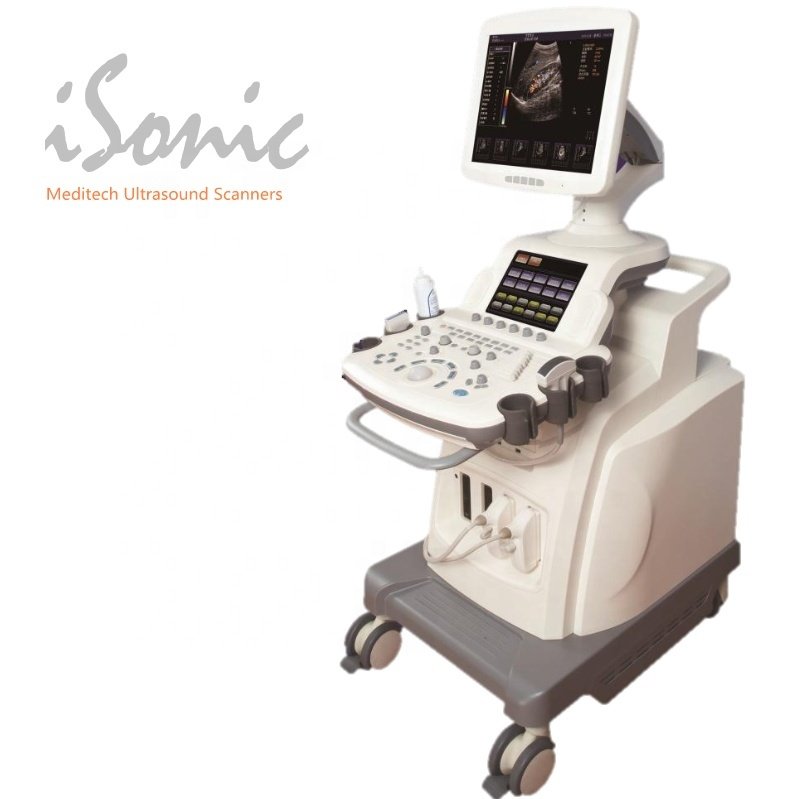

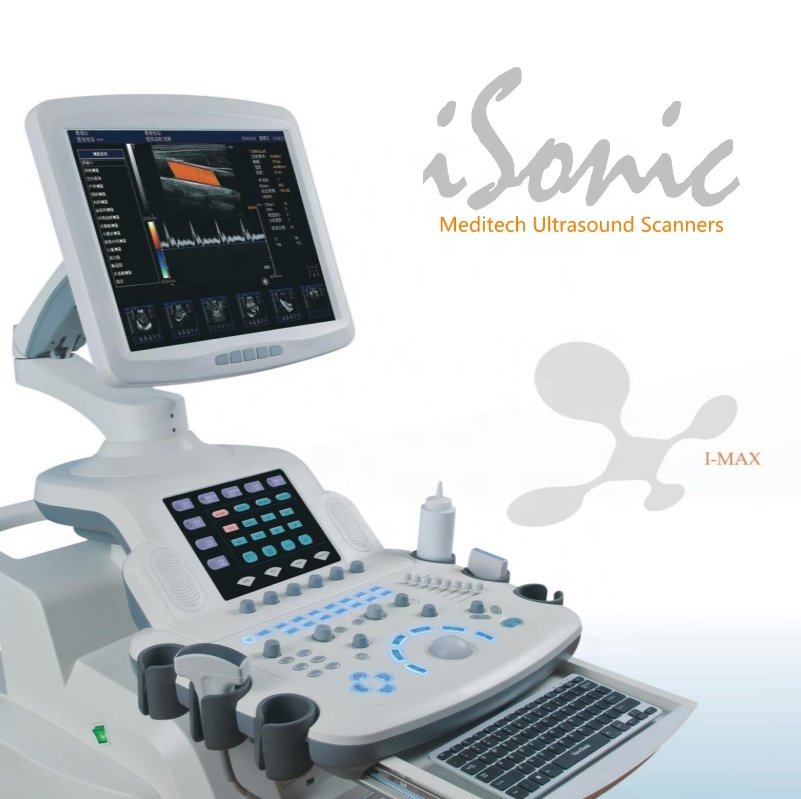

iSonic High Quality Images Color Ultrasound Scanner
Original price was: $24,700.00.$22,737.00Current price is: $22,737.00.
– iSonic High Quality Images Color Ultrasound Scanner
– 17″ LCD with high brightness and resolution
– Various imaging modes including B-mode, M-mode, color, and Doppler
– Measurements for obstetrics, gynecology, urology, and more
Description

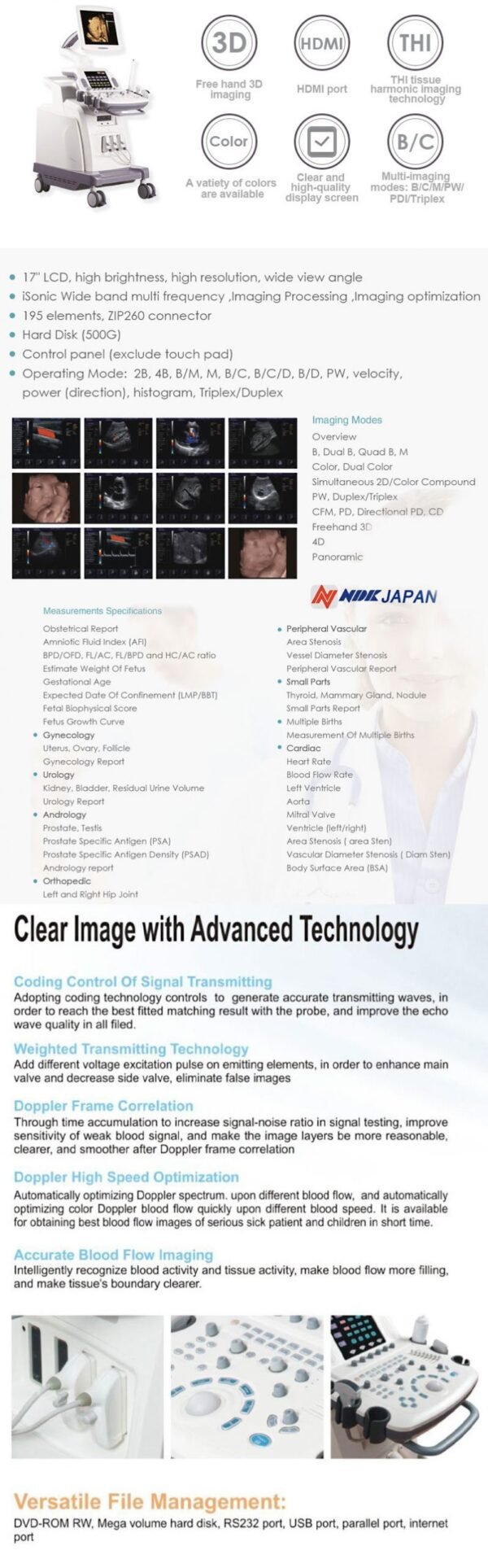

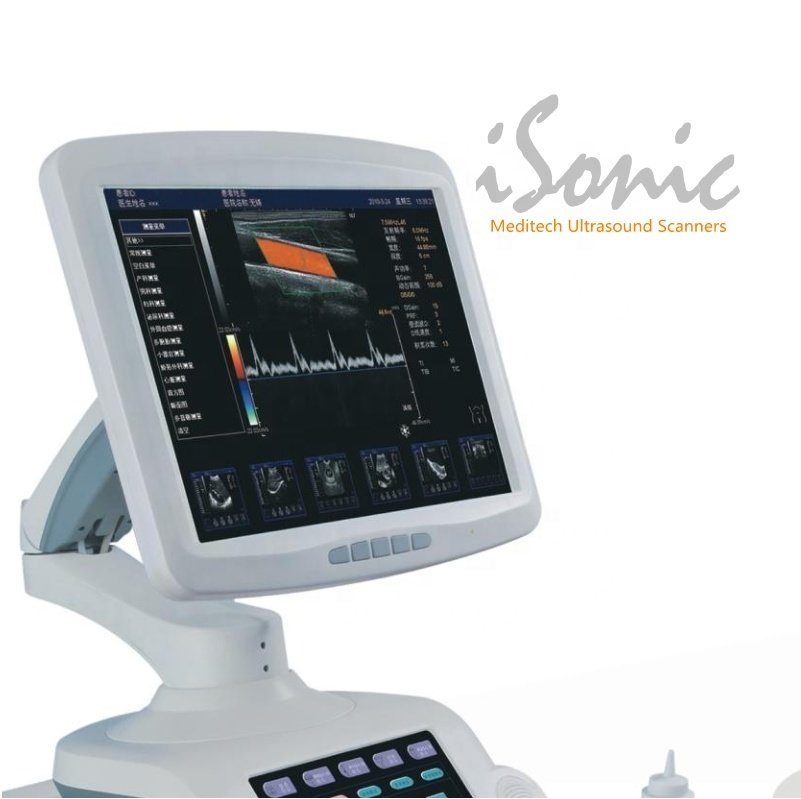

17″ LCD, high brightness, high resolution, wide view angle
iSonic® Wide band multi frequency ,Imaging Processing ,Imaging optimization
195 elements, ZIP260 connector
Hard Disk (500G),
Control panel (exclude touch pad)
Operating Mode: 2B, 4B, B/M, M, B/C, B/C/D, B/D, PW, velocity,
power (direction), histogram, Triplex/Duplex

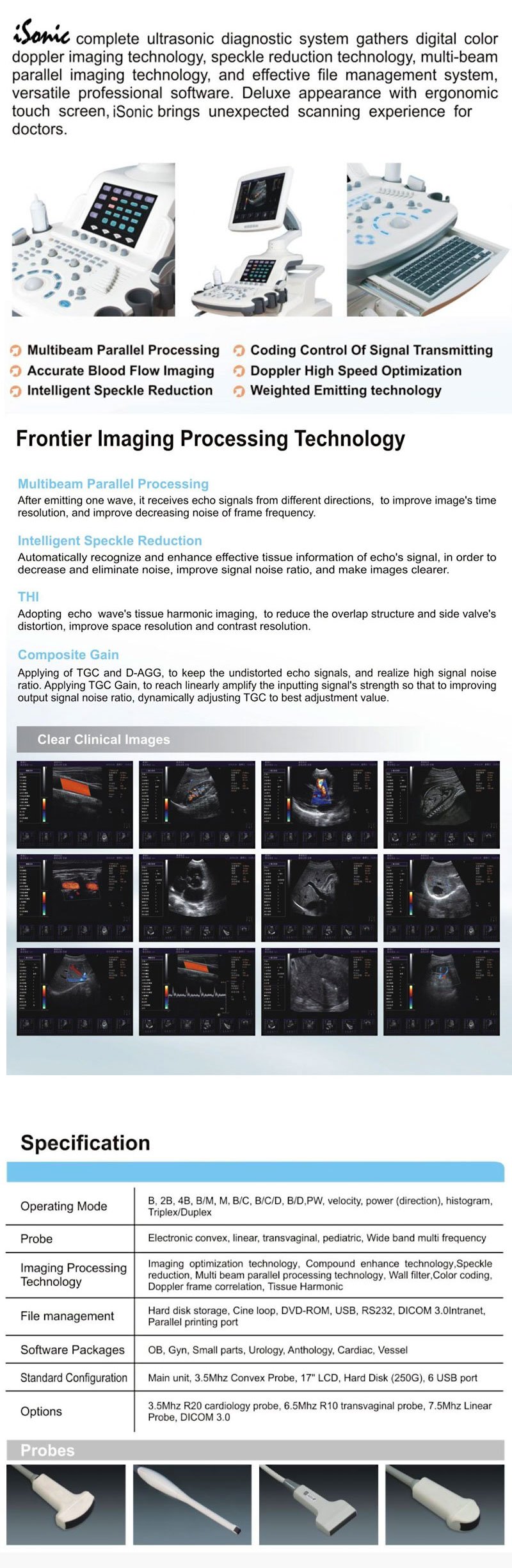

Imaging Processing Technology
Imaging optimization technology
Compound enhance technology
Speckle reduction
Multi beam parallel processing technology
Color coding
Doppler frame correlation
Wall filter
Tissue Harmonic File management
Hard disk storage
Cine loop
DVD-ROM
USB
RS232
DICOM 3.0
Intranet
Parallel printing port
Imaging Modes

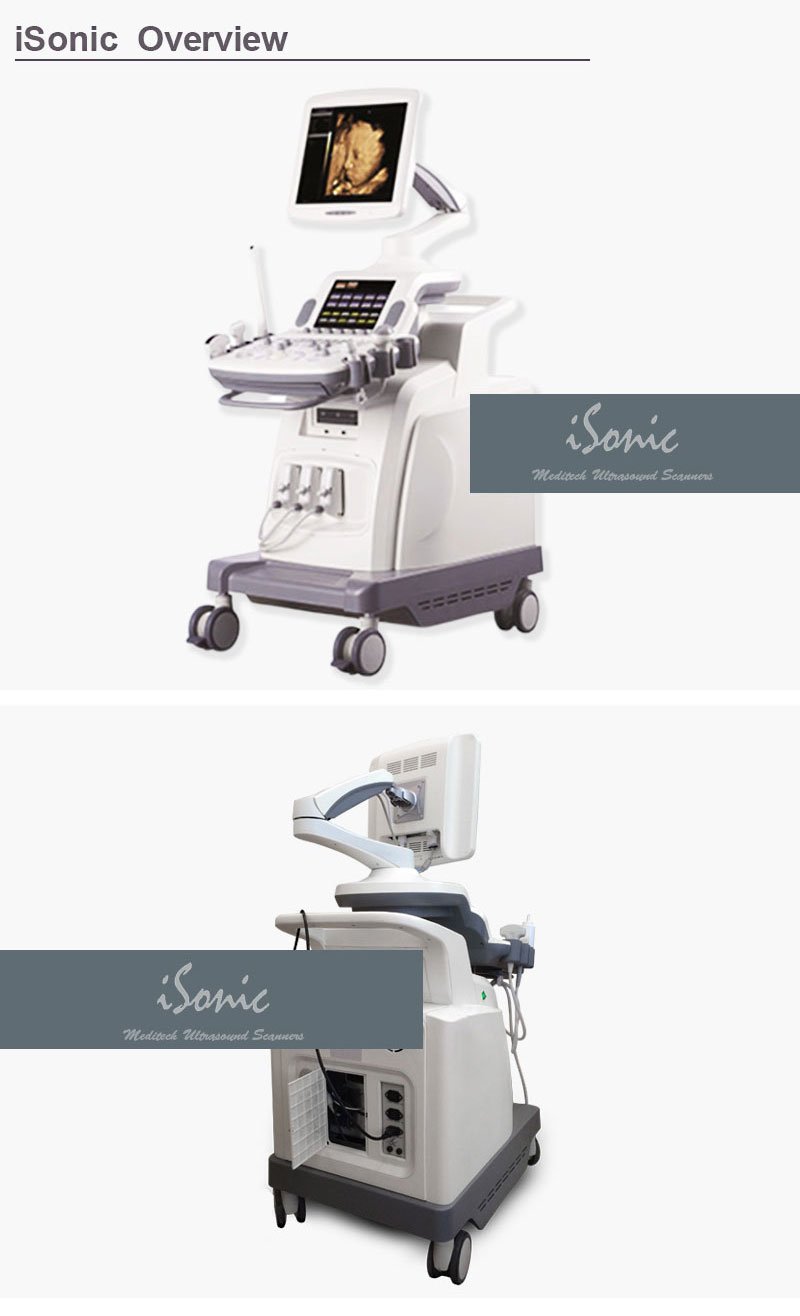

Overview
B, Dual B, Quad B, M
Color, Dual Color
Simultaneous 2D/Color Compound
PW, Duplex/Triplex
CFM, PD, Directional PD, CD
Freehand 3D
4D
Panoramic
Measurements Specifications
Obstetrical Report
Amniotic Fluid Index (AFI)
BPD/OFD, FL/AC, FL/BPD and HC/AC ratio
Estimate Weight Of Fetus
Gestational Age
Expected Date Of Confinement (LMP/BBT)
Fetal Biophysical Score
Fetus Growth Curve
Gynecology
Uterus, Ovary, Follicle
Gynecology Report
Urology
Kidney, Bladder, Residual Urine Volume
Urology Report
Andrology
Prostate, Testis
Prostate Specific Antigen (PSA)
Prostate Specific Antigen Density (PSAD)
Andrology report
Orthopedic
Left and Right Hip Joint
Peripheral Vascular
Area Stenosis
Vessel Diameter Stenosis
Peripheral Vascular Report
Small Parts
Thyroid, Mammary Gland, Nodule
Small Parts Report
Multiple Births
Measurement Of Multiple Births
Cardiac
Heart Rate
Blood Flow Rate
Left Ventricle
Aorta
Mitral Valve
Ventricle (left/right)
Area Stenosis (% area Sten)
Vascular Diameter Stenosis (% Diam Sten)
Body Surface Area (BSA)
Comes with
Mobile trolley
Multi frequency convex probe
Multi frequency linear probe
Optional modules
CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module
Smart3D module (for 3 dimensions with 2D standard convex probe)
“iScape View” module
DICOM 3.0 module

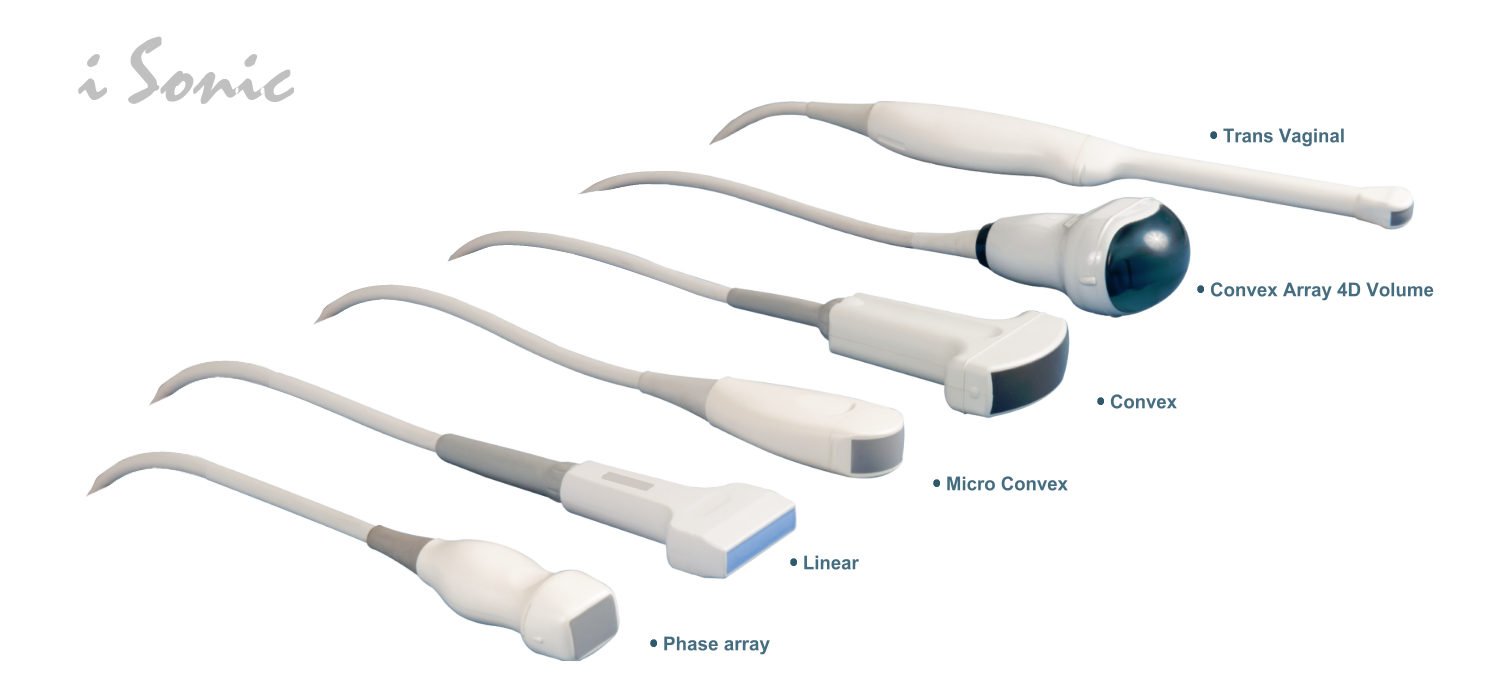

Optional probes
Micro-convex array Transvaginal probe
Micro-convex probe
Linear probe
Intdo rectal linear probe
Phased array probe 2P2 (for cardiac applies)
Optional Accessories

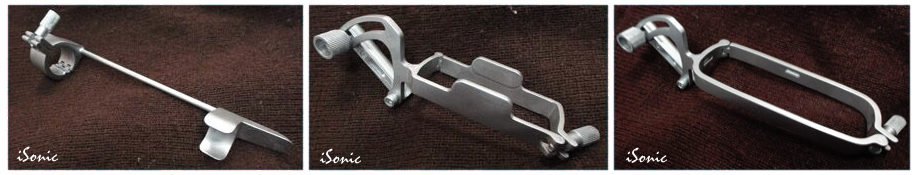

Footswitch by USB port
Biopsy guide for convex probe
Biopsy guide for micro-convex probe
Biopsy guide for linear probe
Biopsy guide for micro-convex TV probe
Biopsy guide for intrarectal linear probe
Software Specifications:
Languages
English, Russian, Spanish, Polish, Turkish, Vietnamese, Simplified Chinese
User Interface Cine Playback Multiple Arrows
Configurable Worksheets
Exam Review :Pictograms (Body Marks) System Setup Menu Programmable Annotations
Max Onscreen Measurements
Distance: 27
Area: 3
Measurement Tools
B-Mode
Distance: Point to Point Angle:
Vector Angle Area/Perimeter: Ellipse, Trace Volume Three – Axis
M-Mode Time Distance Heart Rate
Valve Velocity
Doppler-Mode
Velocity
Time
Heart Rate
Acceleration
Common Measurement: PS, ED, TAMAX, RI, PPG Trace: PS, ED, TAMAX, RI, PPG
Imaging Modes
Overview
B, Dual B, Quad B, M Color, Dual Color
Simultaneous 2D/Color Compound
PW, Duplex/Triplex
CFM, PD, Directional PD, CD Freehand 3D
4D Panoramic
Combined Modes
Dual B, Quad B, B/M, B B/CB/C/PW
B-Mode
Maps: 17
Focus Count: Max. 4
Gain: 0~255
TGC: 8
Sliders Dynamic Range: 0~150dB
Depth: Max. 30cm
Acoustic Power: 0 ~ (-15) dB
Chroma: 0~7
Grayscale Levels: 256
Frame Rate: Max.100Hz
Max. Line Density: 512
Persistence/ Frame Average: Up to 7
Top/Bottom/Left/Right Reverse
Speckle Reduction
M-Mode
Maps: 16
Chroma: 16
Sweep Speed: 3
Gain: 0~255
Distance: Point-to-Point
Max Steer Angle: 15°
Diameter Reduction: Point-to-Point
Heart Rate/Time/Distance/Slope
Side-by-Side/Bottom
Color Mode
Gain: 0~255
Color Maps: 0~6
Doppler Steer Angles: 5 Steps
PRF: 1.8 kHz~13.2 kHz
Wall Filter: 0~3
Max. Steer Angle: ±10°
Doppler Multi-Frequency: 2MHz~10MHz
Priority: 0~250
Line Density Max: 256 Lines
Persistence/Frame Average: 0~7
Baseline/Invert/Color ROI/M-Mode
PW Mode
Gain: 0~255
Sweep Speed: 5
Doppler Steer Angles: 5 Steps
Maps: 3
Max Steer Angle: ±10° Spectrum Filter (Edge): 0~3
Audio: 0~255
Correction Angle: 80°/-80°
Doppler Multi-Frequency: 2MHz~10MHz
Chroma: 0~7
Hardware Specifications:
| LCD Monitor Size (Diagonal): |
15 inch | Transducers | 4D Volume Probe Frequency: Central 4.0 MHz |
| Contrast Ratio: Resolution: Brightness: Color Depth: Rotate Angle: Grey Levels: | 800:1 1024×768 pixels 230 cd/m2 24bit ± 90° 256 |
Convex Array Probe Frequency: Central 3.5 MHz Min. 2.0 MHz Max. 5.5 MHz Pitch: 0.516 mm Radius: 60 mm |
Min. 2.0 MHzMax. 5.5 MHz
Made by NDK Japan |
| Touch Screen Size (Diagonal): |
10” | Linear Array Probe: | |
| Contrast Ratio: Resolution: Brightness: Grey Levels: Input Signal: | 600:1 800×600 pixels 250 cd/m2 64 DVI |
Frequency: Central 7.5 MHz Min. 6.0 MHz Max. 12.0 MHz Pitch: 0.352 mm Radius: N/A |
Power Cable …………………………. 1Pcs
Cleaning Cloth ………………………. 1Pcs
Options:
Micro-convex array Transvaginal Probe
Volume Probe
Indo rectal linear probe
Biopsy guide for convex probe
A easy-to-learn quick-release allows easy detachment of the device from the transducer providing physicians increased flexibility during procedures.
