Sonoview® Full Digital Imaging Ultrasound Scanner
- Full digital imaging ultrasound scanner with 15" color LCD screen
- PC based with abundant functions and built-in workstation software
- Broadband multi-frequency probes with 5 segment frequencies
- Cine loop preset options of 64, 128, 256, 512, 1024 frames
- Large storage capacity and USB storage for image and cine loop
- Optional 3D image function and compatible with laser/inkjet printers
- SKU
- AE390B8EC1AA
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Sonoview® Full Digital Imaging Ultrasound Scanner
Advanced PC-based ultrasound system with 15" color LCD display, broadband multi-frequency probes, and comprehensive imaging capabilities. Delivers full digital imaging technology with powerful workstation software for enhanced diagnostic workflow and clinical reporting.
Clinical overview
The Sonoview® Full Digital Imaging Ultrasound Scanner represents a comprehensive diagnostic solution combining advanced digital imaging technology with intuitive PC-based architecture. The 15" color LCD display delivers high-resolution imaging across multiple clinical specialties, supported by broadband multi-frequency probes offering five segment frequencies for optimized image quality across diverse anatomical applications.
Built-in workstation software provides powerful information management, automated measurements, and professional reporting capabilities. With flexible cine loop options (64–1024 frames), large local and USB storage capacity, and optional 3D imaging functionality, the system supports efficient clinical workflow while maintaining diagnostic accuracy and data integrity across obstetric, gynecologic, cardiac, urologic, vascular, and small parts imaging.
Key features & surgeon benefits
Full Digital Imaging Technology
- 256 gray scale with 8 pseudo-color modes
- Advanced image processing: pre/post-processing, dynamic range, edge enhancement
- Real-time zoom on B mode with 10 magnification ratios (1.5–6.0×)
- 4 electronic focus points with random combination

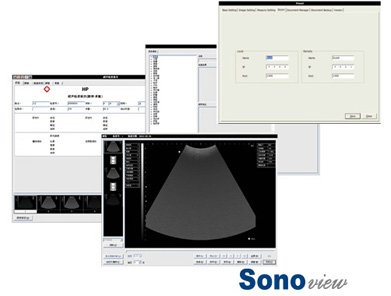

Integrated Workstation Software
- Built-in report generation with full-screen character editing
- System presets for OB, GYN, vascular, cardiac, urology, and small parts
- DICOM 3.0 compliance for seamless PACS integration
- Flexible cine loop storage: 64, 128, 256, 512, or 1024 frames
Multi-Specialty Capability
- Broadband multi-frequency probes with 5 segment frequencies
- Multiple scanning modes: B, 2B, B/M, M, 4B, ZOOM, and optional 3D
- Comprehensive measurement and calculation packages for each specialty
- Compatible with laser and inkjet printers for immediate documentation
Expandable Probe Options
- Standard 3.5 MHz electronic convex array probe included
- Optional 7.5 MHz linear array for high-frequency small parts imaging
- Specialized probes: intra-cavity (6.5 MHz), rectal (7.5 MHz), micro-convex (3.5 MHz)
- Optional 3D imaging and DVD-ROM storage modules
Technical specifications
| Indications | General imaging, obstetrics, gynecology, cardiology, urology, vascular, small parts (optic, thyroid, jaw, face) |
|---|---|
| Display depth | 240 mm |
| Resolution power | Lateral 2 mm, longitudinal 1 mm |
| Probe multi-frequency | 5 segment frequencies with broadband conversion |
| TGC adjustments | 8 TGC adjustments |
| Gray scale | 256 levels |
| Scanning modes | B, 2B, B/M, M, 4B, ZOOM, real-time zoom, optional 3D |
| Main probe | 3.5 MHz electronic convex array (frequency conversion) |
| Electronic focus | 4 focus points with random combination |
| Pseudo-color | 8 kinds |
| Magnification | 10 ratios: 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 |
| Cine loop | 64, 128, 256, 512, 1024 frames (user preset) |
| Storage | Large capacity local storage + USB storage for images, cine loops, measurements, and reports |
| Display | 15" color LCD screen; 14" B/W SVGA progressive scanning monitor |
| Probe connectors | 2 |
| Terminal output | VGA, PAL-D video output |
| Dimensions | 790 mm (L) × 660 mm (W) × 1070 mm (H) |
| Weight | Approximately 50 kg |
| Standards | DICOM 3.0 compliant |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Mainframe Unit | 15" color LCD screen with PC-based workstation | 1 |
| Multi-Frequency Convex Probe | 3.5 MHz electronic convex array with frequency conversion | 1 |
| Mobile Trolley | Ergonomic transport and positioning cart | 1 |
| Power Cable | Standard power connection | 1 |
| Cleaning Cloth | Probe maintenance cloth | 1 |
Optional accessories & probes
| Item | Description |
|---|---|
| 7.5 MHz Linear Array Probe | High-frequency probe for small parts and superficial imaging |
| 6.5 MHz Intra-Cavity Probe | Trans-vaginal probe for gynecologic imaging |
| 7.5 MHz Rectal Probe | Specialized probe for rectal and prostate imaging |
| 3.5 MHz Micro-Convex Probe | Compact convex probe for intercostal and limited-access imaging |
| R/W DVD-ROM Module | Enhanced storage and data archival capability |
| B/W Laser Printer | Professional-grade thermal printer for image documentation |
| 3D Imaging Module | Optional three-dimensional reconstruction and visualization |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, probe options, and pricing. We provide comprehensive support for clinical integration and technical training.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
