Medical Acetabullar Reaming Drill 207
4.5(2 reviews)- Mainly used in grinding bone tissue
- Compatible with any brand acetabular grinder and medullary cavity reamer
- Adjustable diameter of drill chuck from 0-8mm
- Input voltage range of 110V-240V/50Hz
- Output power of ≤120W
- Battery capacity of 1800mA/h
- Rated speed range of 0-400rpm (customizable)
- SKU
- 6E7D5D259BE7
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Orthopedic Reaming System

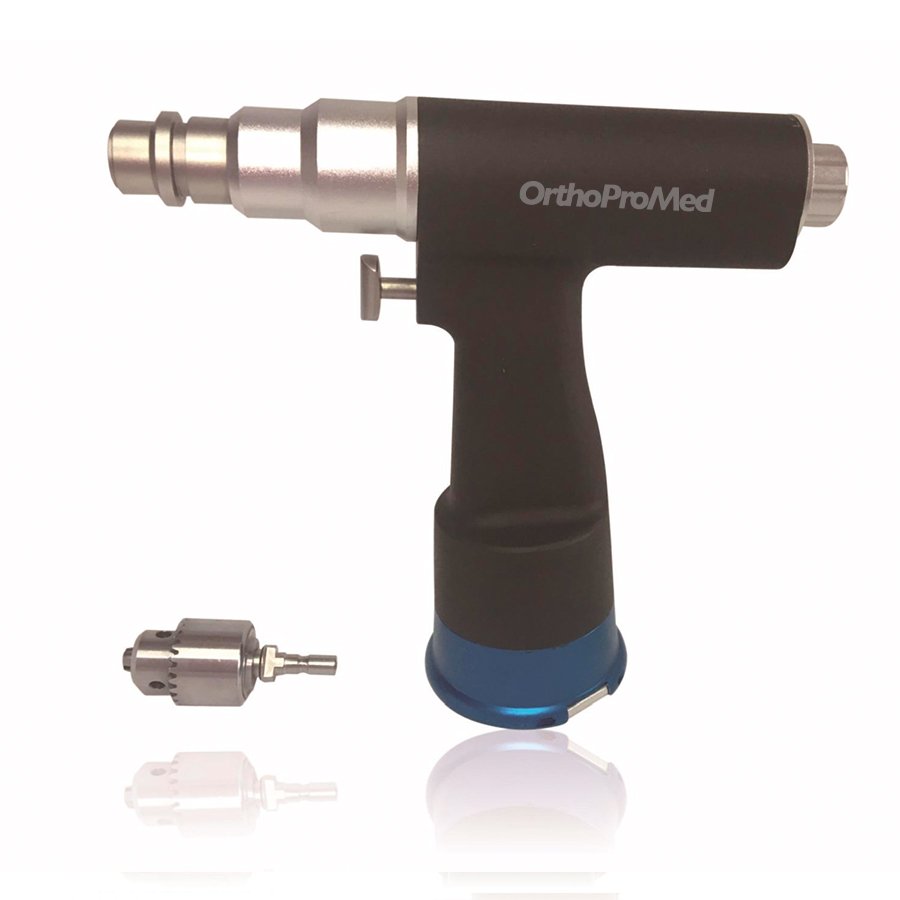

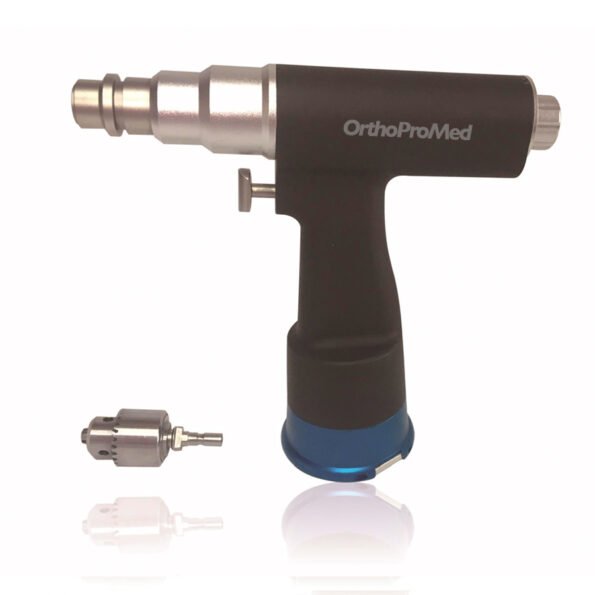

Medical Acetabular Reaming Drill 207
Precision bone tissue reaming system engineered for acetabular and medullary cavity applications. High-torque, variable-speed design with universal compatibility and adjustable chuck capacity from 0–8 mm. Dual-power operation with extended battery runtime and global voltage support.
Ordering Ref.
6e7d5d259be7
ConfigurationCordless / Corded Hybrid
MaterialSurgical-grade steel
ApplicationAcetabular & medullary reaming
Customizable speed profiles and chuck configurations available. OEM partnerships welcome.
Clinical overview
The Medical Acetabular Reaming Drill 207 is a high-performance bone tissue reaming system designed for precision acetabular and medullary cavity preparation. Its large torque output and positioning accuracy enable seamless integration with any brand acetabular grinder or medullary cavity reamer, making it an ideal choice for hip arthroplasty and revision procedures.
Engineered for surgeon control and patient safety, the drill delivers consistent performance across variable bone densities while maintaining low operational noise (≤70 dB). Dual-power capability—AC mains and rechargeable battery—ensures uninterrupted workflow in diverse OR environments.
Key features & surgeon benefits
Compatibility
Universal System Integration
- Works with any brand acetabular grinder
- Compatible with all medullary cavity reamers
- Adjustable 0–8 mm chuck for multiple instrument sizes
Performance
Precision & Power
- High torque output (13 Nm) for demanding bone work
- Variable speed 0–400 rpm (customizable)
- Positioning accuracy for repeatable results
Workflow
Dual-Power Flexibility
- AC mains (110–110V/240V / 50/60Hz) for continuous operation
- Rechargeable battery (1800 mAh) for cordless mobility
- Low noise (≤70 dB) minimizes OR fatigue
Sterilization
OR-Ready Design
- HTHP sterilization (134–138°C) for rapid turnaround
- Compact, ergonomic form factor
- Durable construction for extended service life
Technical specifications
| Indications | Acetabular reaming, medullary cavity preparation, bone tissue grinding |
|---|---|
| Drill chuck range | 0–8 mm (adjustable) |
| Rated speed | 0–400 rpm (customizable) |
| Output power | ≤120 W |
| Rated torque | 13 Nm |
| Input voltage (AC) | 110–110V/240V / 50/60Hz |
| Battery capacity | 1800 mAh |
| Charging voltage | 14.4 V |
| Sterilisation method | HTHP (High-Temperature High-Pressure) |
| Sterilising temperature | 134–138°C |
| Operational noise | ≤70 dB |
| Packaging | Sterile single-unit or kit configuration |
| Warranty | As applicable per regional regulations |

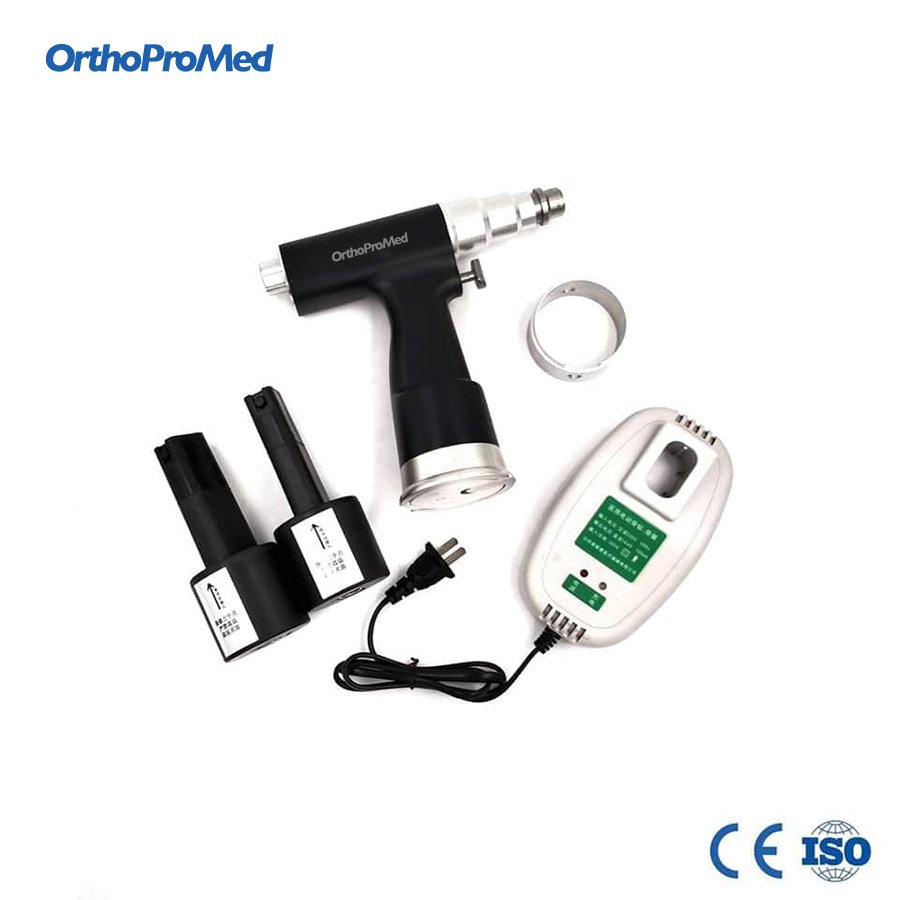

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Reaming Drill Unit | Medical Acetabular Reaming Drill 207 with integrated chuck and dual-power system | 1 |
| AC Power Cable | 110–110V/240V mains adapter with international connectors | 1 |
| Rechargeable Battery Pack | 14.4 V lithium-ion, 1800 mAh capacity | 1 |
| Battery Charger | Fast-charge unit with LED status indicator | 1 |
| Chuck Key | Precision adjustment tool for 0–8 mm chuck | 1 |
| Sterilization Container | HTHP-compatible surgical tray | 1 |
| User Manual & QR Code | Multilingual instructions and technical support access | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss volume pricing, customization options, and delivery timelines. We support OEM partnerships and regional distributor programs.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
