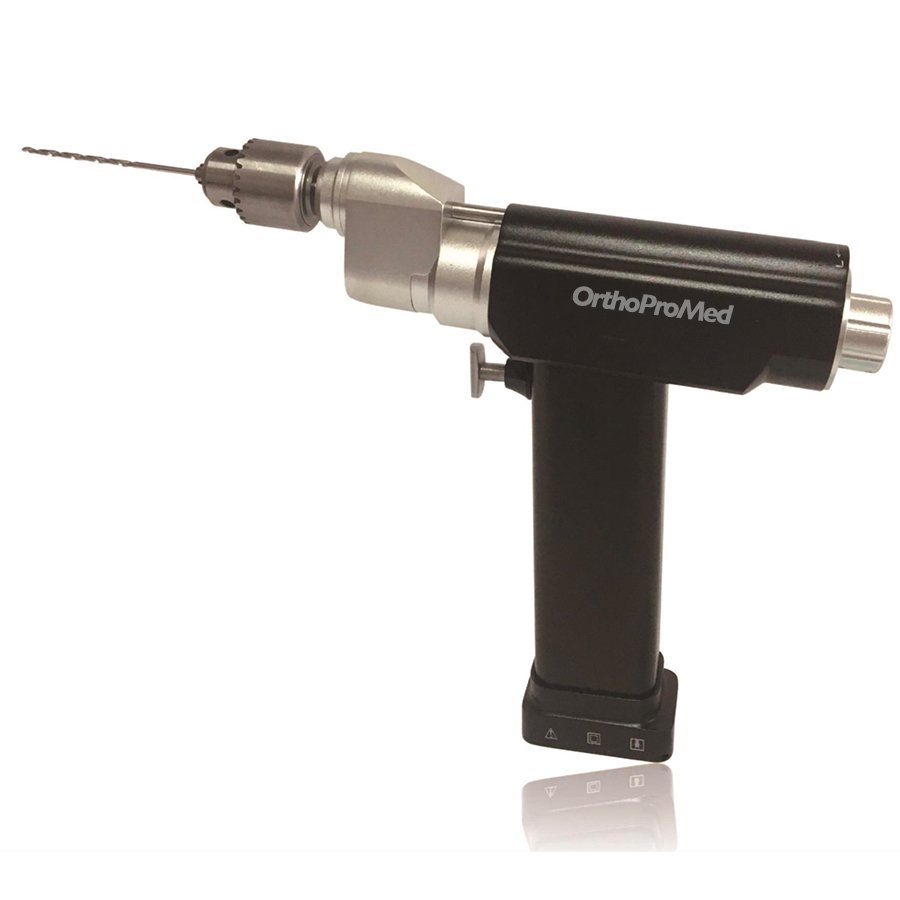

Medical Electric Cannulated Bone Drill 601
4.7(3 reviews)- Suitable for intramedullary nail and kirschner wire operations
- Center hole diameter of 4.0mm for improved accuracy
- Adjustable drill chuck diameter from 0-8mm
- Operates on input voltage of 110V-240V/50Hz
- Output power of ≤120W for efficient performance
- Battery capacity of 1800mA/h for prolonged use
- Customizable rated speed of 0-1000rpm
- SKU
- 7967CC8E3AB5
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Tags
Orthopedic Power Tools
Medical Electric Cannulated Bone Drill 601
Precision-engineered electric bone drill for intramedullary nail and Kirschner wire operations. Features a 4.0 mm center hole for enhanced accuracy and concentricity, delivering superior surgical outcomes with adjustable speed control and reliable battery performance.
Ordering Ref.
7967cc8e3ab5
ConfigurationCordless Electric
MaterialSurgical Steel
ApplicationOrthopedic Surgery
Customizable speed settings and battery capacity available upon request. OEM configurations supported.
Clinical overview
The Medical Electric Cannulated Bone Drill 601 is purpose-designed for all brands of intramedullary nail and Kirschner wire operations. The 4.0 mm center hole diameter ensures precise concentricity, significantly improving surgical accuracy and enabling more perfect operative outcomes. This cannulated design allows surgeons to maintain guidewire control throughout the drilling process, reducing operative time and enhancing patient safety.
With adjustable speed control from 0–1000 rpm and a compact, ergonomic design, the drill accommodates a wide range of surgical techniques. The dual-voltage input (110–110V/240V) and rechargeable battery system (1800 mAh) provide flexibility for both fixed and mobile surgical environments, while the low noise profile (≤60 dB) maintains a comfortable operating room atmosphere.
Key features & surgeon benefits
Precision
Cannulated Design
- 4.0 mm center hole for guidewire control
- Enhanced concentricity improves accuracy
- Reduces operative complications
Performance
Reliable Power Delivery
- Output power ≤120 W for efficient drilling
- Rated torque 6.3 Nm for consistent performance
- Adjustable speed 0–1000 rpm (customizable)
Flexibility
Dual-Power System
- Cordless battery (1800 mAh, 7.2 V charging)
- AC mains input 110–110V/240V / 50/60Hz
- Seamless transition between power sources
Sterilisation
Surgical Grade
- HTHP sterilisation compatible
- Operating temperature 134–138 °C
- Quiet operation ≤60 dB
Technical specifications
| Indications | Intramedullary nail operations, Kirschner wire procedures |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Center hole diameter | 4.0 mm |
| Input voltage | 110–110V/240V / 50/60Hz |
| Output power | ≤120 W |
| Battery capacity | 1800 mAh |
| Charging voltage | 7.2 V |
| Rated speed | 0–1000 rpm (customizable) |
| Rating torque | 6.3 Nm |
| Sterilisation method | HTHP |
| Sterilising temperature | 134–138 °C |
| Noise level | ≤60 dB |
| Packaging | As applicable |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Drill unit | Electric cannulated bone drill with adjustable chuck | 1 |
| Battery pack | Rechargeable lithium-ion 7.2 V, 1800 mAh | 1 |
| Charging adapter | Universal AC/DC charger 110–110V/240V input | 1 |
| Drill bits | Assorted sizes 0–8 mm (as per configuration) | As applicable |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, customisation options, and delivery timelines for the Medical Electric Cannulated Bone Drill 601. We support OEM partnerships and bulk orders.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
