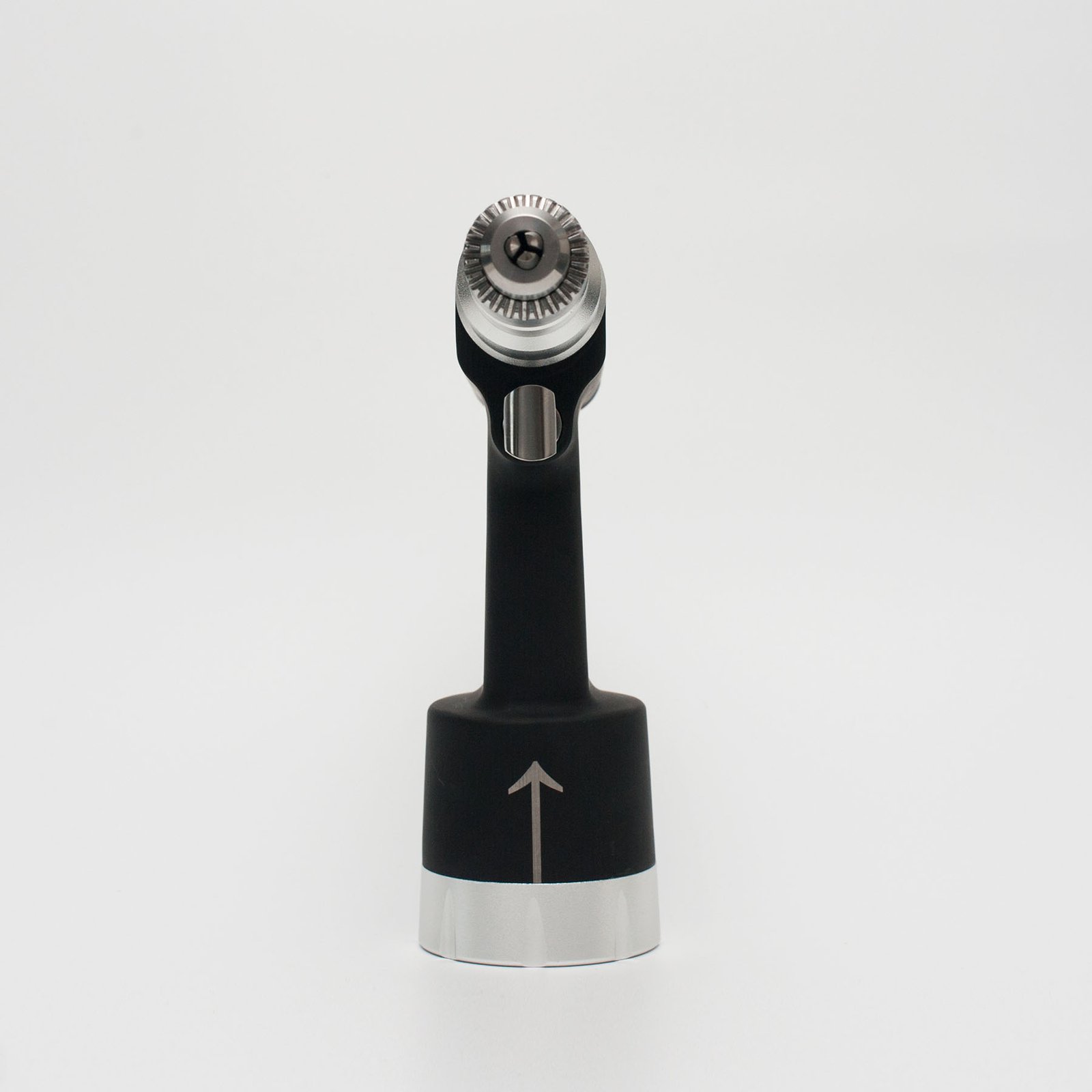

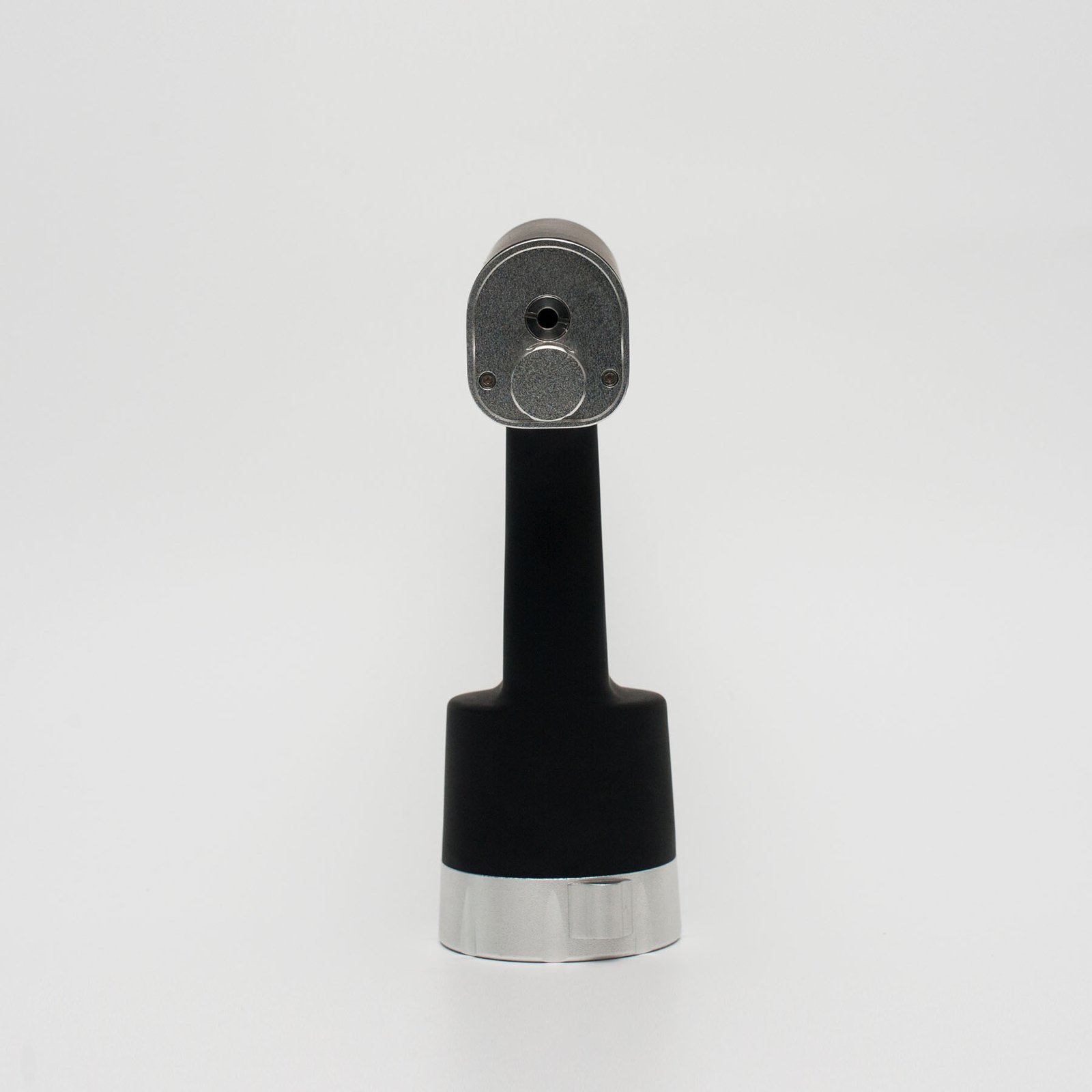

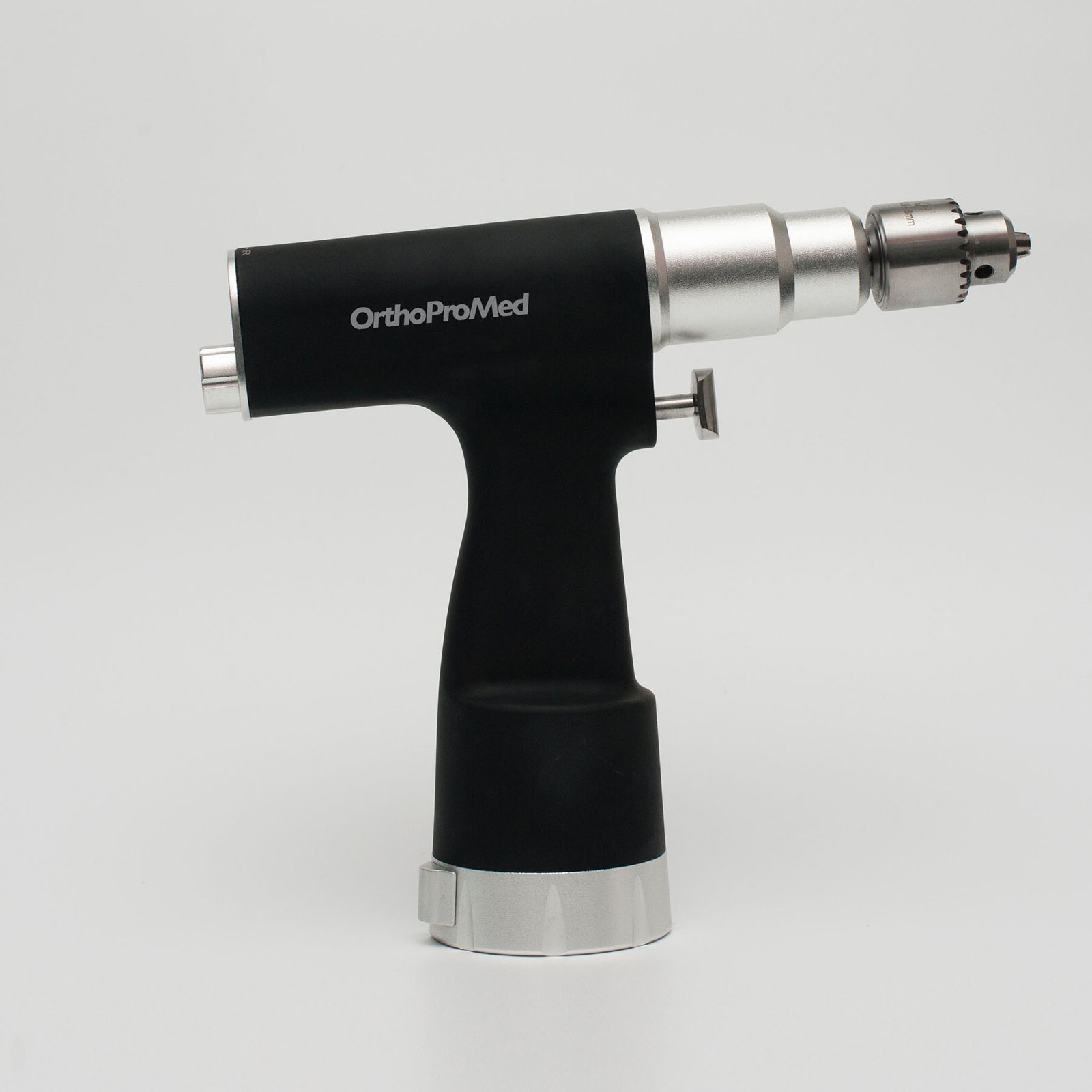

Medical Electric Cannulated Bone Drill 602
Original price was: $1,157.00.$988.00Current price is: $988.00.
– Suitable for all brands of intramedullary nail and kirschner wire operations
– Center hole diameter is 4.0mm for precise concentricity
– Input voltage range of 110V-240V/50Hz
– Output power of ≤120W
– Battery capacity of 1800mA/h
– Rated speed of 0-1000rpm with customization available
– Sterilization process using HTHP at 134-138°C
Description
Medical Electric Cannulated Bone Drill 602
Precision-engineered electric bone drill designed for intramedullary nail and Kirschner wire operations. Features a 4.0mm center hole for superior concentricity, variable speed control 0–1000 rpm, and robust battery-powered performance with universal voltage compatibility.
Clinical overview
The Medical Electric Cannulated Bone Drill 602 is engineered for precision in intramedullary nail and Kirschner wire operations across all major implant systems. The 4.0mm center hole diameter ensures precise concentricity, significantly improving surgical accuracy and outcome quality. This device is suitable for all brands of intramedullary nails and wire systems, making it a versatile solution for trauma and orthopedic departments.
With variable speed control from 0–1000 rpm and customizable configurations, surgeons can optimize drilling parameters for different bone densities and surgical scenarios. The compact, battery-powered design provides mobility and ease of use in the operating room, while HTHP sterilization compatibility ensures full integration into standard surgical protocols.
Key features & surgeon benefits
Superior Concentricity
- 4.0mm center hole for exact alignment
- Improves surgical accuracy and reduces complications
- Compatible with all major intramedullary nail brands
Variable Speed Control
- 0–1000 rpm adjustable speed range
- 6.3 Nm rated torque for reliable power
- Customizable speed profiles available
Battery-Powered Design
- 1800 mAh battery capacity for extended use
- 14.4V charging voltage
- Cordless operation for enhanced OR flexibility
Sterilization Ready
- HTHP sterilization at 134–138°C
- Quiet operation at ≤60 dB
- Universal voltage input 110–240V/50Hz
Technical specifications
| Indications | Intramedullary nail operations, Kirschner wire procedures, orthopedic trauma surgery |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Center hole diameter | 4.0 mm |
| Input voltage | 110–240V / 50Hz |
| Output power | ≤120W |
| Battery capacity | 1800 mAh |
| Rated speed | 0–1000 rpm (customization available) |
| Rated torque | 6.3 Nm |
| Charging voltage | 14.4V |
| Noise level | ≤60 dB |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilizing temperature | 134–138°C |
| Packaging | As applicable |
| Warranty | As applicable |

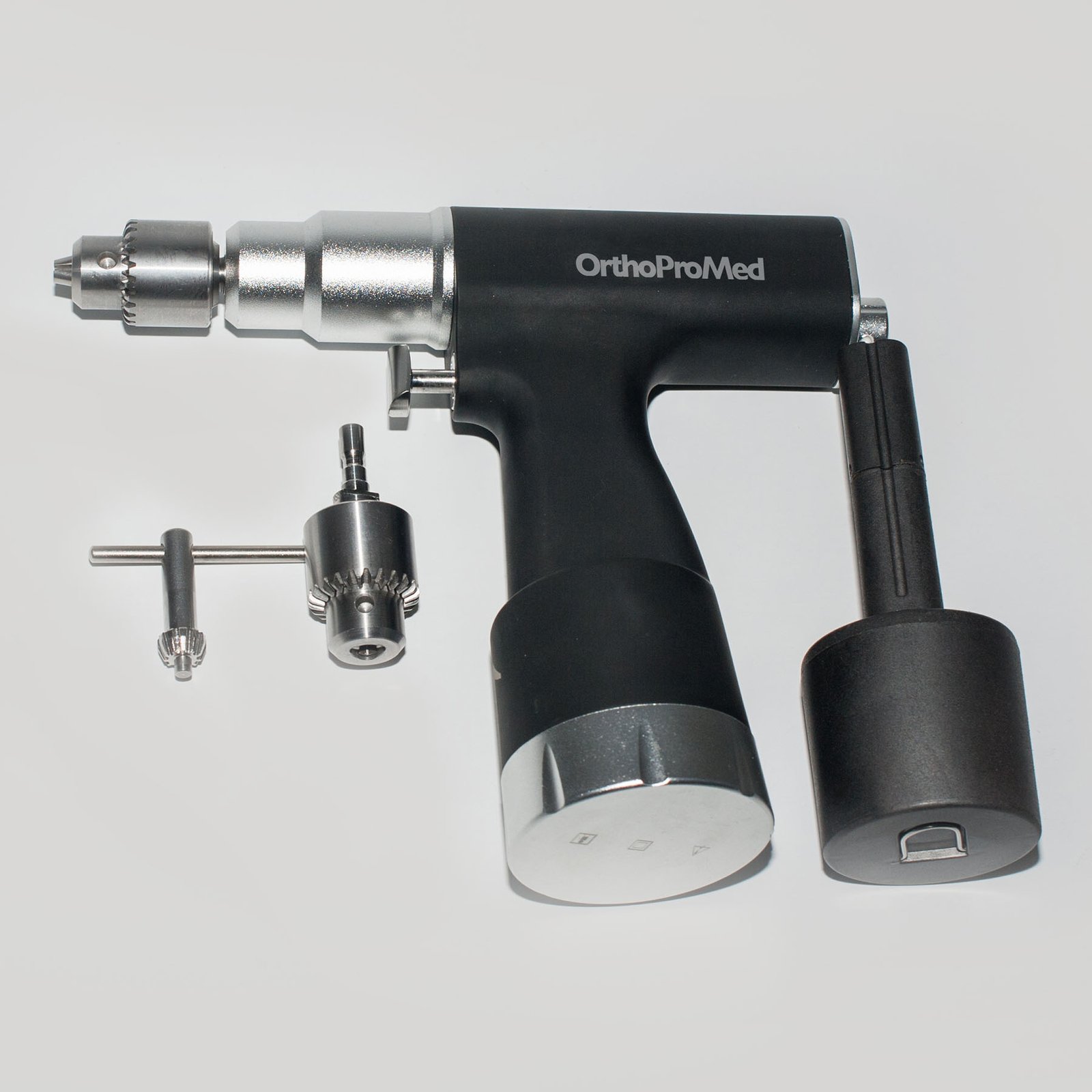

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Medical Electric Cannulated Bone Drill 602 | Main drilling unit with battery and charger | 1 |
| Battery pack | 1800 mAh rechargeable lithium-ion battery | 1 |
| Charging unit | 14.4V universal voltage charger | 1 |
| Drill chuck | 0–8mm adjustable chuck | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss customization options, or arrange a technical demonstration of the Medical Electric Cannulated Bone Drill 602.
