Orthopedic Cranial Drill Model 804
4.5(2 reviews)- Input voltage: 110V-240V/50Hz
- Output power: ≤120W
- Battery capacity: 1800mA/h
- Rated speed: 800rpm
- Charging voltage: 14.4V
- Sterilization method: HTHP
- Sterilizing temperature: 134-138°C
- SKU
- 73F95EE47388
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Tags
Orthopedic Surgical Drill

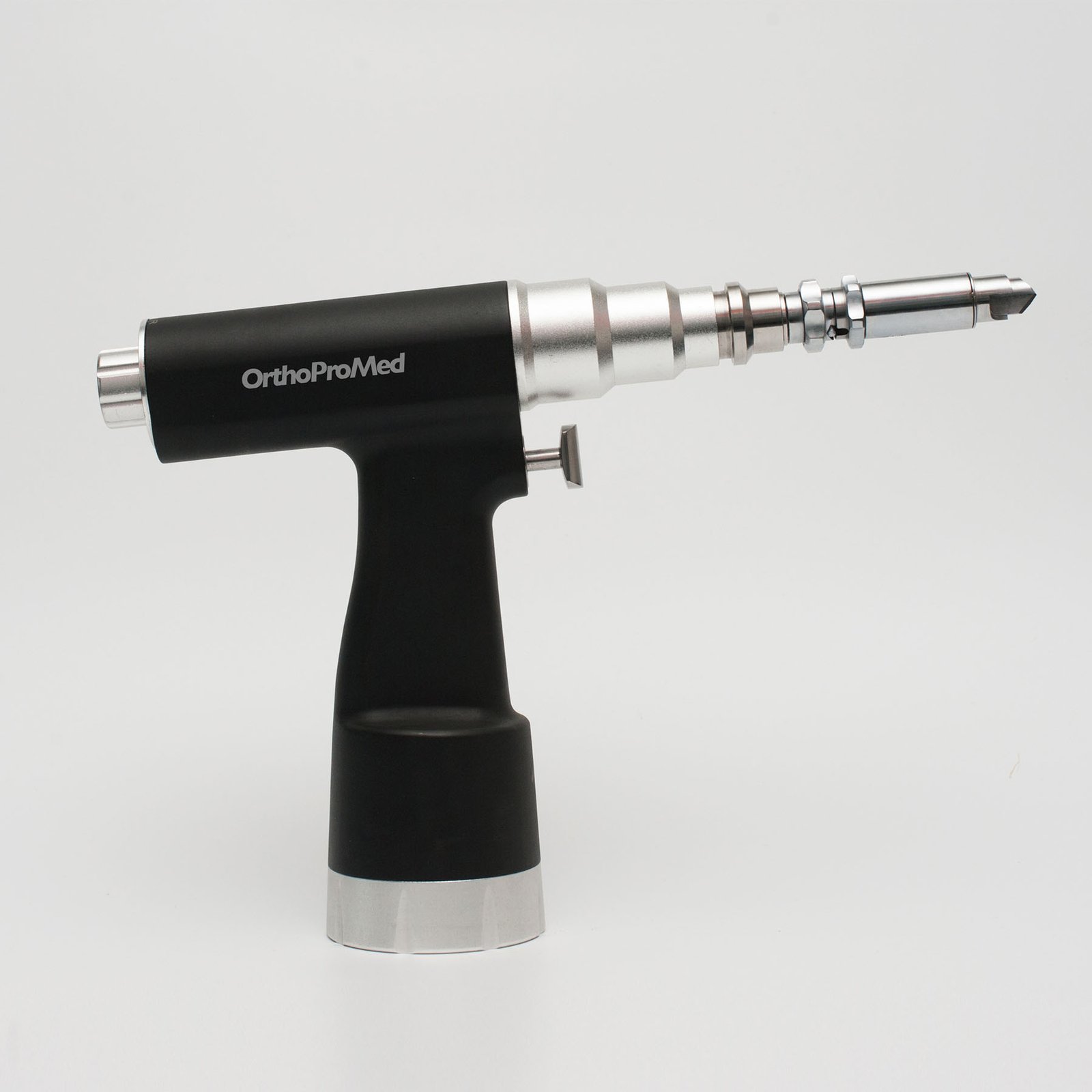

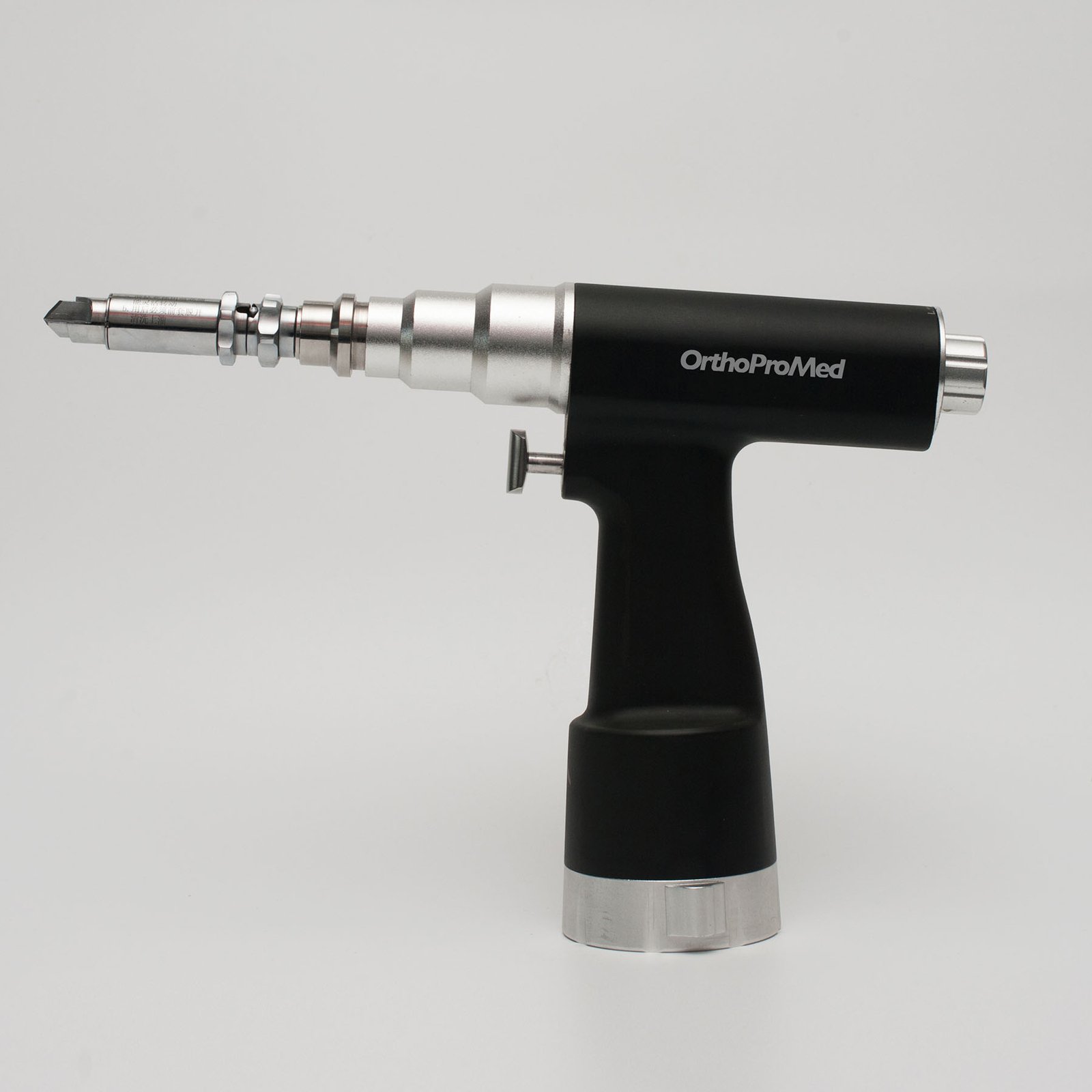

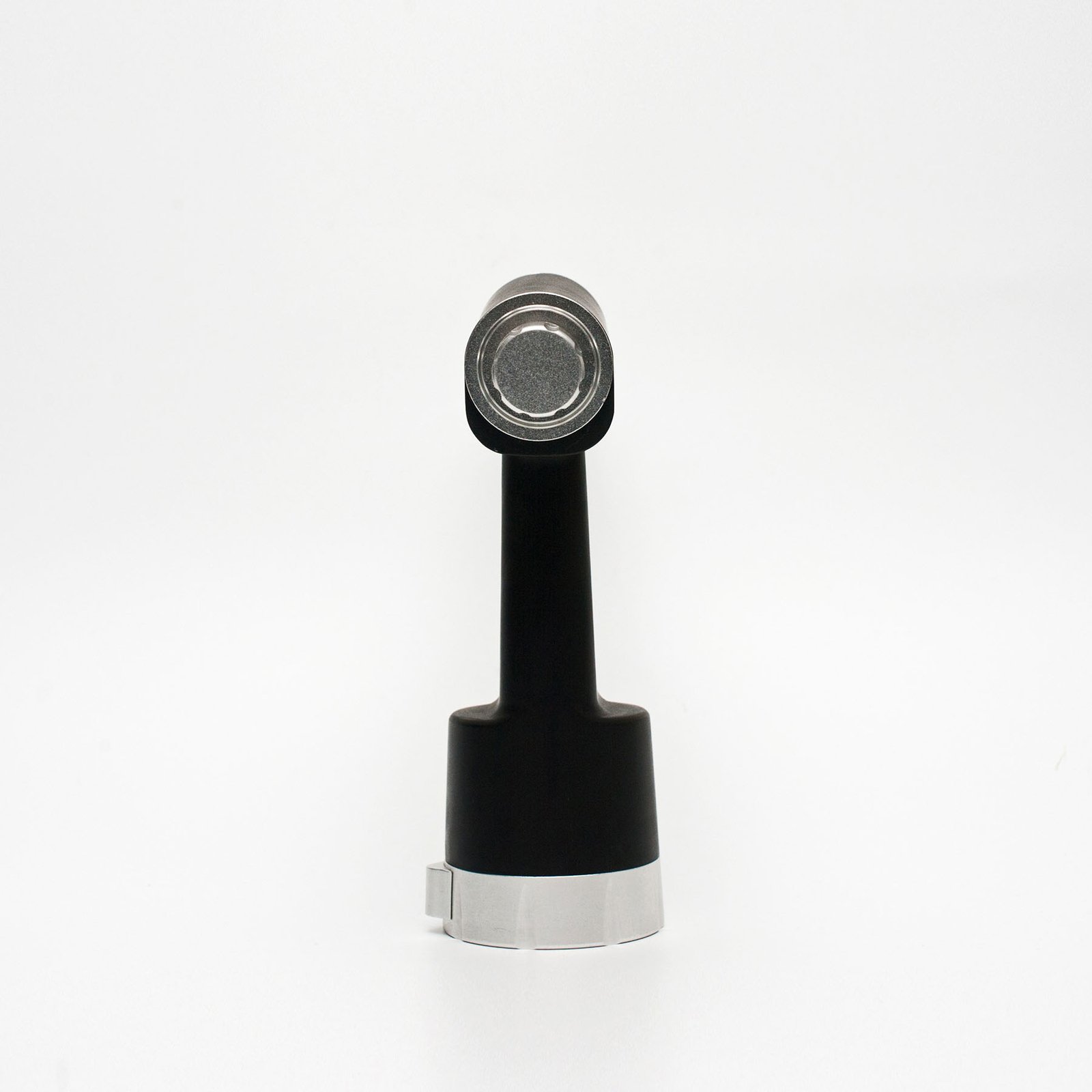

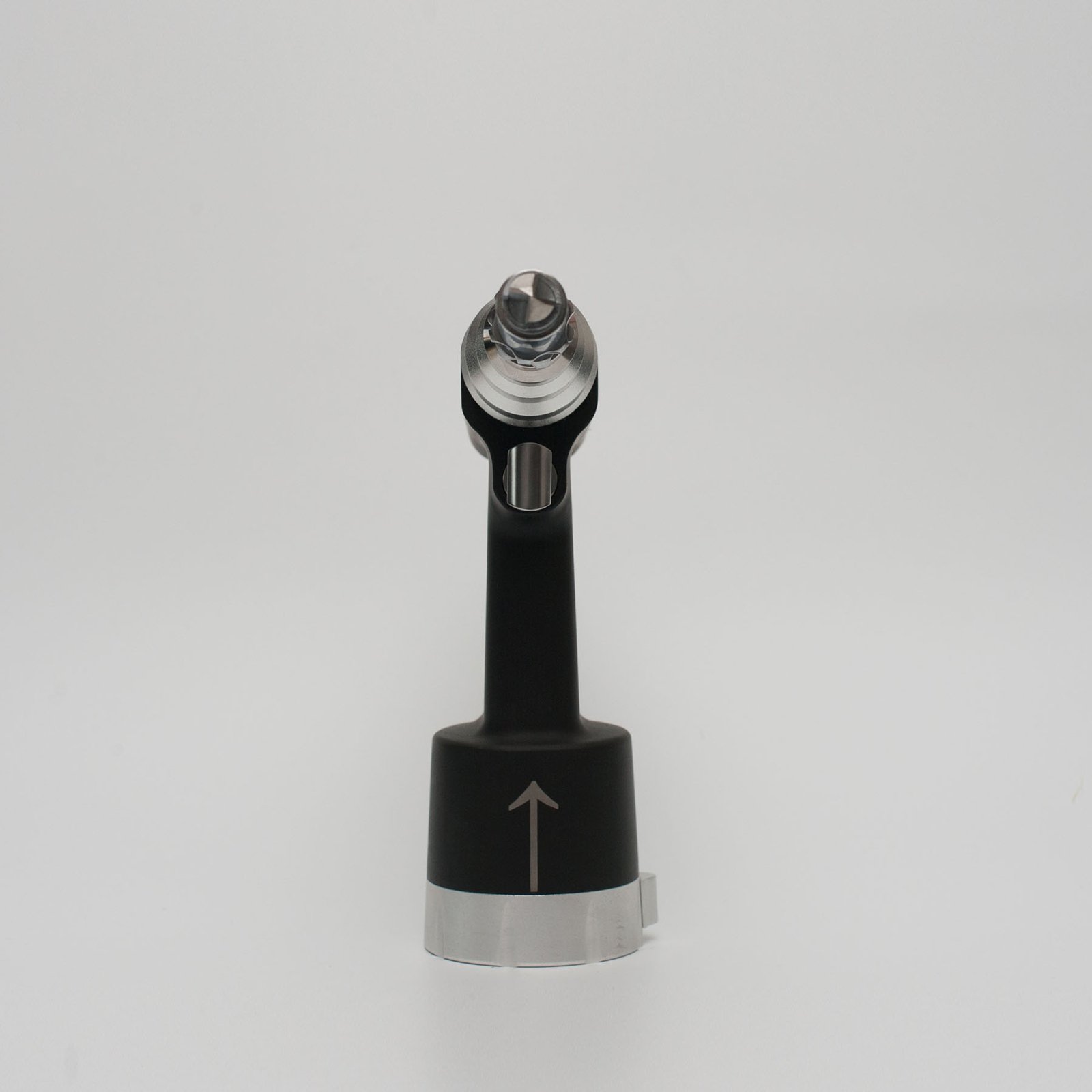

Orthopedic Cranial Drill Model 804
A precision-engineered cordless cranial drill system designed for orthopedic and neurosurgical applications. Featuring integrated motor design, ergonomic balance, and high-capacity battery technology for extended operative time and superior control.
Ordering Ref.
73f95ee47388
ConfigurationHandpiece + Batteries + Charger
MaterialSurgical-grade stainless steel
ApplicationCranial & orthopedic surgery
Custom configurations and OEM partnerships available upon request.
Clinical overview
The Orthopedic Cranial Drill Model 804 represents a significant advancement in surgical drilling technology, combining integrated motor design with advanced ergonomic principles. The balanced weight distribution between handpiece and motor minimizes hand fatigue during extended procedures, while the robust sealed construction ensures durability through repeated high-temperature sterilization cycles without motor degradation.
Operating at 800 rpm with a maximum output of 120W, this system delivers consistent cutting performance across a wide range of cranial and orthopedic applications. The imported precision motor enhances both operational efficiency and accuracy, while the low-noise design (≤70 dB) maintains a controlled surgical environment.
Key features & surgeon benefits
Design
Integrated Construction
- Excellent sealing reduces motor wear during sterilization
- Strong vibration decomposition for minimal noise (≤70 dB)
- Robust architecture withstands repeated HTHP cycles
Ergonomics
Balanced Comfort
- Symmetrical weight distribution reduces hand fatigue
- Optimized handpiece geometry for extended operative time
- Intuitive control interface for precise surgical guidance
Power & Performance
Extended Runtime
- High-capacity 1800 mAh batteries exceed market standards
- Imported precision motor for enhanced efficiency
- Consistent 800 rpm performance throughout procedure
Flexibility
Complete System
- Dual battery configuration ensures continuous workflow
- Aseptic battery transfer ring maintains sterility
- Universal 110–110V/240V charging for global deployment
Technical specifications
| Indications | Cranial surgery, orthopedic drilling, bone preparation |
|---|---|
| Rated speed | 800 rpm |
| Output power | ≤120 W |
| Input voltage | 110–110V/240V / 50/60Hz |
| Battery capacity | 1800 mAh (dual batteries included) |
| Charging voltage | 14.4 V |
| Noise level | ≤70 dB |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Packaging | Complete system with handpiece, batteries, charger, aseptic transfer ring, manual, guarantee card, and certificate |
| Warranty | As applicable |

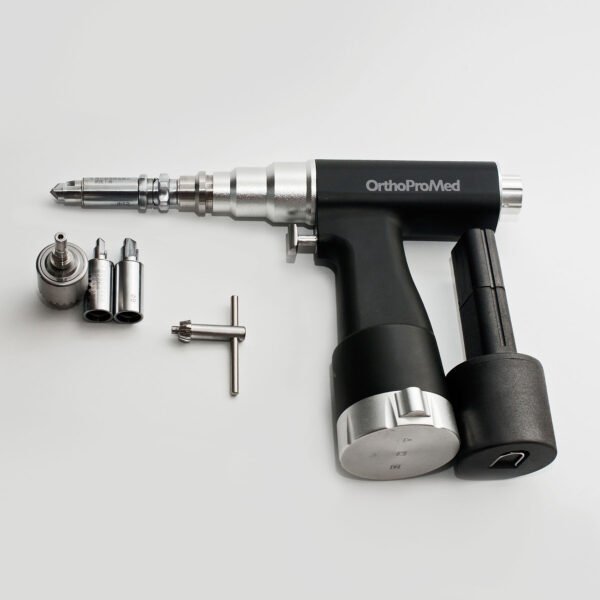

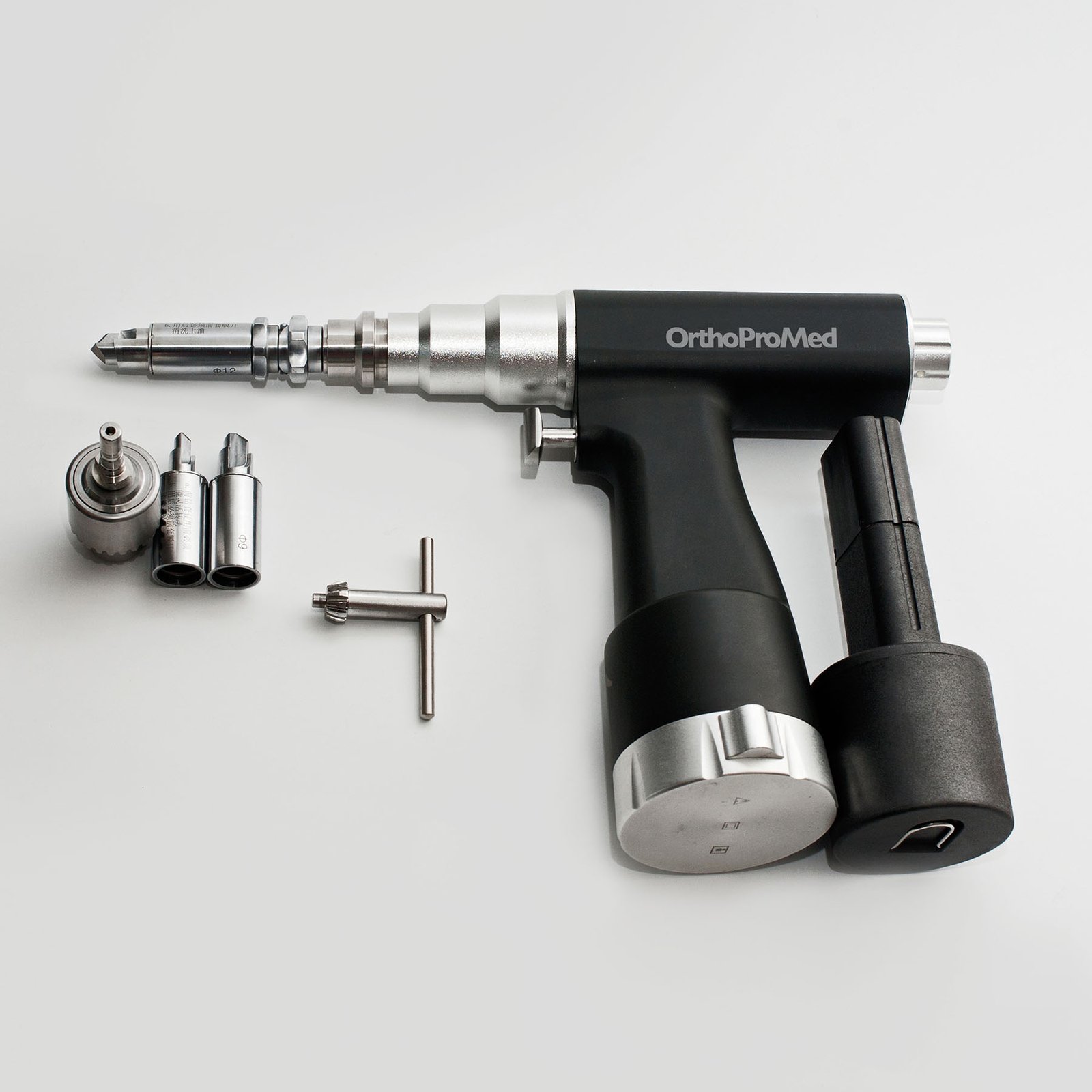

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Cranial drill motor unit with integrated design | 1 |
| Battery | High-capacity 1800 mAh rechargeable battery | 2 |
| Charger | Universal 110–110V/240V charging unit | 1 |
| Aseptic battery transfer ring | Sterile battery exchange component | 1 |
| Operating manual | Comprehensive user and maintenance guide | 1 |
| Guarantee card | Product warranty documentation | 1 |
| Certificate | Regulatory and quality certification | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and custom configurations for the Model 804. We support surgeons and facilities worldwide with rapid order processing and comprehensive technical support.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
