Medical Electric Bone Drill 107
4.3(3 reviews)- Suitable for orthopedic trauma surgery
- Comes with a drill chuck diameter of 0-8mm
- Operates on an input voltage of 110V-240V/50Hz
- Output power of ≤120W
- Equipped with a battery capacity of 1800mA/h
- Adjustable rated speed of 0-1200rpm
- SKU
- ED383EC94720
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Tags
Orthopedic Surgical Instruments

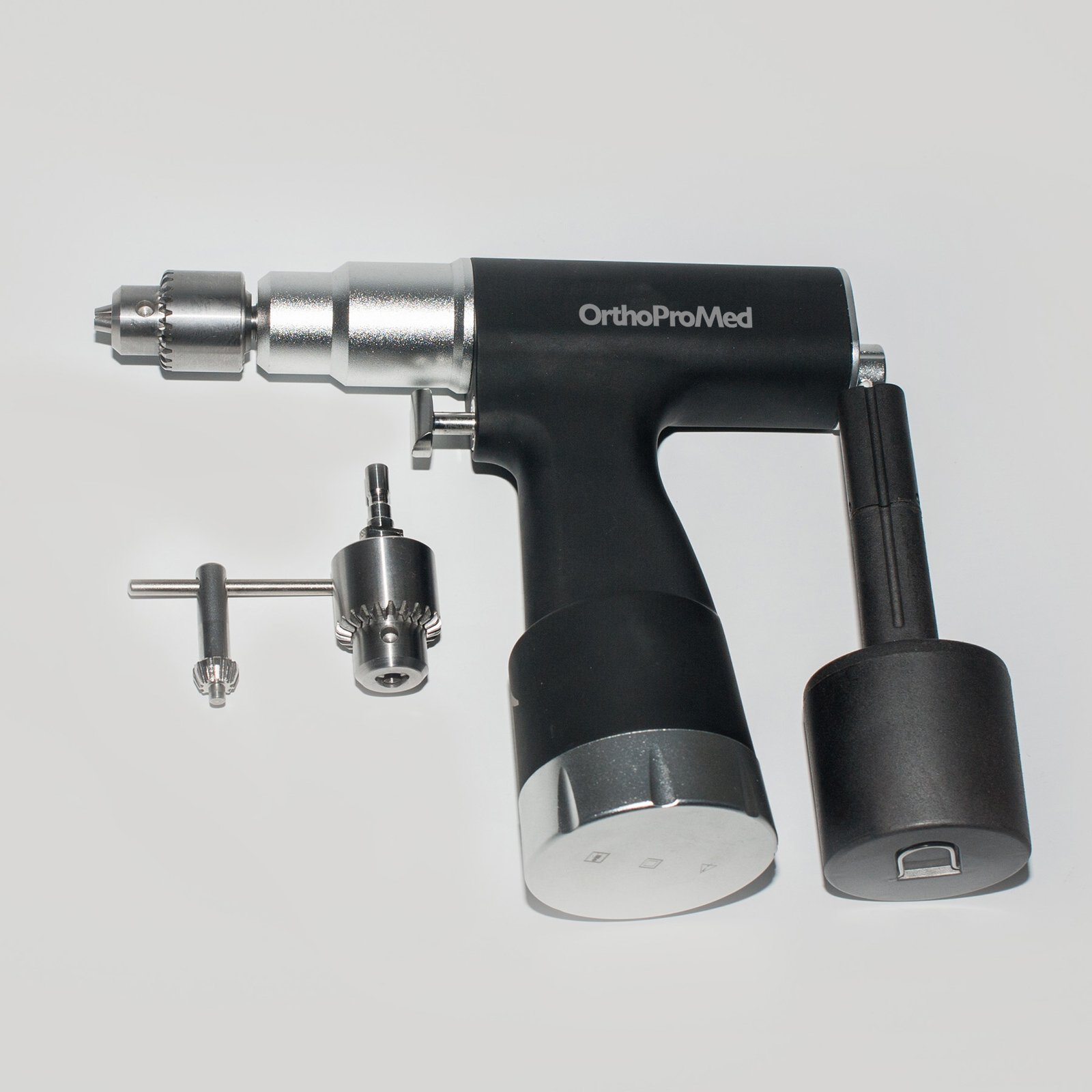

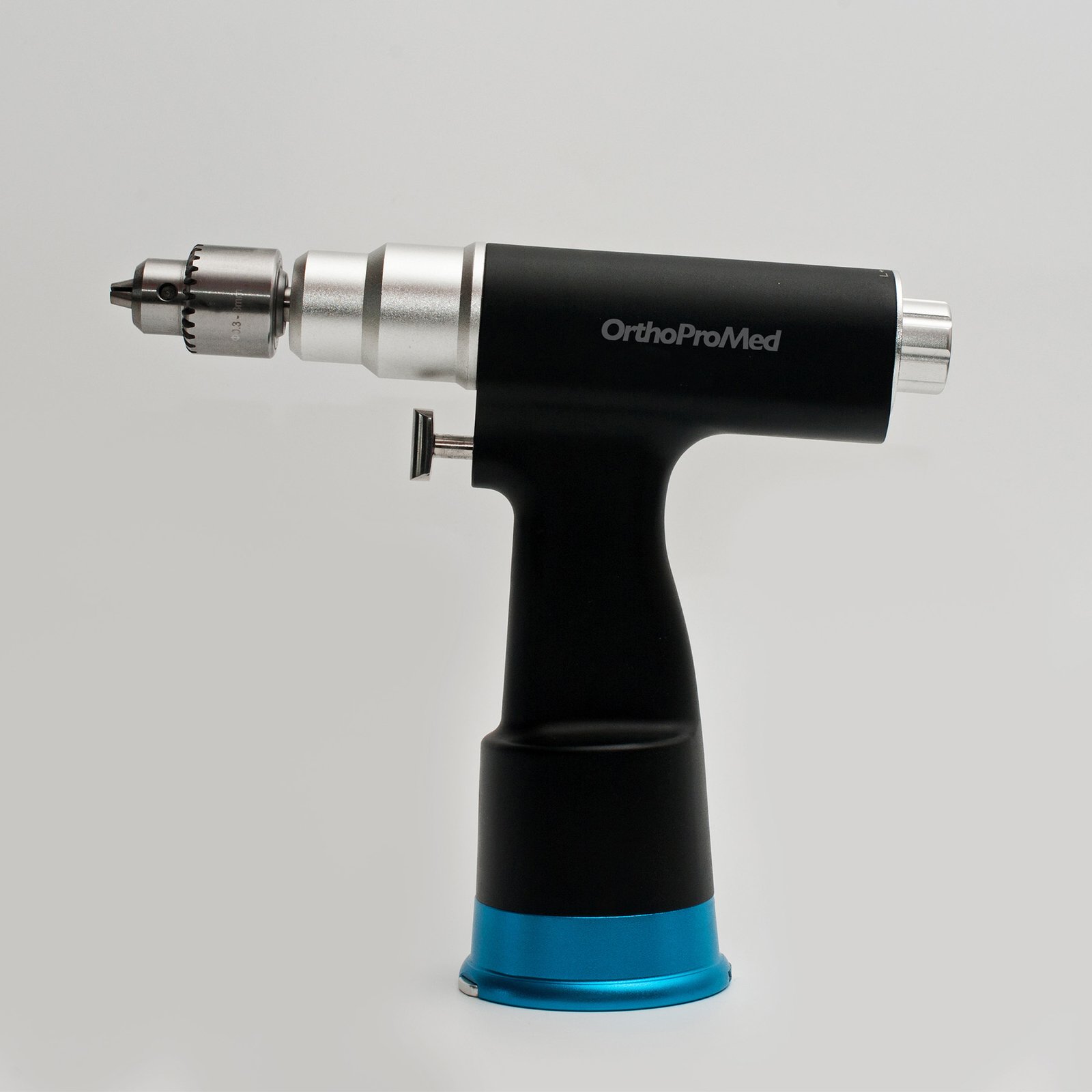

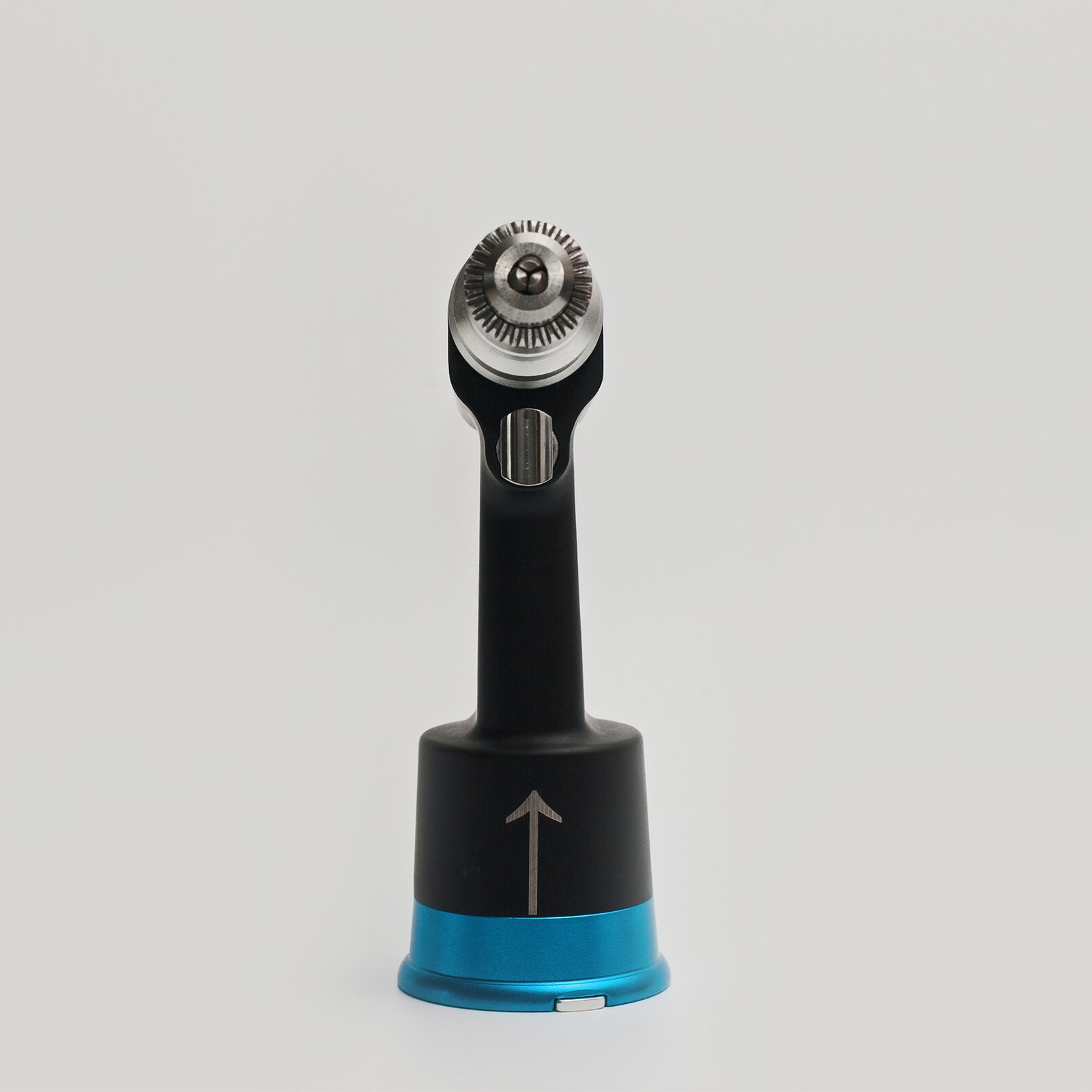

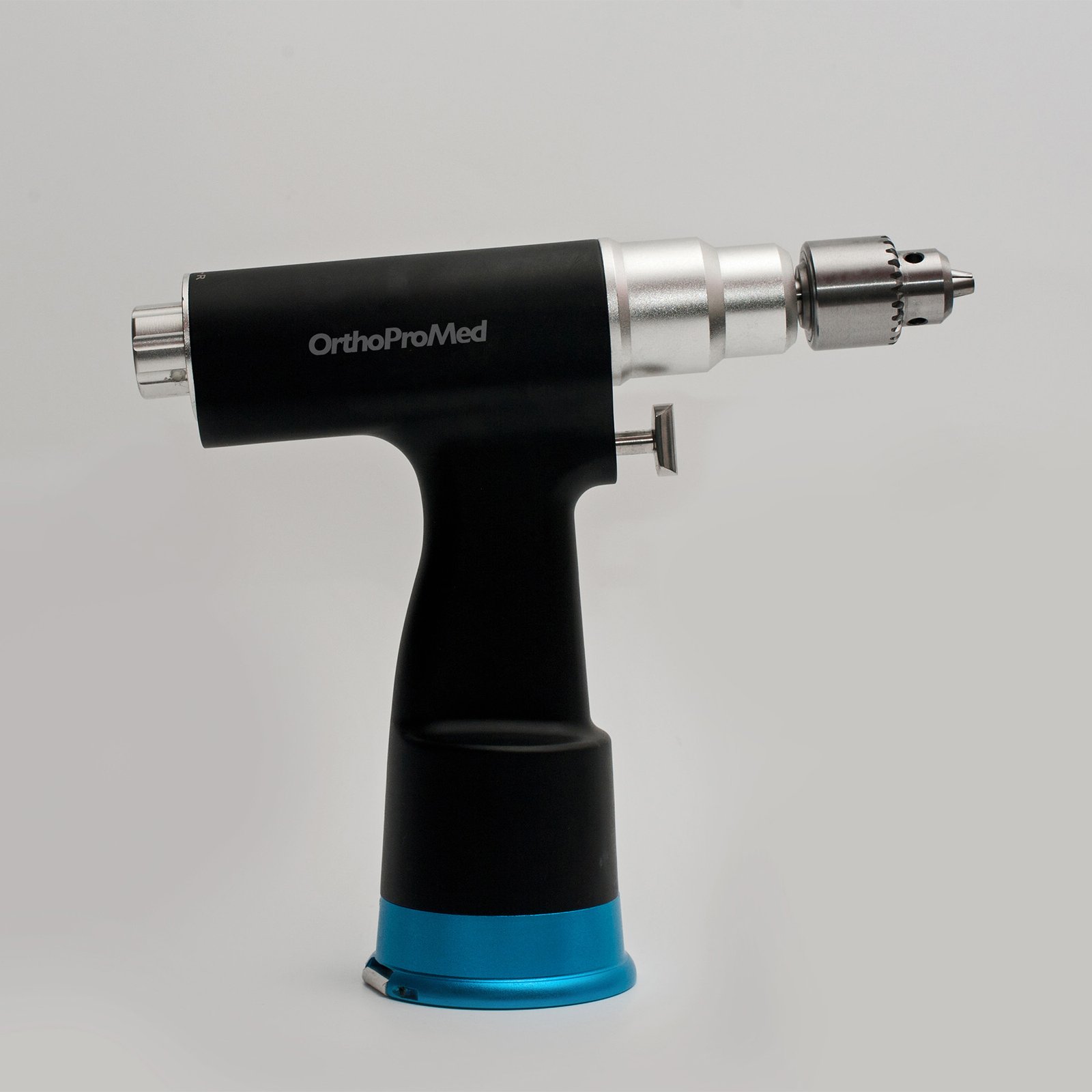

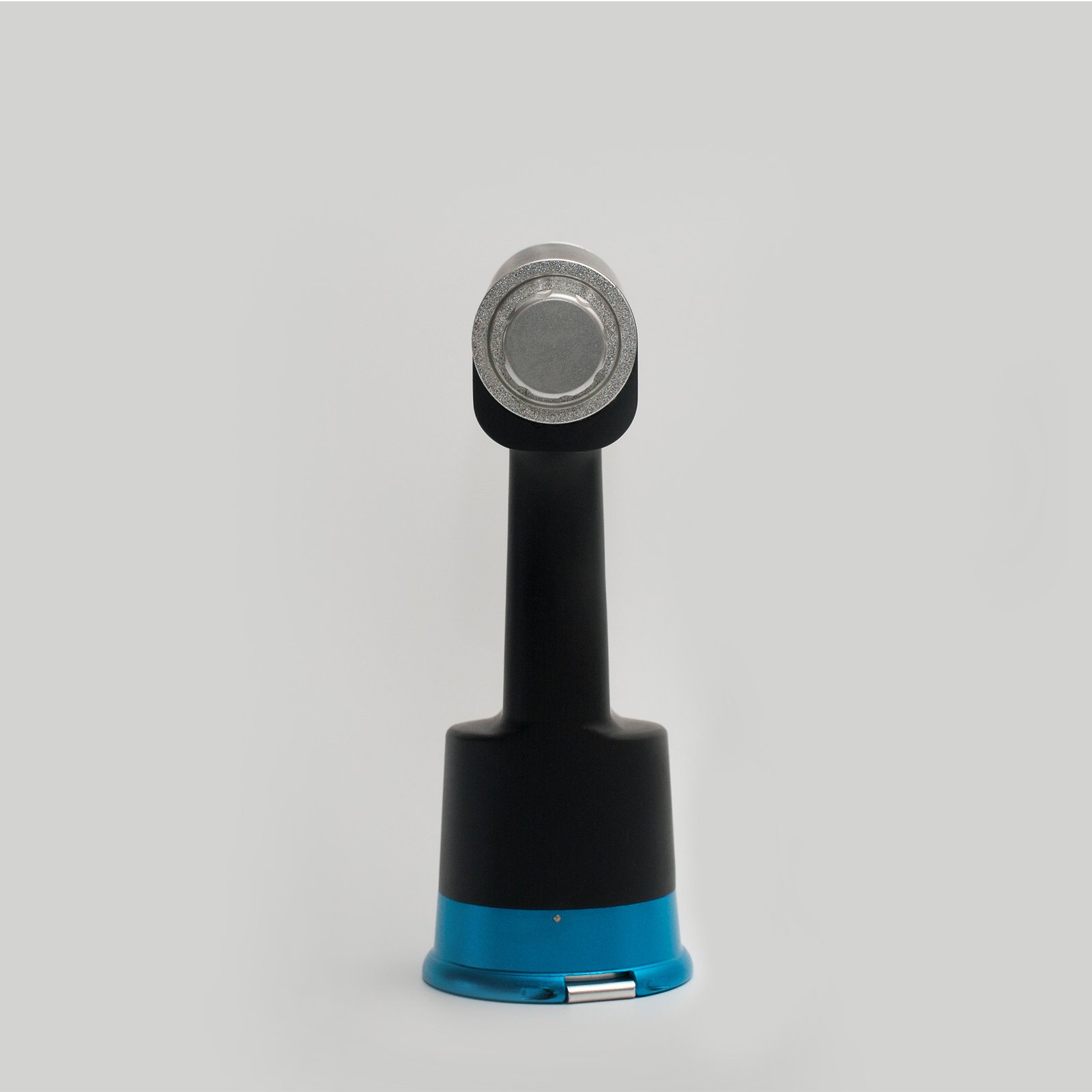

Medical Electric Bone Drill 107
A precision-engineered cordless electric bone drill designed for orthopedic trauma surgery. Delivers consistent drilling and positioning of bone tissue with adjustable speed control, low noise operation, and rapid battery charging for reliable intraoperative performance.
Ordering Ref.
ED383EC94720
ConfigurationCordless
MaterialSurgical Grade
ApplicationOrthopedic Trauma
Customisation available for rated speed and configuration. OEM partnerships welcome.
Clinical overview
The Medical Electric Bone Drill 107 is purpose-built for orthopedic trauma surgery, providing surgeons with a reliable, ergonomic tool for precise bone drilling and tissue positioning. Its cordless design eliminates cable constraints in the operative field, while the adjustable speed range (0–1200 rpm) accommodates diverse bone densities and surgical techniques.
With a compact footprint, low operational noise (≤70 dB), and rapid battery recharge capability (1800 mAh), this drill supports efficient workflow and reduced operative time. Full HTHP sterilisation compatibility ensures seamless integration into standard surgical protocols.
Key features & surgeon benefits
Precision & Control
Adjustable Speed & Torque
- Variable speed 0–1200 rpm for optimal bone engagement
- Consistent 4.5 Nm rated torque across all applications
- Drill chuck accommodates 0–8 mm instruments
Workflow
Cordless Convenience
- 1800 mAh battery capacity for extended operative sessions
- Rapid 14.4 V charging between cases
- No cable entanglement or field obstruction
Ergonomics
Surgeon-Friendly Design
- Low operational noise ≤70 dB reduces fatigue
- Lightweight, balanced handpiece for precision control
- Intuitive speed adjustment during procedure
Sterilisation
Full Compliance
- HTHP sterilisation at 134–138 °C
- Durable construction withstands repeated sterilisation cycles
- Ready-to-use in standard surgical protocols
Technical specifications
| Indications | Orthopedic trauma surgery; bone drilling and positioning |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Rated speed | 0–1200 rpm (customisation available) |
| Rating torque | 4.5 Nm |
| Output power | ≤120 W |
| Battery capacity | 1800 mAh |
| Charging voltage | 14.4 V |
| Input voltage | 110–110V/240V / 50/60Hz |
| Noise level | ≤70 dB |
| Sterilisation method | HTHP |
| Sterilising temperature | 134–138 °C |
| Packaging | As applicable |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Medical Electric Bone Drill 107 | Cordless electric bone drill with adjustable speed control | 1 |
| Battery pack | 1800 mAh rechargeable lithium-ion battery | 1 |
| Charging unit | 14.4 V AC/DC charger | 1 |
| Drill chuck | 0–8 mm universal chuck | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customisation options for your surgical programme.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
