Medical Orthopedic Bone Reciprocating Saw 904
Original price was: $1,417.00.$1,261.00Current price is: $1,261.00.
– The Medical Orthopedic Bone Reciprocating Saw 904 is suitable for facet joint operations and intercondylar fossa surgery.
– It provides rapid cutting, accurate positioning, smooth and tidy cuts, and operates at a low temperature.
– Features an advanced saw blade lock and sheath device for safe and reliable operation.
– Comes with multiple saw blade size options to meet clinical needs effectively.
Description

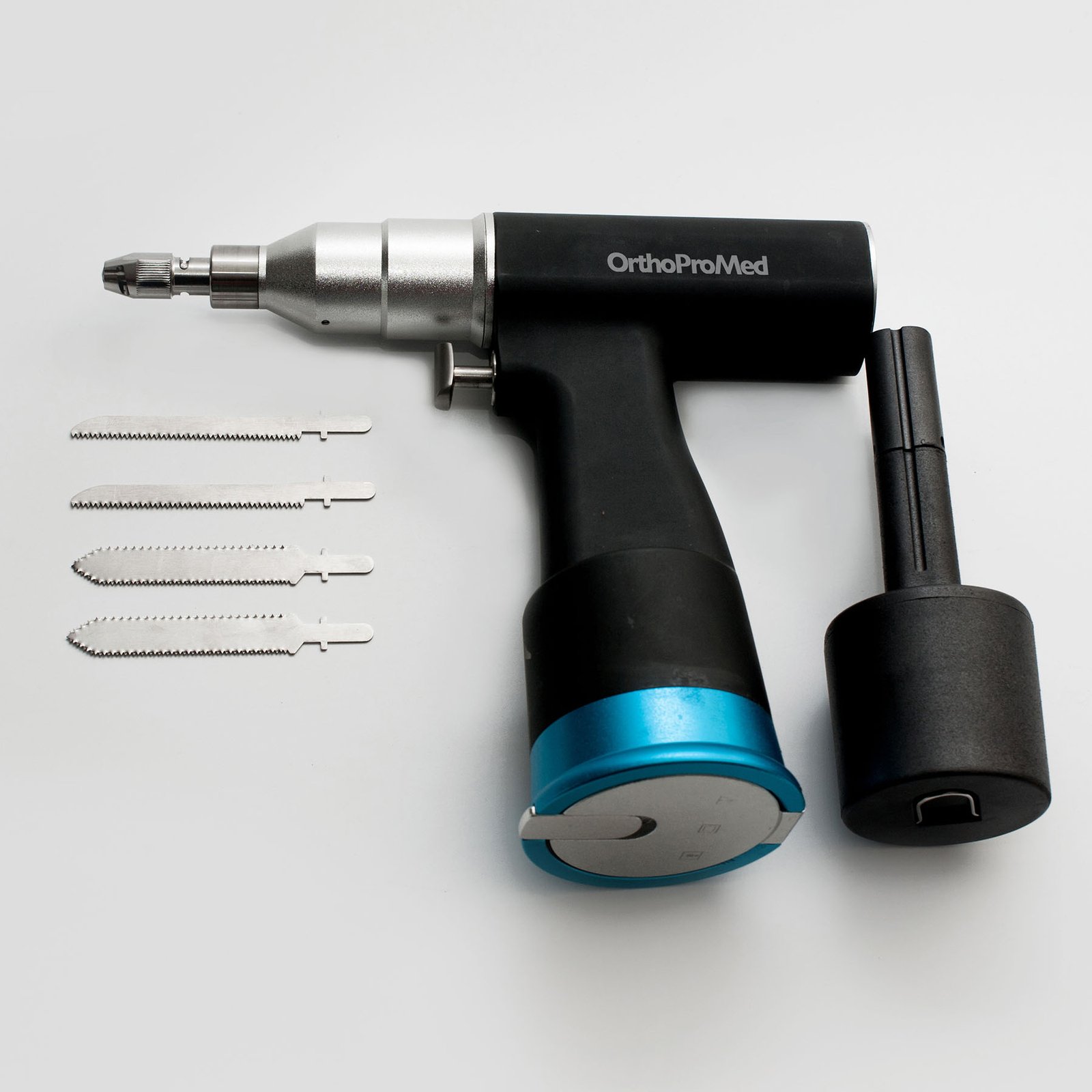

Medical Orthopedic Bone Reciprocating Saw 904
Precision bone cutting for facet joint and intercondylar fossa surgery. The Model 904 delivers rapid, accurate cuts with minimal thermal damage, advanced blade locking, and multiple size options for comprehensive clinical coverage.
Clinical overview
The Medical Orthopedic Bone Reciprocating Saw 904 is engineered for precision bone cutting across facet joint operations, intercondylar fossa procedures, and cardiothoracic applications. The reciprocating mechanism delivers rapid cutting with accurate positioning and smooth, tidy cuts while maintaining low operational temperature to minimize thermal necrosis and tissue damage.
An advanced saw blade lock and sheath device ensure safe, reliable operation throughout the procedure. Multiple saw blade size options accommodate diverse anatomical requirements and surgical approaches, making the Model 904 a versatile addition to any orthopedic or cardiothoracic surgical suite.
Key features & surgeon benefits
Rapid, Precise Cutting
- 0–20,000 rpm variable speed for optimal control
- Smooth, tidy cuts with minimal chatter
- Low operational temperature reduces thermal damage
Advanced Blade Locking
- Secure saw blade lock mechanism prevents slippage
- Protective sheath device for operator and patient safety
- Noise level ≤70 dB for reduced OR fatigue
Multiple Blade Options
- Multiple saw blade size specifications
- Suitable for facet joint, intercondylar, and cardiothoracic applications
- Flexible workflow integration
HTHP Compatible
- High-temperature, high-pressure sterilisation at 134–138°C
- Rapid turnaround for multi-case schedules
- Durable construction withstands repeated sterilisation cycles
Technical specifications
| Indications | Facet joint operations, intercondylar fossa surgery, cardiothoracic surgery |
|---|---|
| Sizes / range | Multiple saw blade size options |
| Material | Stainless steel and composite construction |
| Sterilisation | HTHP (134–138°C) |
| Input voltage | 110V–240V / 50Hz |
| Output power | ≤120W |
| Rated speed | 0–20,000 rpm |
| Battery capacity | 1800 mA/h |
| Charging voltage | 14.4V |
| Noise level | ≤70 dB |
| Warranty | As applicable |

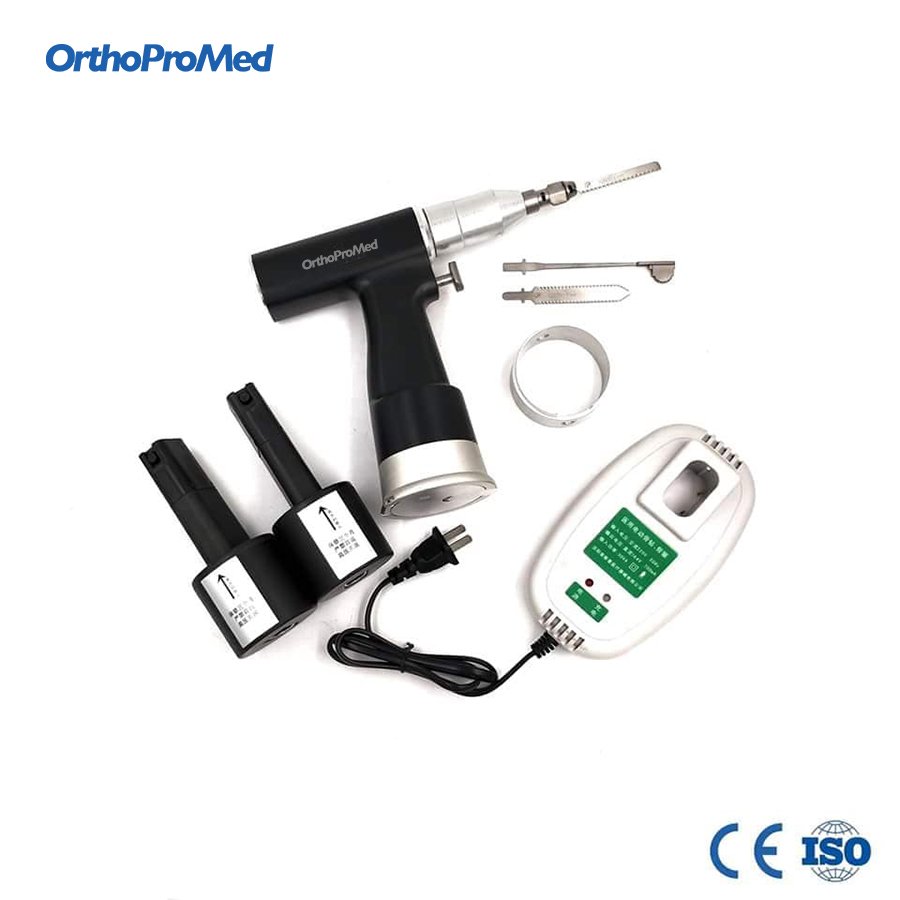

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Reciprocating Saw Unit | Model 904 with advanced blade lock and sheath device | 1 |
| Saw Blades | Multiple size options (specifications on request) | As ordered |
| Charging Station | 14.4V compatible charger | 1 |
| Battery Pack | 1800 mA/h rechargeable battery | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customisation options, or arrange a technical demonstration of the Model 904 reciprocating saw system.
