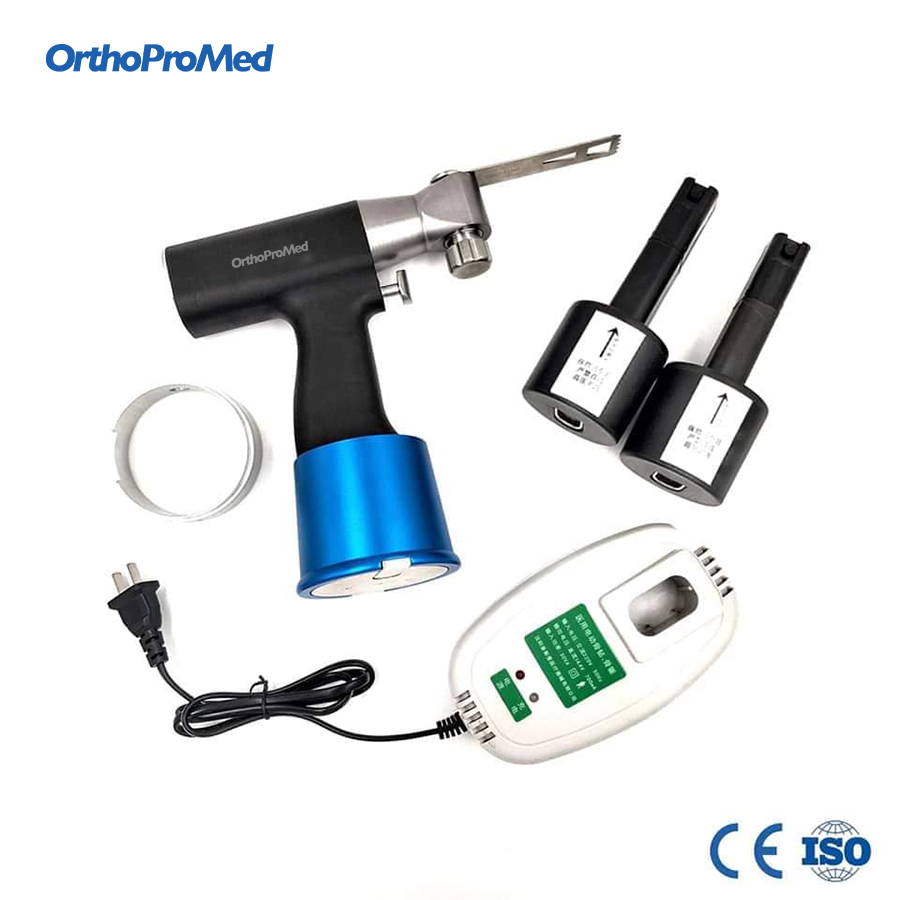

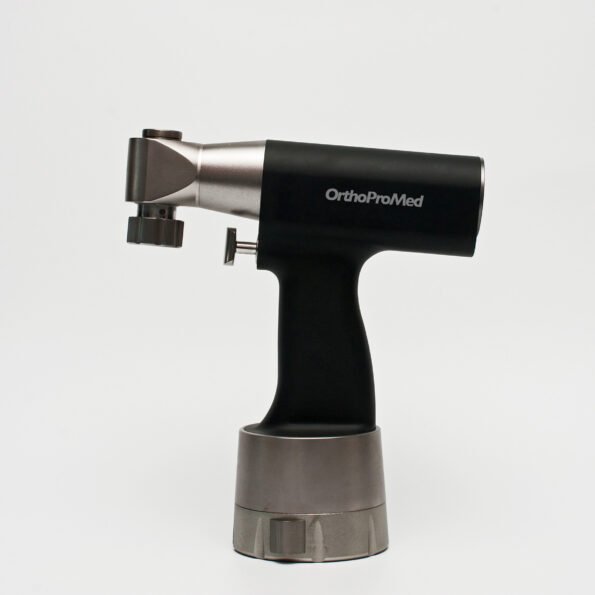

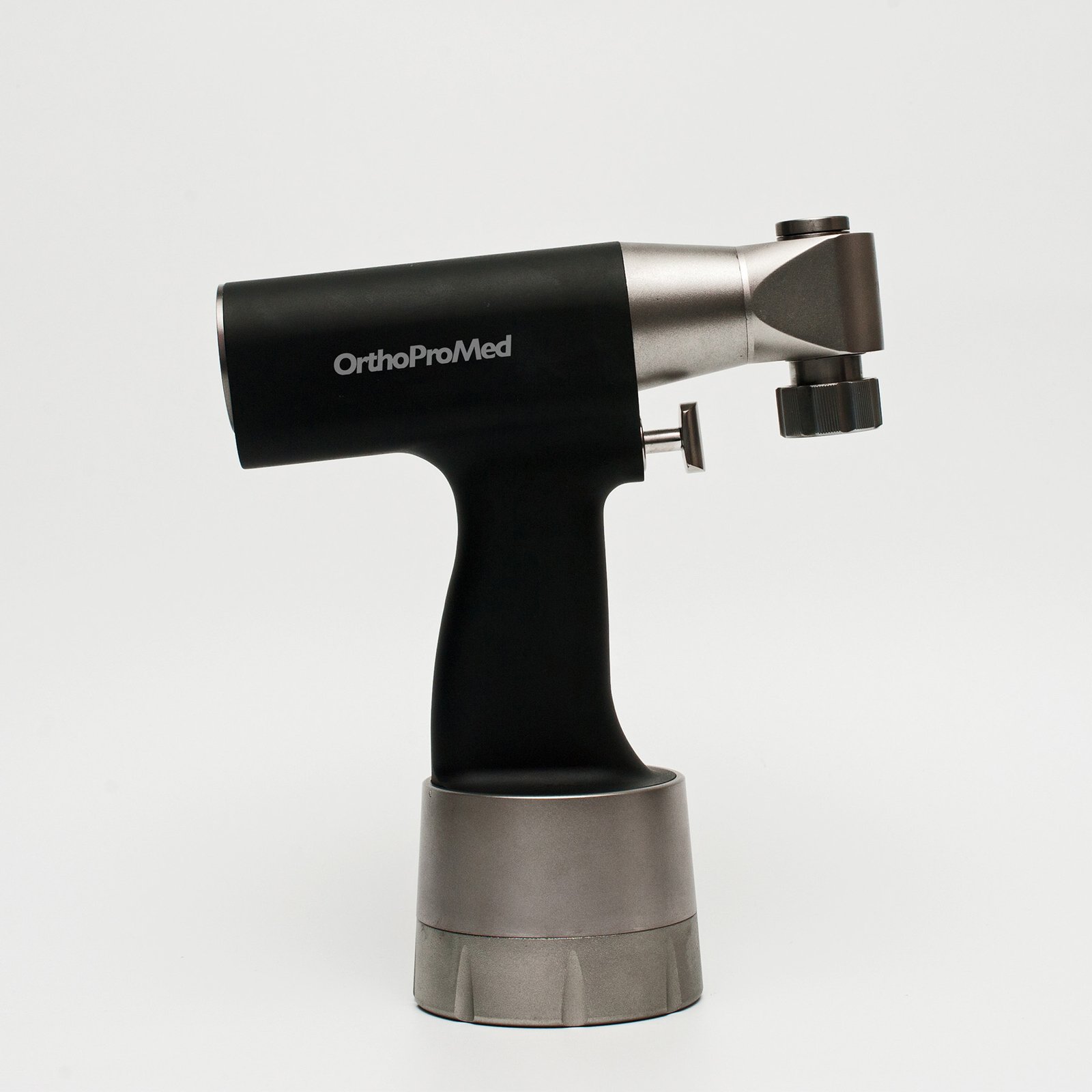

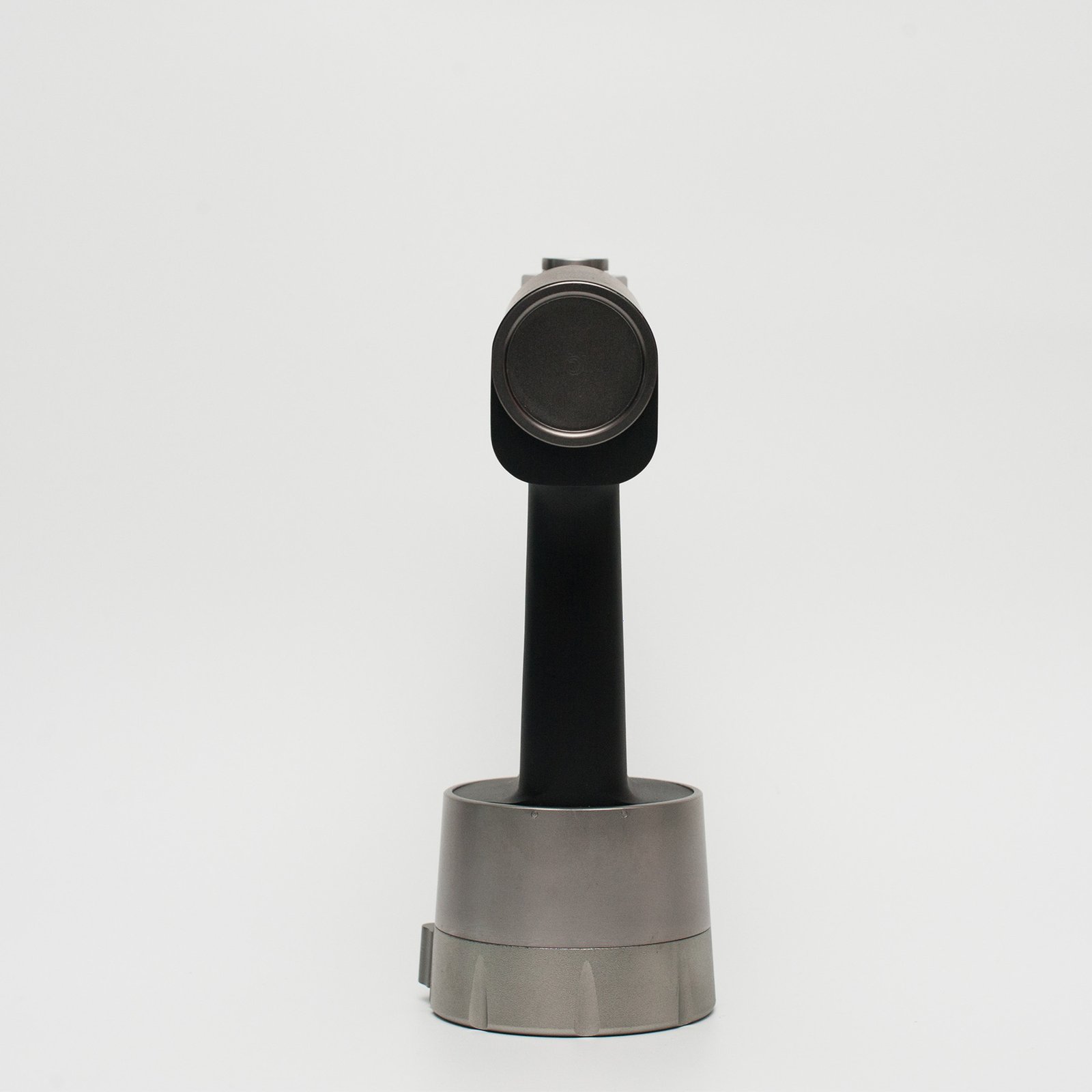

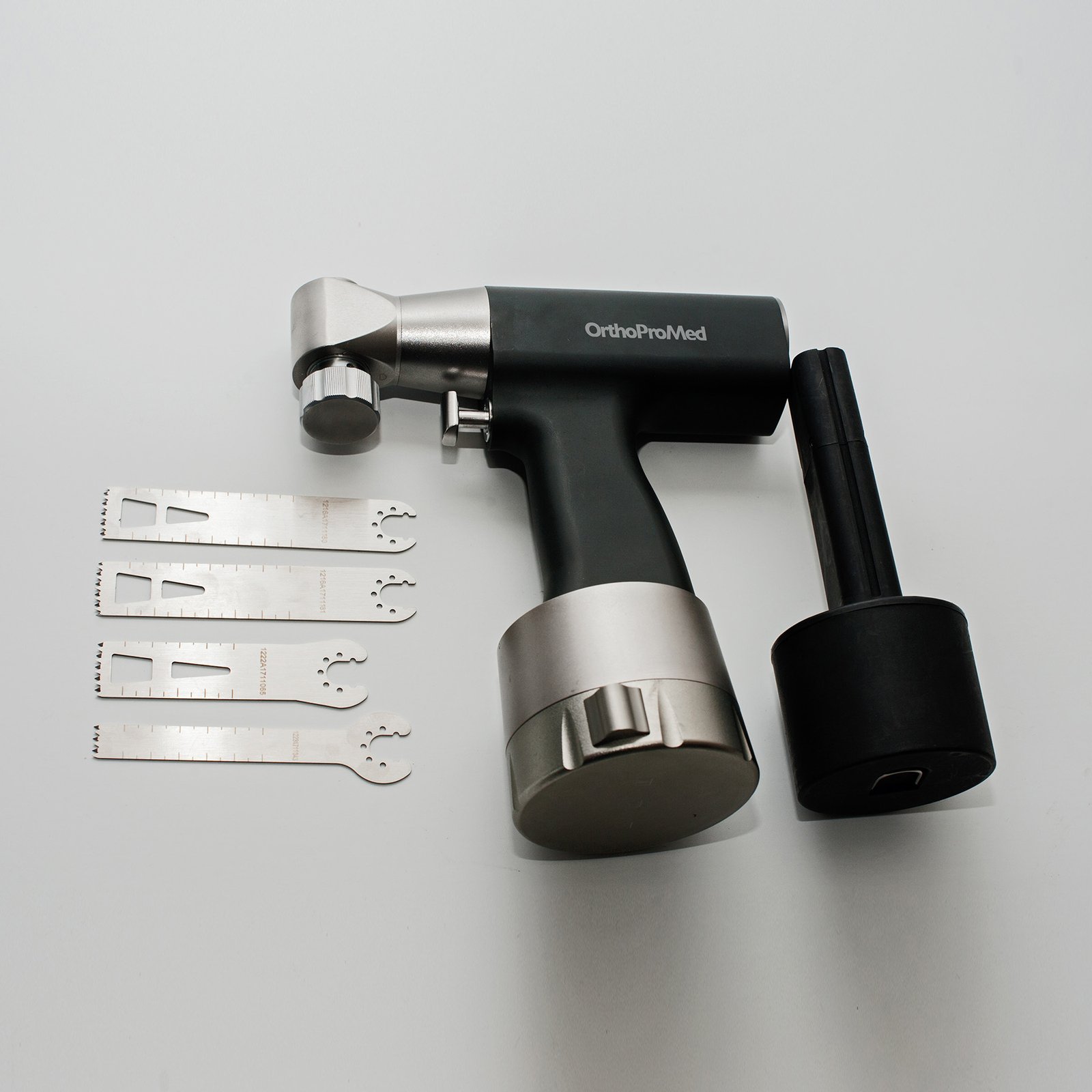

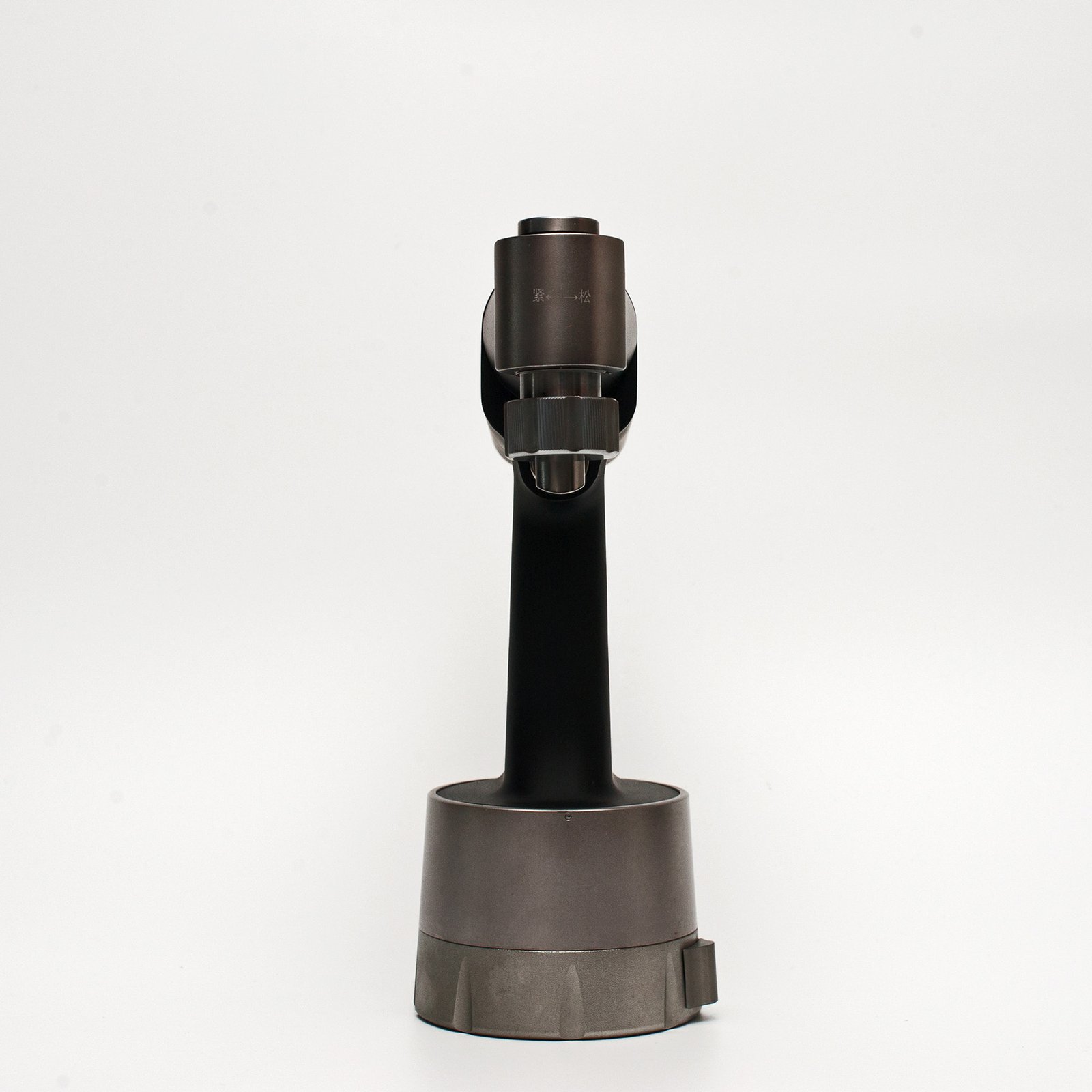

Medical Electric Oscillating Saw 503
Original price was: $1,599.00.$1,339.00Current price is: $1,339.00.
– Suitable for various orthopaedic joint surgeries
– Rapid and accurate bone tissue cutting
– Smooth and tidy bone edge
– Low temperature rise during operation
Description
Medical Electric Oscillating Saw 503
Precision bone cutting for orthopedic joint surgery. Rapid, accurate cutting with smooth bone edges, minimal thermal rise, and variable blade sizes to meet diverse clinical requirements.
Clinical overview
The Medical Electric Oscillating Saw 503 is engineered for precision bone cutting across a wide range of orthopedic joint surgical procedures. Its oscillating mechanism delivers rapid, accurate cutting with minimal thermal rise, ensuring smooth and tidy bone edges that promote optimal healing and reduce post-operative complications. The system accommodates multiple saw blade sizes, enabling surgeons to select the ideal tool for each specific anatomical requirement.
Designed for reliability in the operating room, this saw combines efficient power delivery with low operational noise (≤70dB), reducing surgeon and staff fatigue during extended procedures. The robust construction and straightforward handling make it an essential instrument for high-volume orthopedic centers and surgical facilities.
Key features & surgeon benefits
Accurate Bone Cutting
- Rapid cutting with precise location accuracy
- Smooth, tidy bone edges reduce trauma
- Minimal thermal rise protects adjacent tissues
Versatile Blade Options
- Multiple saw blade sizes for varied joint procedures
- Quick blade changeover between cases
- Compatible with standard orthopedic setups
Surgeon-Friendly Design
- Low operational noise (≤70dB) reduces fatigue
- Balanced handle for extended procedure comfort
- Intuitive speed control (0–20,000 rpm)
Full Autoclave Compatibility
- HTHP sterilisation at 134–138°C
- Durable construction withstands repeated cycles
- Ready for immediate reuse in high-throughput facilities
Technical specifications
| Indications | Orthopedic joint surgeries; bone tissue cutting for various joint operations |
|---|---|
| Sizes / range | Multiple saw blade sizes available; variable configurations |
| Input voltage | 110V–240V / 50Hz |
| Output power | ≤120W |
| Rated speed | 0–20,000 rpm |
| Battery capacity | 2500 mAh (if applicable) |
| Charging voltage | 14.4V |
| Noise level | ≤70 dB |
| Sterilisation | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Oscillating Saw Unit | Medical Electric Oscillating Saw 503 with integrated motor and control | 1 |
| Power Cord | 110V–240V / 50Hz compatible cord | 1 |
| Saw Blades | Multiple blade sizes (standard assortment) | As specified |
| Blade Holder | Quick-change blade attachment mechanism | 1 |
| User Manual | Operating and maintenance instructions | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and custom blade configurations for your facility. We provide rapid quotations and technical support for all orthopedic power tool inquiries.
