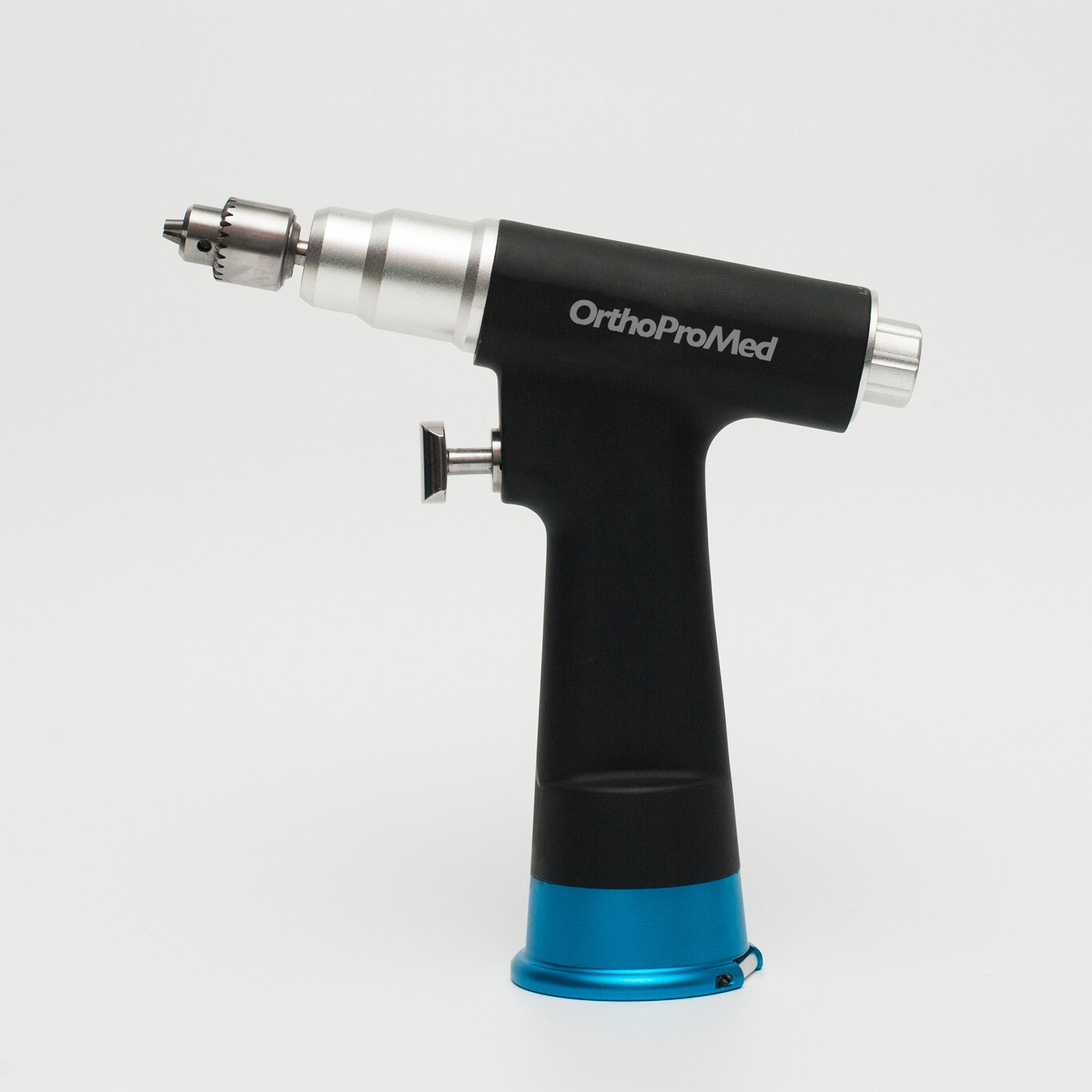

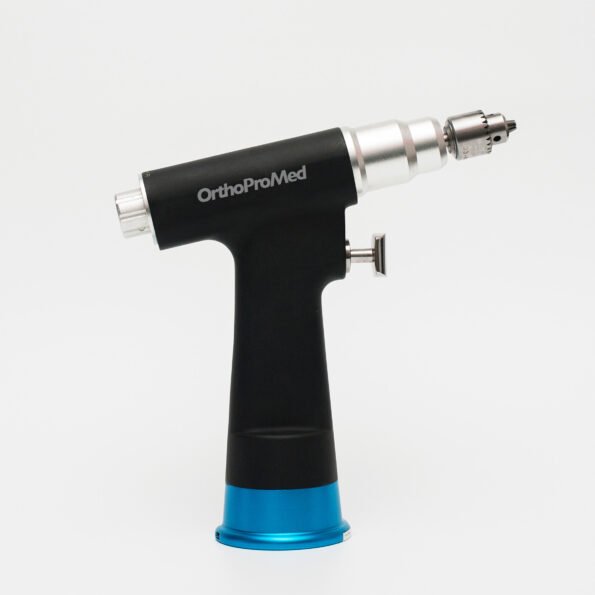

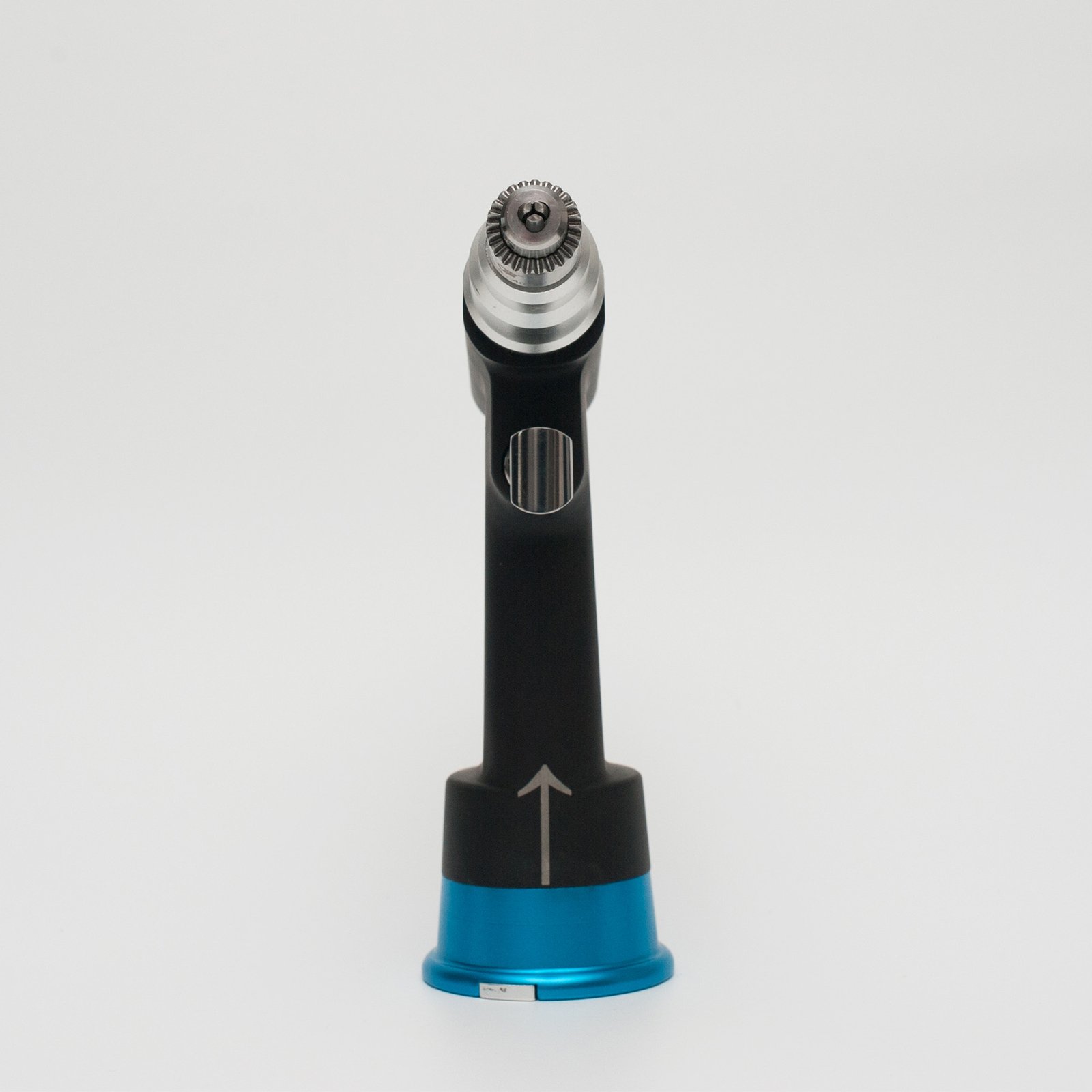

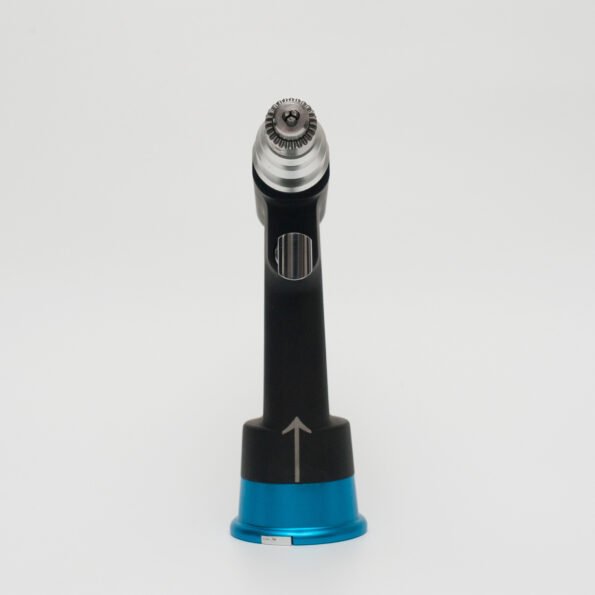

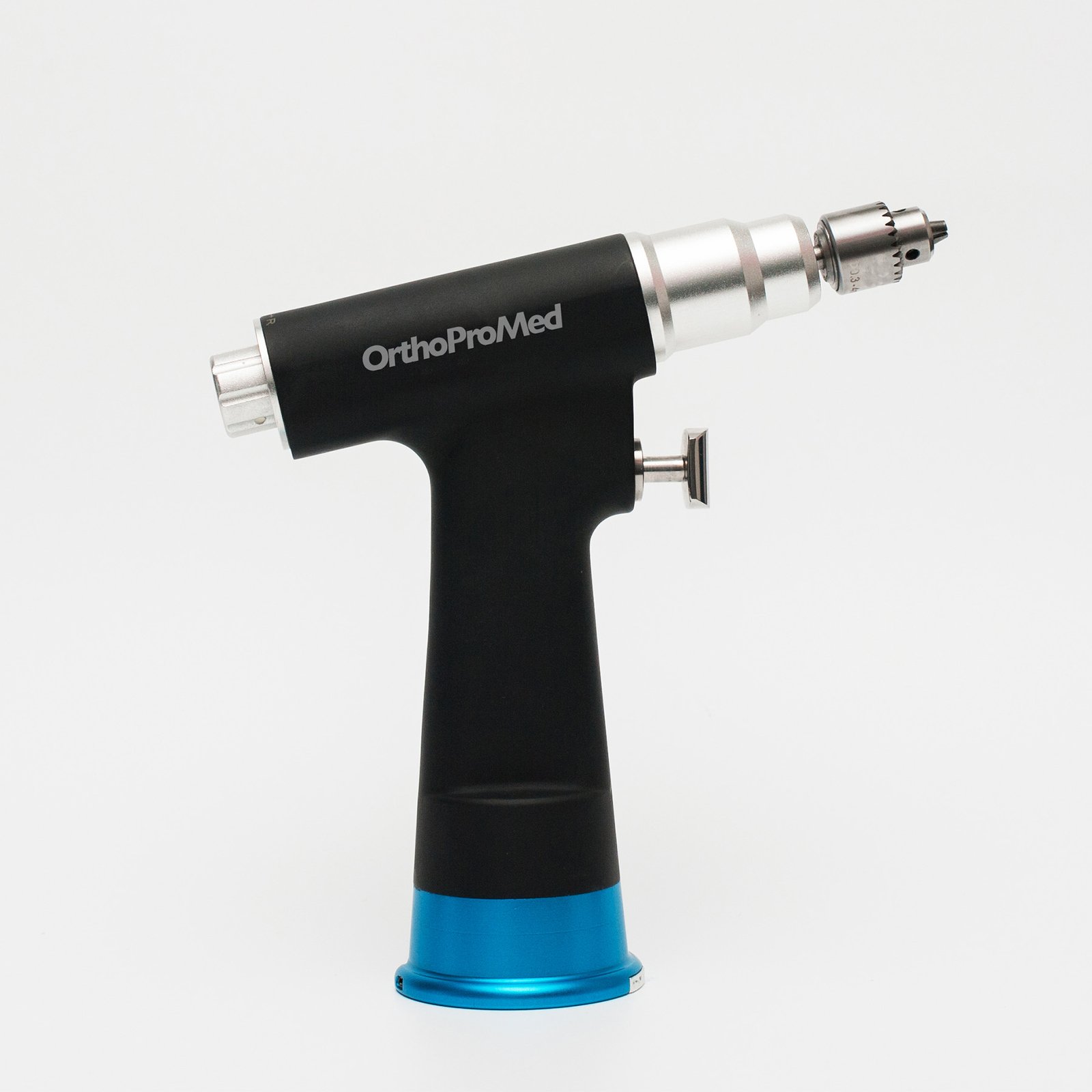

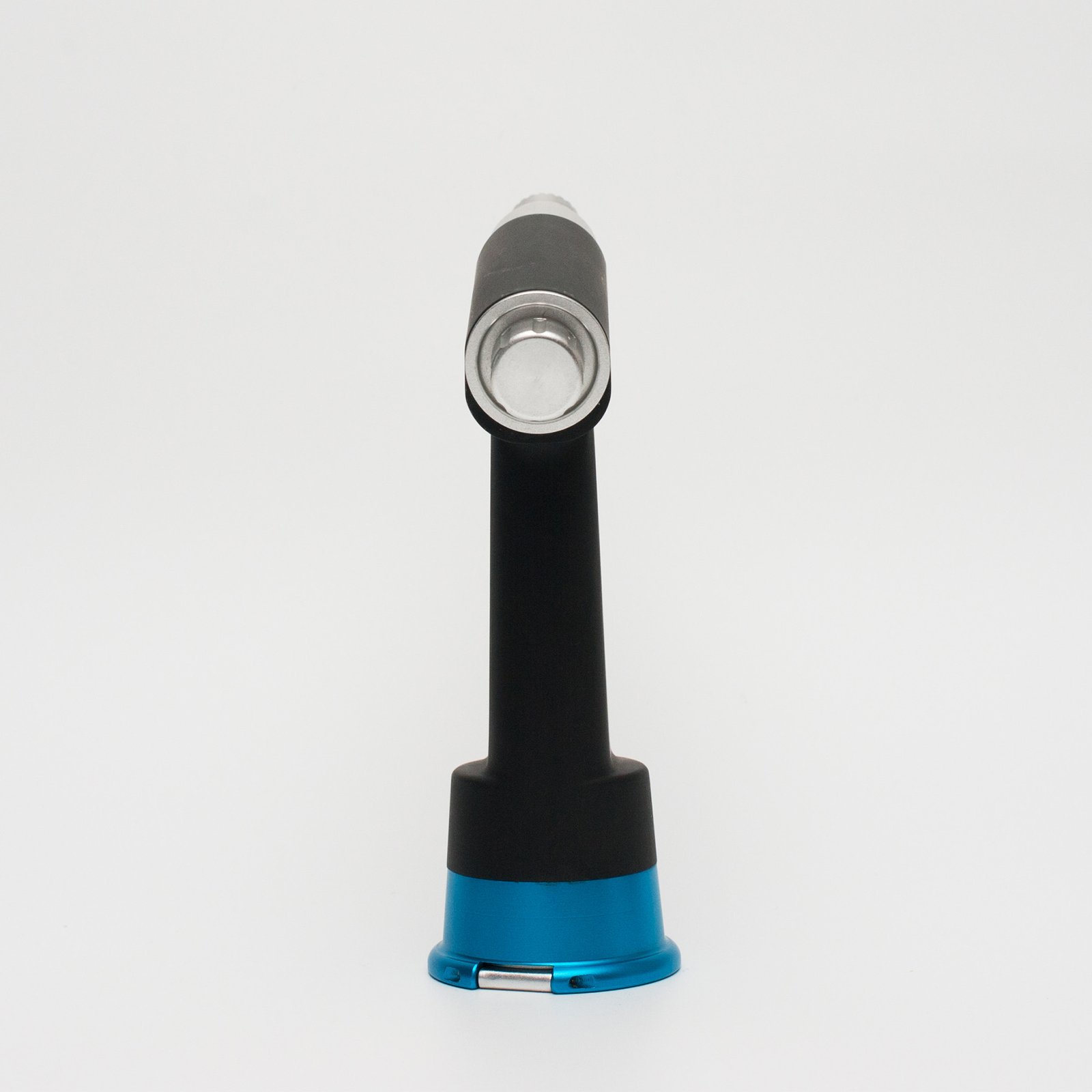

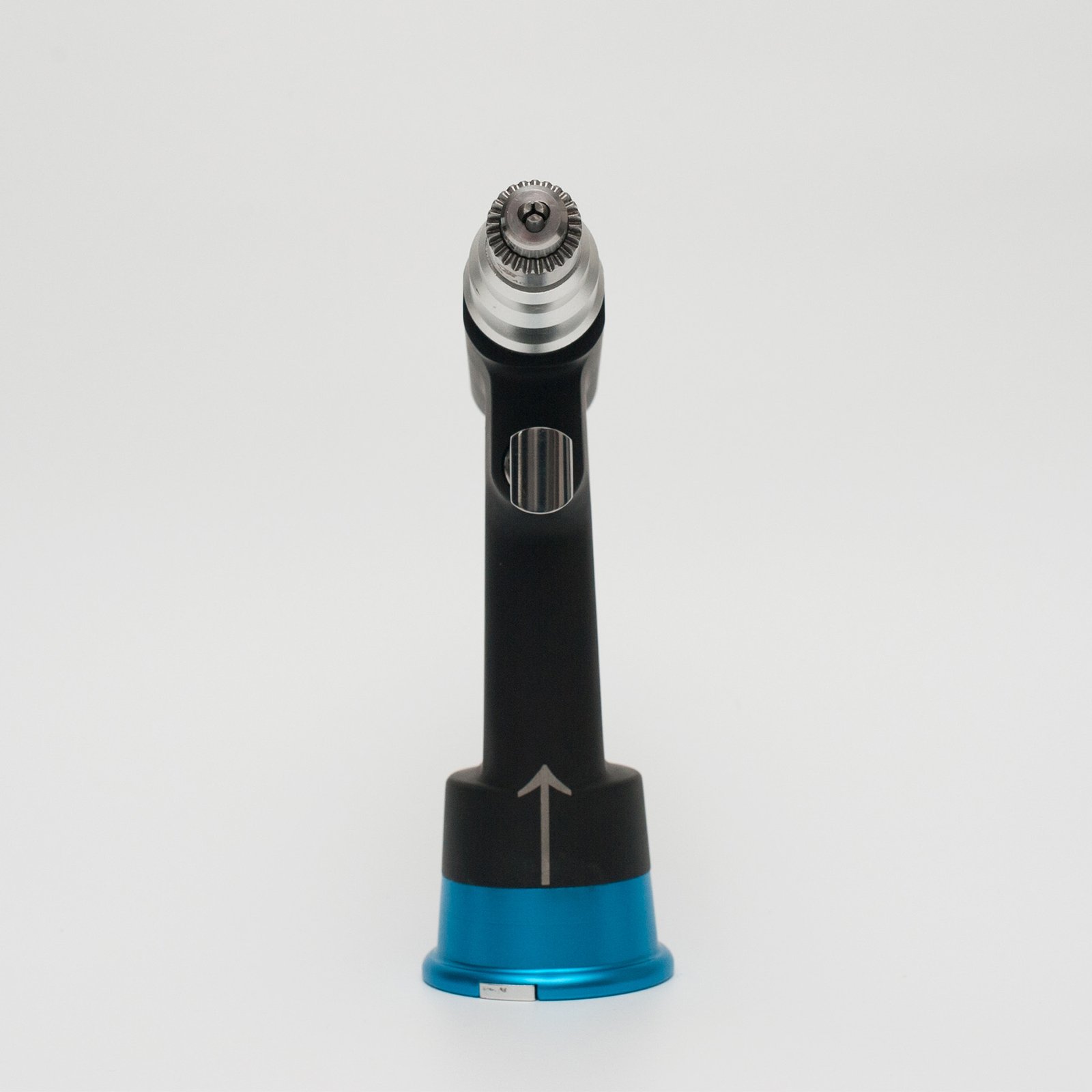

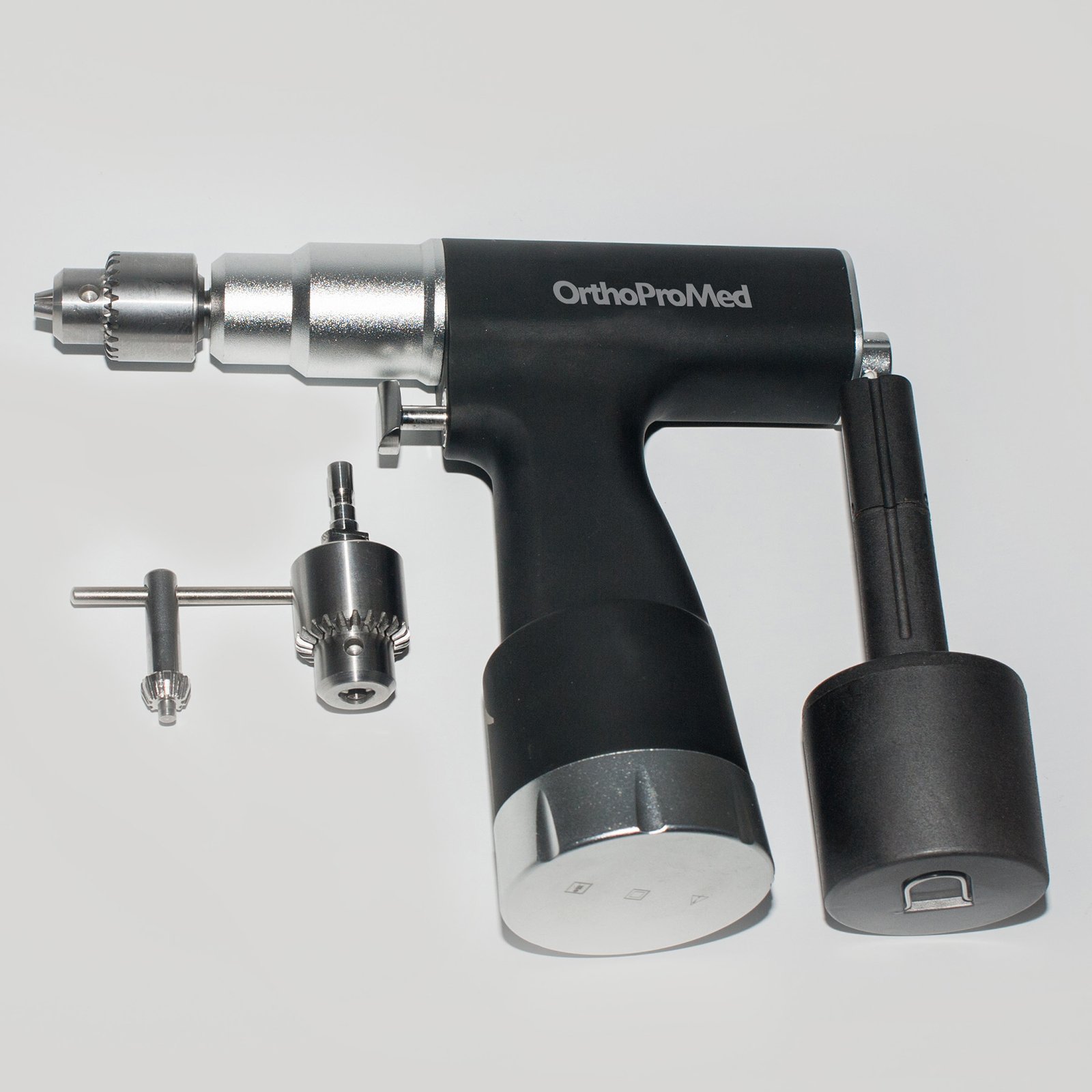

Medical Electric Minimal Invasive Bone Drill (Specially For Ankles Operation) 106
$1,235.00
– Designed for ankle operations and other orthopedic trauma surgeries
– Variable speed with low noise for precise drilling
– Battery-powered with a capacity of 1600mA/h for portability
– Rated speed up to 1000rpm with customizable options
Description
Medical Electric Minimal Invasive Bone Drill (Ankle Operations)
Precision battery-powered drilling system engineered for ankle and foot surgery. Variable speed control with low noise output, high coaxiality, and extended service life for reliable trauma and orthopedic procedures.
Clinical overview
The Medical Electric Minimal Invasive Bone Drill is specifically designed for ankle operations and comprehensive orthopedic trauma surgery. Primarily used for drilling holes to accommodate plate and screw fixation during trauma procedures, this system delivers precision and reliability in hand and foot surgical applications where accuracy is paramount.
With variable speed control, exceptionally low noise output, and high coaxiality, the drill ensures minimal tissue trauma and extended operational life. The battery-powered design provides portability and ease of use in diverse surgical environments, while the compact form factor facilitates access to confined anatomical spaces typical of ankle and foot procedures.
Key features & surgeon benefits
High Coaxiality & Control
- Variable speed 0–1000 rpm for optimal control
- Minimal runout ensures accurate hole placement
- Ideal for delicate ankle and foot anatomy
Cordless Portability
- 1600 mA/h battery capacity for extended use
- Lightweight design reduces surgeon fatigue
- Quick-change chuck (0–4 mm) for multiple drill sizes
Low Noise Operation
- ≤60 dB noise level for patient and OR comfort
- Reduced vibration for enhanced tactile feedback
- Minimal thermal generation during operation
Long Service Life
- Robust construction rated for 4.5 Nm torque
- HTHP sterilizable (134–138°C) for repeated use
- Customizable speed settings available for OEM applications
Technical specifications
| Indications | Orthopedic trauma surgery, plate and screw fixation, hand and foot surgery |
|---|---|
| Drill chuck diameter | 0–4 mm |
| Rated speed | 0–1000 rpm (customizable) |
| Output power | ≤120 W |
| Rating torque | 4.5 Nm |
| Battery capacity | 1600 mA/h |
| Charging voltage | 7.2 V |
| Input voltage | 110–240 V / 50 Hz |
| Noise level | ≤60 dB |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Warranty | As applicable |

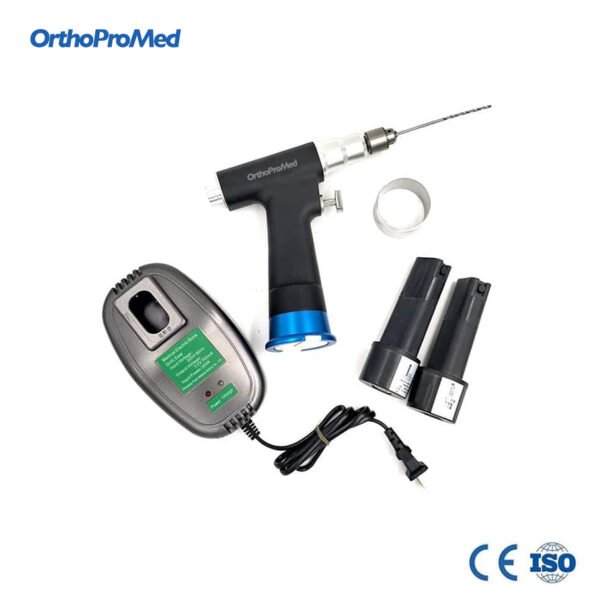

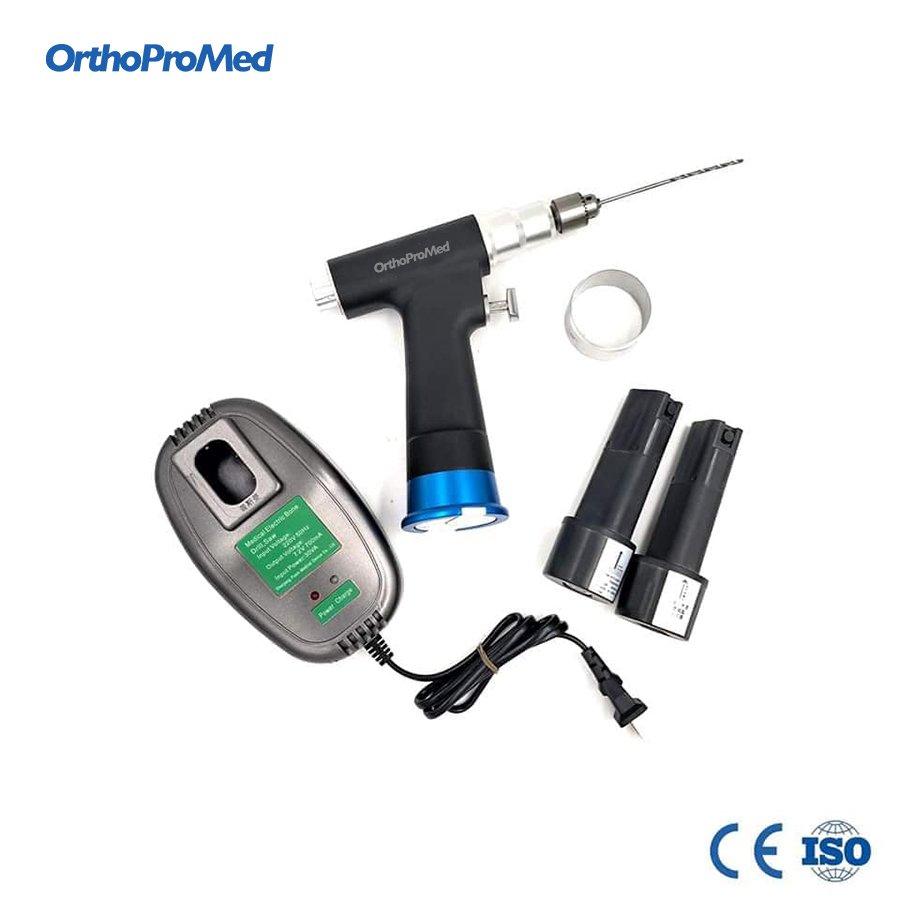

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Drill handpiece | Electric motor unit with variable speed control and battery housing | 1 |
| Battery pack | 1600 mA/h rechargeable lithium-ion battery (7.2 V) | 1 |
| Charger unit | AC power adapter (110–240 V / 50 Hz) | 1 |
| Quick-change chuck | 0–4 mm collet system | 1 |
| Drill bits | Assorted surgical-grade steel bits (0–4 mm range) | As applicable |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customization options for the Medical Electric Minimal Invasive Bone Drill. We provide comprehensive support for hospital procurement and surgeon training.
Email: info@tedsmedical.com
