Medical Electric Cannulated Bone Drill 605
Original price was: $1,027.00.$962.00Current price is: $962.00.
– Suitable for all brands of intramedullary nail and kirschner wire operations
– Center hole diameter is 4.0mm for precise concentricity
– Input voltage range of 110V-240V/50Hz
– Output power of ≤120W
– Battery capacity of 1800mA/h
– Rated speed of 0-1000rpm (customizable)
– Noise level ≤60db, ensuring a quiet operation
Description

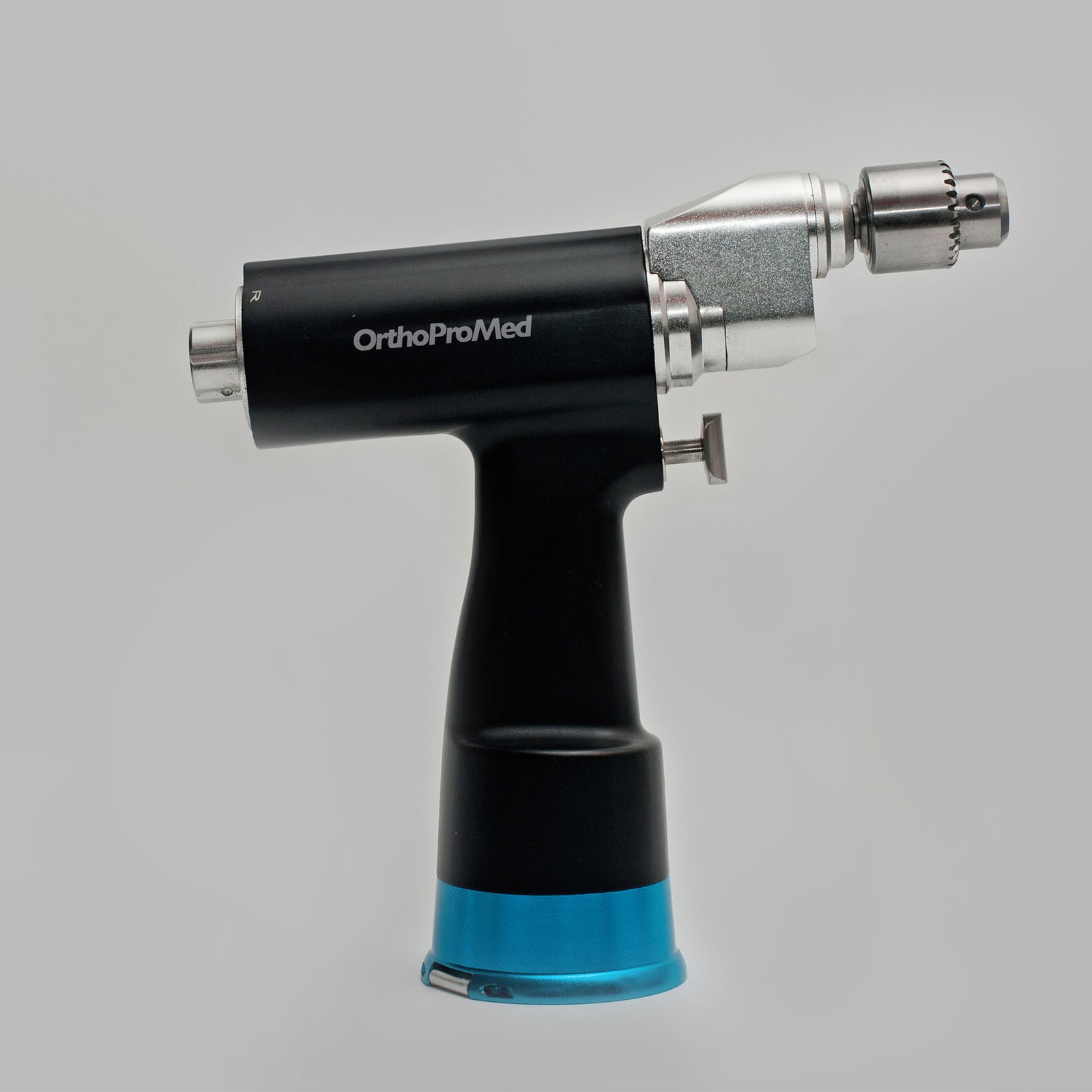

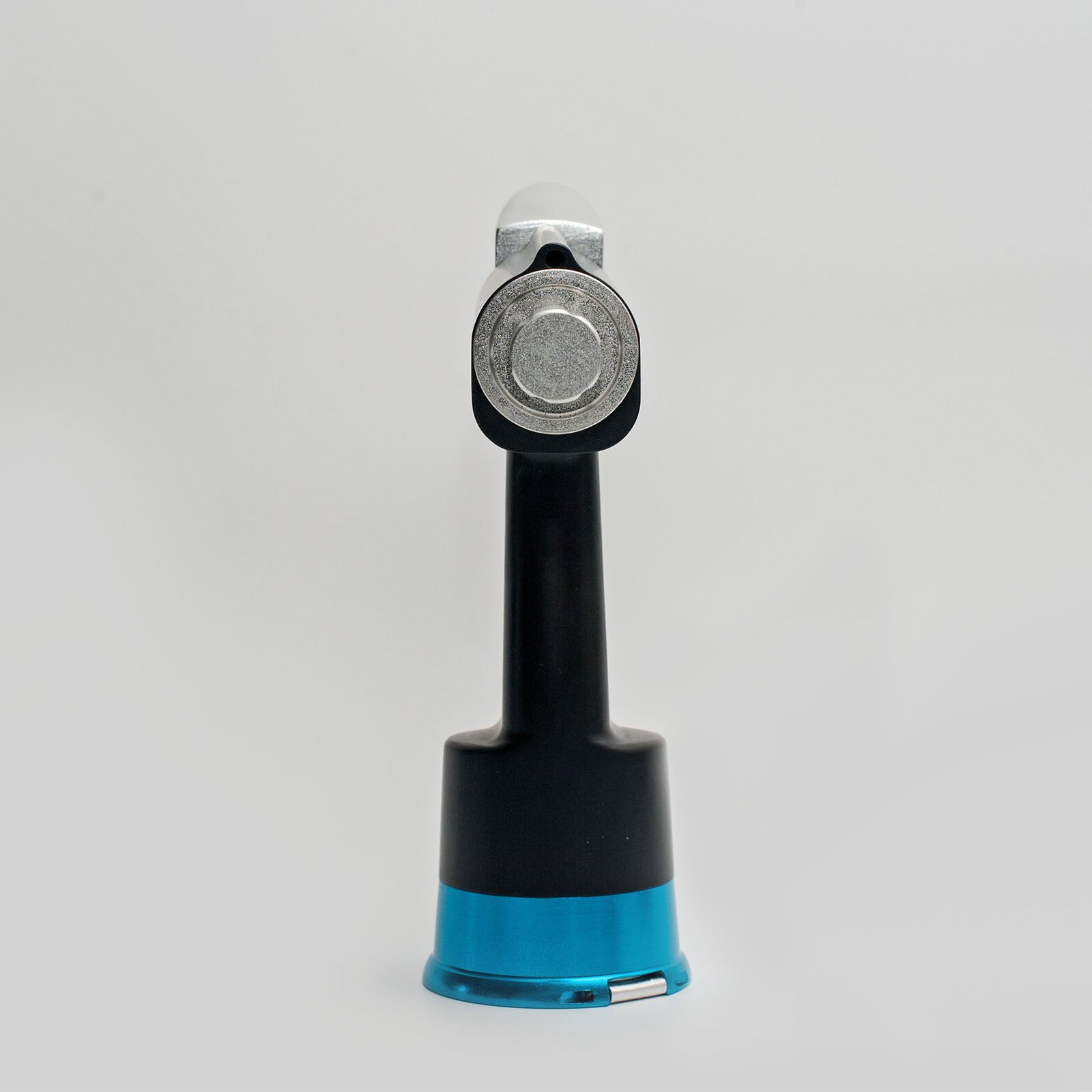

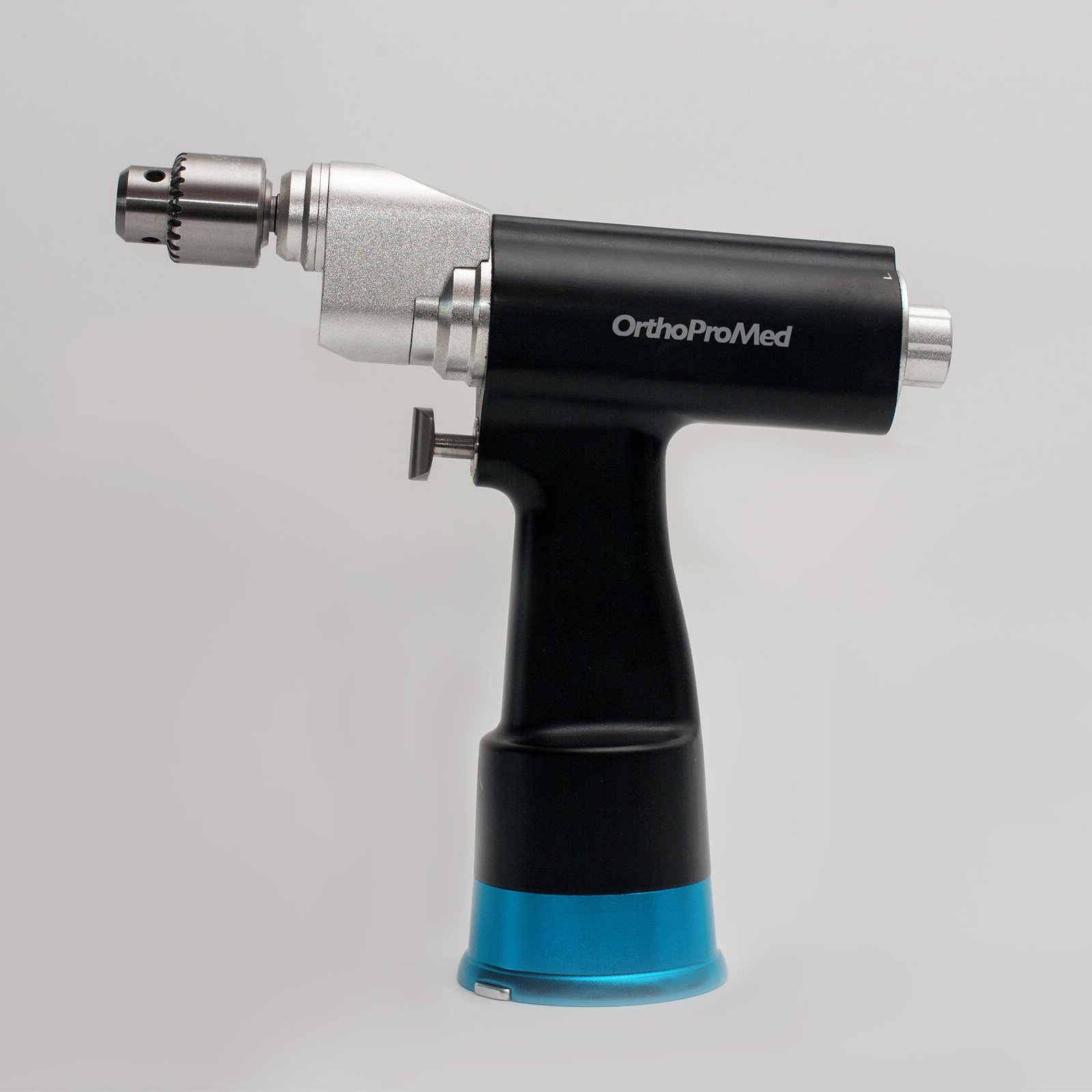

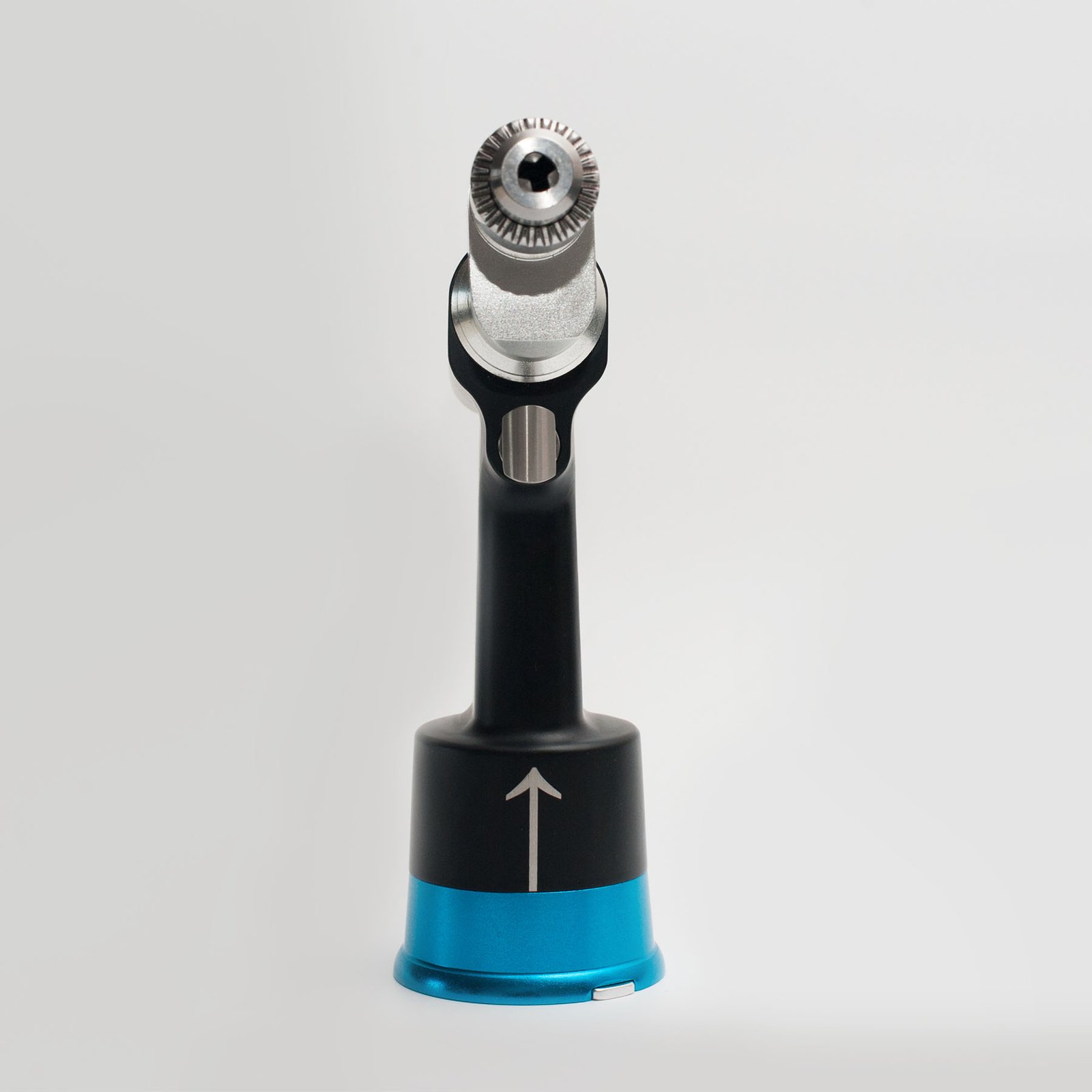

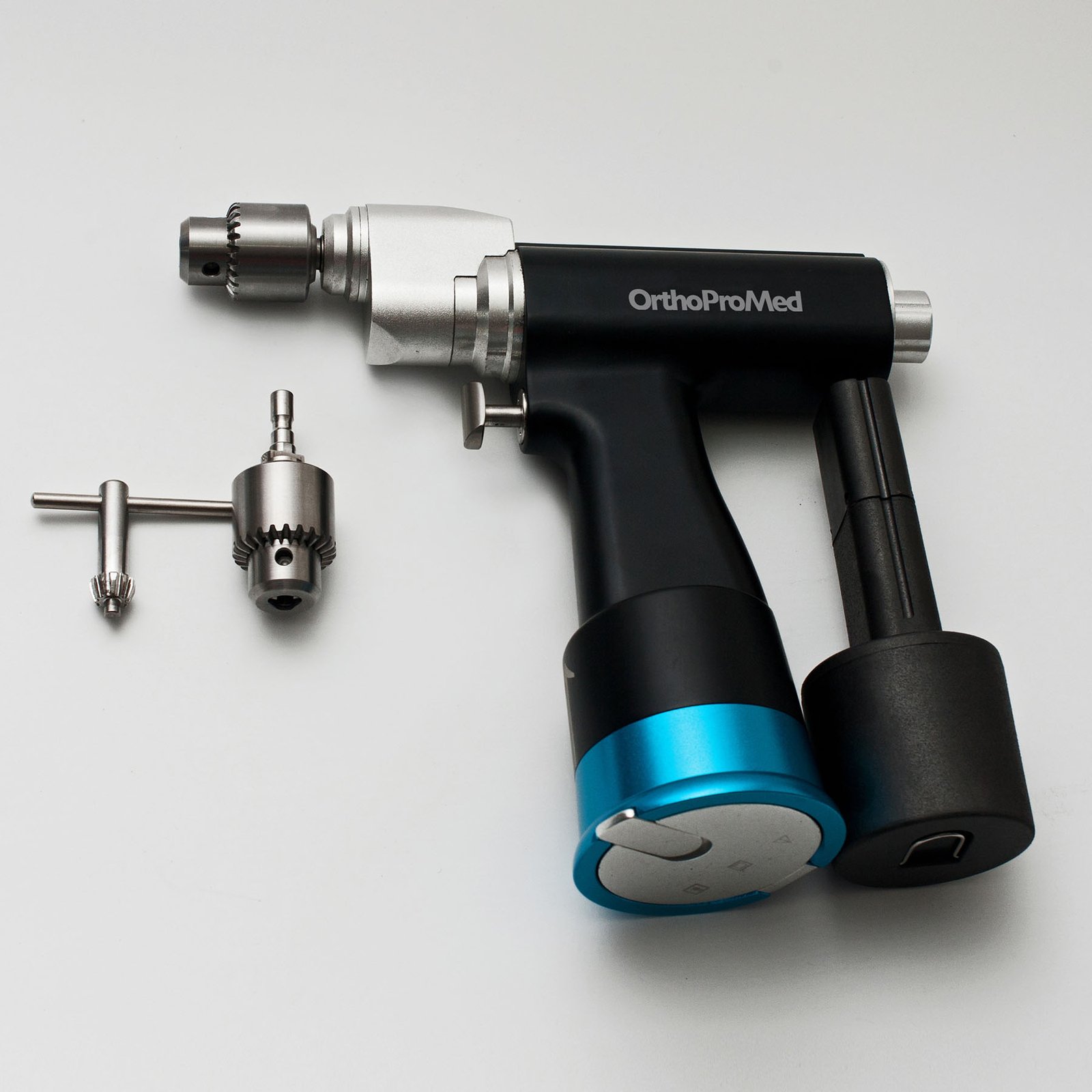

Medical Electric Cannulated Bone Drill 605
Precision-engineered electric bone drill system designed for intramedullary nail and Kirschner wire operations. Features a 4.0mm center hole for enhanced concentricity, variable speed control, and quiet operation—delivering superior accuracy and surgeon confidence in trauma and orthopedic procedures.
Clinical overview
The Medical Electric Cannulated Bone Drill 605 is engineered for precision in intramedullary nail and Kirschner wire operations. The 4.0mm center hole diameter ensures precise concentricity, improving surgical accuracy and enabling more controlled, predictable outcomes. Compatible with all major intramedullary nail systems, this drill reduces operative time and enhances reproducibility across a range of trauma and orthopedic procedures.
With variable speed control (0–1000 RPM), surgeons can optimize drilling parameters for different bone densities and anatomical locations. The quiet operation (≤60dB) minimizes fatigue in the operating room, while the robust 1800mAh battery capacity and 120W output power deliver consistent performance throughout extended procedures. HTHP sterilization compatibility ensures seamless integration into existing surgical protocols.
Key features & surgeon benefits
Concentricity & Accuracy
- 4.0mm center hole diameter for precise alignment
- Reduces deviation and improves surgical outcomes
- Compatible with all major intramedullary nail brands
Ergonomic & Efficient
- Variable speed 0–1000 RPM for adaptive drilling
- Quiet operation ≤60dB reduces OR fatigue
- Cordless design with 1800mAh battery capacity
Consistent Performance
- 120W output power with 6.3Nm rated torque
- Dual voltage input (110–240V/50Hz) for global use
- HTHP sterilization compatible (134–138°C)
Adaptable Solutions
- Speed and torque customization available
- OEM configurations and private labeling supported
- Drill chuck range 0–8mm for versatile applications
Technical specifications
| Indications | Intramedullary nail operations, Kirschner wire procedures, cannulated bone drilling |
|---|---|
| Drill chuck range | 0–8mm |
| Center hole diameter | 4.0mm |
| Input voltage | 110–240V / 50Hz |
| Output power | ≤120W |
| Battery capacity | 1800mAh |
| Rated speed | 0–1000 RPM (customizable) |
| Rated torque | 6.3Nm |
| Charging voltage | 14.4V |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Noise level | ≤60dB |
| Packaging | As applicable |
| Warranty | As applicable |

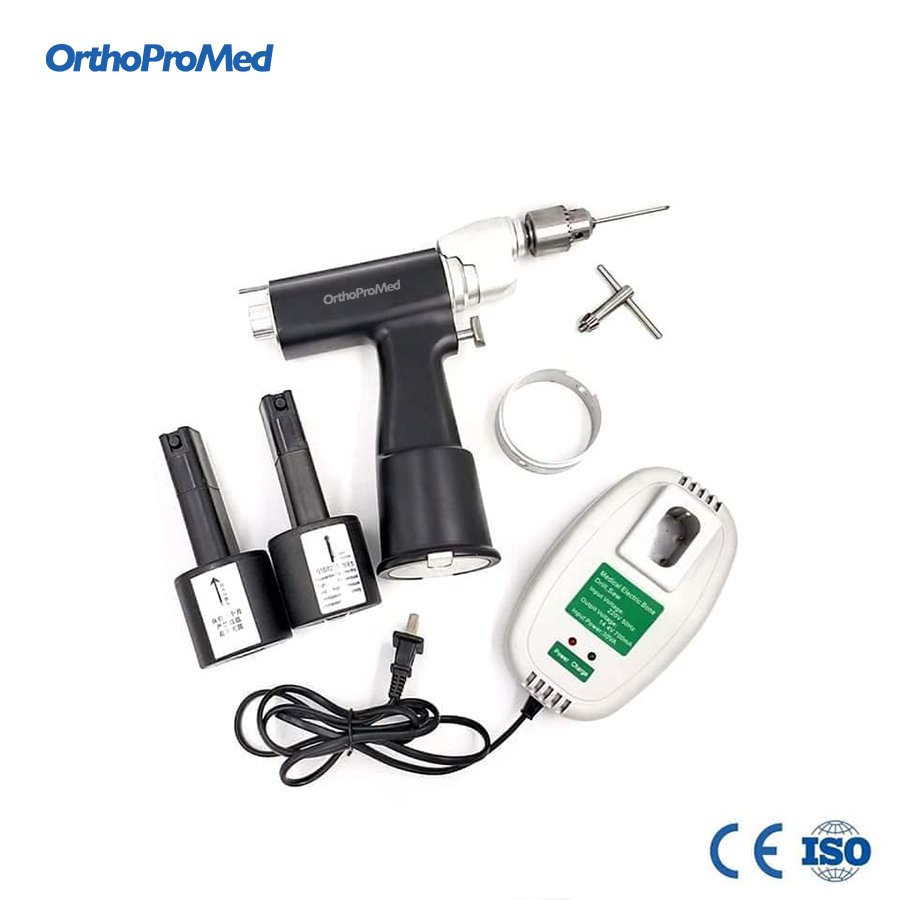

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Electric Cannulated Bone Drill 605 (main unit) | 1 |
| 2 | Rechargeable Battery Pack (1800mAh, 14.4V) | 1 |
| 3 | Charging Adapter (110–240V input) | 1 |
| 4 | Drill Chuck (0–8mm range) | 1 |
| 5 | Sterilization Case / Carrying Case | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customization options for the Medical Electric Cannulated Bone Drill 605. We support OEM partnerships and can tailor specifications to your surgical program requirements.
Email: info@tedsmedical.com
