Teds Medical
Medical Electric Bone Drill 103
4.3(3 reviews)- Suitable for all kinds of orthopedic trauma surgery
- Features a diameter of drill chuck up to 8mm
- Operates on an input voltage range of 110V-240V/50Hz
- Output power of ≤120W
- Battery capacity of 2500mA/h
- Rated speed ranges from 0-1200rpm (customization available)
- SKU
- 1DC3A89D0D44
- Brand
- Teds Medical
- Availability
- In stock
- ✓ Worldwide shipping
Orthopedic Power Tools

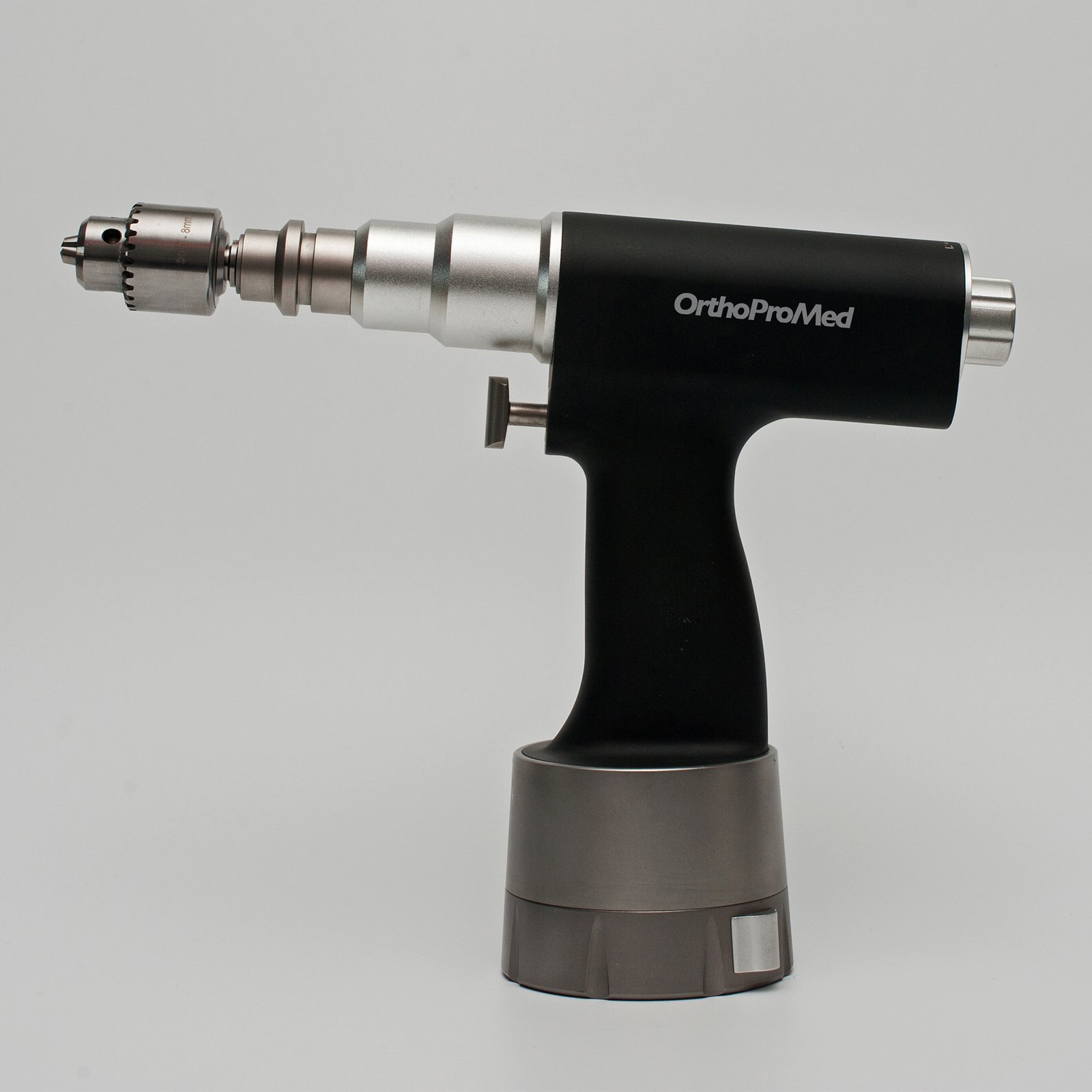

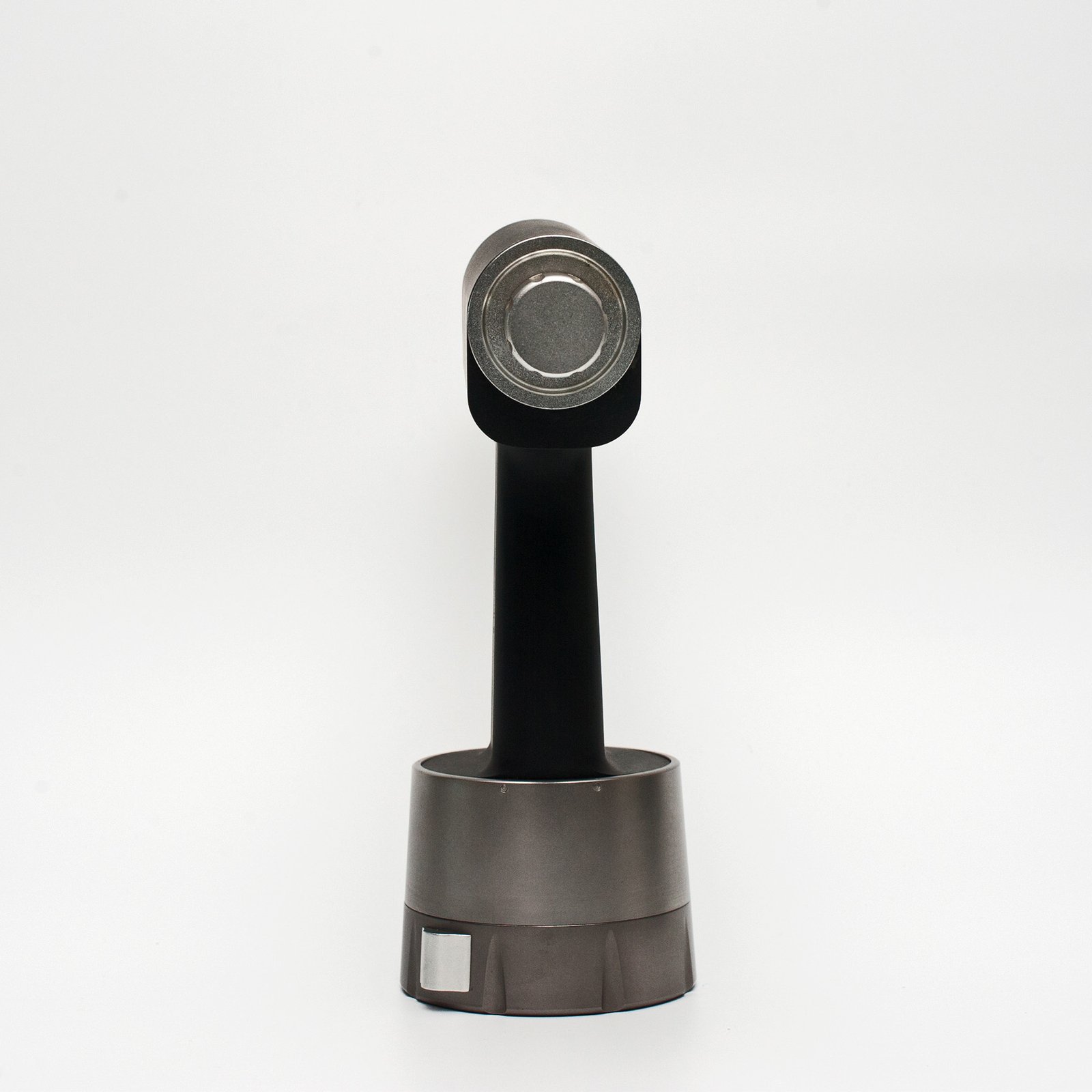

Medical Electric Bone Drill 103
A versatile, cordless electric bone drill engineered for orthopedic trauma surgery. Delivers precise drilling and positioning of bone tissue with variable speed control, compact design, and reliable battery performance for demanding surgical environments.
Ordering Ref.
1dc3a89d0d44
ConfigurationCordless Electric
MaterialSurgical-grade Steel
ApplicationOrthopedic Trauma
Customization available for speed profiles and chuck configurations. OEM partnerships welcome.
Clinical overview
The Medical Electric Bone Drill 103 is purpose-built for orthopedic trauma procedures requiring precise bone drilling and positioning. Its cordless architecture eliminates cable management constraints, while the variable-speed motor (0–1200 rpm) accommodates diverse bone densities and surgical techniques. The compact, ergonomic handpiece reduces surgeon fatigue during extended procedures.
With a 2500 mAh battery and rapid charging capability, the drill maintains consistent torque output throughout the surgical day. HTHP sterilization compatibility ensures seamless integration into standard OR protocols, and the low noise profile (≤70 dB) minimizes OR disruption.
Key features & surgeon benefits
Performance
Reliable Power & Control
- 0–1200 rpm variable speed for bone density adaptation
- 4.5 Nm rated torque ensures consistent drilling performance
- Drill chuck accommodates 0–8 mm bits
Workflow
Cordless Convenience
- 2500 mAh battery eliminates cable constraints
- 14.4 V charging voltage for rapid turnaround
- Compact, lightweight design reduces hand fatigue
Sterilization
OR-Ready Design
- HTHP sterilization at 134–138°C
- Low noise (≤70 dB) minimizes OR disruption
- Durable construction withstands repeated sterilization cycles
Customization
Flexible Configuration
- Speed profiles customizable to institutional protocols
- Chuck size and torque adjustments available
- OEM partnerships and white-label options supported
Technical specifications
| Indications | Orthopedic trauma surgery; bone drilling and positioning |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Rated speed | 0–1200 rpm (customizable) |
| Rating torque | 4.5 Nm |
| Input voltage | 110–110V/240V / 50/60Hz |
| Output power | ≤120 W |
| Battery capacity | 2500 mAh |
| Charging voltage | 14.4 V |
| Sterilisation method | HTHP |
| Sterilising temperature | 134–138°C |
| Noise level | ≤70 dB |
| Packaging | As applicable |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Medical Electric Bone Drill 103 | Cordless electric bone drill with variable speed control | 1 |
| Battery pack | 2500 mAh rechargeable lithium-ion battery (14.4 V) | 1 |
| Charging unit | AC power charger (110–110V/240V input) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, bulk orders, and customization options for the Medical Electric Bone Drill 103. We support institutional procurement, OEM partnerships, and rapid delivery timelines.
Phone: (302) 613-4333
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
