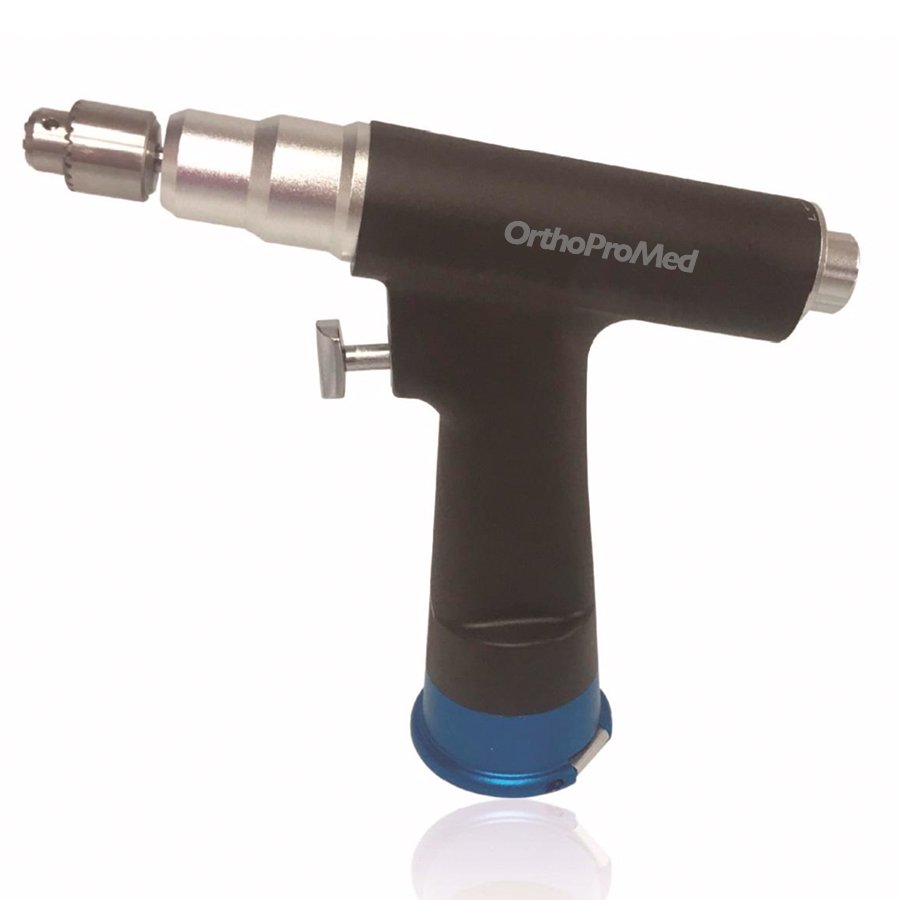

Medical Electric Minimal Invasive Cannulate Bone Drill (Specially For Ankles Operation) 603
Original price was: $1,157.00.$988.00Current price is: $988.00.
– Suitable for trauma on fingers and ankles
– Center hole diameter of Ф2.0mm
– Designed for precise concentricity and improved accuracy in operations
– Adjustable drill chuck diameter of 0-4mm
– Output power of ≥45W
– Battery capacity of 1600mA/h
Description
Medical Electric Minimal Invasive Cannulate Bone Drill (Model 603)
Precision-engineered electric bone drill designed specifically for minimally invasive trauma surgery on fingers and ankles. Features a 2.0mm center hole diameter with hollow motor technology for superior concentricity and operational accuracy. Ideal for surgeons requiring reliable, controlled drilling in confined anatomical spaces.
Clinical overview
The Model 603 is a specialized electric bone drill engineered for minimally invasive trauma procedures on the fingers and ankles. Its hollow motor design with a 2.0mm center hole diameter enables precise concentricity, critical for accurate guide wire placement and screw insertion in confined surgical fields. The combination of controlled power delivery and compact form factor makes it ideal for delicate anatomical regions where precision and minimal tissue disruption are paramount.
With adjustable speed control (0–1000 rpm) and a rated torque of 6.3 Nm, the drill provides surgeons with the tactile feedback and control necessary for safe, accurate bone penetration. The 1600 mAh battery capacity ensures adequate runtime for typical procedures, while rapid charging (7.2V) minimizes OR downtime.
Key features & surgeon benefits
Superior Concentricity
- 2.0mm center hole diameter for precise guide wire alignment
- Hollow motor design minimizes runout and drift
- Enhanced accuracy in confined anatomical spaces
Cordless Convenience
- 1600 mAh battery provides reliable runtime per procedure
- 7.2V rapid charging minimizes OR delays
- Lightweight, ergonomic design reduces surgeon fatigue
Controlled Power Delivery
- Variable speed 0–1000 rpm for optimal bone engagement
- 6.3 Nm rated torque provides consistent drilling force
- ≤60 dB noise level for improved OR environment
Ready for Reprocessing
- HTHP sterilization compatible (134–138°C)
- Robust construction withstands repeated sterilization cycles
- Customizable speed profiles available for OEM integration
Technical specifications
| Indications | Trauma on fingers and ankles; minimally invasive orthopedic procedures |
|---|---|
| Drill chuck diameter | 0–4 mm |
| Center hole diameter | Ф2.0 mm |
| Input voltage | 110V–240V / 50 Hz |
| Output power | ≥45 W |
| Rated speed | 0–1000 rpm (customizable) |
| Rating torque | 6.3 Nm |
| Battery capacity | 1600 mAh |
| Charging voltage | 7.2 V |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilizing temperature | 134–138°C |
| Noise level | ≤60 dB |
| Packaging | As applicable |
| Warranty | As applicable |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Model 603 Bone Drill | Electric cordless drill unit with hollow motor and 2.0mm center hole | 1 |
| Battery pack | 7.2V rechargeable lithium-ion battery (1600 mAh) | 1 |
| Charger | 7.2V rapid charging unit | 1 |
| Drill chuck | 0–4mm adjustable chuck assembly | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a clinical demonstration, or discuss customization options for the Model 603 bone drill system.
Email: info@tedsmedical.com
